Rear seat & seat track for Vitz KSP90
|
Here are parts you've selected:
| ||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

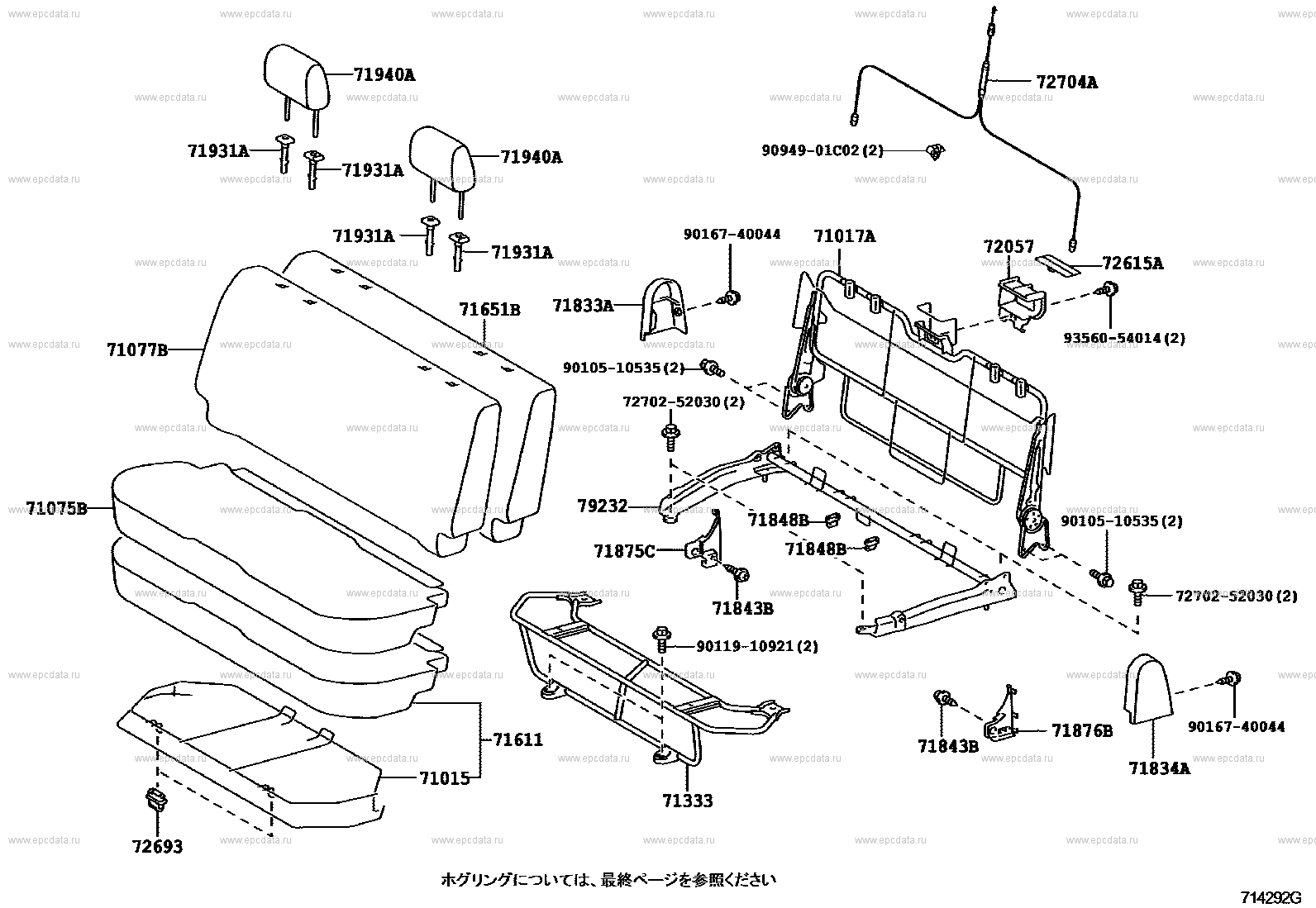

Scheme 1
|
(0512-0708)KSP90..ILL ｺﾃｲｼｷｼｰﾄ |
Click part number in the scheme or in the list: 71017A FRAME SUB-ASSY, REAR SEAT BACK71848B CAP, SEAT ADJUSTER COVER, RH 71075B COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71611 PAD, REAR SEAT CUSHION 71015 FRAME SUB-ASSY, REAR SEAT CUSHION 72693 HOOK, REAR SEAT CUSHION LOCK 71077B COVER, REAR SEAT BACK (FOR BENCH TYPE) 71651B PAD, REAR SEAT BACK(FOR BENCH TYPE) 71833A COVER, REAR SEAT RECLINING, NO.1 RH 71834A COVER, REAR SEAT RECLINING, NO.1 LH 71875C COVER, RECLINING ADJUSTER INSIDE, RH 71876B COVER, RECLINING ADJUSTER INSIDE, LH 71940A HEADREST ASSY, REAR SEAT 72057 LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72704A CABLE, REAR SEAT RECLINING CONTROL 7270252030 ** Std Part 9010510535 ** Std Part 9011910921 ** Std Part 9356054014 ** Std Part 72615A COVER, REAR SEAT BACK LOCK STRIKER, RH 9094901C02 ** Std Part 71931A SUPPORT, REAR SEAT HEADREST 79232 LEG, REAR NO.2 SEAT, RH 9016740044 ** Std Part 71333 LEG, REAR SEAT CUSHION, NO.1 71843B CLIP, REAR SEAT RECLINING COVER |
Scheme 2
Scheme 3
|
(0501- ) ﾎｸﾞﾘﾝｸﾞ |
Click part number in the scheme or in the list: 9046818008 ** Std Part9046816019 ** Std Part |
