Fuel injection system for Verossa GX115

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 22271 22271-70030 01 06.2001 - 04.2004 GASKET, THROTTLE BODY 1GFE..GX11# ＮＯ．１  7.00 to 9.45 USD 02 22271 22271-70040 01 06.2001 - 04.2004 GASKET, THROTTLE BODY 1GFE..GX11# ＮＯ．２  6.44 to 7.00 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

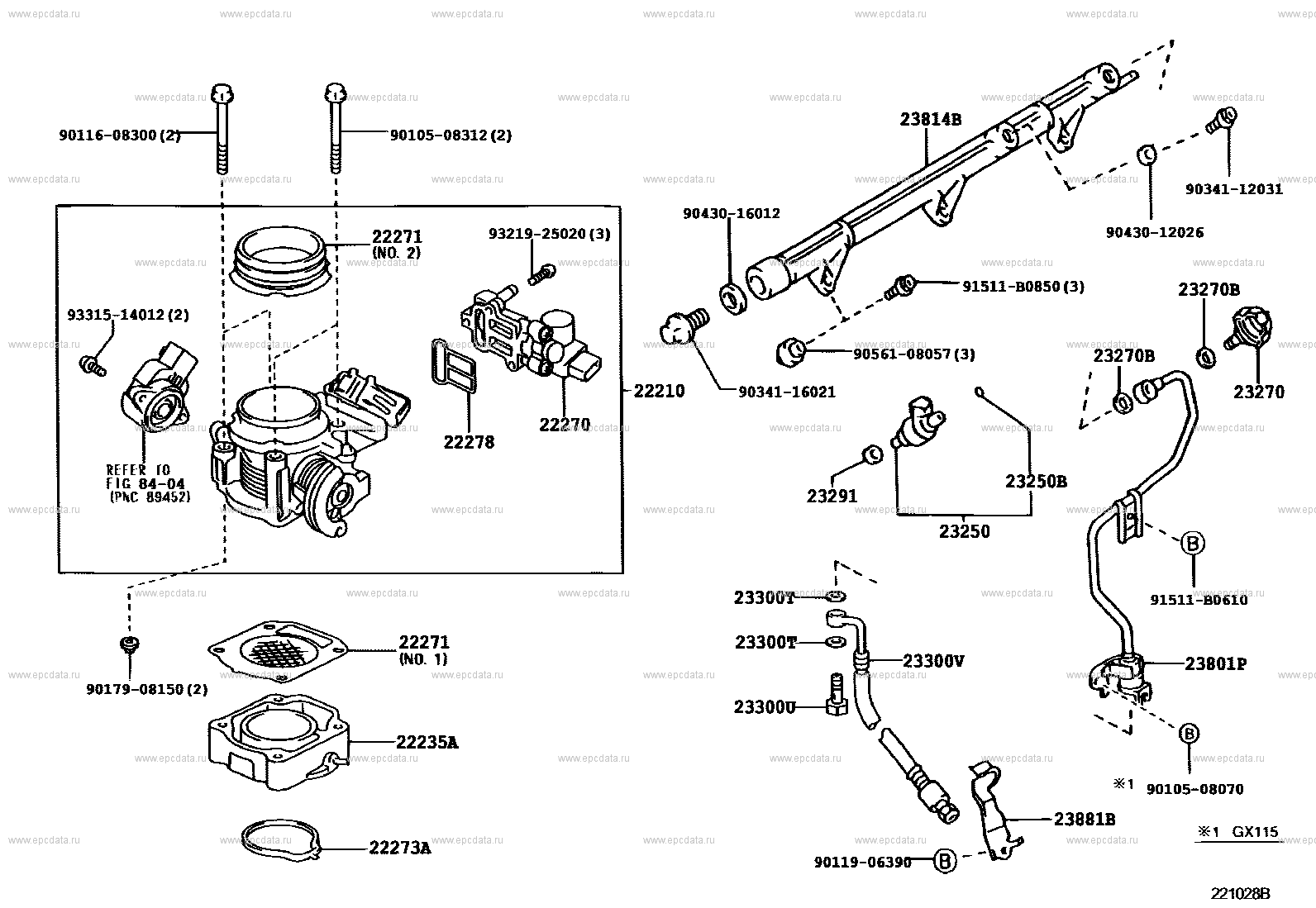

Scheme 1

(0106- )1GFE ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9011608300 ** Std Part 9010508312 ** Std Part 9331514012 ** Std Part 9321925020 ** Std Part 22273A GASKET, THROTTLE BODY, NO.2 22278 GASKET, IDLE SPEED CONTROL VALVE 22270 VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 GASKET, THROTTLE BODY 22210 BODY ASSY, THROTTLE 9034116021 ** Std Part 9043016012 ** Std Part 9056108057 ** Std Part 91511B0850 ** Std Part 23814B PIPE, FUEL DELIVERY 9043012026 ** Std Part 9034112031 ** Std Part 23270 DAMPER ASSY, FUEL PRESSURE PULSATION 23270B GASKET(FOR PULSATION DAMPER HOSE) 23250 INJECTOR ASSY, FUEL 23250B RING, O(FOR FUEL INJECTOR) 23291 INSULATOR, INJECTOR VIBRATION 91511B0610 ** Std Part 23801P PIPE SUB-ASSY, FUEL, NO.1 9010508070 ** Std Part 23300T GASKET(FOR FUEL FILTER) 23300U BOLT, UNION(FOR FUEL FILTER) 23300V HOSE, FUEL(FOR FUEL INLET) 23881B BRACKET, FUEL HOSE 9011906390 ** Std Part 9017908150 ** Std Part 22235A INLET, AUXILIARY AIR ** 84-04

Scheme 2

(0106- )1GFE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: ** 77-01 23300Z FILTER, FUEL(FOR FUEL TANK) 23020A REGULATOR ASSY, FUEL PRESSURE W/JET PUMP 23220P PUMP ASSY, FUEL 23217A FILTER, FUEL PUMP 23229 CLIP(FOR FUEL PUMP FILTER) 23249 RUBBER, CUSHION(FOR FUEL PUMP)

Verossa GX115
