Wiring & clamp for Ractis NCP105
|
Here are parts you've selected:
| ||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

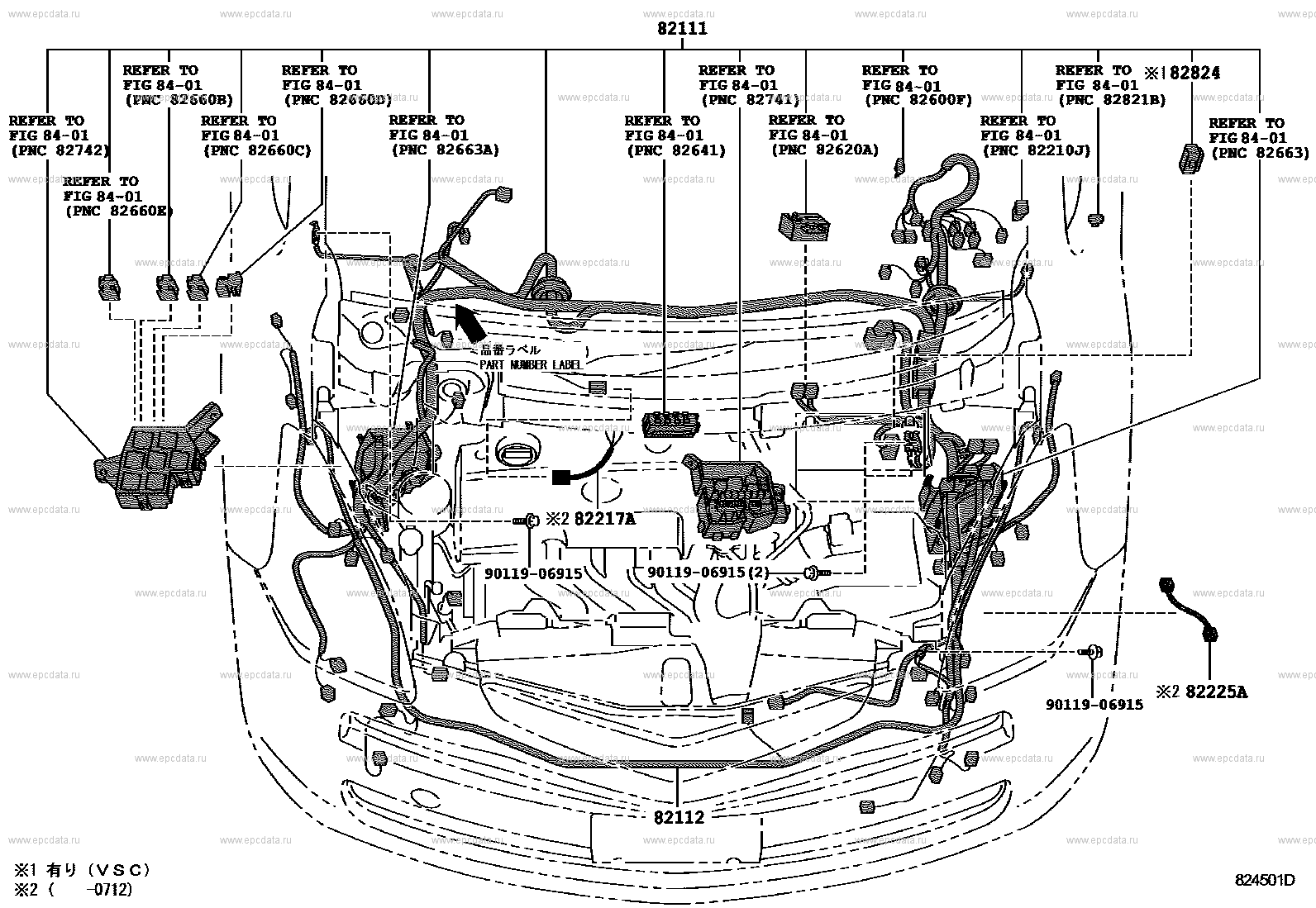

(0509- ) ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 1 OF 7 |
Click part number in the scheme or in the list: 82112 WIRE, ENGINE ROOM, NO.282225A WIRE, LAMP, NO.2 82111 WIRE, ENGINE ROOM MAIN 82217A WIRE, FRONT WINDOW DEFOGGER 9011906915 ** Std Part 82824 CONNECTOR, WIRING HARNESS ** 84-01 |
Scheme 2
|

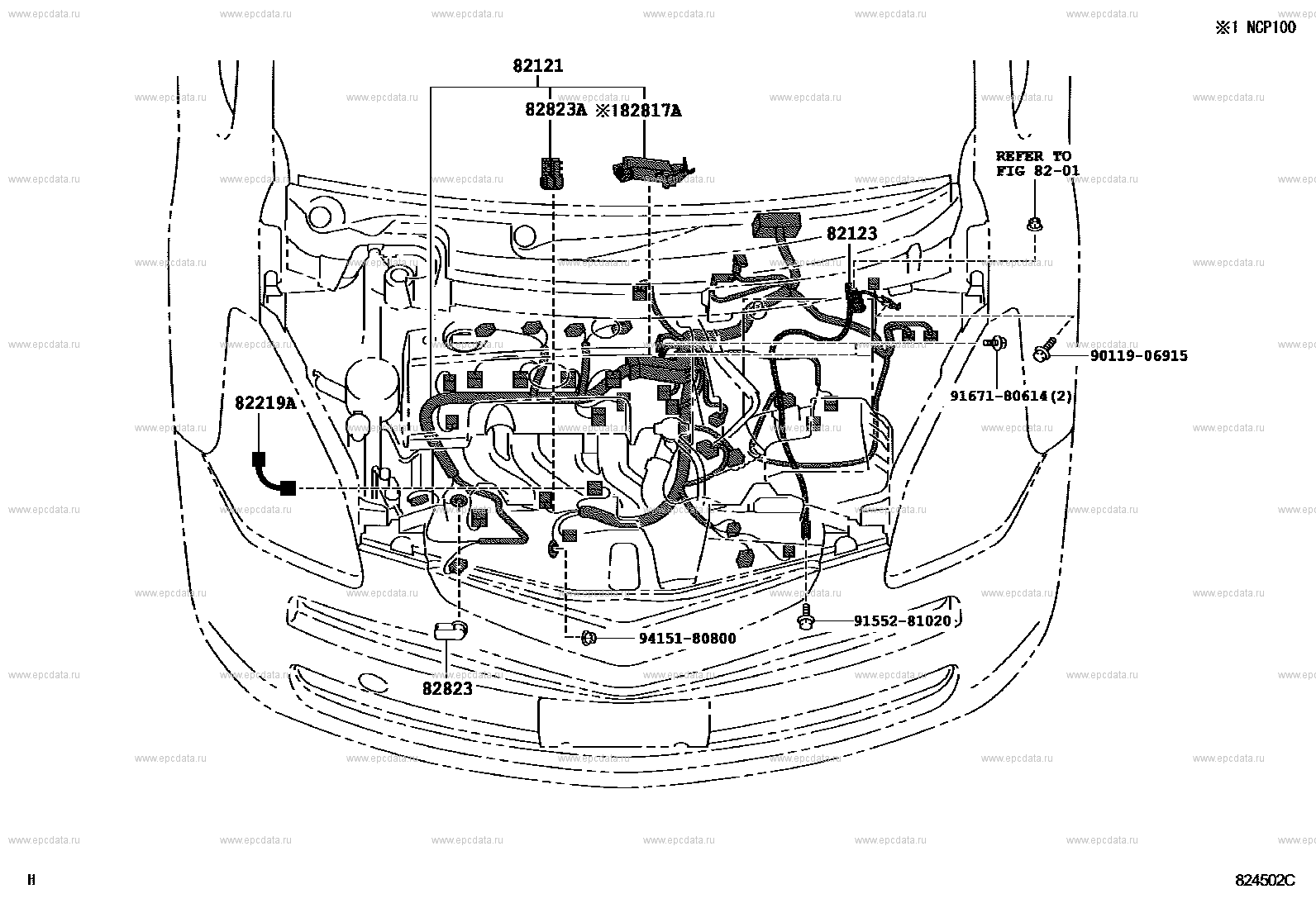

(0509- )NCP10# ｴﾝｼﾞﾝ ILLUST NO. 2 OF 7 |
Click part number in the scheme or in the list: 9011906915 ** Std Part9155281020 ** Std Part 9415180800 ** Std Part 82123 WIRE, ENGINE, NO.3 82823 CAP, TERMINAL, NO.1 9167180614 ** Std Part 82219A WIRE, SENSOR 82121 WIRE, ENGINE 82823A CAP, TERMINAL, NO.2 82817A PROTECTOR, WIRING HARNESS, NO.2 ** 82-01 |
Scheme 3
|

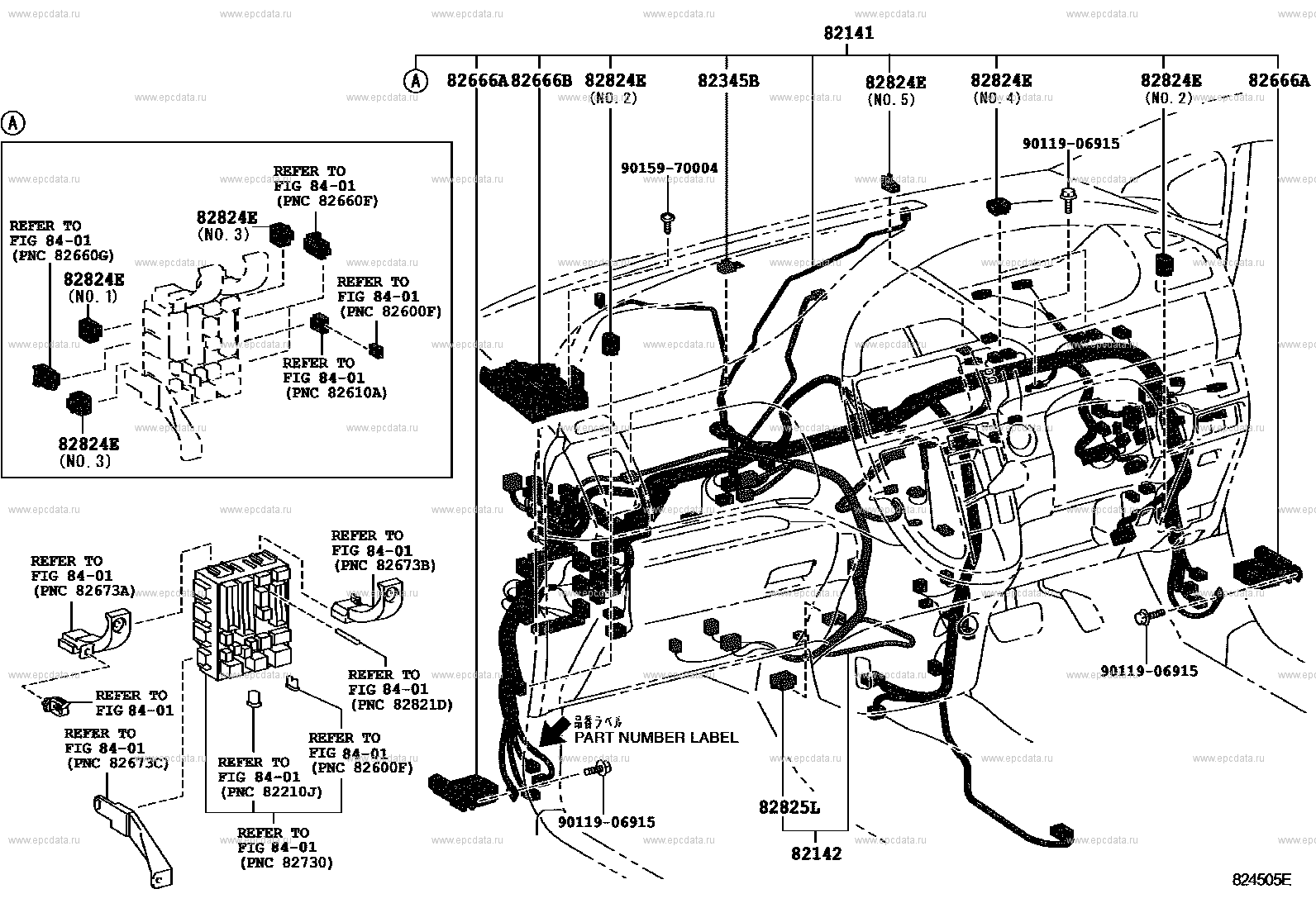

(0509- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 3 OF 7 |
Click part number in the scheme or in the list: 82666A HOLDER, CONNECTOR NO.282666B HOLDER, CONNECTOR NO.3 82824E CONNECTOR, WIRING HARNESS 82825L CONNECTOR, WIRING HARNESS 82142 WIRE, INSTRUMENT PANEL, NO.2 82141 WIRE, INSTRUMENT PANEL 9011906915 ** Std Part 82345B DIODE ** 84-01 9015970004 ** Std Part |
Scheme 4
|

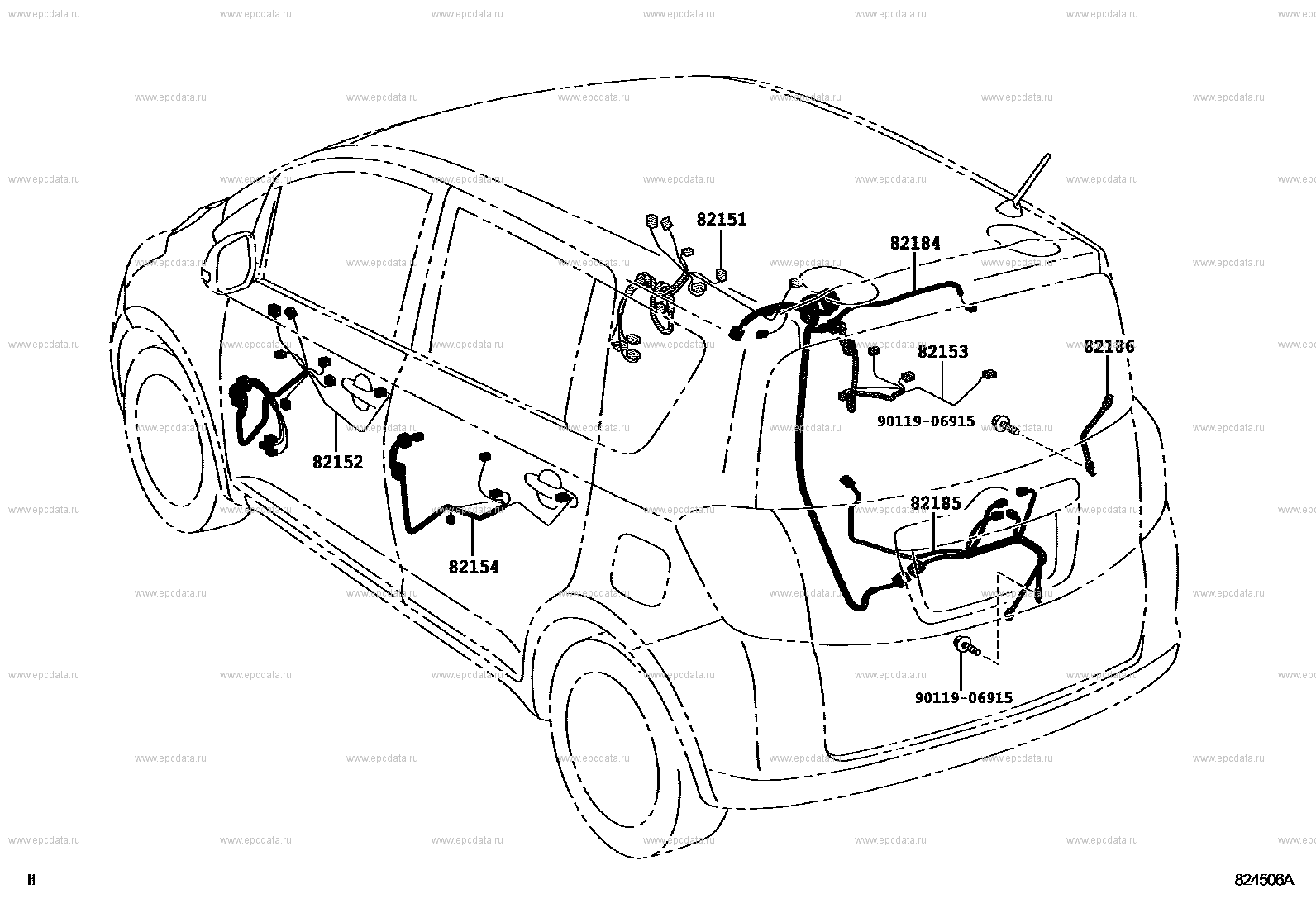

(0509- ) ﾄﾞｱ ILLUST NO. 4 OF 7 |
Click part number in the scheme or in the list: 82151 WIRE, FRONT DOOR, RH82152 WIRE, FRONT DOOR, LH 82153 WIRE, REAR DOOR, NO.1 82154 WIRE, REAR DOOR, NO.2 82184 WIRE, BACK DOOR, NO.1 82185 WIRE, BACK DOOR, NO.2 82186 WIRE, REAR WINDOW, NO.1 9011906915 ** Std Part |
Scheme 5
|

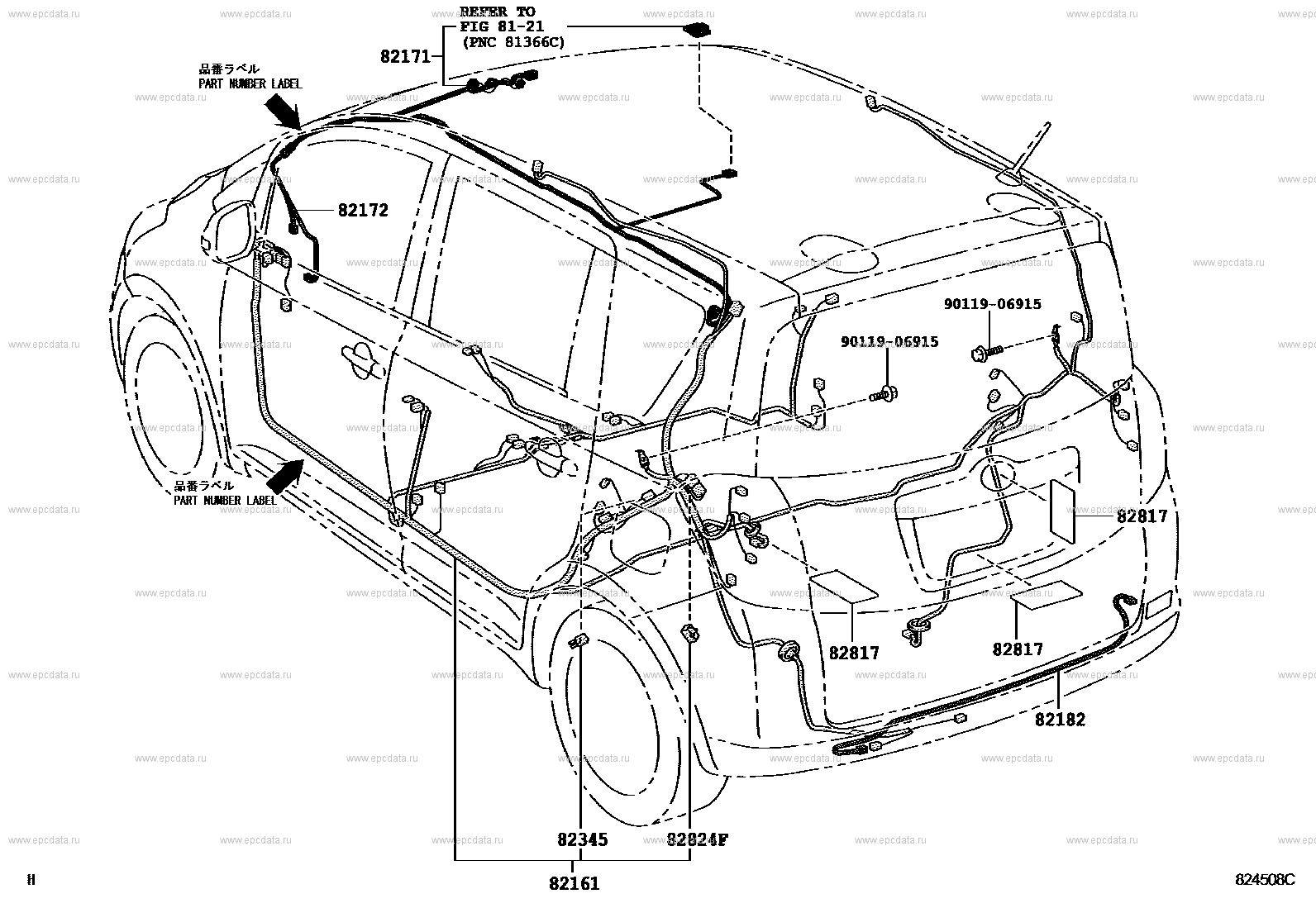

(0509- ) ﾌﾛｱ&ﾙｰﾌ ILLUST NO. 5 OF 7 |
Click part number in the scheme or in the list: 82161 WIRE, FLOOR82172 WIRE, ROOF, NO.2 82345 DIODE 82817 PROTECTOR, WIRING HARNESS, NO.1 82182 WIRE, LUGGAGE ROOM, NO.2 82824F CONNECTOR, WIRING HARNESS 9011906915 ** Std Part ** 81-21 82171 WIRE, ROOF, NO.1 |
Scheme 6
Scheme 7
