Suspension crossmember & under cover for Prius NHW20

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01   90467-06158-C0       1.00 USD

Click on the part subgroup below to get genuine part numbers.

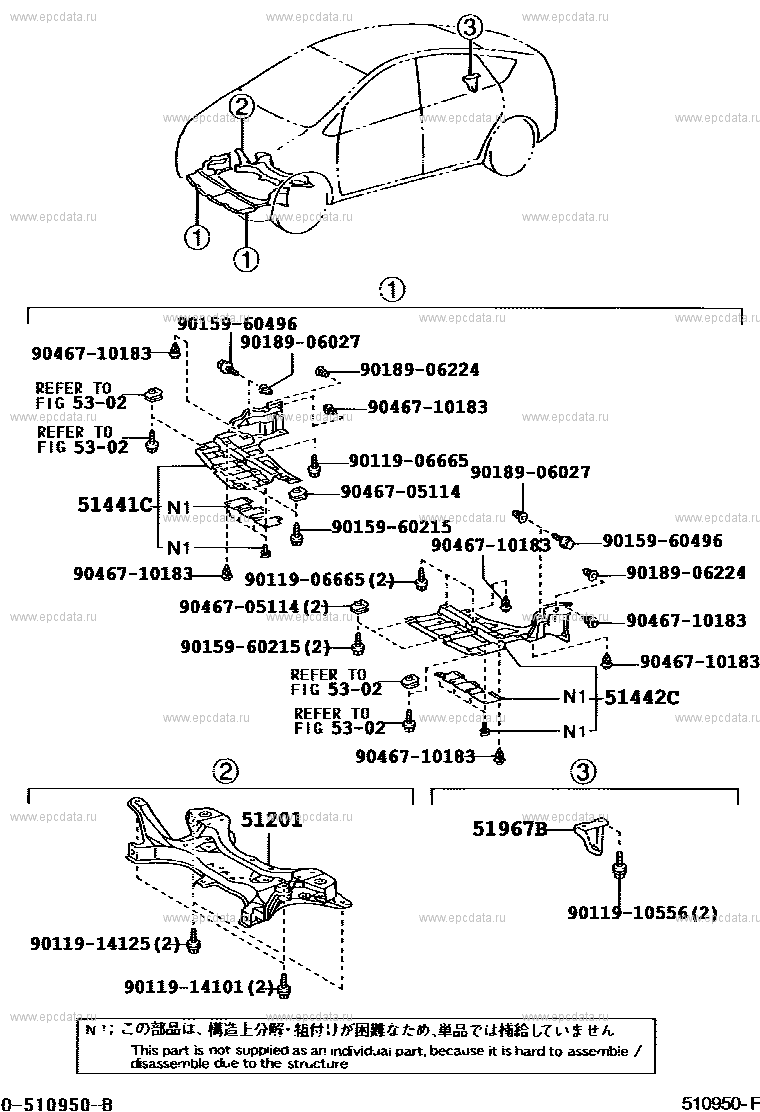

Scheme 1

(0308- ) Open full size scheme Go to top

Click part number in the scheme or in the list: 9011914101 ** Std Part ** 53-02 9015960496 ** Std Part 9018906027 ** Std Part 9018906224 ** Std Part 9046710183 ** Std Part 9011906665 ** Std Part 9046705114 ** Std Part 9015960215 ** Std Part 9011914125 ** Std Part 51442C COVER, ENGINE UNDER, LH 9011910556 ** Std Part 51967B HOOK, TRANSPORT, REAR RH 51201 CROSSMEMBER SUB-ASSY, FRONT SUSPENSION 51441C COVER, ENGINE UNDER, RH

Scheme 2

(0308- ) ﾌﾛｱ ｱﾝﾀﾞ-ｶﾊﾞ- Open full size scheme Go to top

Click part number in the scheme or in the list: 58227G PLATE, FLOOR PANEL SIDE, RH 51443B COVER, ENGINE UNDER, NO.3 58228H PLATE, FLOOR PANEL SIDE, LH 52161Q PIECE, FRONT BUMPER 9018306019 ** Std Part 91631J0612 ** Std Part 58398F COVER, FLOOR UNDER, NO.1 9415180640 ** Std Part 9056113003 ** Std Part 9056111011 ** Std Part 9046706158C0 ** Std Part 9046714053 ** Std Part 58167D COVER, FRONT FLOOR, CENTER RH 9048010024 ** Std Part 58165C COVER, FRONT FLOOR, RH 58168D COVER, FRONT FLOOR, CENTER LH 9046708186C0 ** Std Part 58166A COVER, FRONT FLOOR, LH

Prius NHW20
