Switch & relay & computer for Corsa NL30
Chosen part is not applicable for current complectation
Click on the part subgroup below to get genuine part numbers.
Scheme 1

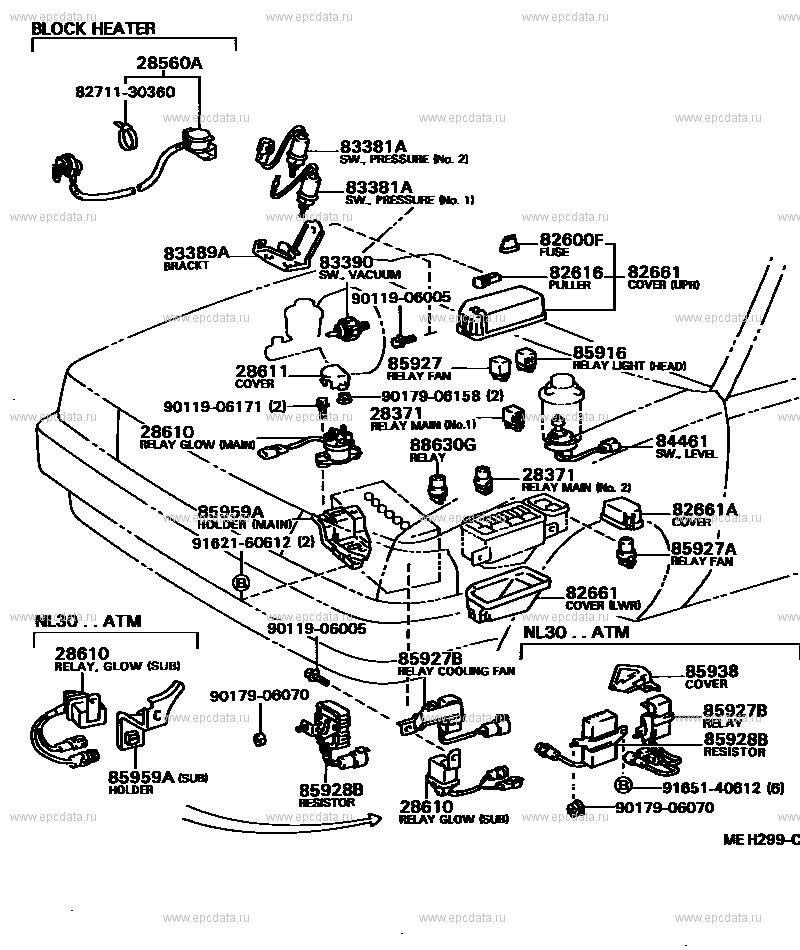

Scheme 2
|
(8605- )NL30 ILLUST NO. 2 OF 6 |
Click part number in the scheme or in the list: 28560A BLOCK, HEATER8271130360 ** Std Part 83381A SWITCH, PRESSURE 82600F FUSE, FUSE BLOCK 83389A BRACKET, PRESSURE SWITCH 83390 SWITCH ASSY, VACUUM WARNING 82661 COVER, RELAY BLOCK, NO.1 82616 PULLER, FUSE 9011906005 ** Std Part 85916 RELAY, LIGHT CONTROL 85927 RELAY, COOLING FAN 28611 COVER, GLOW PLUG RELAY 9017906158 ** Std Part 9011906171 ** Std Part 28371 RELAY, IGNITION, NO.1 28610 RELAY ASSY, GLOW PLUG 84461 SWITCH, LEVEL WARNING 88630G RELAY ASSY, COOLER 82661A COVER, RELAY BLOCK, NO.2 85959A HOLDER, RELAY 9162160612 ** Std Part 85927A RELAY, COOLING FAN, NO.2 85927B RELAY, COOLING FAN, NO.3 85938 COVER, COOLING FAN RESISTOR 9017906070 ** Std Part 85928B RESISTOR, COOLING FAN 9165140612 ** Std Part |
Scheme 3
|
(8605- ) ILLUST NO. 3 OF 6 |
Click part number in the scheme or in the list: 84790 SWITCH ASSY, REAR WINDOW DEFOGGER84162 SWITCH, FRONT FOG LAMP 84335 SWITCH ASSY, PARKING LAMP 84720A SWITCH ASSY, PATTERN SELECT, NO.1 9014940013 ** Std Part 84660D BULB(FOR COOLER SWITCH) 84660C SWITCH, COOLER 84653A SWITCH, REAR WIPER 84450 SWITCH ASSY, IGNITION OR STARTER 84730B BULB, HEATER BLOWER SWITCH 85533 LENS, CIGARETTE LIGHTER INDICATOR 84730 SWITCH ASSY, HEATER BLOWER 85500 LIGHTER ASSY, CIGARETTE 84310 SWITCH ASSY, TURN SIGNAL 84140 SWITCH ASSY, HEADLAMP DIMMER 9046315402 ** Std Part 84650 SWITCH ASSY, WINDSHIELD WIPER 84110 SWITCH ASSY, LIGHT CONTROL, NO.1 84312 PLATE, HORN CONTACT 9331915012 ** Std Part |
Scheme 4
|
(8605- ) ILLUST NO. 4 OF 6 |
Click part number in the scheme or in the list: 9165140612 ** Std Part89658 BRACKET, POWER STEERING COMPUTER 89650 COMPUTER ASSY, POWER STEERING 81980 FLASHER ASSY, TURN SIGNAL 82650 BREAKER ASSY, WIRING CIRCUIT, NO.1 85930 RELAY ASSY, POWER WINDOW 82600G PLATE, CAUTION(FOR FUSE) 85964 RELAY, LIGHT RETRACTOR 82600F FUSE, FUSE BLOCK 85912 RELAY, DEFOGGER 85916 RELAY, LIGHT CONTROL 28521 TIMER, PREHEATING 28529 BRACKET, PREHEATING TIMER, NO.1 9165640616 ** Std Part 89550 COMPUTER ASSY, EMISSION CONTROL 9011906022 ** Std Part 89279A COVER, COMPUTER 83650 FUSEE 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 86530 RELAY ASSY, HORN 89257 COMPUTER, COOLING FAN |
Scheme 5
|
(8605- )5DS ILLUST NO. 5 OF 6 |
Click part number in the scheme or in the list: 84340 SWITCH ASSY, STOP LAMP9412041000 ** Std Part 84870A SWITCH ASSY, OUTER MIRROR 9331514012 ** Std Part 84550 SWITCH ASSY, PARKING BRAKE 9011906390 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 9011906061 ** Std Part 9331914010 ** Std Part 85940B RELAY ASSY, REAR WIPER 83320 GAGE ASSY, FUEL SENDER 89373 SENSOR, LAMP FAILURE INDICATOR 9165140610 ** Std Part 84235 SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) |
Scheme 6
|
(8605- )5DS ILLUST NO. 6 OF 6 |
Click part number in the scheme or in the list: 84930 SWITCH ASSY, DOOR CONTROL84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 85930 RELAY ASSY, POWER WINDOW 84810 SWITCH ASSY, POWER WINDOW REGULATOR 9018906002 ** Std Part 9015960081 ** Std Part ** 85-11 |
