ToyotaCoasterXZB50XZB50-ZRPEYBody and interiorSeat & seat track

Seat & seat track for Coaster XZB50




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 79706 79505-36010-B0 01 08.2004 - 08.2011 LEG SUB-ASSY, NO.7 SEAT, LH XZB40,50..GX;XZB51..29S..CBU
MD.CHARCOAL,TRIM1#		  38.15
to 40.40 USD

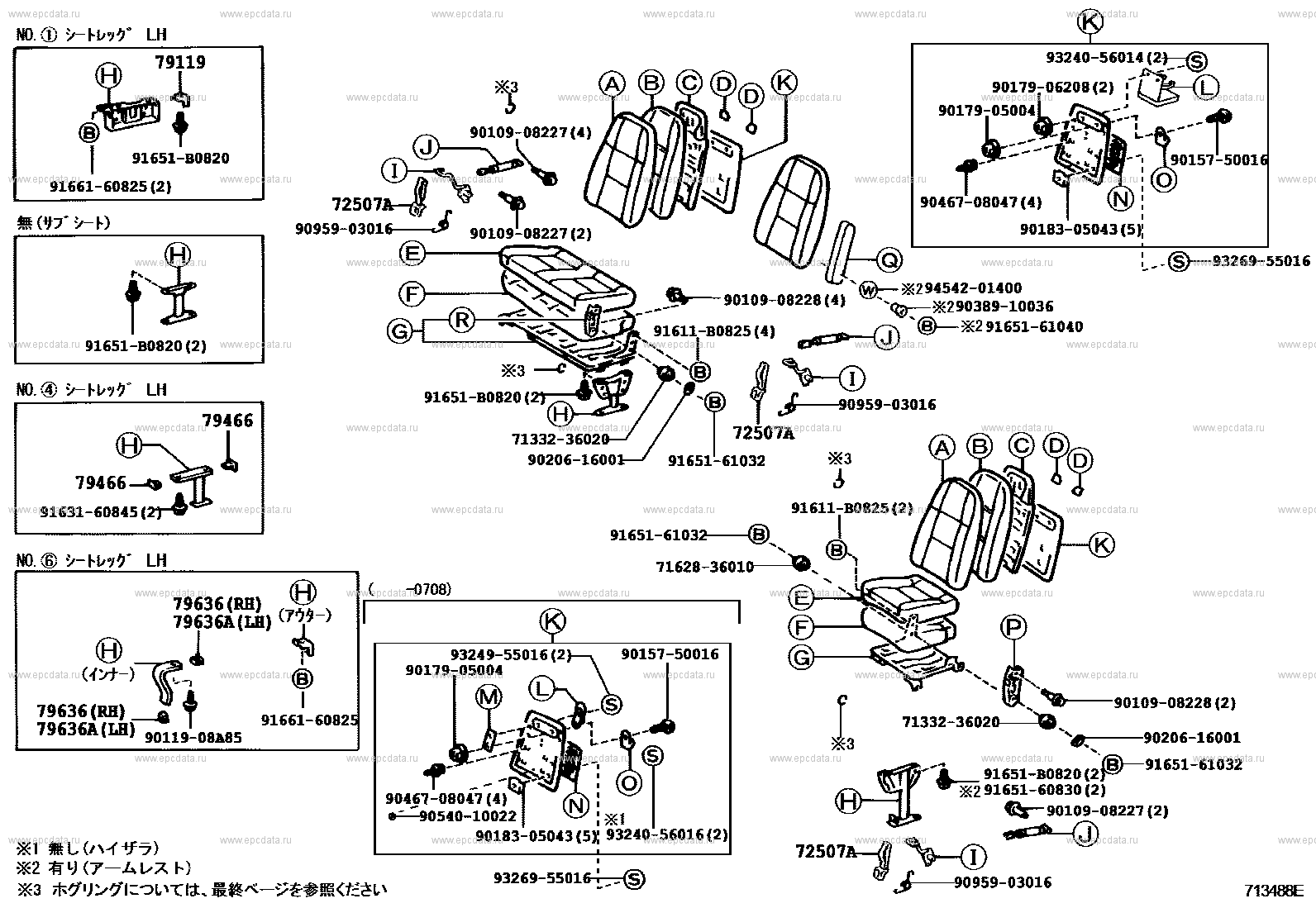

Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5 Scheme 6 Scheme 7 Scheme 8 Scheme 9 Scheme 10 Scheme 11 Scheme 12

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0408- )WOC
ｳﾝﾃﾝｾｷ ILLUST NO. 1 OF 4

Click part number in the scheme or in the list:

71910A HEADREST ASSY, FRONT SEAT
71931 SUPPORT, FRONT SEAT HEADREST
9011910037 ** Std Part
71073S COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551S PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630S SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71521 PAD, FRONT SEAT CUSHION SILENCER, A
9017905004 ** Std Part
9017906208 ** Std Part
9324056014 ** Std Part
71705 BOARD SUB-ASSY, FRONT SEAT BACK, RH
66990 HOLDER ASSY, CUP
71705B CAP(FOR FRONT SEAT BACK BOARD)
9353014025 ** Std Part
72830E ARMREST ASSY, FRONT SEAT
9454201400 ** Std Part
9038910008 ** Std Part
9165161040 ** Std Part
71811D SHIELD, FRONT SEAT CUSHION, RH
9011908873 ** Std Part
9011910428 ** Std Part
9011908080 ** Std Part
** 71-52
9020214007 ** Std Part
9017608039 ** Std Part
9038612051 ** Std Part
72510 ADJUSTER ASSY, RECLINING SEAT BACK, RH
72301 WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72130A TRACK ASSY, FRONT SEAT, INNER RH
71108B LEG SUB-ASSY, FRONT SEAT, RH
71750A TRAY ASSY, FRONT SEAT UNDER
55560D LOCK ASSY, SEAT UNDER TRAY
9356054012 ** Std Part
9011908079 ** Std Part
9011905008 ** Std Part
71149 WIRE, FRONT SEAT CUSHION CONNECTING
72110A TRACK ASSY, FRONT SEAT, OUTER RH
71524 PAD, FRONT SEAT CUSHION SILENCER, D
71071S COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511S PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610S SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
72525A HANDLE, RECLINING ADJUSTER RELEASE, RH
9016740044 ** Std Part
71707A COVER SUB-ASSY, FRONT SEAT BACK BOARD
9324955016 ** Std Part

Scheme 2

(0408-1108)DX,EX,GX,LX
ｻﾌﾞｼｰﾄ ILLUST NO. 1 OF 4

Click part number in the scheme or in the list:

78798 SPACER, SUB SEAT BACK FRAME
78773A HOOP, SUB SEAT BACK GUIDE
9616000600 ** Std Part
9020208039 ** Std Part
7873890B00 ** Std Part
9165140620 ** Std Part
9354016020 ** Std Part
78707 FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH
78708 FRAME SUB-ASSY, SUB SEAT BACK, LOWER LH
9461210800 ** Std Part
9454301200 ** Std Part
9038908037 ** Std Part
9056010026 ** Std Part
7264136010 ** Std Part
9038608053 ** Std Part
9025508007 ** Std Part
9024008044 ** Std Part
9011908301 ** Std Part
91651B0825 ** Std Part
9165160830 ** Std Part
9010110055 ** Std Part
9412041000 ** Std Part
9356013512 ** Std Part
9356013520 ** Std Part
9461410400 ** Std Part
78773 COVER, SUB SEAT HINGE, RH
78705 BRACKET SUB-ASSY, SUB SEAT CUSHION
71324A CUSHION, REAR SEAT
78715 PANEL, SUB SEAT CUSHION
78072 COVER SUB-ASSY, SUB SEAT CUSHION, LH
78078 BOARD SUB-ASSY, SUB SEAT CUSHION, LH
78735B PAD, SUB SEAT CUSHION, LH
78702 FRAME SUB-ASSY, SUB SEAT CUSHION, LH
78726 CUSHION, SUB SEAT CUSHION FRAME
78074 COVER SUB-ASSY, SUB SEAT BACK, LH
78775B PAD, SUB SEAT BACK, LH
78703B FRAME SUB-ASSY, SUB SEAT BACK, LH
78705A BRACKET SUB-ASSY, SUB SEAT CUSHION NO.2
78715B PANEL, SUB SEAT CUSHION NO.2
78071B COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.2
78072A COVER SUB-ASSY, SUB SEAT CUSHION, LH NO.2
78077D BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.2
78078B BOARD SUB-ASSY, SUB SEAT CUSHION, LH NO.2
78735E PAD, SUB SEAT CUSHION, RH NO.2
78735L PAD, SUB SEAT CUSHION, LH NO.2
78701B FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.2
78702A FRAME SUB-ASSY, SUB SEAT CUSHION, LH
78726A CUSHION, SUB SEAT CUSHION FRAME, NO.2
78073A COVER SUB-ASSY, SUB SEAT BACK, RH NO.2
78074A COVER SUB-ASSY, SUB SEAT BACK, LH NO.2
78775E PAD, SUB SEAT BACK, RH NO.2
78775L PAD, SUB SEAT BACK, LH NO.2
78703C FRAME SUB-ASSY, SUB SEAT BACK, RH NO.2
78705B BRACKET SUB-ASSY, SUB SEAT CUSHION NO.3
78715C PANEL, SUB SEAT CUSHION NO.3
78071C COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.3
78077E BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.3
78735F PAD, SUB SEAT CUSHION, RH NO.3
78701C FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.3
78726B CUSHION, SUB SEAT CUSHION FRAME, NO.3
78073B COVER SUB-ASSY, SUB SEAT BACK, RH NO.3
78775F PAD, SUB SEAT BACK, RH NO.3
78703D FRAME SUB-ASSY, SUB SEAT BACK, RH NO.3
78705C BRACKET SUB-ASSY, SUB SEAT CUSHION NO.4
78715D PANEL, SUB SEAT CUSHION NO.4
78071D COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.4
78077F BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.4
78735G PAD, SUB SEAT CUSHION, RH NO.4
78701D FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.4
78726C CUSHION, SUB SEAT CUSHION FRAME, NO.4
78073C COVER SUB-ASSY, SUB SEAT BACK, RH NO.4
78775G PAD, SUB SEAT BACK, RH NO.4
78703E FRAME SUB-ASSY, SUB SEAT BACK, RH NO.4
78705D BRACKET SUB-ASSY, SUB SEAT CUSHION NO.5
78715E PANEL, SUB SEAT CUSHION NO.5
78071E COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.5
78077G BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.5
78735H PAD, SUB SEAT CUSHION, RH NO.5
78701E FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.5
78726D CUSHION, SUB SEAT CUSHION FRAME, NO.5
78073D COVER SUB-ASSY, SUB SEAT BACK, RH NO.5
78775H PAD, SUB SEAT BACK, RH NO.5
78703F FRAME SUB-ASSY, SUB SEAT BACK, RH NO.5
78705E BRACKET SUB-ASSY, SUB SEAT CUSHION NO.6
78715F PANEL, SUB SEAT CUSHION NO.6
78071F COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.6
78077H BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.6
78735J PAD, SUB SEAT CUSHION, RH NO.6
78701F FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.6
78726E CUSHION, SUB SEAT CUSHION FRAME, NO.6
78073E COVER SUB-ASSY, SUB SEAT BACK, RH NO.6
78775J PAD, SUB SEAT BACK, RH NO.6
78703G FRAME SUB-ASSY, SUB SEAT BACK, RH NO.6
78705F BRACKET SUB-ASSY, SUB SEAT CUSHION NO.7
78715G PANEL, SUB SEAT CUSHION NO.7
78071G COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.7
78077J BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.7
78735K PAD, SUB SEAT CUSHION, RH NO.7
78701G FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.7
78726F CUSHION, SUB SEAT CUSHION FRAME, NO.7
78073F COVER SUB-ASSY, SUB SEAT BACK, RH NO.7
78775K PAD, SUB SEAT BACK, RH NO.7
78703H FRAME SUB-ASSY, SUB SEAT BACK, RH NO.7
78703J FRAME SUB-ASSY, SUB SEAT BACK, LH NO.2
9046816012 ** Std Part

Scheme 3

(0408-1108)08S,09S,26S,29S
ﾘﾔ ｺﾃｲｼｰﾄ(1/2) ILLUST NO. 2 OF 4

Click part number in the scheme or in the list:

79119 BRACKET, NO.1 SEAT LEG, NO.2
79466 COVER, NO.4 SEAT LEG, NO.1
79636 COVER, NO.6 SEAT LEG, RH
79636A COVER, NO.6 SEAT LEG, LH
91651B0820 ** Std Part
9166160825 ** Std Part
9163160845 ** Std Part
91611B0825 ** Std Part
9020616001 ** Std Part
9010908228 ** Std Part
7133236020 ** Std Part
9165161032 ** Std Part
9011908A85 ** Std Part
7162836010 ** Std Part

Scheme 4

(0408-1108)08S,09S,26S,29S
ﾘﾔ ｺﾃｲｼｰﾄ(2/2) ILLUST NO. 2 OF 4

Click part number in the scheme or in the list:

79023 COVER SUB-ASSY, NO.2 SEAT BACK, RH
79033 COVER SUB-ASSY, NO.3 SEAT BACK, RH
79043 COVER SUB-ASSY, NO.4 SEAT BACK, RH
79053 COVER SUB-ASSY, NO.5 SEAT BACK, RH
79063 COVER SUB-ASSY, NO.6 SEAT BACK, RH
79073 COVER SUB-ASSY, NO.7 SEAT BACK, RH
79014 COVER SUB-ASSY, NO.1 SEAT BACK, LH
79024 COVER SUB-ASSY, NO.2 SEAT BACK, LH
79044 COVER SUB-ASSY, NO.4 SEAT BACK, LH
79054 COVER SUB-ASSY, NO.5 SEAT BACK, LH
79064 COVER SUB-ASSY, NO.6 SEAT BACK, LH
79074 COVER SUB-ASSY, NO.7 SEAT BACK, LH
79027A PAD SUB-ASSY, NO.2 SEAT BACK, RH
79037A PAD SUB-ASSY, NO.3 SEAT BACK, RH
79047A PAD SUB-ASSY, NO.4 SEAT BACK, RH
79057A PAD SUB-ASSY, NO.5 SEAT BACK, RH
79067A PAD SUB-ASSY, NO.6 SEAT BACK, RH
79077A PAD SUB-ASSY, NO.7 SEAT BACK, RH
79018A PAD SUB-ASSY, NO.1 SEAT BACK, LH
79028A PAD SUB-ASSY, NO.2 SEAT BACK, LH
79048A PAD SUB-ASSY, NO.4 SEAT BACK, LH
79058A PAD SUB-ASSY, NO.5 SEAT BACK, LH
79068A PAD SUB-ASSY, NO.6 SEAT BACK, LH
79078A PAD SUB-ASSY, NO.7 SEAT BACK, LH
79203A FRAME SUB-ASSY, NO.2 SEAT BACK, RH
79303A FRAME SUB-ASSY, NO.3 SEAT BACK, RH
79403A FRAME SUB-ASSY, NO.4 SEAT BACK, RH
79503 FRAME SUB-ASSY, NO.5 SEAT BACK, RH
79603 FRAME SUB-ASSY, NO.6 SEAT BACK, RH
79703 FRAME SUB-ASSY, NO.7 SEAT BACK, RH
79104 FRAME SUB-ASSY, NO.1 SEAT BACK, LH
79204A FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79404 FRAME SUB-ASSY, NO.4 SEAT BACK, LH
79504 FRAME SUB-ASSY, NO.5 SEAT BACK, LH
79604 FRAME SUB-ASSY, NO.6 SEAT BACK, LH
79704 FRAME SUB-ASSY, NO.7 SEAT BACK, LH
79021 COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79031 COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79041 COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79051 COVER SUB-ASSY, NO.5 SEAT CUSHION, RH
79061 COVER SUB-ASSY, NO.6 SEAT CUSHION, RH
79071 COVER SUB-ASSY, NO.7 SEAT CUSHION, RH
79012 COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022 COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79042 COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79052 COVER SUB-ASSY, NO.5 SEAT CUSHION, LH
79062 COVER SUB-ASSY, NO.6 SEAT CUSHION, LH
79072 COVER SUB-ASSY, NO.7 SEAT CUSHION, LH
79025A PAD SUB-ASSY, NO.2 SEAT CUSHION, RH
79035A PAD SUB-ASSY, NO.3 SEAT CUSHION, RH
79045A PAD SUB-ASSY, NO.4 SEAT CUSHION, RH
79055A PAD SUB-ASSY, NO.5 SEAT CUSHION, RH
79065A PAD SUB-ASSY, NO.6 SEAT CUSHION, RH
79075A PAD SUB-ASSY, NO.7 SEAT CUSHION, RH
79016A PAD SUB-ASSY, NO.1 SEAT CUSHION, LH
79026 PAD SUB-ASSY, NO.2 SEAT CUSHION, LH
79046A PAD SUB-ASSY, NO.4 SEAT CUSHION, LH
79056A PAD SUB-ASSY, NO.5 SEAT CUSHION, LH
79066A PAD SUB-ASSY, NO.6 SEAT CUSHION, LH
79076 PAD SUB-ASSY, NO.7 SEAT CUSHION, LH
79201B FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH
79301B FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH
79401 FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH
79501 FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH
79601 FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH
79701 FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH
79102 FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
79202 FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH
79402 FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH
79502 FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH
79602 FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH
79702 FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH
79205B LEG SUB-ASSY, NO.2 SEAT, RH
79305A LEG SUB-ASSY, NO.3 SEAT, RH
79405A LEG SUB-ASSY, NO.4 SEAT, RH
79505 LEG SUB-ASSY, NO.5 SEAT, RH
79605 LEG SUB-ASSY, NO.6 SEAT, RH
79705 LEG SUB-ASSY, NO.7 SEAT, RH
79106 LEG SUB ASSY, NO.1 SEAT, LH
79206B LEG SUB-ASSY, NO.2 SEAT, LH
79406A LEG SUB-ASSY, NO.4 SEAT, LH
79506 LEG SUB-ASSY, NO.5 SEAT, LH
79606 LEG SUB-ASSY, NO.6 SEAT, LH
79706 LEG SUB-ASSY, NO.7 SEAT, LH
79125A PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH
79225A PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH
79425A PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH
79525A PLATE, NO.5 SEAT CUSHION HINGE, NO.2 LH
79625A PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH
79725A PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH
66990B HOLDER ASSY, CUP, NO.2 RH
66990C HOLDER ASSY, CUP, NO.3 RH
66990D HOLDER ASSY, CUP, NO.4 RH
66990F HOLDER ASSY, CUP, NO.5 RH
66990G HOLDER ASSY, CUP, NO.6 RH
66990H HOLDER ASSY, CUP, NO.7 RH
66990J HOLDER ASSY, CUP, NO.1 LH
66990M HOLDER ASSY, CUP, NO.4 LH
66990N HOLDER ASSY, CUP, NO.5 LH
66990P HOLDER ASSY, CUP, NO.6 LH
66990Q HOLDER ASSY, CUP, NO.7 LH

Scheme 5

(0408-1108)09S,20S,26S,29S
ﾘﾔ ﾘｸﾗｲﾆﾝｸﾞｼｰﾄ(1/2) ILLUST NO. 2 OF 4

Click part number in the scheme or in the list:

79119 BRACKET, NO.1 SEAT LEG, NO.2
79466 COVER, NO.4 SEAT LEG, NO.1
91651B0820 ** Std Part
9166160825 ** Std Part
9163160845 ** Std Part
9010908227 ** Std Part
9095903016 ** Std Part
9010908228 ** Std Part
9324955010 ** Std Part
9020616001 ** Std Part
9161160825 ** Std Part
7133236020 ** Std Part
9165161032 ** Std Part
72507A HANDLE SUB-ASSY, RECLINING RELEASE
79636A COVER, NO.6 SEAT LEG, LH
79636 COVER, NO.6 SEAT LEG, RH
9011908A85 ** Std Part

Scheme 6

(0408-1108)09S,20S,26S,29S
ﾘﾔ ﾘｸﾗｲﾆﾝｸﾞｼｰﾄ(2/2) ILLUST NO. 2 OF 4

Click part number in the scheme or in the list:

79023 COVER SUB-ASSY, NO.2 SEAT BACK, RH
79033 COVER SUB-ASSY, NO.3 SEAT BACK, RH
79043 COVER SUB-ASSY, NO.4 SEAT BACK, RH
79053 COVER SUB-ASSY, NO.5 SEAT BACK, RH
79063 COVER SUB-ASSY, NO.6 SEAT BACK, RH
79073 COVER SUB-ASSY, NO.7 SEAT BACK, RH
79014 COVER SUB-ASSY, NO.1 SEAT BACK, LH
79024 COVER SUB-ASSY, NO.2 SEAT BACK, LH
79044 COVER SUB-ASSY, NO.4 SEAT BACK, LH
79054 COVER SUB-ASSY, NO.5 SEAT BACK, LH
79064 COVER SUB-ASSY, NO.6 SEAT BACK, LH
79074 COVER SUB-ASSY, NO.7 SEAT BACK, LH
79027A PAD SUB-ASSY, NO.2 SEAT BACK, RH
79037A PAD SUB-ASSY, NO.3 SEAT BACK, RH
79047A PAD SUB-ASSY, NO.4 SEAT BACK, RH
79057A PAD SUB-ASSY, NO.5 SEAT BACK, RH
79067A PAD SUB-ASSY, NO.6 SEAT BACK, RH
79077A PAD SUB-ASSY, NO.7 SEAT BACK, RH
79018A PAD SUB-ASSY, NO.1 SEAT BACK, LH
79028A PAD SUB-ASSY, NO.2 SEAT BACK, LH
79048A PAD SUB-ASSY, NO.4 SEAT BACK, LH
79058A PAD SUB-ASSY, NO.5 SEAT BACK, LH
79068A PAD SUB-ASSY, NO.6 SEAT BACK, LH
79078A PAD SUB-ASSY, NO.7 SEAT BACK, LH
79203A FRAME SUB-ASSY, NO.2 SEAT BACK, RH
79303A FRAME SUB-ASSY, NO.3 SEAT BACK, RH
79403A FRAME SUB-ASSY, NO.4 SEAT BACK, RH
79503 FRAME SUB-ASSY, NO.5 SEAT BACK, RH
79603 FRAME SUB-ASSY, NO.6 SEAT BACK, RH
79703 FRAME SUB-ASSY, NO.7 SEAT BACK, RH
79104 FRAME SUB-ASSY, NO.1 SEAT BACK, LH
79204A FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79404 FRAME SUB-ASSY, NO.4 SEAT BACK, LH
79504 FRAME SUB-ASSY, NO.5 SEAT BACK, LH
79604 FRAME SUB-ASSY, NO.6 SEAT BACK, LH
79704 FRAME SUB-ASSY, NO.7 SEAT BACK, LH
79021 COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79031 COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79041 COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79051 COVER SUB-ASSY, NO.5 SEAT CUSHION, RH
79061 COVER SUB-ASSY, NO.6 SEAT CUSHION, RH
79071 COVER SUB-ASSY, NO.7 SEAT CUSHION, RH
79012 COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022 COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79042 COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79052 COVER SUB-ASSY, NO.5 SEAT CUSHION, LH
79062 COVER SUB-ASSY, NO.6 SEAT CUSHION, LH
79072 COVER SUB-ASSY, NO.7 SEAT CUSHION, LH
79025A PAD SUB-ASSY, NO.2 SEAT CUSHION, RH
79035A PAD SUB-ASSY, NO.3 SEAT CUSHION, RH
79045A PAD SUB-ASSY, NO.4 SEAT CUSHION, RH
79055A PAD SUB-ASSY, NO.5 SEAT CUSHION, RH
79065A PAD SUB-ASSY, NO.6 SEAT CUSHION, RH
79075A PAD SUB-ASSY, NO.7 SEAT CUSHION, RH
79016A PAD SUB-ASSY, NO.1 SEAT CUSHION, LH
79026 PAD SUB-ASSY, NO.2 SEAT CUSHION, LH
79046A PAD SUB-ASSY, NO.4 SEAT CUSHION, LH
79056A PAD SUB-ASSY, NO.5 SEAT CUSHION, LH
79066A PAD SUB-ASSY, NO.6 SEAT CUSHION, LH
79076 PAD SUB-ASSY, NO.7 SEAT CUSHION, LH
79201B FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH
79301B FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH
79401 FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH
79501 FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH
79601 FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH
79701 FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH
79102 FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
79202 FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH
79402 FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH
79502 FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH
79602 FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH
79702 FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH
79205B LEG SUB-ASSY, NO.2 SEAT, RH
79305A LEG SUB-ASSY, NO.3 SEAT, RH
79405A LEG SUB-ASSY, NO.4 SEAT, RH
79505 LEG SUB-ASSY, NO.5 SEAT, RH
79605 LEG SUB-ASSY, NO.6 SEAT, RH
79705 LEG SUB-ASSY, NO.7 SEAT, RH
79106 LEG SUB ASSY, NO.1 SEAT, LH
79206B LEG SUB-ASSY, NO.2 SEAT, LH
79406A LEG SUB-ASSY, NO.4 SEAT, LH
79506 LEG SUB-ASSY, NO.5 SEAT, LH
79606 LEG SUB-ASSY, NO.6 SEAT, LH
79706 LEG SUB-ASSY, NO.7 SEAT, LH
72501H ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501J ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501K ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501L ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501M ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501N ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72502B ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502C ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502D ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502E ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502F ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502G ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72501Q ARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 RH
72502J ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502M ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502N ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502P ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502Q ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72508B SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH
72508C SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH
72508D SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH
72508E SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH
72508F SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH
72508G SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH
72508J SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH
72508M SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH
72508N SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH
72508P SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH
72508Q SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH
79115A PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH
79225A PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH
79415B PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH
79515B PLATE, NO.5 SEAT CUSHION HINGE, NO.2 RH
79615A PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH
79715A PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH
79125A PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH
66990B HOLDER ASSY, CUP, NO.2 RH
66990C HOLDER ASSY, CUP, NO.3 RH
66990D HOLDER ASSY, CUP, NO.4 RH
66990F HOLDER ASSY, CUP, NO.5 RH
66990G HOLDER ASSY, CUP, NO.6 RH
66990H HOLDER ASSY, CUP, NO.7 RH
66990J HOLDER ASSY, CUP, NO.1 LH
66990M HOLDER ASSY, CUP, NO.4 LH
66990N HOLDER ASSY, CUP, NO.5 LH
66990P HOLDER ASSY, CUP, NO.6 LH
66990Q HOLDER ASSY, CUP, NO.7 LH

Scheme 7

(0408-1108)BZB40,50,XZB40,50,51..WOC
ﾘﾔｼｰﾄ ｱﾘ(ｼｰﾄﾊﾞｯｸﾎﾞｰﾄﾞ)(1/2) ILLUST NO. 2 OF 4

Click part number in the scheme or in the list:

79119 BRACKET, NO.1 SEAT LEG, NO.2
91651B0820 ** Std Part
9166160825 ** Std Part
79466 COVER, NO.4 SEAT LEG, NO.1
9163160845 ** Std Part
9054010022 ** Std Part
9010908227 ** Std Part
9010908228 ** Std Part
91611B0825 ** Std Part
9165161032 ** Std Part
9020616001 ** Std Part
7133236020 ** Std Part
7162836010 ** Std Part
9165160830 ** Std Part
9095903016 ** Std Part
9018305043 ** Std Part
9015750016 ** Std Part
9324056016 ** Std Part
9326955016 ** Std Part
9017905004 ** Std Part
9324955016 ** Std Part
9046708047 ** Std Part
72507A HANDLE SUB-ASSY, RECLINING RELEASE
79636A COVER, NO.6 SEAT LEG, LH
79636 COVER, NO.6 SEAT LEG, RH
9011908A85 ** Std Part
9454201400 ** Std Part
9038910036 ** Std Part
9165161040 ** Std Part
9324056014 ** Std Part
9017906208 ** Std Part

Scheme 8

(0408-1108)BZB40,50,XZB40,50,51..WOC
ﾘﾔｼｰﾄ ｱﾘ(ｼｰﾄﾊﾞｯｸﾎﾞｰﾄﾞ)(2/2) ILLUST NO. 2 OF 4

Click part number in the scheme or in the list:

79023 COVER SUB-ASSY, NO.2 SEAT BACK, RH
79033 COVER SUB-ASSY, NO.3 SEAT BACK, RH
79043 COVER SUB-ASSY, NO.4 SEAT BACK, RH
79053 COVER SUB-ASSY, NO.5 SEAT BACK, RH
79063 COVER SUB-ASSY, NO.6 SEAT BACK, RH
79073 COVER SUB-ASSY, NO.7 SEAT BACK, RH
79014 COVER SUB-ASSY, NO.1 SEAT BACK, LH
79024 COVER SUB-ASSY, NO.2 SEAT BACK, LH
79044 COVER SUB-ASSY, NO.4 SEAT BACK, LH
79054 COVER SUB-ASSY, NO.5 SEAT BACK, LH
79064 COVER SUB-ASSY, NO.6 SEAT BACK, LH
79074 COVER SUB-ASSY, NO.7 SEAT BACK, LH
79027A PAD SUB-ASSY, NO.2 SEAT BACK, RH
79037A PAD SUB-ASSY, NO.3 SEAT BACK, RH
79047A PAD SUB-ASSY, NO.4 SEAT BACK, RH
79057A PAD SUB-ASSY, NO.5 SEAT BACK, RH
79067A PAD SUB-ASSY, NO.6 SEAT BACK, RH
79077A PAD SUB-ASSY, NO.7 SEAT BACK, RH
79018A PAD SUB-ASSY, NO.1 SEAT BACK, LH
79028A PAD SUB-ASSY, NO.2 SEAT BACK, LH
79048A PAD SUB-ASSY, NO.4 SEAT BACK, LH
79058A PAD SUB-ASSY, NO.5 SEAT BACK, LH
79068A PAD SUB-ASSY, NO.6 SEAT BACK, LH
79078A PAD SUB-ASSY, NO.7 SEAT BACK, LH
79203A FRAME SUB-ASSY, NO.2 SEAT BACK, RH
79303A FRAME SUB-ASSY, NO.3 SEAT BACK, RH
79403A FRAME SUB-ASSY, NO.4 SEAT BACK, RH
79503 FRAME SUB-ASSY, NO.5 SEAT BACK, RH
79603 FRAME SUB-ASSY, NO.6 SEAT BACK, RH
79703 FRAME SUB-ASSY, NO.7 SEAT BACK, RH
79104 FRAME SUB-ASSY, NO.1 SEAT BACK, LH
79204A FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79404 FRAME SUB-ASSY, NO.4 SEAT BACK, LH
79504 FRAME SUB-ASSY, NO.5 SEAT BACK, LH
79604 FRAME SUB-ASSY, NO.6 SEAT BACK, LH
79704 FRAME SUB-ASSY, NO.7 SEAT BACK, LH
79279 PAD, NO.2 SEAT BACK HEADREST
79279A PAD, NO.1 SEAT BACK HEADREST, LH
79379 PAD, NO.3 SEAT BACK HEADREST
79479 PAD, NO.4 SEAT BACK HEADREST, RH
79579 PAD, NO.5 SEAT BACK HEADREST, RH
79679 PAD, NO.6 SEAT BACK HEADREST, RH
79779 PAD, NO.7 SEAT BACK HEADREST, RH
79179B PAD, NO.1 SEAT BACK HEADREST, LH
79479A PAD, NO.4 SEAT BACK HEADREST, LH
79579A PAD, NO.5 SEAT BACK HEADREST, LH
79679A PAD, NO.6 SEAT BACK HEADREST, LH
79779A PAD, NO.7 SEAT BACK HEADREST, LH
79021 COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79031 COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79041 COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79051 COVER SUB-ASSY, NO.5 SEAT CUSHION, RH
79061 COVER SUB-ASSY, NO.6 SEAT CUSHION, RH
79071 COVER SUB-ASSY, NO.7 SEAT CUSHION, RH
79012 COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022 COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79042 COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79052 COVER SUB-ASSY, NO.5 SEAT CUSHION, LH
79062 COVER SUB-ASSY, NO.6 SEAT CUSHION, LH
79072 COVER SUB-ASSY, NO.7 SEAT CUSHION, LH
79025A PAD SUB-ASSY, NO.2 SEAT CUSHION, RH
79035A PAD SUB-ASSY, NO.3 SEAT CUSHION, RH
79045A PAD SUB-ASSY, NO.4 SEAT CUSHION, RH
79055A PAD SUB-ASSY, NO.5 SEAT CUSHION, RH
79065A PAD SUB-ASSY, NO.6 SEAT CUSHION, RH
79075A PAD SUB-ASSY, NO.7 SEAT CUSHION, RH
79016A PAD SUB-ASSY, NO.1 SEAT CUSHION, LH
79026 PAD SUB-ASSY, NO.2 SEAT CUSHION, LH
79046A PAD SUB-ASSY, NO.4 SEAT CUSHION, LH
79056A PAD SUB-ASSY, NO.5 SEAT CUSHION, LH
79066A PAD SUB-ASSY, NO.6 SEAT CUSHION, LH
79076 PAD SUB-ASSY, NO.7 SEAT CUSHION, LH
79201B FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH
79301B FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH
79401 FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH
79501 FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH
79601 FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH
79701 FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH
79102 FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
79202 FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH
79402 FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH
79502 FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH
79602 FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH
79702 FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH
79205B LEG SUB-ASSY, NO.2 SEAT, RH
79305A LEG SUB-ASSY, NO.3 SEAT, RH
79405A LEG SUB-ASSY, NO.4 SEAT, RH
79505 LEG SUB-ASSY, NO.5 SEAT, RH
79605 LEG SUB-ASSY, NO.6 SEAT, RH
79705 LEG SUB-ASSY, NO.7 SEAT, RH
79106 LEG SUB ASSY, NO.1 SEAT, LH
79206B LEG SUB-ASSY, NO.2 SEAT, LH
79406A LEG SUB-ASSY, NO.4 SEAT, LH
79506 LEG SUB-ASSY, NO.5 SEAT, LH
79606 LEG SUB-ASSY, NO.6 SEAT, LH
79706 LEG SUB-ASSY, NO.7 SEAT, LH
72501H ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501J ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501K ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501L ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501M ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72501N ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH
72502B ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502C ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502D ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502E ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502F ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502G ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH
72502J ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502M ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502N ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502P ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72502Q ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
72508B SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH
72508C SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH
72508D SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH
72508E SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH
72508F SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH
72508G SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH
72508J SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH
72508M SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH
72508N SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH
72508P SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH
72508Q SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH
79209 BOARD SUB-ASSY, NO.2 SEAT BACK
79309 BOARD SUB-ASSY, NO.3 SEAT BACK
79409 BOARD SUB-ASSY, NO.4 SEAT BACK
79509 BOARD SUB-ASSY, NO.5 SEAT BACK, RH
79609 BOARD SUB-ASSY, NO.6 SEAT BACK, RH
79709 BOARD SUB-ASSY, NO.7 SEAT BACK, RH
79109C BOARD SUB-ASSY, NO.1 SEAT BACK, LH
79209B BOARD SUB-ASSY, NO.2 SEAT BACK, LH
79409B BOARD SUB-ASSY, NO.4 SEAT BACK, LH
79509A BOARD SUB-ASSY, NO.5 SEAT BACK, LH
79609A BOARD SUB-ASSY, NO.6 SEAT BACK, LH
79709A BOARD SUB-ASSY, NO.7 SEAT BACK, LH
66990B HOLDER ASSY, CUP, NO.2 RH
66990C HOLDER ASSY, CUP, NO.3 RH
66990D HOLDER ASSY, CUP, NO.4 RH
66990F HOLDER ASSY, CUP, NO.5 RH
66990G HOLDER ASSY, CUP, NO.6 RH
66990H HOLDER ASSY, CUP, NO.7 RH
66990J HOLDER ASSY, CUP, NO.1 LH
66990M HOLDER ASSY, CUP, NO.4 LH
66990N HOLDER ASSY, CUP, NO.5 LH
66990P HOLDER ASSY, CUP, NO.6 LH
66990Q HOLDER ASSY, CUP, NO.7 LH
66995B RETAINER, CUP HOLDER, NO.2 RH
66995C RETAINER, CUP HOLDER, NO.3 RH
66995D RETAINER, CUP HOLDER, NO.4 RH
66995F RETAINER, CUP HOLDER, NO.5 RH
66995G RETAINER, CUP HOLDER, NO.6 RH
66995H RETAINER, CUP HOLDER, NO.7 RH
66995J RETAINER, CUP HOLDER, NO.1 LH
66995M RETAINER, CUP HOLDER, NO.4 LH
66995N RETAINER, CUP HOLDER, NO.5 LH
66995P RETAINER, CUP HOLDER, NO.6 LH
66995Q RETAINER, CUP HOLDER, NO.7 LH
71780B POCKET ASSY, SEAT BACK BOARD, NO.2 RH
71780C POCKET ASSY, SEAT BACK BOARD, NO.3 RH
71780D POCKET ASSY, SEAT BACK BOARD, NO.4 RH
71780F POCKET ASSY, SEAT BACK BOARD, NO.5 RH
71780G POCKET ASSY, SEAT BACK BOARD, NO.6 RH
71780H POCKET ASSY, SEAT BACK BOARD, NO.7 RH
71780J POCKET ASSY, SEAT BACK BOARD, NO.1 LH
71780M POCKET ASSY, SEAT BACK BOARD, NO.4 LH
71780N POCKET ASSY, SEAT BACK BOARD, NO.5 LH
71780P POCKET ASSY, SEAT BACK BOARD, NO.6 LH
71780Q POCKET ASSY, SEAT BACK BOARD, NO.7 LH
74631E HOOK, COAT, NO.2 RH
74631F HOOK, COAT, NO.3 RH
74631G HOOK, COAT, NO.4 RH
74631H HOOK, COAT, NO.5 RH
74631J HOOK, COAT, NO.6 RH
74631K HOOK, COAT, NO.7 RH
74631L HOOK, COAT, NO.1 LH
74631P HOOK, COAT, NO.4 LH
74631Q HOOK, COAT, NO.5 LH
74631R HOOK, COAT, NO.6 LH
74631S HOOK, COAT, NO.7 LH
79115A PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH
79415B PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH
79515B PLATE, NO.5 SEAT CUSHION HINGE, NO.2 RH
79615A PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH
79715A PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH
79725 PLATE, NO.7 SEAT CUSHION HINGE, NO.1 LH
79715 PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH
79125A PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH
79225A PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH
72830L ARMREST ASSY, REAR NO.2 SEAT, RH
72830N ARMREST ASSY, NO.3 SEAT, RH
72830P ARMREST ASSY, NO.4 SEAT, RH
72830Q ARMREST ASSY, NO.6 SEAT, RH
72840 ARMREST ASSY, REAR NO.1 SEAT, LH
72840A ARMREST ASSY, REAR NO.2 SEAT, LH
72840E ARMREST ASSY, NO.4 SEAT, LH
72840F ARMREST ASSY, NO.6 SEAT, LH
79315A PLATE, NO.3 SEAT CUSHION HINGE, NO.1 RH
79425 PLATE, NO.4 SEAT CUSHION HINGE, NO.1 LH
79615 PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH
79625 PLATE, NO.6 SEAT CUSHION HINGE, NO.1 LH

Scheme 9

(0408-1108)26S,29S..CBU
ｻｲｺｳﾚﾂ ﾘﾔｼｰﾄ(ｺﾃｲｼｷ) ILLUST NO. 3 OF 4

Click part number in the scheme or in the list:

79974 BRACKET, SEAT BACK ASSIST, RH
79803 FRAME SUB-ASSY, NO.8 SEAT BACK, RH
79087B PAD SUB-ASSY, NO.8 SEAT BACK, RH
79083 COVER SUB-ASSY, NO.8 SEAT BACK, RH
9165161020 ** Std Part
79984 BRACKET, SEAT BACK ASSIST, LH
9017910033 ** Std Part
79804 FRAME SUB-ASSY, NO.8 SEAT BACK, LH
79088B PAD SUB-ASSY, NO.8 SEAT BACK, LH
79081A COVER SUB-ASSY, NO.8 SEAT CUSHION
79084 COVER SUB-ASSY, NO.8 SEAT BACK, LH
9165161030 ** Std Part
9165161028 ** Std Part
91622B1025 ** Std Part
79805A LEG SUB-ASSY, FOLD SEAT, FRONT
9015960589 ** Std Part
9010908277 ** Std Part
79085 PAD SUB-ASSY, NO.8 SEAT CUSHION
79860 SPRING ASSY, NO.8 SEAT CUSHION
9165160835 ** Std Part
9164180835 ** Std Part
79915 BRACKET, SEAT LEG
79097 PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL
9016735014 ** Std Part

Scheme 10

(0408-1108)BZB40,50,XZB40,50,51..WOC
ｻｲｺｳﾚﾂ ﾘﾔｼｰﾄ(ｵﾘﾀﾀﾐｼｷ) ILLUST NO. 3 OF 4

Click part number in the scheme or in the list:

79083 COVER SUB-ASSY, NO.8 SEAT BACK, RH
79087B PAD SUB-ASSY, NO.8 SEAT BACK, RH
79803 FRAME SUB-ASSY, NO.8 SEAT BACK, RH
72665C COVER, REAR SEAT LOCK, RH
78910A LOCK ASSY, FOLD SEAT, RH
79084 COVER SUB-ASSY, NO.8 SEAT BACK, LH
79088B PAD SUB-ASSY, NO.8 SEAT BACK, LH
79804 FRAME SUB-ASSY, NO.8 SEAT BACK, LH
79885 HINGE, FOLD SEAT BACK SET, RH
79886 HINGE, FOLD SEAT BACK SET, LH
78920A LOCK ASSY, FOLD SEAT, LH
78970 BAND ASSY, SEAT LOCK
72666B COVER, REAR SEAT LOCK, LH
78950 BAND ASSY, FOLD SEAT STOPPER, NO.1
78904 STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2
78930 CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3
79806B LEG SUB ASSY, FOLD SEAT REAR
79916 BRACKET, SEAT LEG, NO.2
9016735014 ** Std Part
78960 BAND ASSY, FOLD SEAT STOPPER, NO.2
79097 PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL
9015960589 ** Std Part
79805A LEG SUB-ASSY, FOLD SEAT, FRONT
79915 BRACKET, SEAT LEG
79860 SPRING ASSY, NO.8 SEAT CUSHION
78910 CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1
78903 STRIKER SUB-ASSY, FOLD SEAT LEG LOCK
79081A COVER SUB-ASSY, NO.8 SEAT CUSHION
79085 PAD SUB-ASSY, NO.8 SEAT CUSHION
9020507002 ** Std Part
9163160825 ** Std Part
9165161022 ** Std Part
9016840043 ** Std Part
9165161030 ** Std Part
9038910031 ** Std Part
9020615002 ** Std Part
9165161020 ** Std Part
6477790A00 ** Std Part
9038710070 ** Std Part
9011910493 ** Std Part
8271112120 ** Std Part
9165160835 ** Std Part
9164180835 ** Std Part
9020612003 ** Std Part
9017908204 ** Std Part
9010908277 ** Std Part
9015960035 ** Std Part
9050608035 ** Std Part
7296960010 ** Std Part
9015960058 ** Std Part

Scheme 11

(0408-1108)BZB50,XZB5#
ﾄﾘﾂｹ ﾎﾞﾙﾄ ILLUST NO. 4 OF 4

Click part number in the scheme or in the list:

9166160825 ** Std Part
9165160835 ** Std Part
91622B1025 ** Std Part
9165160830 ** Std Part
7270236010 ** Std Part
9166160835 ** Std Part
91635G0835 ** Std Part
9011908A85 ** Std Part
91651B0820 ** Std Part
9011908A84 ** Std Part
9011908A54 ** Std Part

Scheme 12

(9301- )
ﾎｸﾞﾘﾝｸﾞ

Click part number in the scheme or in the list:

9046818008 ** Std Part
9046816019 ** Std Part

Toyota Coaster genuine parts
