Height control (auto-leveler) for Voxy ZRR85G

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 48965D 90949-01D60 02 01.2014 - CLAMP, HEIGHT CONTROL TUBE, NO.2 ZRR8#..IV5 2.90 USD

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(1401- )IV5 ﾊｲﾄｺﾝﾄﾛｰﾙ ﾊﾞﾙﾌﾞ & ﾁｭｰﾌﾞ ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9048001555 ** Std Part 48912A CUSHION, HEIGHT CONTROL BOLT, NO.1 9054105023 ** Std Part 9046812012 ** Std Part 9017906168 ** Std Part 48986 TUBE, HEIGHT CONTROL, NO.6 48987 TUBE, HEIGHT CONTROL, NO.7 9094901C82 ** Std Part 48934E RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR) 48933 HOLDER, AIR CONNECTOR CLIP 48932A PLATE, HEIGHT CONTROL TUBE 48934B CONNECTOR, HEIGHT CONTROL TUBE ** 48-04 44753C CLAMP, HEIGHT CONTROL TUBE, NO.2 48965D CLAMP, HEIGHT CONTROL TUBE, NO.2 48096 VALVE SUB-ASSY, HEIGHT CONTROL, NO.2

Scheme 2

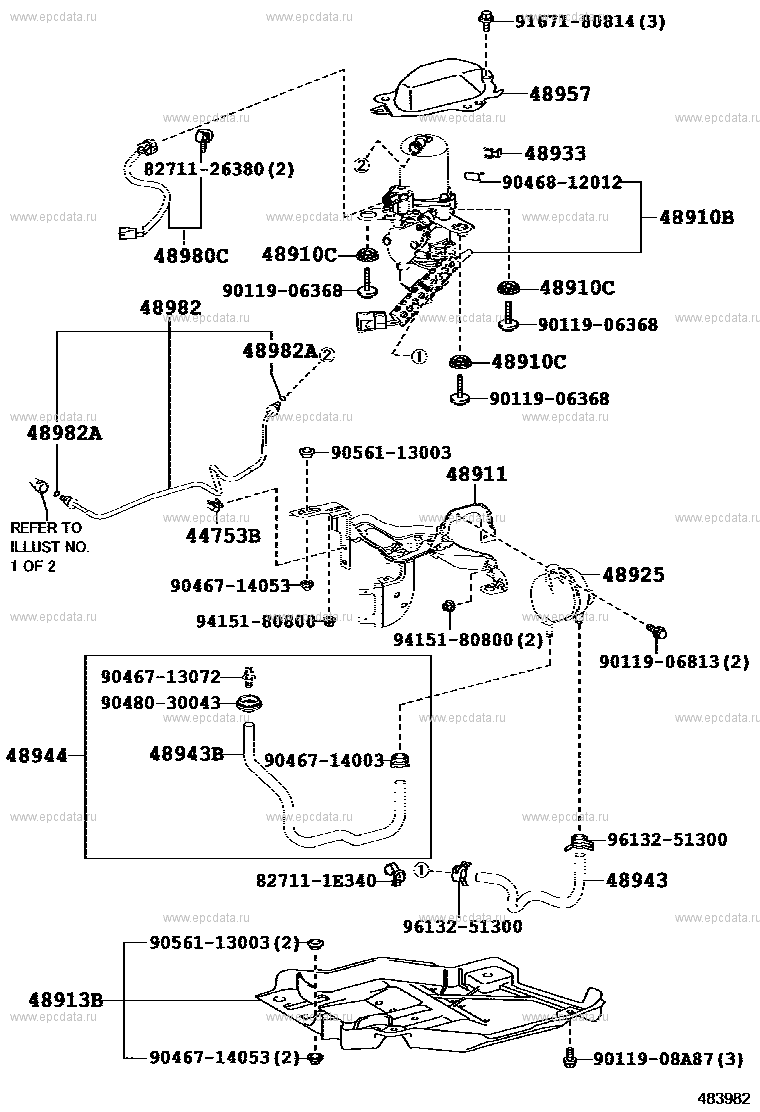

(1401- )IV5 ﾊｲﾄｺﾝﾛｰﾙ ｺﾝﾌﾟﾚｯｻ ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 48925 FILTER, HEIGHT CONTROL 9613251300 ** Std Part 827111E340 ** Std Part 9011906813 ** Std Part 9415180800 ** Std Part 9046714003 ** Std Part 9046713072 ** Std Part 9048030043 ** Std Part 48911 BRACKET, HEIGHT CONTROL COMPRESSOR 44753B CLAMP, HEIGHT CONTROL TUBE, NO.1 48943B HOSE, HEIGHT CONTROL, NO.2 48944 HOSE, HEIGHT CONTROL, NO.2 48943 HOSE, HEIGHT CONTROL, NO.1 9056113003 ** Std Part 9046714053 ** Std Part 9011908A87 ** Std Part 48913B COVER, HEIGHT CONTROL PUMP 48910B COMPRESSOR ASSY, HEIGHT CONTROL 48933 HOLDER, AIR CONNECTOR CLIP 48957 CAP, HEIGHT CONTROL COMPRESSOR 48980C HARNNES ASSY, HEIGHT CONTROL VALVE 8271126380 ** Std Part 48982 TUBE, HEIGHT CONTROL, NO.2 48982A RING, O(FOR HEIGHT CONTROL TUBE NO.2) 9046812012 ** Std Part 9167180814 ** Std Part 9011906368 ** Std Part 48910C BUSH, NO.1(FOR HEIGHT CONTROL COMPRESSOR)

Voxy ZRR85G
