Floor mat & silencer pad for Voxy ZRR85G
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

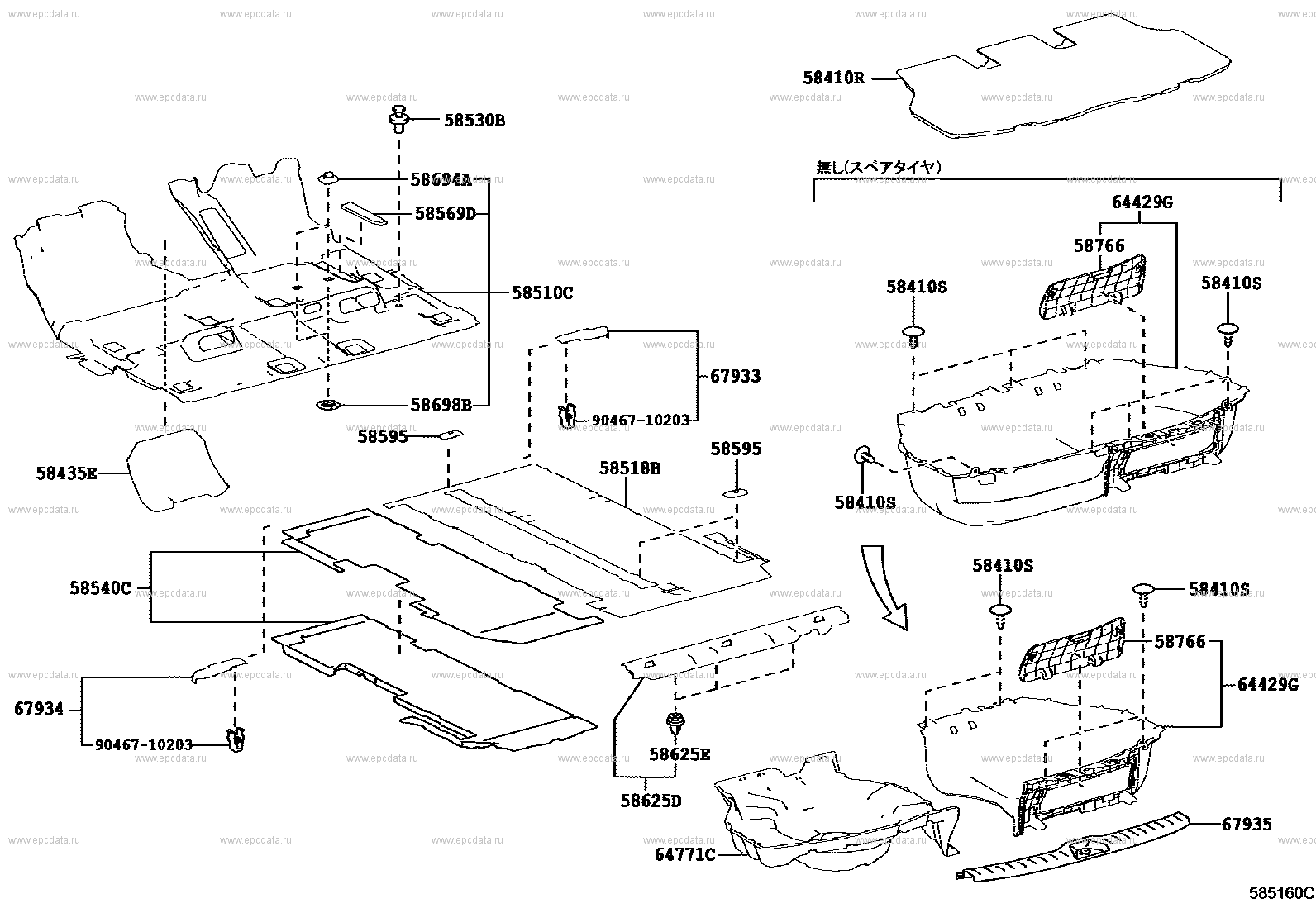

Scheme 1
| (1401- )ZRR8#..07S..CBU |
Click part number in the scheme or in the list: 58510C CARPET ASSY, FRONT FLOOR, FRONT58694A PLATE, MAT SET, UPPER 58569D COVER, FRONT FLOOR CAUTION PLATE 58698B PLATE, MAT SET, LOWER 58435E SILENCER, FRONT FLOOR, CENTER 58530B CLIP(FOR FRONT FLOOR CARPET) 58595 MOULDING, FLOOR CARPET, NO.3 58518C MAT, REAR FLOOR, NO.2 58625D PLATE, REAR FLOOR MAT, NO.1 58625E CLIP(FOR REAR FLOOR MAT PLATE) 58410S CLIP, DECK BOARD 64771C COVER, SPARE WHEEL 67935 PLATE, BACK DOOR SCUFF 58410R BOARD ASSY, DECK 64429G BOX, LUGGAGE COMPARTMENT TRIM 58766 COVER, JACK BOX HOLE 58518B MAT, REAR FLOOR, NO.2 67934 PLATE, QUARTER SCUFF, INSIDE LH 67933 PLATE, QUARTER SCUFF, INNER RH 9046710203 ** Std Part |
Scheme 2
|
(1401- )ZRR8#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄｼｬ |
Click part number in the scheme or in the list: 58510C CARPET ASSY, FRONT FLOOR, FRONT58694A PLATE, MAT SET, UPPER 58698B PLATE, MAT SET, LOWER 58435E SILENCER, FRONT FLOOR, CENTER 58530B CLIP(FOR FRONT FLOOR CARPET) 58595 MOULDING, FLOOR CARPET, NO.3 58518B MAT, REAR FLOOR, NO.2 58625D PLATE, REAR FLOOR MAT, NO.1 58625E CLIP(FOR REAR FLOOR MAT PLATE) 58410S CLIP, DECK BOARD 64771C COVER, SPARE WHEEL 67935 PLATE, BACK DOOR SCUFF 58410R BOARD ASSY, DECK 64429G BOX, LUGGAGE COMPARTMENT TRIM 58766 COVER, JACK BOX HOLE 58540C MAT ASSY, FLOOR, REAR 67934 PLATE, QUARTER SCUFF, INSIDE LH 67933 PLATE, QUARTER SCUFF, INNER RH 9046710203 ** Std Part 58569D COVER, FRONT FLOOR CAUTION PLATE |
