Radiator & water outlet for Vitz NCP95

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 16363 16363-28150 01 01.2005 - 08.2005 MOTOR, COOLING FAN 2NZFE..NCP95  140.93 to 227.59 USD 02 16363 16363-28160 01 08.2005 - 08.2007 MOTOR, COOLING FAN 2NZFE..NCP95  127.64 to 142.70 USD           ** Rev.Ref.No ** ( From- , To-0010 )         To NCP95 -0033548   03 16363 16363-28160 01 08.2007 - 08.2008 MOTOR, COOLING FAN 2NZFE..NCP95  127.64 to 142.70 USD           ** Rev.Ref.No ** ( From-0011 , To-0012 )         From NCP95 -0033549           To NCP95 -0045613   04 16363 16363-28160 01 08.2008 - 12.2010 MOTOR, COOLING FAN 2NZFE..NCP95  127.64 to 142.70 USD           ** Rev.Ref.No ** ( From-0013 , To- )         From NCP95 -0045614   More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

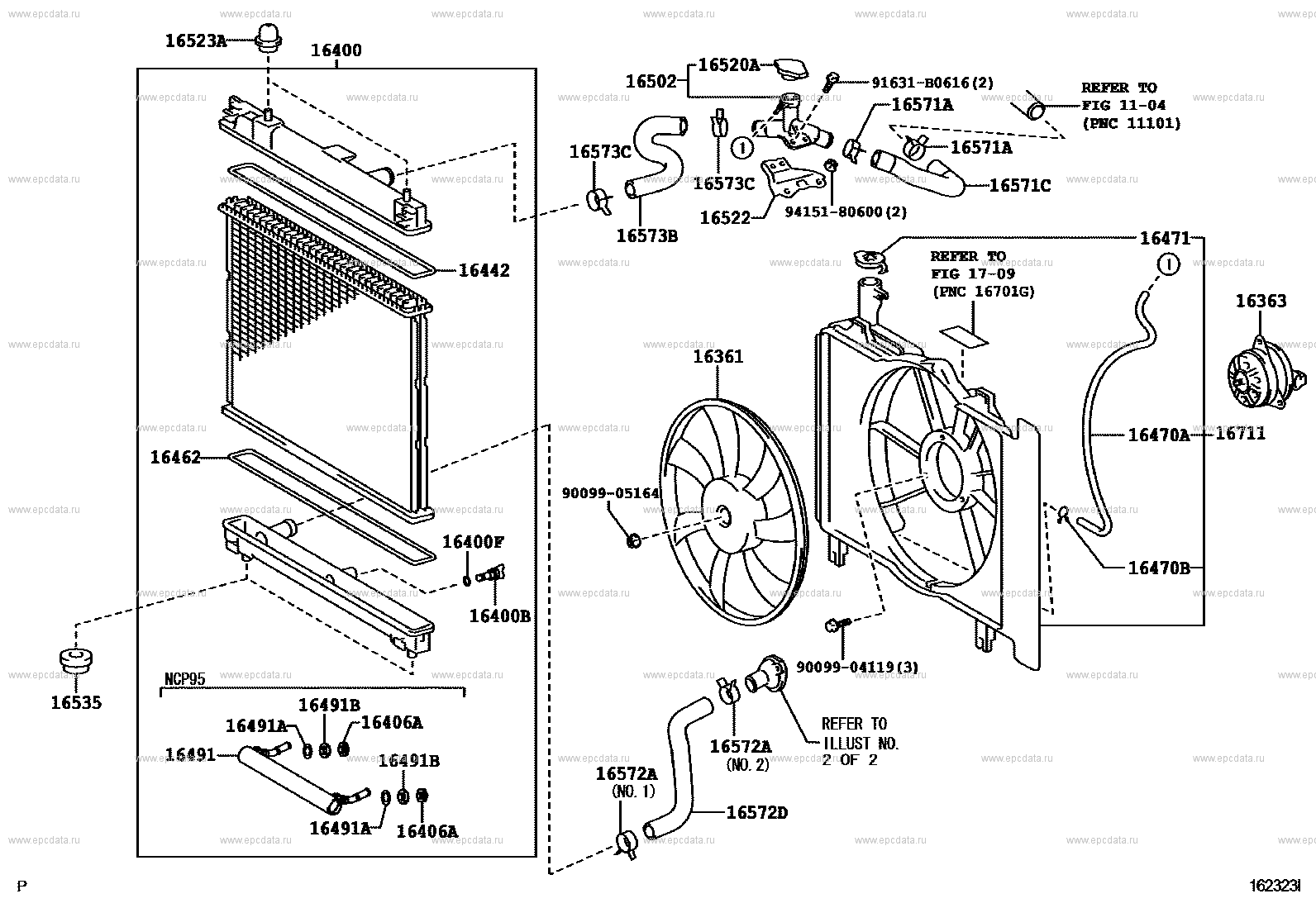

Scheme 1

(0501- )1NZFE,2NZFE ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9009905164 ** Std Part 16400 RADIATOR ASSY 16535 SUPPORT, RADIATOR, LOWER 16523A CUSHION, RADIATOR SUPPORT 16361 FAN 16573C CLAMP OR CLIP, RADIATOR HOSE, NO.3 16571A CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571C HOSE, RADIATOR, NO.1 16522 BRACKET, WATER FILLER 16520A CAP SUB-ASSY, WATER FILLER 16573B HOSE, RADIATOR, NO.3 16572D HOSE, RADIATOR, NO.2 91631B0616 ** Std Part 9415180600 ** Std Part 16502 FILLER SUB-ASSY, WATER 16572A CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16462 RING, O(FOR RADIATOR LOWER TANK) 16442 RING, O(FOR RADIATOR UPPER TANK) 16400B PLUG, RADIATOR DRAIN COCK 16400F PACKING(FOR RADIATOR DRAIN COCK) 16491 COOLER, OIL(FOR ATM) 16491B WASHER, PLATE(FOR ATM OIL COOLER) 16491A RING, O(FOR ATM OIL COOLER) 16406A SUPPORT(FOR OIL COOLER) ** 11-04 16363 MOTOR, COOLING FAN 16471 CAP SUB-ASSY, RESERVE TANK 16470B CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470A HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16711 SHROUD, FAN 9009904119 ** Std Part ** 17-09

Scheme 2

(0501- )2NZFE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16553C CLAMP, HOSE 16264A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16261 HOSE, WATER BY-PASS 16261A CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 HOSE, WATER BY-PASS, NO.2 9011606127 ** Std Part 9017906299 ** Std Part 16321 INLET, WATER 16325 GASKET, WATER INLET HOUSING, NO.1 16331A THERMOSTAT 9012606019 ** Std Part 16268 PIPE, WATER BY-PASS, NO.1 9162160614 ** Std Part ** 22-11 ** 17-01 ** 19-03 ** 87-16 9415180801 ** Std Part 9011908A53 ** Std Part 16381 BAR, FAN BELT ADJUSTING 16268G GASKET(FOR WATER BY-PASS PIPE)

Vitz NCP95
