Fuel tank & tube for Vitz NCP15




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 77740A 23827-21010 01 08.1999 - 12.2001 HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) NCP1#  10.19
to 16.77 USD
02 77740A 23827-21010 01 12.2001 - 12.2002 HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) NCP1#  10.19
to 16.77 USD
03 77740A 23827-21010 01 12.2002 - 01.2005 HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) NCP1#  10.19
to 16.77 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2

Click on the part subgroup below to get genuine part numbers.

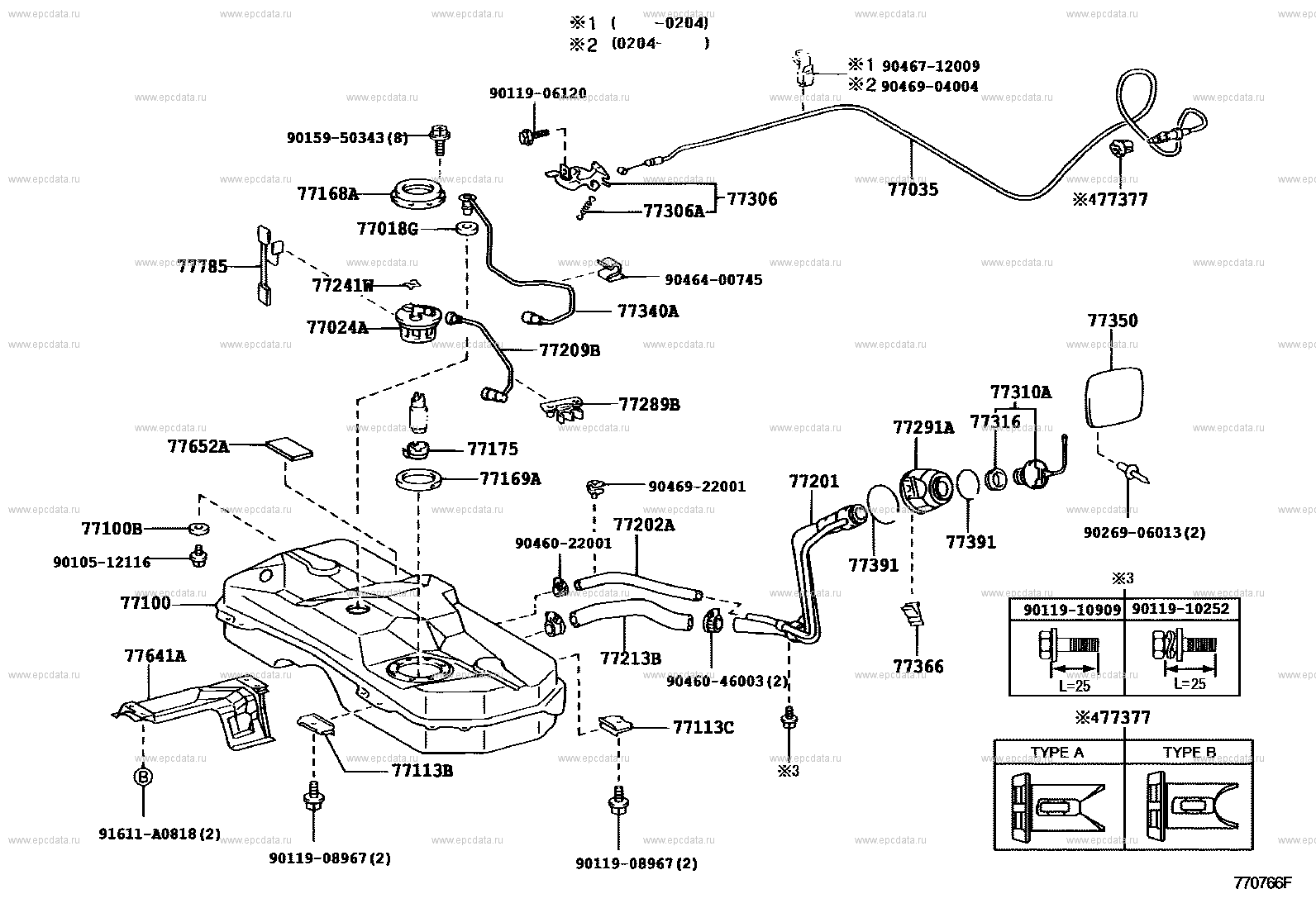

Scheme 1

(9908- )NCP15
ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

9011906120 ** Std Part
9010512116 ** Std Part
77024A PLATE SUB-ASSY, FUEL SUCTION
77100 TANK ASSY, FUEL
77100B GASKET(FOR FUEL TANK)
77018G GASKET, FUEL TANK EVAP/VENT TUBE
77175 SUPPORT, FUEL SUCTION, NO.2
77169A GASKET, FUEL SUCTION TUBE SET
77168A PLATE, FUEL TANK VENT TUBE SET
77202A HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209B TUBE SUB-ASSY, FUEL PUMP
77241W CLIP, TUBE JOINT
77306A SPRING, FUEL LID OPEN LEVER
77289B CLAMP, FUEL TUBE, NO.3
9015950343 ** Std Part
77340A VALVE ASSY, FUEL CUT OFF W/TUBE
77306 LEVER SUB-ASSY, FUEL LID LOCK OPEN
77201 PIPE SUB-ASSY, FUEL TANK INLET
9046400745 ** Std Part
77035 CABLE SUB-ASSY, FUEL LID LOCK CONTROL
9046712009 ** Std Part
77310A CAP ASSY, FUEL TANK
77316 GASKET, FUEL TANK CAP
77291A SHIELD, FUEL TANK FILLER PIPE
77350 LID ASSY, FUEL FILLER OPENING
9046922001 ** Std Part
77785 HARNESS, FUEL PUMP
77652A CUSHION, FUEL TANK, NO.2
77641A PROTECTOR, FUEL TANK, NO.1
77113B PLATE, FUEL TANK SIDE
77113C PLATE, FUEL TANK SIDE
77213B HOSE, FUEL TANK TO FILLER PIPE
9046022001 ** Std Part
9046046003 ** Std Part
9011908967 ** Std Part
77391 RING, FUEL INLET BOX
77366 SPRING, FUEL FILLER OPENING LID HINGE
91611A0818 ** Std Part
9026906013 ** Std Part
9046904004 ** Std Part
9011910252 ** Std Part
9011910909 ** Std Part
77377 RETAINER, FUEL FILLER OPENING LID LOCK

Scheme 2

(9901- )NCP1#,SCP10 ; (0212- )SCP13
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

91621J0612 ** Std Part
77740A HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740 CANISTER ASSY, CHARCOAL
9613251100 ** Std Part
77751 BRACKET, CHARCOAL CANISTER BASE
77261E HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77285D CLAMP, FUEL TUBE, NO.1
77286D CLAMP, FUEL TUBE, NO.2
77298A CLAMP, FUEL TUBE, NO.4
77251B TUBE, FUEL MAIN
77019J TUBE SUB-ASSY, FUEL TANK TO CANISTER
77266A PROTECTOR, FUEL TUBE, NO.1
9613251300 ** Std Part
