Rear spring & shock absorber for Tercel EL45

Click on the part subgroup below to get genuine part numbers.

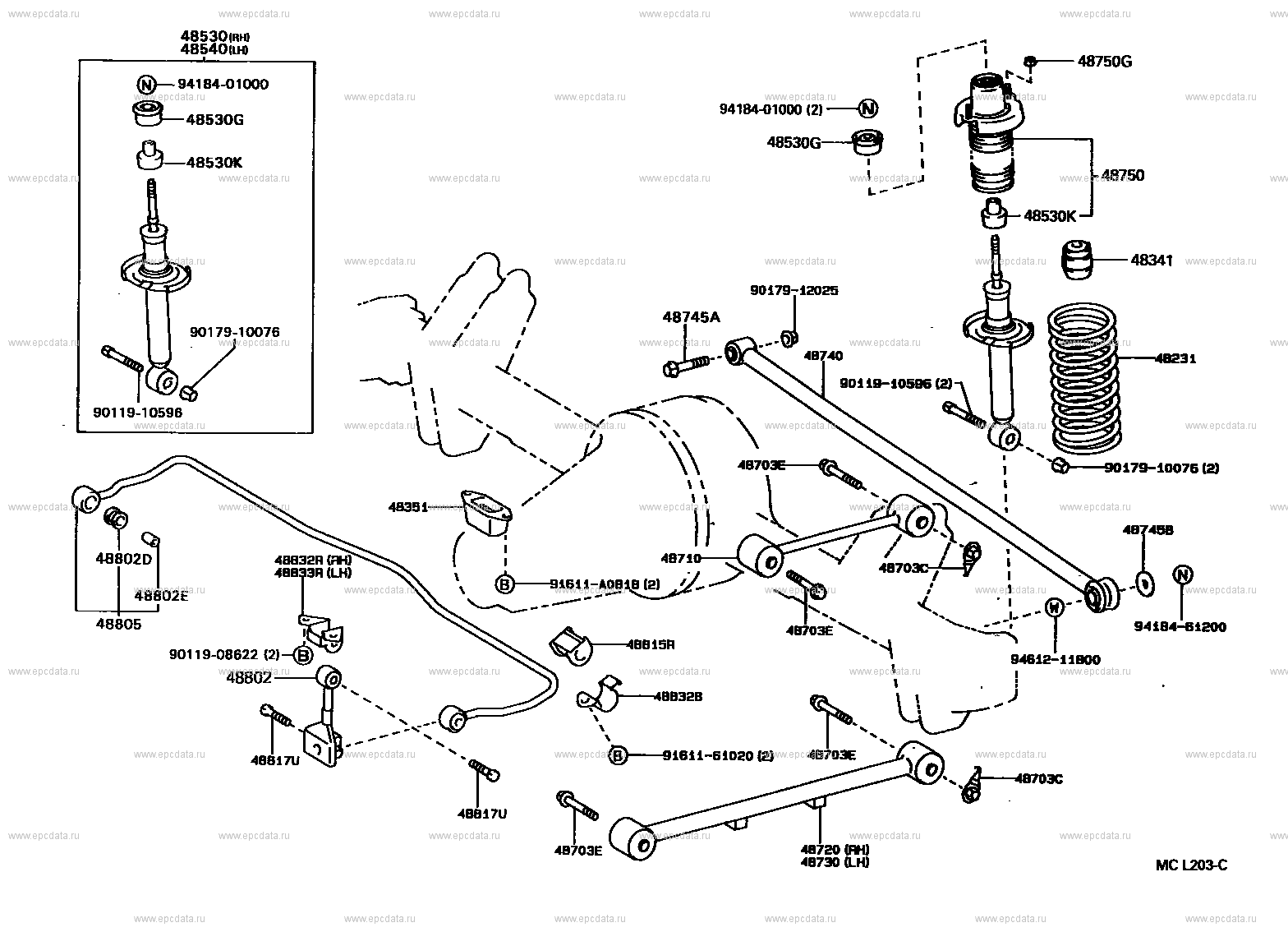

(9009- )EL45 Open full size scheme

Click part number in the scheme or in the list: 48530 ABSORBER ASSY, SHOCK, REAR RH 48540 ABSORBER ASSY, SHOCK, REAR LH 48750G NUT(FOR REAR SUSPENSION SUPPORT) 9418401000 ** Std Part 48530G CUSHION, REAR SHOCK ABSORBER, NO.1 48530K CUSHION, REAR SHOCK ABSORBER, NO.2 48750 SUPPORT ASSY, REAR SUSPENSION 48341 BUMPER, REAR SPRING 9017912025 ** Std Part 48745A BOLT, HEXAGON(FOR LATERAL CONTROL ROD) 9017910076 ** Std Part 48740 ROD ASSY, REAR LATERAL CONTROL 48231 SPRING, COIL, REAR 9011910596 ** Std Part 48703E BOLT(FOR REAR SUSPENSION ARM) 48351 BUMPER, DIFFERENTIAL CARRIER 48745B WASHER, LATERAL CONTROL ROD CUSHION 48802D BUSH, STABILIZER LINK 48710 ARM ASSY, UPPER CONTROL 48832R BRACKET, REAR STABILIZER BAR, NO.1 RH 48703C NUT(FOR REAR SUSPENSION ARM) 48833R BRACKET, REAR STABILIZER BAR, NO.1 LH 91611A0818 ** Std Part 48802E SPACER(FOR REAR STABILIZER BAR) 48805 BAR SUB-ASSY, REAR STABILIZER 9418461200 ** Std Part 48815R BUSH, STABILIZER(FOR REAR) 9011908622 ** Std Part 9461211800 ** Std Part 48802 LINK SUB-ASSY, STABILIZER 48832B BRACKET, REAR STABILIZER BAR, NO.2 9161161020 ** Std Part 48817U BOLT(FOR REAR STABILIZER) 48720 ARM ASSY, LOWER CONTROL, RH 48730 ARM ASSY, LOWER CONTROL, LH

Tercel EL45
