Headlamp for Tercel AL21

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(8205-8408)TER Open full size scheme Go to top

Click part number in the scheme or in the list: 81110 HEADLAMP ASSY, RH 81150 HEADLAMP ASSY, LH 81138 SPRING, HEADLAMP 81144 COVER, HEADLAMP, NO.1 81115A BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH 81116A BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH 81146 LENS, HEADLAMP, RH 81117 PACKING, HEADLAMP HOUSING 81110B BULB(FOR HEADLAMP, NO.1) 81186 LENS, HEADLAMP, LH 9017906115 ** Std Part 81118 NUT, SPRING 81136A RIM, HEADLAMP, RH 81176A RIM, HEADLAMP, LH 81119 SCREW, HEADLAMP

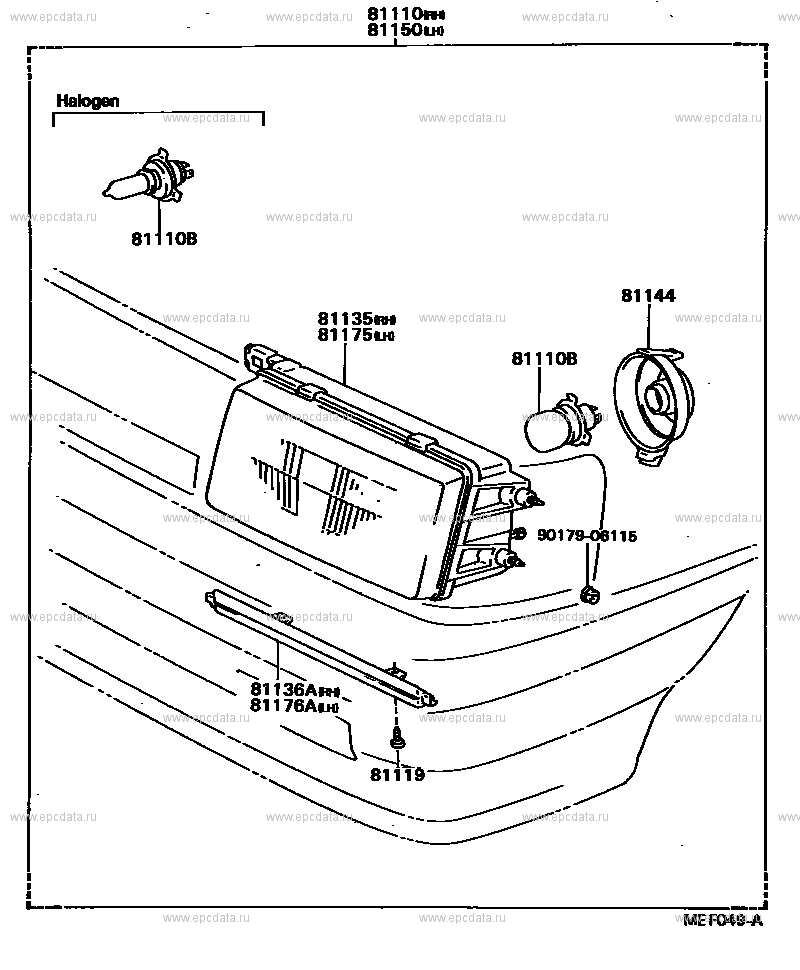

Scheme 2

(8408-8605)TER Open full size scheme Go to top

Click part number in the scheme or in the list: 81110 HEADLAMP ASSY, RH 81150 HEADLAMP ASSY, LH 81110B BULB(FOR HEADLAMP, NO.1) 81144 COVER, HEADLAMP, NO.1 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 9017906115 ** Std Part 81136A RIM, HEADLAMP, RH 81176A RIM, HEADLAMP, LH 81119 SCREW, HEADLAMP

Tercel AL21
