Meter for Tercel AL21
Click on the part subgroup below to get genuine part numbers.

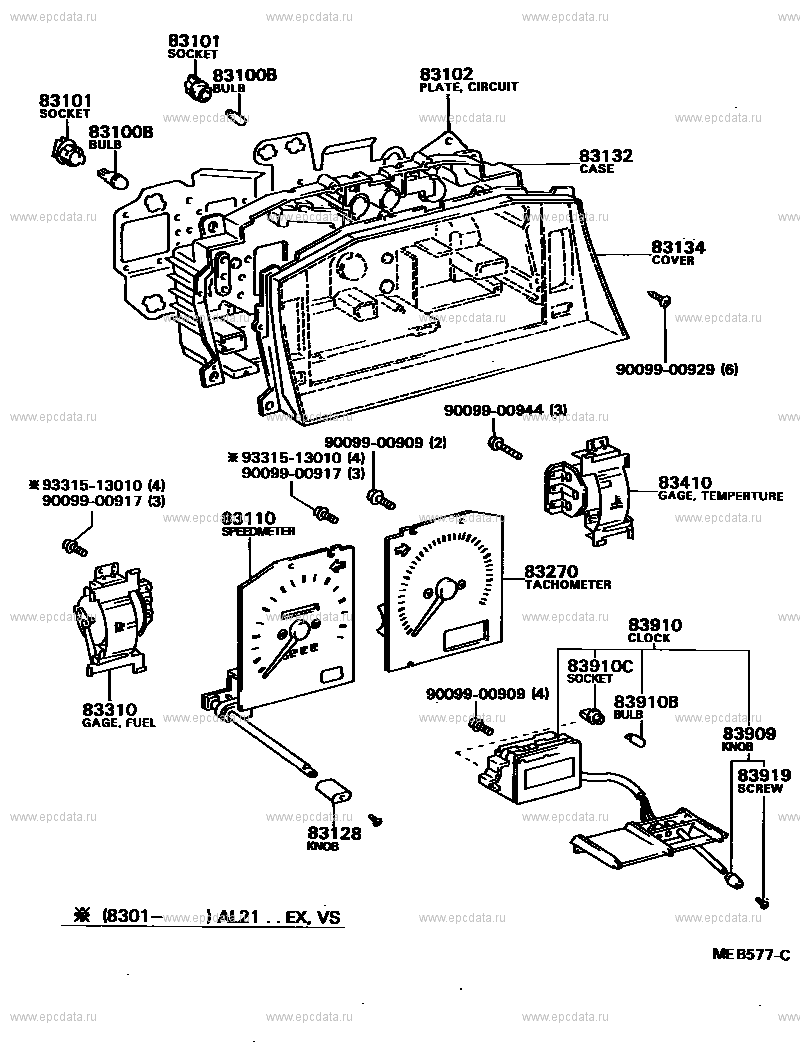

Scheme 1
|
(8205- )AL21..EX,SX,VS ; (8408- )AL25..EX,VE ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 83101 SOCKET SUB-ASSY, COMBINATION METER BULB83100B BULB, COMBINATION METER, NO.1 83102 PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 83132 CASE, COMBINATION METER 83134 COVER, COMBINATION METER, NO.1 9009900929 ** Std Part 9009900944 ** Std Part 9009900909 ** Std Part 9331513010 ** Std Part 9009900917 ** Std Part 83410 GAGE ASSY, WATER TEMPERATURE RECEIVER 83110 SPEEDOMETER ASSY 83270 TACHOMETER ASSY, ENGINE 83910 CLOCK ASSY 83910C SOCKET SUB-ASSY, CLOCK BULB 83910B BULB, CLOCK INDICATOR 83310 GAGE ASSY, FUEL RECEIVER 83909 KNOB, CLOCK 83919 SCREW, CLOCK 83128 KNOB, TRIP COUNTER |
Scheme 2
|
(8205- ) ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 83710 CABLE ASSY, SPEEDOMETER DRIVE, NO.18271112220 ** Std Part 8379116030 ** Std Part 9356755016 ** Std Part 83770 ADAPTER ASSY, SPEEDOMETER CABLE |
