Front seat & seat track for Tercel AL21

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(8205-8804)SX,VS ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 71430S BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 72457C KNOB, SIDE SUPPORT ADJUSTER 71630S SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71950 HEADREST ASSY, FRONT SEAT 71551S PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 9015760004 ** Std Part ** 86-02 71073S COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 9052001002 ** Std Part 71922A COVER, FRONT SEAT HEADREST UNDER 9354054012 ** Std Part 71956A SUPPORT, FRONT SEAT HEADREST 74615B ESCUTCHEON, ASSIST GRIP, RH 74616B ESCUTION, ASSIST GRIP, LH 71440S BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 74630A GRIP SUB-ASSY, ASSIST, RH 74640A GRIP SUB-ASSY, ASSIST, LH 71640S SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71552S PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 72760A ADJUSTER ASSY, LUMBAR SUPPORT 71074S COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71073W WIRE, FRONT SEAT BACK COVER 9165140616 ** Std Part 71812A RING, HOG, SMALL (FOR FRONT SEAT) 72791 LEVER, LUMBAR SUPPORT 71410S CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 9046804137 ** Std Part 71071S COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71420S CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71511S PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71011S FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71072S COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71512S PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71012S FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

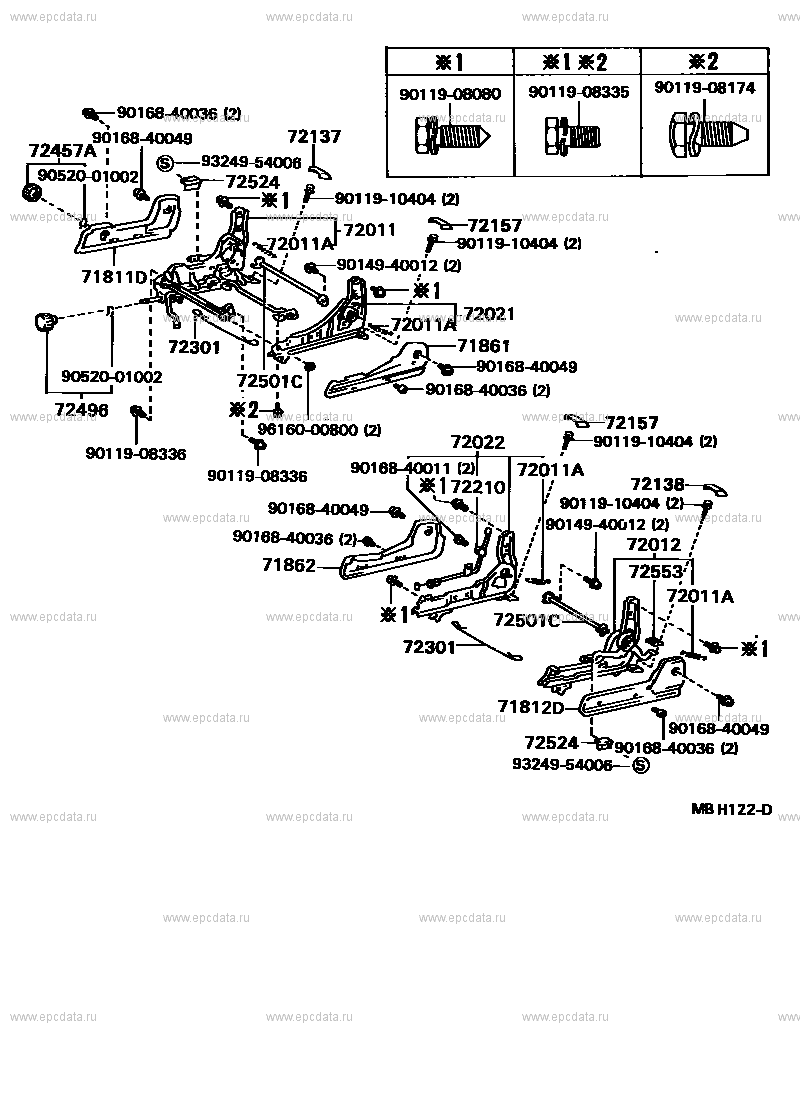

Scheme 2

(8408-8804)SX,VS ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9011908174 ** Std Part 9011908335 ** Std Part 9011908080 ** Std Part 9016840036 ** Std Part 72137 COVER, SEAT TRACK OUTER, RH 9016840049 ** Std Part 72457A KNOB, SEAT ADJUSTER 9324954006 ** Std Part 9052001002 ** Std Part 72524 HANDLE, RECLINING ADJUSTER RELEASE 9011910404 ** Std Part 72157 COVER, SEAT TRACK BRACKET, INNER 72011 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH 72011A SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) 9014940012 ** Std Part 71811D SHIELD, FRONT SEAT CUSHION, RH 72021 ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH 71861 SHIELD, FRONT SEAT CUSHION, INNER RH 72301 WIRE SUB-ASSY, SEAT TRACK EQUALIZING 72501C PIPE SUB-ASSY, RECLINING CONNECTING 72496 KNOB, VERTICAL SEAT ADJUSTER, NO.2 9616000800 ** Std Part 72022 ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH 9011908336 ** Std Part 9016840011 ** Std Part 72210 CABLE ASSY, SEAT TRACK CONTROL 72138 COVER, SEAT TRACK OUTER, LH 72012 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH 71862 SHIELD, FRONT SEAT CUSHION, INNER LH 72553 COVER, RECLINING PEDAL 71812D SHIELD, FRONT SEAT CUSHION, LH
