ToyotaTercelAL20AL20-LHKDSBody and interiorRear door lock & handle

Rear door lock & handle for Tercel AL20




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 69227 69205-16040-02 01 05.1982 - 08.1984 HANDLE, REAR DOOR INSIDE, RH AL2#..4DS,5DS
DARK WINE,RED/MAROON,TRIM3#		 15.82 USD
          ** Rev.Ref.No ** ( From-0081 , To-0200 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
02 69227 69205-16040-03 01 05.1982 - 08.1984 HANDLE, REAR DOOR INSIDE, RH AL2#..4DS,5DS
GRAY,GRAY,TRIM1#		 16.01 USD
  (SUBS) 69205-16040-13 01   16.01 USD
          ** Rev.Ref.No ** ( From-0081 , To-0200 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
03 69227 69205-16040-06 01 05.1982 - 08.1984 HANDLE, REAR DOOR INSIDE, RH AL2#..4DS,5DS
BROWN,BROWN,TRIM4#		 16.01 USD
          ** Rev.Ref.No ** ( From-0081 , To-0200 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
04 69227 69205-16040-13 01 08.1984 - 05.1986 HANDLE, REAR DOOR INSIDE, RH AL2#..4DS,5DS
GRAY,GRAY,TRIM1#		 16.01 USD
          ** Rev.Ref.No ** ( From-0201 , To-0270 )
        From AL20 -7053200 PLANT.P11
        From AL20 -0138897 PLANT.A32
        From AL20 -3536446 PLANT.A32
        To AL20 -0217555 PLANT.A32
05 69227 69205-16040-01 01 05.1986 - 10.1989 HANDLE, REAR DOOR INSIDE, RH AL2#
BLACK,NEW BLACK,TRIM2#		 16.01 USD
          ** Rev.Ref.No ** ( From-0271 , To- )
        From AL20 -7082585 PLANT.P11
06 69227 69205-16040-15 01 05.1986 - 10.1989 HANDLE, REAR DOOR INSIDE, RH AL2#..DX,EX,GX,VC,VE,VL
BEIGE,DARK BEIGE,TRIM4#		 16.01 USD
          ** Rev.Ref.No ** ( From-0271 , To- )
        From AL20 -7082585 PLANT.P11

More than 1 spare part found. Please define it more accurately before ordering.






Click on the part subgroup below to get genuine part numbers.

(8205- )

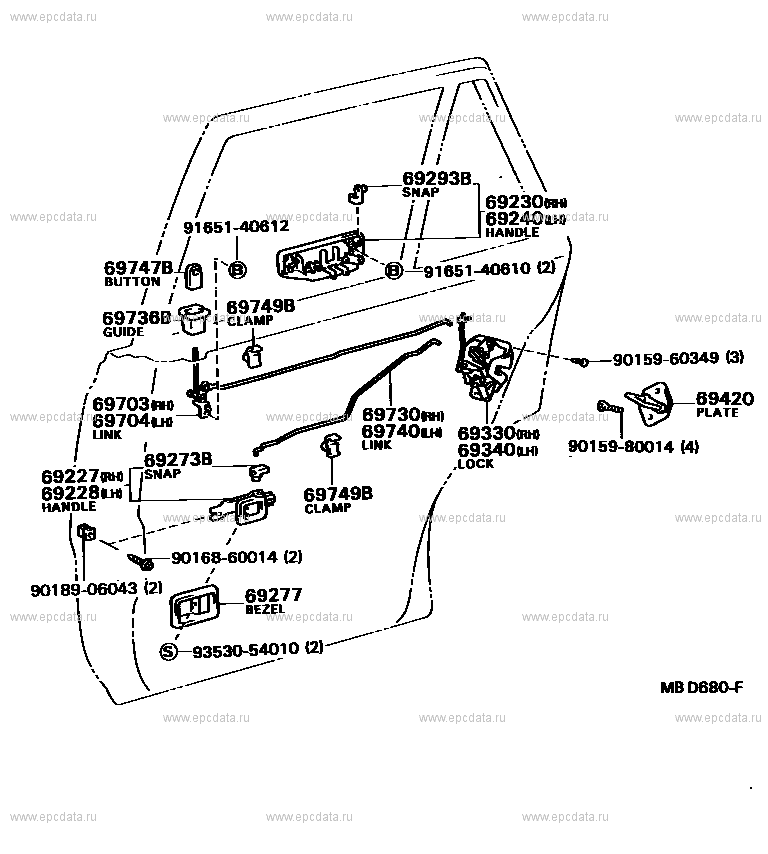

Click part number in the scheme or in the list:

69293B SNAP, REAR DOOR OUTSIDE HANDLE
69230 HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240 HANDLE ASSY, REAR DOOR OUTSIDE, LH
9165140612 ** Std Part
9165140610 ** Std Part
69747B BUTTON, DOOR LOCKING(FOR REAR DOOR)
69749B CLAMP, REAR DOOR LOCK LINK
69736B GUIDE, REAR DOOR LOCK LINK
9015960349 ** Std Part
69420 PLATE ASSY, REAR DOOR LOCK STRIKER
69703 LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69730 LINK ASSY, REAR DOOR OPEN CONTROL, RH
69704 LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69740 LINK ASSY, REAR DOOR OPEN CONTROL, LH
69330 LOCK ASSY, REAR DOOR, RH
9015980014 ** Std Part
69340 LOCK ASSY, REAR DOOR, LH
69273B SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69227 HANDLE, REAR DOOR INSIDE, RH
69228 HANDLE, REAR DOOR INSIDE, LH
9016860014 ** Std Part
9018906043 ** Std Part
69277 BEZEL, REAR DOOR INSIDE HANDLE
9353054010 ** Std Part
