(9601- )NP90
|

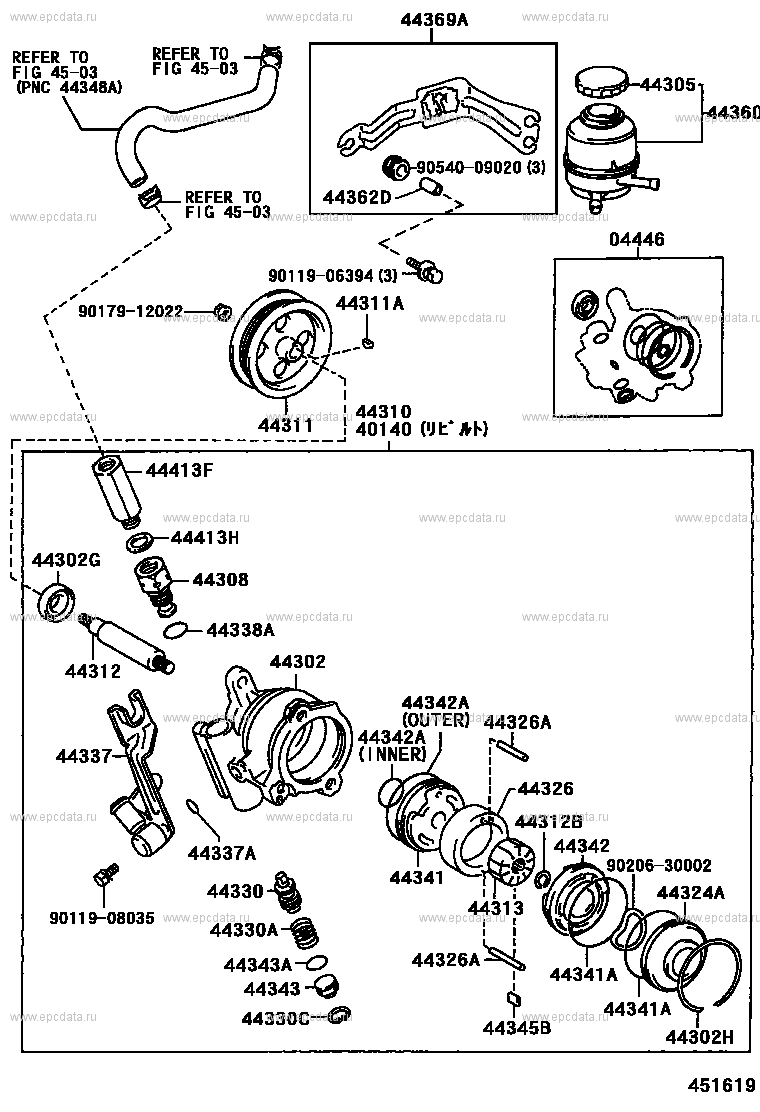

Click part number in the scheme or in the list:
44369A BRACKET, OIL RESERVOIR, NO.1
** 45-03
44305 CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44360 RESERVOIR ASSY, VANE PUMP OIL
9054009020 ** Std Part
44362D SPACER(FOR VANE PUMP OIL RESERVOIR)
04446 GASKET KIT, POWER STEERING PUMP
9011906394 ** Std Part
44311A KEY, VANE PUMP PULLEY
9017912022 ** Std Part
44310 PUMP ASSY, VANE
44311 PULLEY, VANE PUMP
40140 PUMP ASSY,VANE REBUILT
44413F TUBE, PRESSURE FEED, NO.2
44413H GASKET(FOR PRESSURE FEED TUBE NO.2)
44302G SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44308 UNION SUB-ASSY, PRESSURE PORT
44338A RING, O(FOR PRESSURE PORT UNION)
44302 HOUSING SUB-ASSY, VANE PUMP, FRONT
44312 SHAFT, VANE PUMP
44342A RING, O(FOR VANE PUMP SIDE PLATE REAR)
44326A PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44337 UNION, POWER STEERING SUCTION PORT
44326 RING, CAM(FOR VANE PUMP)
44312B RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44342 PLATE, VANE PUMP SIDE, REAR
44337A RING, O(FOR POWER STEERING SUCTION PORT)
9020630002 ** Std Part
44341 PLATE, VANE PUMP SIDE, FRONT
44330 VALVE ASSY, FLOW CONTROL
44324A HOUSING, PUMP, REAR
44313 ROTOR, VANE PUMP
9011908035 ** Std Part
44330A SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44343A RING, O(FOR FLOW CONTROL SPRING SEAT)
44341A RING, O(FOR VANE PUMP FRONT SIDE PLATE)
44343 SEAT, FLOW CONTROL SPRING
44330C RING, SNAP(FOR FLOW CONTROL VALVE)
44345B PLATE, VANE PUMP
44302H RING, SNAP, NO.1(FOR VANE PUMP HOUSING) |
