Radiator & water outlet for Starlet NP90

Click on the part subgroup below to get genuine part numbers.

Scheme 1

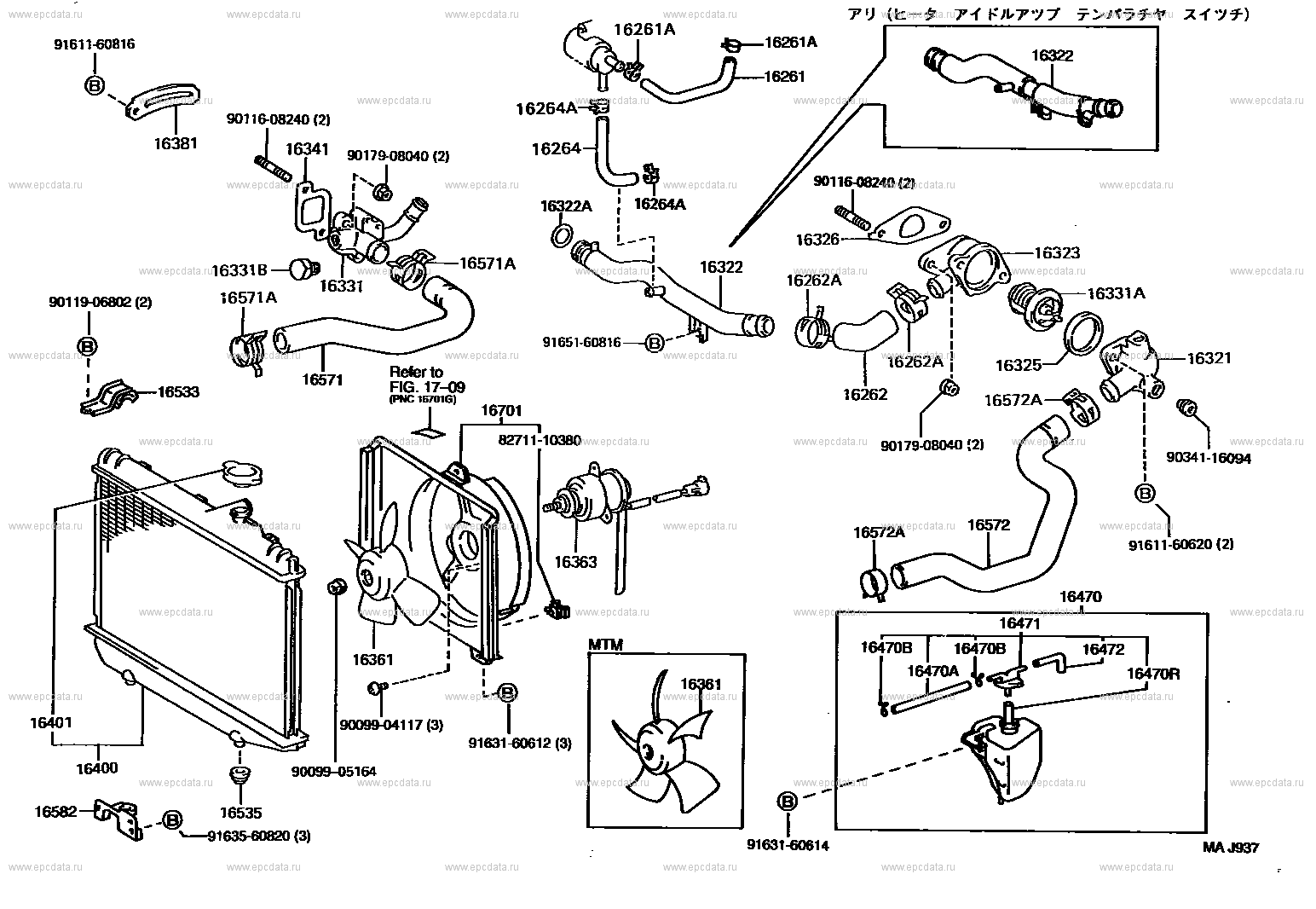

(9601- )1N ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16261A CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 9161160816 ** Std Part 16322 PIPE, WATER INLET 16261 HOSE, WATER BY-PASS 16264A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 9011608240 ** Std Part 16381 BAR, FAN BELT ADJUSTING 16341 GASKET, WATER OUTLET 16264 HOSE, WATER BY-PASS, NO.2 9017908040 ** Std Part 16322A RING, O(FOR WATER INLET) 16326 GASKET, WATER INLET HOUSING, NO.2 16323 HOUSING, WATER INLET 16571A CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16331B PLUG(FOR WATER OUTLET) 16262A CLIP(FOR WATER INLET HOSE) 16331 OUTLET, WATER 16331A THERMOSTAT 9011906802 ** Std Part 9165160816 ** Std Part 16321 INLET, WATER 16325 GASKET, WATER INLET HOUSING, NO.1 16571 HOSE, RADIATOR, INLET ** 17-09 16533 SUPPORT, RADIATOR, UPPER 16262 HOSE, WATER INLET 16572A CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701 SHROUD SUB-ASSY, FAN 8271110380 ** Std Part 9034116094 ** Std Part 16572 HOSE, RADIATOR, OUTLET 9161160620 ** Std Part 16363 MOTOR, COOLING FAN 16470 TANK ASSY, RADIATOR RESERVE 16471 CAP SUB-ASSY, RESERVE TANK 16470B CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16472 HOSE, BREATHER 16361 FAN 16470A HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470R HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16401 CAP SUB-ASSY, RADIATOR 9009904117 ** Std Part 9163160612 ** Std Part 16400 RADIATOR ASSY 9009905164 ** Std Part 16582 BRACKET, RADIATOR, NO.1 16535 SUPPORT, RADIATOR, LOWER 9163560820 ** Std Part 9163160614 ** Std Part

Scheme 2

(9601- )1N ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16400 RADIATOR ASSY 16401 CAP SUB-ASSY, RADIATOR 16442 RING, O(FOR RADIATOR UPPER TANK) 16451 PLATE, RADIATOR CORE, UPPER 16403F CORE SUB-ASSY, RADIATOR 16452 PLATE, RADIATOR CORE, LOWER 16462 RING, O(FOR RADIATOR LOWER TANK) 16400B PLUG, RADIATOR DRAIN COCK 16400F PACKING(FOR RADIATOR DRAIN COCK) 16491A RING, O(FOR ATM OIL COOLER) 16491B WASHER, PLATE(FOR ATM OIL COOLER) 16406A SUPPORT(FOR OIL COOLER) 16491 COOLER, OIL(FOR ATM)

Starlet NP90
