ToyotaStarletNP90NP90-AGMDSTransmission and chassisFront disc brake caliper & dust cover

Front disc brake caliper & dust cover for Starlet NP90




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 47781 47781-10050 01 01.1996 - 04.1997 COVER, DISC BRAKE DUST, FRONT RH EP91,NP90..RFL 0.00 USD
          ** Rev.Ref.No ** ( From- , To-0004 )
        To NP90 -0005636
02 47781 47781-10060 01 01.1996 - 04.1997 COVER, DISC BRAKE DUST, FRONT RH EP9#,NP90..GLZS,RFL,RFLF,RFLX
ｱﾘ(ABS)		 15.55 USD
          ** Rev.Ref.No ** ( From- , To-0004 )
        To NP90 -0005636
03 47781 47781-10060 01 04.1997 - COVER, DISC BRAKE DUST, FRONT RH EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX 15.55 USD
          ** Rev.Ref.No ** ( From-0005 , To- )
        From NP90 -0005637

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3

Click on the part subgroup below to get genuine part numbers.

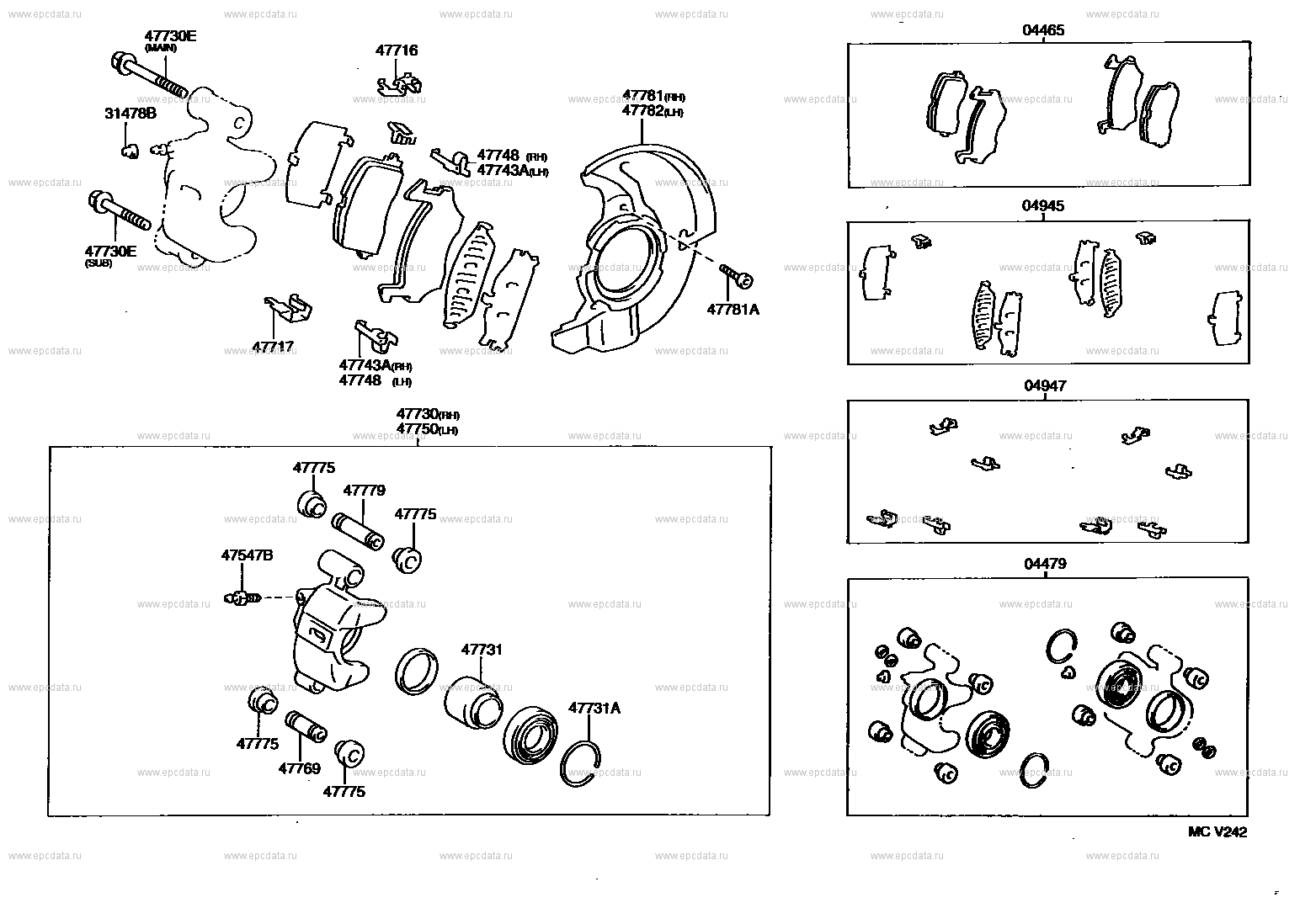

Scheme 1

(9601-9704)RFL

Click part number in the scheme or in the list:

04465 PAD KIT, DISC BRAKE, FRONT
47730E BOLT(FOR FRONT DISC BRAKE CYLINDER)
47716 PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47781 COVER, DISC BRAKE DUST, FRONT RH
47782 COVER, DISC BRAKE DUST, FRONT LH
31478B CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47748 SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47743A SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
04945 SHIM KIT, ANTI SQUEAL, FRONT
47781A BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47717 PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
04947 FITTING KIT, DISC BRAKE, FRONT
47730 CYLINDER ASSY, FRONT DISC BRAKE, RH
47750 CYLINDER ASSY, DISC BRAKE, LH
47775 BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47779 BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47547B PLUG, BLEEDER(FOR FRONT DISC BRAKE)
04479 CYLINDER KIT, DISC BRAKE, FRONT
47731 PISTON, FRONT DISC BRAKE
47731A RING, SET(FOR FRONT DISC BRAKE PISTON)
47769 BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

Scheme 2

(9704- )RFL

Click part number in the scheme or in the list:

47710A BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47716 PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
04465 PAD KIT, DISC BRAKE, FRONT
47717 PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47781 COVER, DISC BRAKE DUST, FRONT RH
47771 PLATE, PAD WEAR INDICATOR, NO.1
47782 COVER, DISC BRAKE DUST, FRONT LH
31478B CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
04945 SHIM KIT, ANTI SQUEAL, FRONT
47781A BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47730 CYLINDER ASSY, FRONT DISC BRAKE, RH
04947 FITTING KIT, DISC BRAKE, FRONT
47750 CYLINDER ASSY, DISC BRAKE, LH
47775 BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47779 BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47721A BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47547B PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47721 MOUNTING, FRONT DISC BRAKE CYLINDER, RH
04479 CYLINDER KIT, DISC BRAKE, FRONT
47722 MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47731 PISTON, FRONT DISC BRAKE
47731A RING, SET(FOR FRONT DISC BRAKE PISTON)
47769 BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

Scheme 3

(9601- )
ｱﾘ(ABS)

Click part number in the scheme or in the list:

47710A BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47717 PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
04465 PAD KIT, DISC BRAKE, FRONT
47716 PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47781 COVER, DISC BRAKE DUST, FRONT RH
47771 PLATE, PAD WEAR INDICATOR, NO.1
47782 COVER, DISC BRAKE DUST, FRONT LH
31478B CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
04945 SHIM KIT, ANTI SQUEAL, FRONT
47781A BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47730 CYLINDER ASSY, FRONT DISC BRAKE, RH
04947 FITTING KIT, DISC BRAKE, FRONT
47750 CYLINDER ASSY, DISC BRAKE, LH
47775 BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47779 BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47721A BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47547B PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47721 MOUNTING, FRONT DISC BRAKE CYLINDER, RH
04479 CYLINDER KIT, DISC BRAKE, FRONT
47722 MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47731 PISTON, FRONT DISC BRAKE
47731A RING, SET(FOR FRONT DISC BRAKE PISTON)
47769 BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

Toyota Starlet genuine parts
