Meter for Starlet EP91




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 83100B 83109-24020 04 01.1996 - 12.1997 BULB, COMBINATION METER, NO.1 EP9#,NP90..CARAT,RFL,RFLF,RFLX
１２Ｖ　３．４Ｗ　キャップ付き		  4.31
to 5.39 USD
          ** Rev.Ref.No ** ( From- , To-0020 )
        To EP91 -0345502
02 83100B 83109-30070 02 01.1996 - 12.1997 BULB, COMBINATION METER, NO.1 EP9#,NP90..GLZS,GLZV,RFL,RFLF,RFLX
１４Ｖ　２．０Ｗ，ソケットなし		 1.64 USD
          ** Rev.Ref.No ** ( From- , To-0020 )
        To EP91 -0345502
03 83100B 83119-32010 01 01.1996 - 12.1997 BULB, COMBINATION METER, NO.1 EP9#..CARAT,GLZS,GLZV,RFLF,RFLX
１４Ｖ　３．０Ｗ		  1.61
to 1.64 USD
          ** Rev.Ref.No ** ( From- , To-0020 )
        To EP91 -0345502
04 83100B 90981-11018 10 01.1996 - 12.1997 BULB, COMBINATION METER, NO.1 EP9#,NP90..MTM
１２Ｖ　１．２Ｗ　ソケット無し		  1.01
to 1.55 USD
05 83100B 83120-24010 01 04.1997 - 12.1997 BULB, COMBINATION METER, NO.1 EP9#,NP90
１３．５Ｖ，ソケット付き		 11.05 USD
06 83100B 83109-24020 04 12.1997 - BULB, COMBINATION METER, NO.1 EP9#,NP90..CARAT,RFL,RFLF,RFLX
１２Ｖ　３．４Ｗ　キャップ付き,TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ		  4.31
to 5.39 USD
          ** Rev.Ref.No ** ( From-0021 , To- )
        From EP91 -0345503
07 83100B 83109-30070 01 12.1997 - BULB, COMBINATION METER, NO.1 EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX
１４Ｖ　２．０Ｗ，ソケットなし,TYPE F OR TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ		 1.64 USD
          ** Rev.Ref.No ** ( From-0021 , To- )
        From EP91 -0345503
08 83100B 83119-32010 01 12.1997 - BULB, COMBINATION METER, NO.1 EP91;EP95..CARAT,RFLF,RFLX
１４Ｖ　３．０Ｗ,TYPE D OR TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ		  1.61
to 1.64 USD
09 83100B 83120-24010 01 12.1997 - BULB, COMBINATION METER, NO.1 EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX
１３．５Ｖ，ソケット付き,TYPE E OR TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ		 11.05 USD
          ** Rev.Ref.No ** ( From-0021 , To- )
        From EP91 -0345503
10 83100B 90981-11018 09 12.1997 - BULB, COMBINATION METER, NO.1 EP91..MTM;EP95..5F..(CARAT,RFLF,RFLX)
１２Ｖ　１．２Ｗ　ソケット無し,TYPE A OR TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ		  1.01
to 1.55 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5

Click on the part subgroup below to get genuine part numbers.

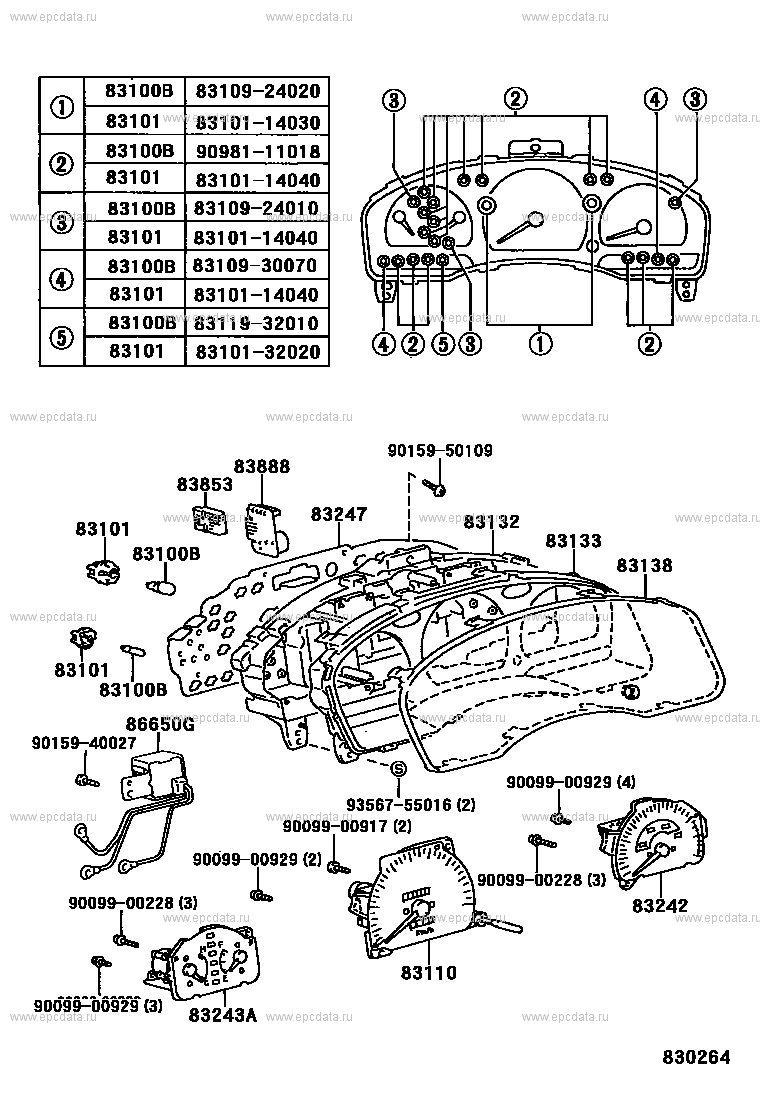

Scheme 1

(9601-9712)
ｱﾘ(ﾀｺﾒｰﾀ) ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

83100B BULB, COMBINATION METER, NO.1
83101 SOCKET SUB-ASSY, COMBINATION METER BULB
9015950109 ** Std Part
83888 ALARMER, COMBINATION METER
83853 JOINT CONNECTOR (FOR ALARMER)
83247 PLATE, METER CIRCUIT
83132 CASE, COMBINATION METER
83133 PLATE, COMBINATION METER, NO.1
83138 GLASS, SPEEDOMETER
86650G BUZZER ASSY
9015940027 ** Std Part
9009900929 ** Std Part
9356755016 ** Std Part
9009900917 ** Std Part
9009900228 ** Std Part
83242 TACHOMETER ASSY, ENGINE
83110 SPEEDOMETER ASSY
83243A GAUGE SUB-ASSY, FUEL RECEIVER

Scheme 2

(9712- )
ｱﾘ(ﾀｺﾒ-ﾀ) ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

9015940027 ** Std Part
9016850041 ** Std Part
83100B BULB, COMBINATION METER, NO.1
83243A GAUGE SUB-ASSY, FUEL RECEIVER
9009900929 ** Std Part
9009900952 ** Std Part
83853 JOINT CONNECTOR (FOR ALARMER)
9009900228 ** Std Part
83110 SPEEDOMETER ASSY
83242 TACHOMETER ASSY, ENGINE
9009900917 ** Std Part
83138 GLASS, SPEEDOMETER
83101 SOCKET SUB-ASSY, COMBINATION METER BULB
86650G BUZZER ASSY
83247 PLATE, METER CIRCUIT
83132 CASE, COMBINATION METER
9015950109 ** Std Part
83133 PLATE, COMBINATION METER, NO.1
83888 ALARMER, COMBINATION METER

Scheme 3

(9601-9712)
ﾅｼ(ﾀｺﾒｰﾀ) ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

83100B BULB, COMBINATION METER, NO.1
83101 SOCKET SUB-ASSY, COMBINATION METER BULB
9015950109 ** Std Part
83853 JOINT CONNECTOR (FOR ALARMER)
83888 ALARMER, COMBINATION METER
83247 PLATE, METER CIRCUIT
83132 CASE, COMBINATION METER
83133 PLATE, COMBINATION METER, NO.1
83138 GLASS, SPEEDOMETER
86650G BUZZER ASSY
9015940027 ** Std Part
9009900225 ** Std Part
9356755016 ** Std Part
9009900917 ** Std Part
83244 GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
9009900929 ** Std Part
83110 SPEEDOMETER ASSY
83243A GAUGE SUB-ASSY, FUEL RECEIVER

Scheme 4

(9712- )
ﾅｼ(ﾀｺﾒ-ﾀ) ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

83853 JOINT CONNECTOR (FOR ALARMER)
83138 GLASS, SPEEDOMETER
83132 CASE, COMBINATION METER
83247 PLATE, METER CIRCUIT
83101 SOCKET SUB-ASSY, COMBINATION METER BULB
83888 ALARMER, COMBINATION METER
83133 PLATE, COMBINATION METER, NO.1
9015950109 ** Std Part
83110 SPEEDOMETER ASSY
9009900226 ** Std Part
9016850041 ** Std Part
83243A GAUGE SUB-ASSY, FUEL RECEIVER
9009900929 ** Std Part
9009900917 ** Std Part
83244 GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
9015940027 ** Std Part
86650G BUZZER ASSY
83100B BULB, COMBINATION METER, NO.1
9009900225 ** Std Part

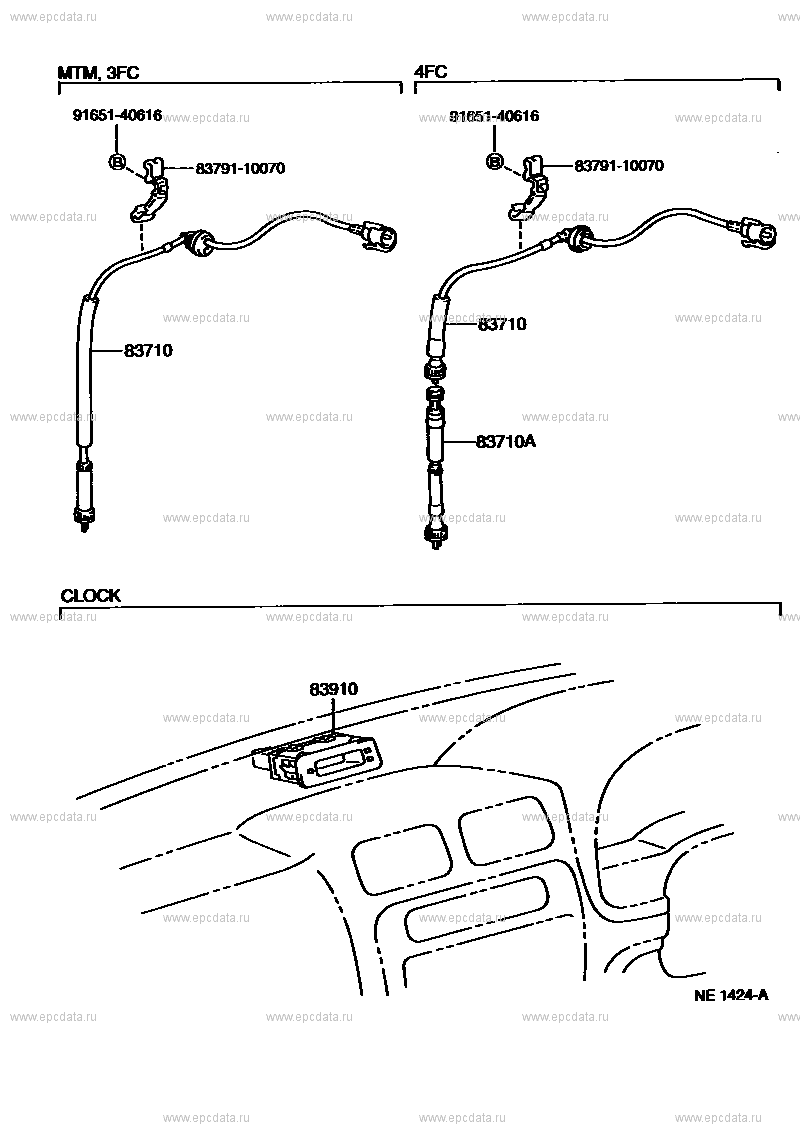

Scheme 5

(9601- )
ﾒｰﾀ ｹｰﾌﾞﾙ & ﾄｹｲ ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

9165140616 ** Std Part
8379110070 ** Std Part
83710 CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710A CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83910 CLOCK ASSY
