Wiring & clamp for Starlet EP91
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

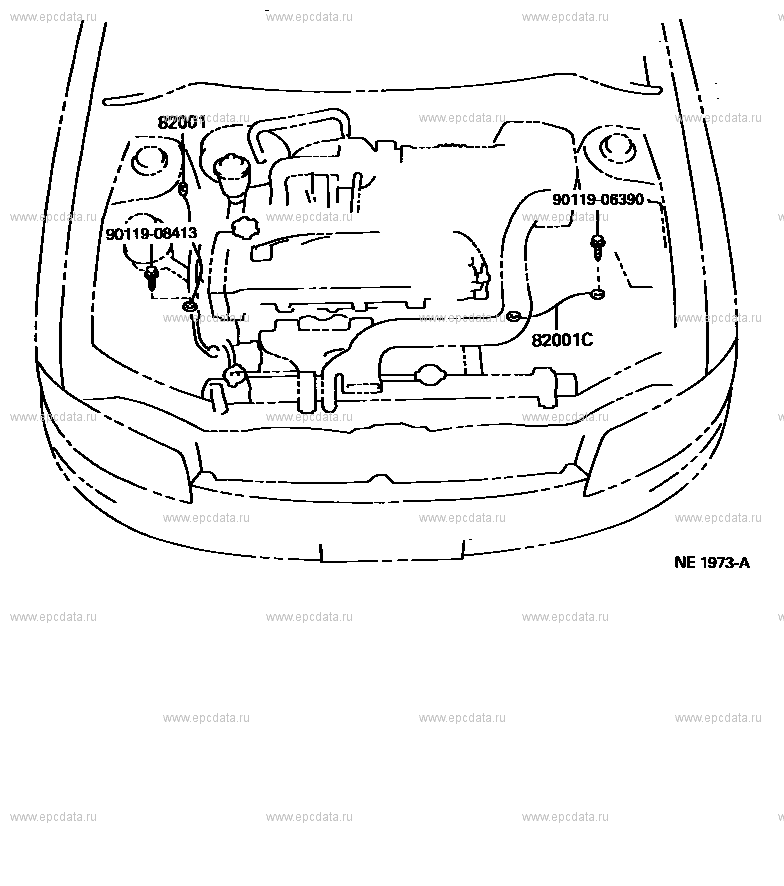

(9601- )CARAT,GLZS,REMIX,RFL,RFLF,RFLX CABLE BOND ILLUST NO. 1 OF 7 |
Click part number in the scheme or in the list: 82001 CABLE, BOND, NO.19011906390 ** Std Part 9011908413 ** Std Part 82001C CABLE, BOND, NO.2 |
Scheme 2
Scheme 3
|
(9601- )EP9# E/G ROOM WIRE ILLUST NO. 3 OF 7 |
Click part number in the scheme or in the list: 82111 WIRE, ENGINE ROOM MAIN82210C FUSIBLE LINK ** 84-01 9011908358 ** Std Part 8271510150 ** Std Part 8271116750 ** Std Part 9011906390 ** Std Part 9165140616 ** Std Part |
Scheme 4
|
(9601- ) INSTRUMENT PANEL WIRE ILLUST NO. 4 OF 7 |
Click part number in the scheme or in the list: 82141 WIRE, INSTRUMENT PANEL8266610020 ** Std Part 8266610010 ** Std Part ** 84-01 9162660616 ** Std Part 9011906120 ** Std Part 9015970003 ** Std Part 9359056020 ** Std Part 9016850041 ** Std Part 9356855014 ** Std Part 8271510220 ** Std Part 8271510250 ** Std Part 827113A740 ** Std Part 827113F230 ** Std Part 8271510200 ** Std Part 827111E350 ** Std Part 8271110460 ** Std Part |
Scheme 5
|
(9601- ) DOOR,ROOF WIRE ILLUST NO. 5 OF 7 |
Click part number in the scheme or in the list: 82171 WIRE, ROOF, NO.182153 WIRE, REAR DOOR, NO.1 82151 WIRE, FRONT DOOR, RH 82152 WIRE, FRONT DOOR, LH 82154 WIRE, REAR DOOR, NO.2 8271110470 ** Std Part 8271116790 ** Std Part 827111E300 ** Std Part 827112A720 ** Std Part 827111E340 ** Std Part |
Scheme 6
|
(9601- ) FLOOR,BACK DOOR WIRE ILLUST NO. 6 OF 7 |
Click part number in the scheme or in the list: 9011906067 ** Std Part82561 WIRE, REAR SPEAKER 82161 WIRE, FLOOR 82817E PROTECTOR, WIRING HARNESS, NO.6 82185 WIRE, BACK DOOR, NO.2 82412 WIRE, FUEL GAGE 9165140616 ** Std Part 8271510290 ** Std Part 827111A750 ** Std Part 827111E340 ** Std Part 827113F230 ** Std Part 8271510280 ** Std Part |
Scheme 7
|
(9601- ) CONNECTOR ILLUST NO. 7 OF 7 |
Click part number in the scheme or in the list: 9098011162 ** Std Part9098011314 ** Std Part 9098010481 ** Std Part 9098011019 ** Std Part 9098010619 ** Std Part |
