Front seat & seat track for Starlet EP85
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(8912- )SOL,SOLL ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 71430S BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)71440S BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71553B PAD, FRONT SEAT BACK, B 71073S COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71505 PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH 71506 PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH 71554 PAD, FRONT SEAT BACK, C 71074S COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 9046818071 ** Std Part 71410S CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71071S COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71420S CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71072S COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71511S PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71011S FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71012S FRAME SUB-ASSY, FRONT SEAT CUSHION, LH 9038612039 ** Std Part 9011908970 ** Std Part |
Scheme 2
|
(8912- ) ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 71873 SHIELD, FRONT SEAT CUSHION, LOWER RH9418360601 ** Std Part 9016430003 ** Std Part 72133 BRACKET, FRONT INNER SEAT TRACK UPPER RAIL, RH 9338116014 ** Std Part 72110A TRACK ASSY, FRONT SEAT, OUTER RH 72301A WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH 72130A TRACK ASSY, FRONT SEAT, INNER RH 9011006008 ** Std Part 71861 SHIELD, FRONT SEAT CUSHION, INNER RH 9016840045 ** Std Part 71862 SHIELD, FRONT SEAT CUSHION, INNER LH 72134 BRACKET, FRONT INNER SEAT TRACK UPPER RAIL, LH 72140A TRACK ASSY, FRONT SEAT,INNER LH 72301D WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH 72120 TRACK ASSY, FRONT SEAT, OUTER LH 71874 SHIELD, FRONT SEAT CUSHION, LOWER LH |

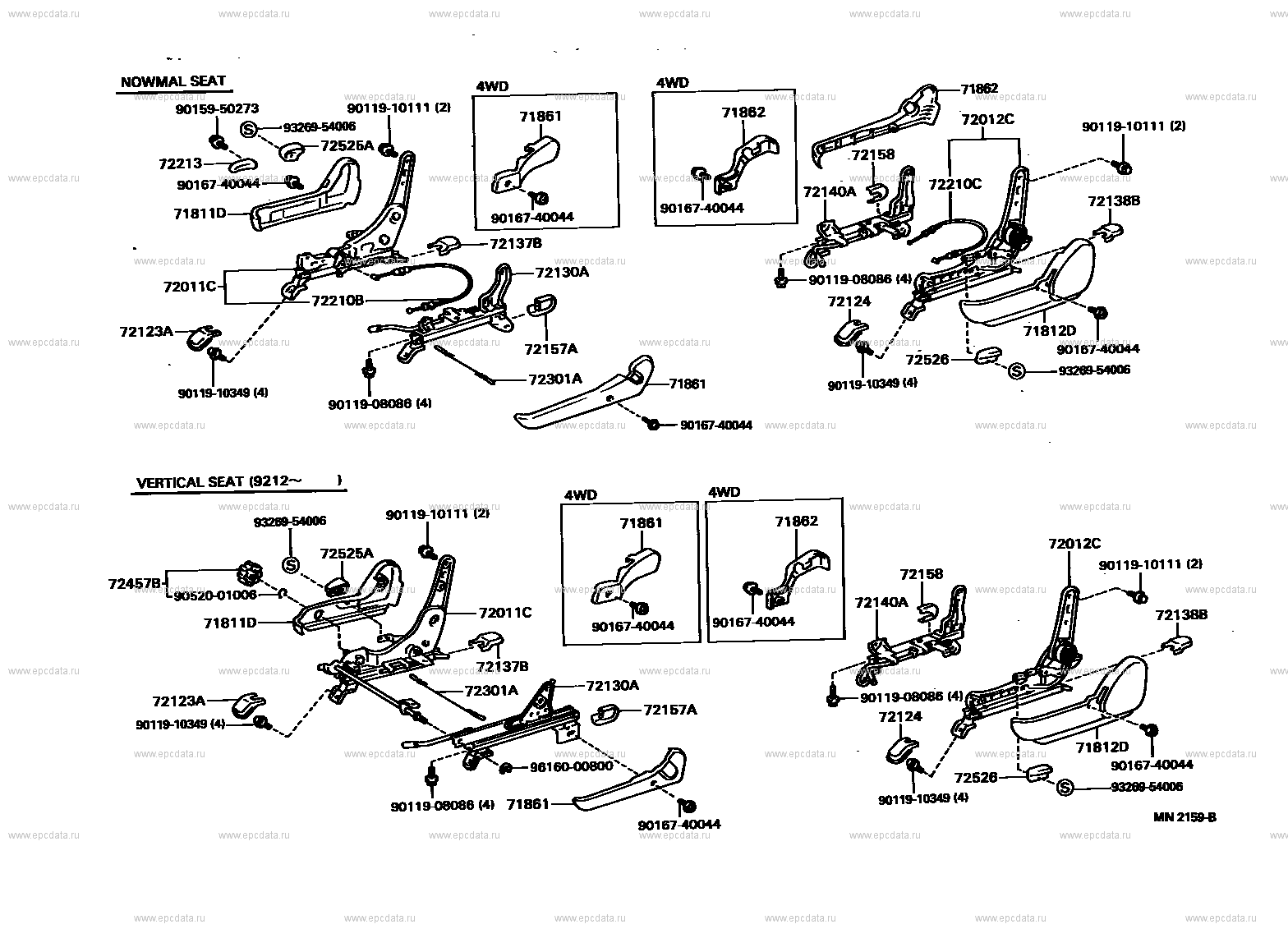

Scheme 3
