Manifold for Starlet EP85

Click on the part subgroup below to get genuine part numbers.

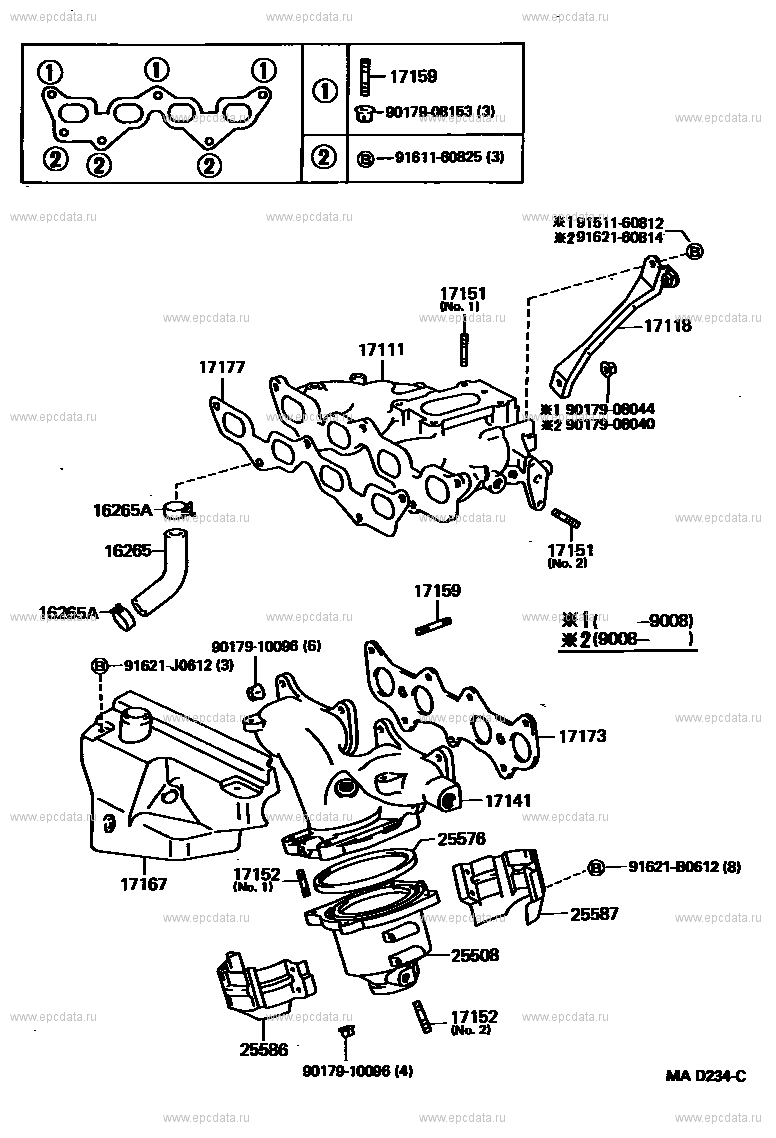

(8912-9201)4EF Open full size scheme

Click part number in the scheme or in the list: 17159 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 9017908153 ** Std Part 9161160825 ** Std Part 9151160812 ** Std Part 9162160814 ** Std Part 17151 BOLT, STUD(FOR MANIFOLD TO CARBURETOR) 17118 STAY, MANIFOLD 17111 MANIFOLD, INTAKE 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 9017908044 ** Std Part 9017908040 ** Std Part 16265A CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) 16265 HOSE, INTAKE MANIFOLD WATER 9017910096 ** Std Part 91621J0612 ** Std Part 17173 GASKET, EXHAUST MANIFOLD TO HEAD 17141 MANIFOLD, EXHAUST 25576 GASKET, MANIFOLD CONVERTER 91621B0612 ** Std Part 17152 BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17167 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 25587 INSULATOR, MANIFOLD CONVERTER, NO.2 25508 CONVERTER SUB-ASSY, MANIFOLD 25586 INSULATOR, MANIFOLD CONVERTER, NO.1

Starlet EP85
