Clutch pedal & flexible hose for Starlet EP85

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(8912- )MTM ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 55107A SUPPORT SUB-ASSY, CLUTCH PEDAL 9011908895 ** Std Part 31301 PEDAL SUB-ASSY, CLUTCH 9411051000 ** Std Part 31301C BUSH(FOR CLUTCH PEDAL) 9451201000 ** Std Part 9046816142 ** Std Part 31453B BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 9413060600 ** Std Part 31324A COLLAR, CLUTCH PEDAL SHAFT 31301F BOLT(FOR CLUTCH PEDAL STOPPER) 31301B CUSHION, NO.1(FOR CLUTCH PEDAL) 31324 SHAFT, CLUTCH PEDAL 31453A PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 9020608001 ** Std Part 31301A SPRING(FOR CLUTCH PEDAL) 31321 PAD, CLUTCH PEDAL

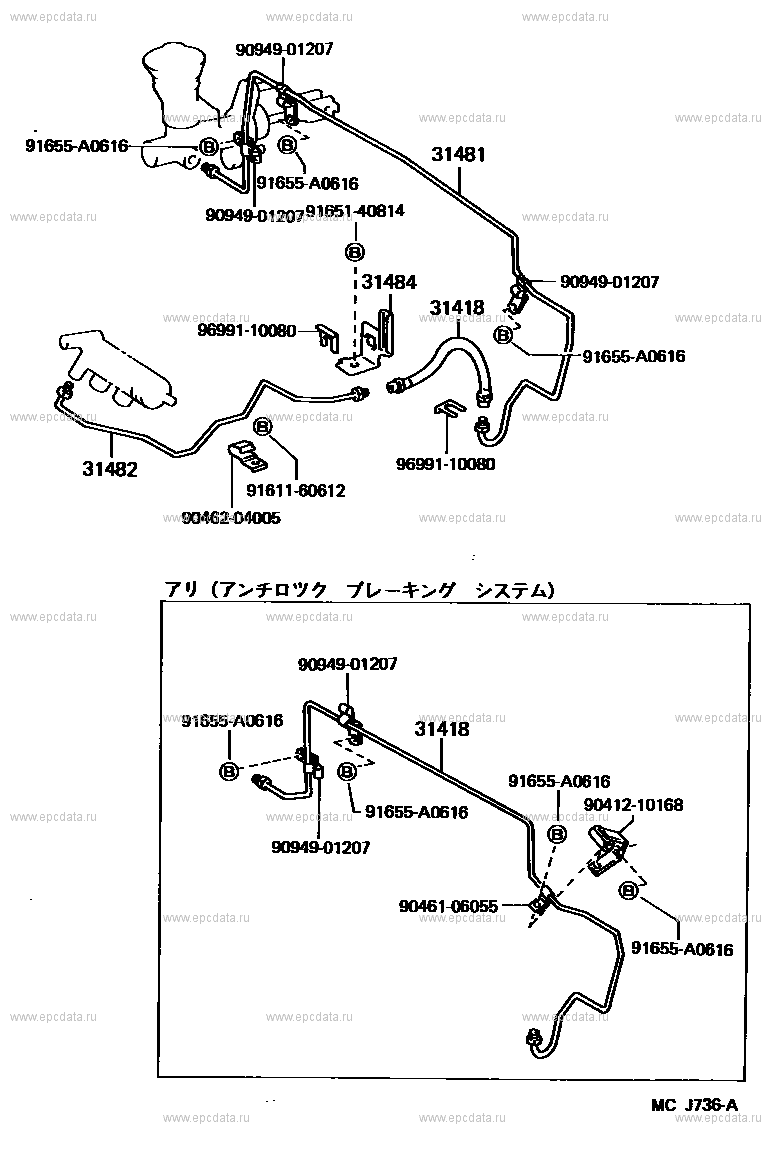

Scheme 2

(8912- )MTM ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9094901207 ** Std Part 91655A0616 ** Std Part 31481 TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 9165140814 ** Std Part 31484 BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31418 HOSE, CLUTCH 9699110080 ** Std Part 31482 TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 9161160612 ** Std Part 9046204005 ** Std Part 9041210168 ** Std Part 9046106055 ** Std Part

Starlet EP85
