Manifold for Starlet EP82

Click on the part subgroup below to get genuine part numbers.

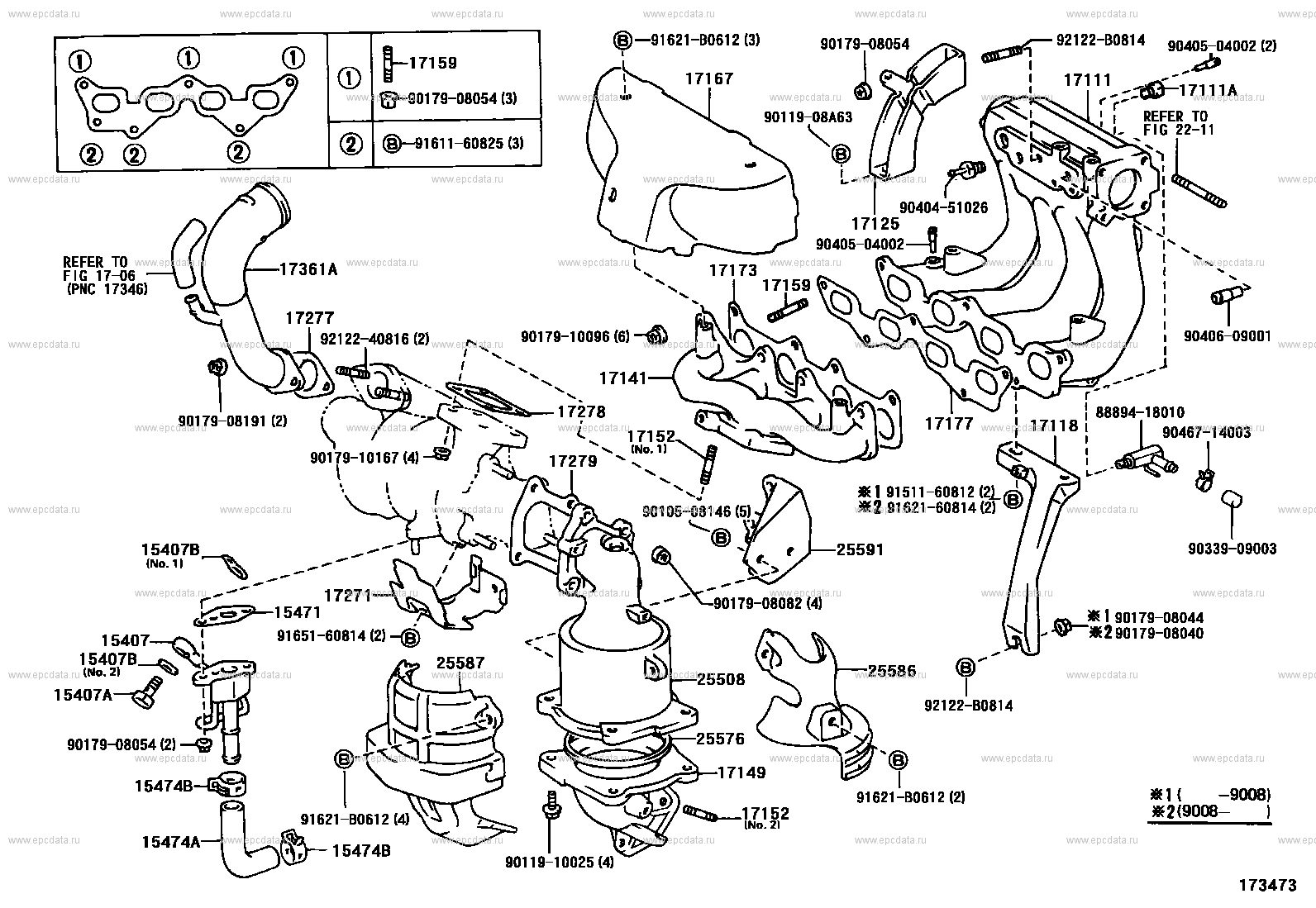

Scheme 1

(8912- )4EFTE ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 91621B0612 ** Std Part 92122B0814 ** Std Part 9017908054 ** Std Part 9040504002 ** Std Part 17159 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17111 MANIFOLD, INTAKE 17111A PLUG, NO.1 9011908A63 ** Std Part ** 22-11 9161160825 ** Std Part 9040451026 ** Std Part 17125 STAY, SURGE TANK, NO.1 17361A TUBE, AIR(FOR EFI) 17173 GASKET, EXHAUST MANIFOLD TO HEAD ** 17-06 17277 GASKET, COMPRESSOR OUTLET 9040609001 ** Std Part 9017910096 ** Std Part 9212240816 ** Std Part 17141 MANIFOLD, EXHAUST 17278 GASKET, TURBO TO EXHAUST MANIFOLD 8889418010 ** Std Part 9017908191 ** Std Part 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17118 STAY, MANIFOLD 9046714003 ** Std Part 17152 BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 9017910167 ** Std Part 17279 GASKET, TURBINE OUTLET ELBOW 9151160812 ** Std Part 9162160814 ** Std Part 9010508146 ** Std Part 9033909003 ** Std Part 15407B GASKET(FOR TURBO OIL INLET PIPE) 25591 BRACKET, MANIFOLD SUPPORT 17271 INSULATOR, TURBO, NO.1 9017908082 ** Std Part 15471 GASKET, TURBO OIL INLET 9017908044 ** Std Part 9017908040 ** Std Part 9165160814 ** Std Part 15407 PIPE SUB-ASSY, TURBO OIL INLET 25587 INSULATOR, MANIFOLD CONVERTER, NO.2 25586 INSULATOR, MANIFOLD CONVERTER, NO.1 25508 CONVERTER SUB-ASSY, MANIFOLD 15407A BOLT, UNION(FOR TURBO OIL INLET PIPE) 25576 GASKET, MANIFOLD CONVERTER 17149 EXTENSION, EXHAUST MANIFOLD 15474B CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474A HOSE, TURBO OIL OUTLET 9011910025 ** Std Part

Scheme 2

(8912- )4EFTE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 17201 TURBOCHARGER SUB-ASSY 17294 HOSE, ACTUATOR 17021B BOLT, STUD 9025403013 ** Std Part 17025A BOLT, STUD(FOR TURBINE HOUSING) 17229 BAND, V 17021 HOUSING SUB-ASSY, BEARING 17294A CLIP(FOR ACTUATOR HOSE) 17239 CLAMP, V, NO.2 17021A BOLT, STUD(FOR BEARING HOUSING) 9017908012 ** Std Part 9052304002 ** Std Part 17021C RING, HOLE SNAP(FOR BEARING HOUSING) 17224A UNION(FOR COMPRESSOR HOUSING) 17296 PLATE, BEARING HOUSING, SIDE 17224 HOUSING, COMPRESSOR 16347 GASKET, WATER BY-PASS 9165160616 ** Std Part 9162160818 ** Std Part 04175 GASKET KIT, TURBOCHARGER 04176 SEAL KIT, TURBOCHARGER

Starlet EP82
