Console box & bracket for Starlet EP71

Click on the part subgroup below to get genuine part numbers.

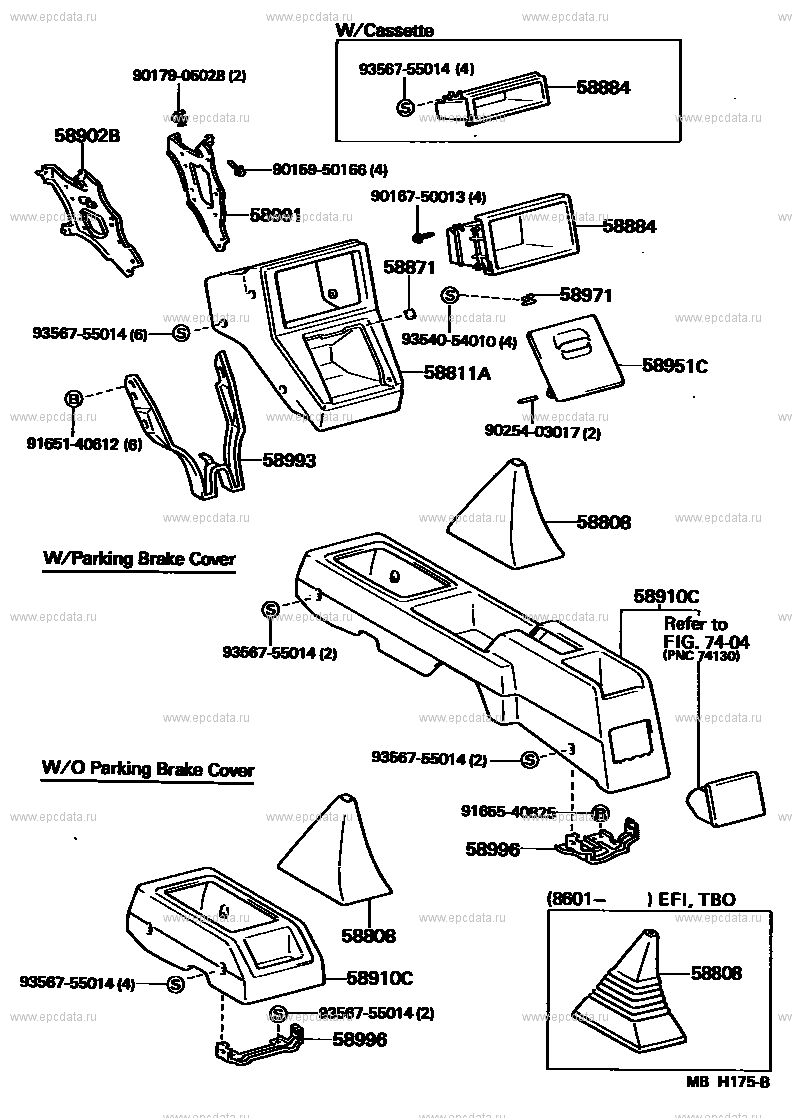

Scheme 1

(8410-8612) Open full size scheme Go to top

Click part number in the scheme or in the list: 9356755014 ** Std Part 9017905028 ** Std Part 58884 COVER, STEREO OPENING 58902B BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1 9015950166 ** Std Part 9016750013 ** Std Part 58991 BRACKET, CONSOLE BOX MOUNTING, UPPER 58871 CUSHION, CONSOLE BOX 58971 LOCK, CONSOLE COMPARTMENT DOOR 9354054010 ** Std Part 58951C DOOR, BOX 58811A BOX, CONSOLE, FRONT 9025403017 ** Std Part 9165140612 ** Std Part 58993 BRACKET, CONSOLE BOX MOUNTING, REAR 58808 COVER SUB-ASSY, SHIFTING HOLE 58910C BOX ASSY, CONSOLE, REAR ** 74-04 9165540825 ** Std Part 58996 BRACKET, CONSOLE BOX MOUNTING, NO.1

Scheme 2

(8612- ) Open full size scheme Go to top

Click part number in the scheme or in the list: 9017905028 ** Std Part 9011908614 ** Std Part 9015950166 ** Std Part 58991 BRACKET, CONSOLE BOX MOUNTING, UPPER 58801C PANEL, STEREO PLAYER FINISH 58902B BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1 9356755014 ** Std Part 58884 COVER, STEREO OPENING 58811A BOX, CONSOLE, FRONT 58993A BRACKET, CONSOLE BOX MOUNTING, LOWER 9161660816 ** Std Part 58808 COVER SUB-ASSY, SHIFTING HOLE 58910C BOX ASSY, CONSOLE, REAR ** 74-04 9165540825 ** Std Part 58996 BRACKET, CONSOLE BOX MOUNTING, NO.1 9356755018 ** Std Part
