Wiring & clamp for Starlet EP71
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(8410- )EP7# ILLUST NO. 1 OF 6 |

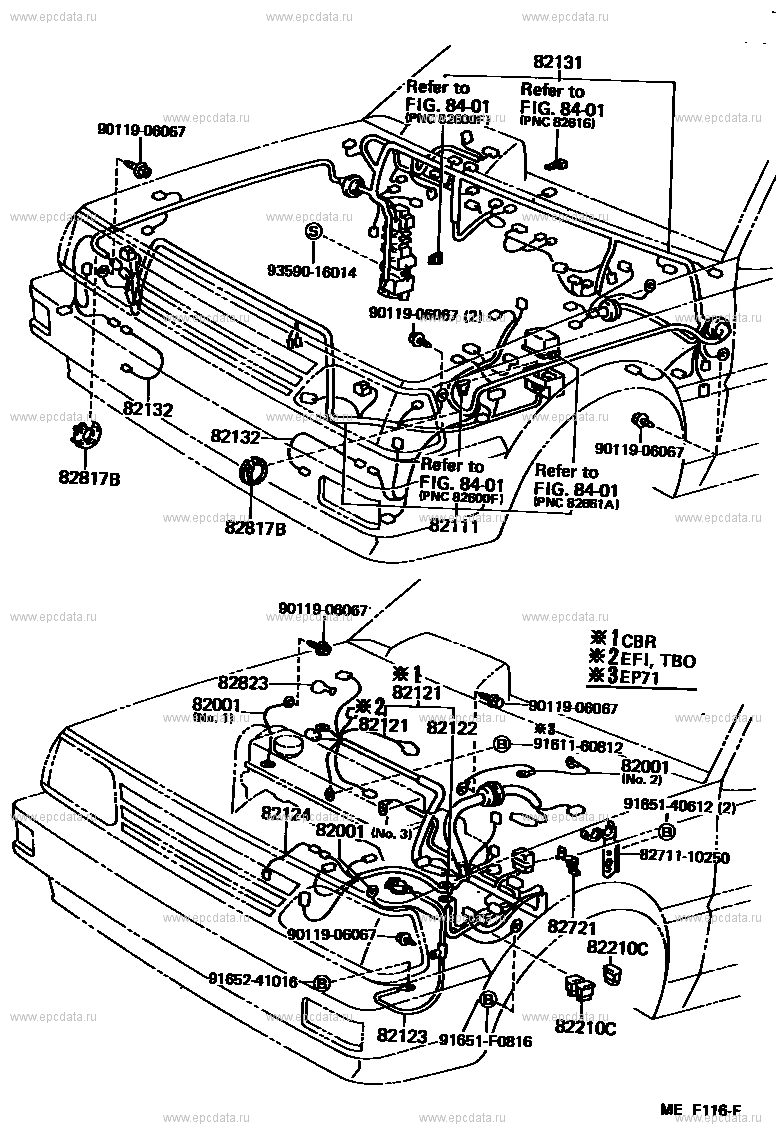

Click part number in the scheme or in the list: 82131 WIRE, COWL** 84-01 9011906067 ** Std Part 9359016014 ** Std Part 82132 WIRE, COWL, NO.2 82817B PROTECTOR, WIRING HARNESS, NO.3 82111 WIRE, ENGINE ROOM MAIN 82823 CAP, TERMINAL, NO.1 82121 WIRE, ENGINE 82001 CABLE, BOND, NO.1 82122 WIRE, ENGINE, NO.2 9161160812 ** Std Part 9165140612 ** Std Part 82124 WIRE, ENGINE, NO.4 8271110250 ** Std Part 82721 BRACKET, WIRING HARNESS, NO.1 82210C FUSIBLE LINK 9165241016 ** Std Part 82123 WIRE, ENGINE, NO.3 91651F0816 ** Std Part |
Scheme 2
|
(8410-8612) ILLUST NO. 2 OF 6 |

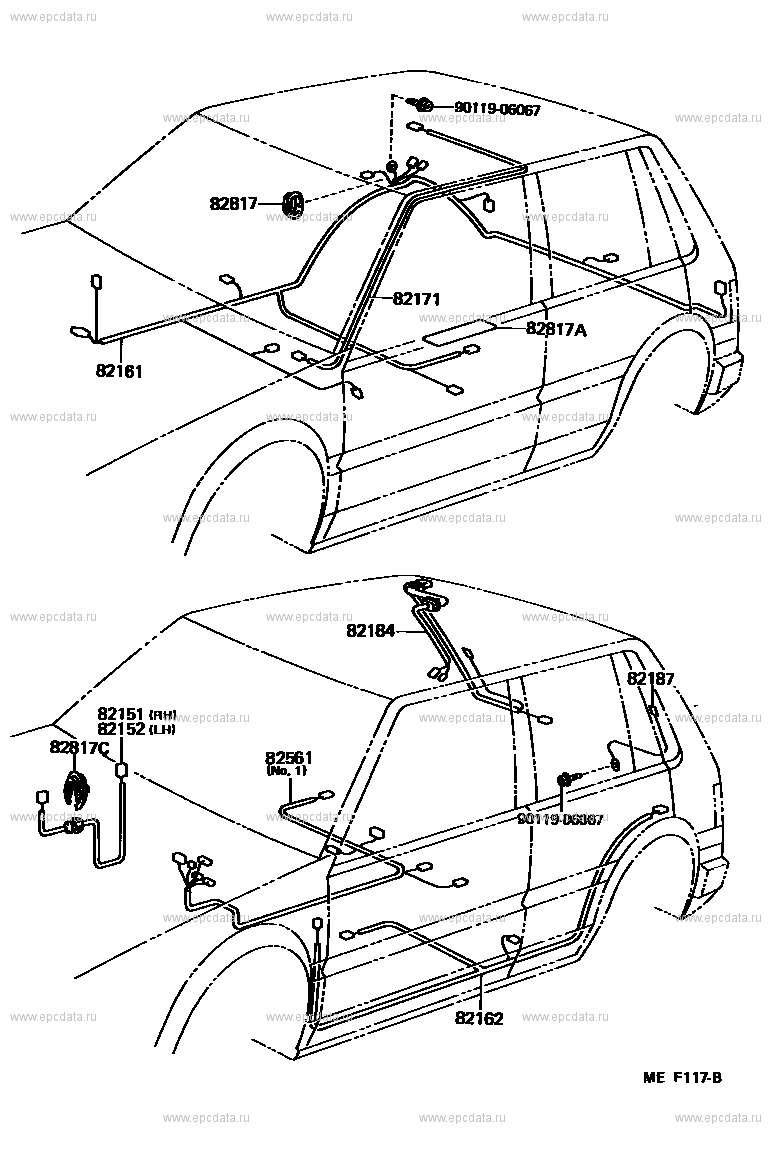

Click part number in the scheme or in the list: 9011906067 ** Std Part82817 PROTECTOR, WIRING HARNESS, NO.1 82171 WIRE, ROOF, NO.1 82817A PROTECTOR, WIRING HARNESS, NO.2 82161 WIRE, FLOOR 82184 WIRE, BACK DOOR, NO.1 82187 WIRE, REAR WINDOW, NO.2 82151 WIRE, FRONT DOOR, RH 82152 WIRE, FRONT DOOR, LH 82817C PROTECTOR, WIRING HARNESS, NO.4 82561 WIRE, REAR SPEAKER 82162 WIRE, FLOOR, NO.2 |
Scheme 3
|
(8612- ) ILLUST NO. 2 OF 6 |
Click part number in the scheme or in the list: 9011906067 ** Std Part82817 PROTECTOR, WIRING HARNESS, NO.1 82817D PROTECTOR, WIRING HARNESS, NO.5 82171 WIRE, ROOF, NO.1 82817A PROTECTOR, WIRING HARNESS, NO.2 82161 WIRE, FLOOR 82162 WIRE, FLOOR, NO.2 82184 WIRE, BACK DOOR, NO.1 82187 WIRE, REAR WINDOW, NO.2 82186 WIRE, REAR WINDOW, NO.1 82817C PROTECTOR, WIRING HARNESS, NO.4 82561 WIRE, REAR SPEAKER 82151 WIRE, FRONT DOOR, RH 82542 WIRING ASSY, POWER WINDOW, FRONT RH 82152 WIRE, FRONT DOOR, LH |
Scheme 4
Scheme 5
|
(8410- ) CLAMP & GROMMET ILLUST NO. 4 OF 6 |
Click part number in the scheme or in the list: 8271120880 ** Std Part8271110310 ** Std Part |
Scheme 6
|
(8410- ) REPAIR WIRE ILLUST NO. 5 OF 6 |

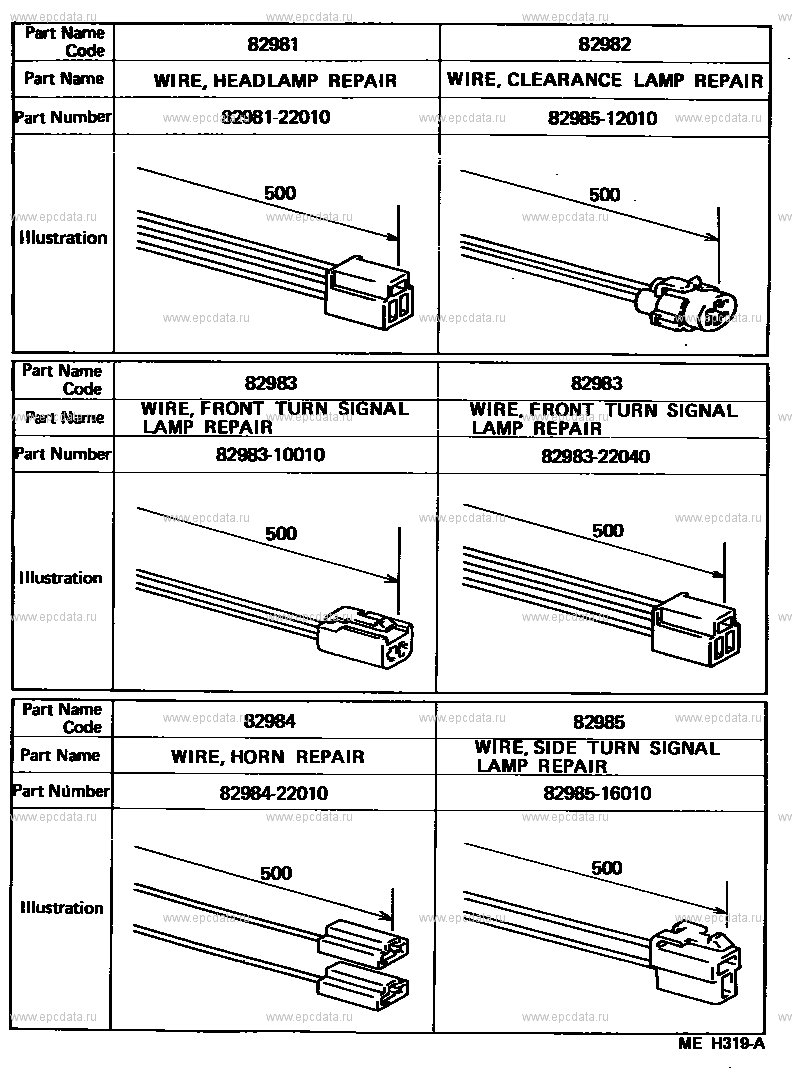

Click part number in the scheme or in the list: 82981 WIRE, HEADLAMP REPAIR82982 WIRE, CLEARANCE LAMP REPAIR 8298122010 ** Std Part 8298512010 ** Std Part 82983 WIRE, FRONT TURN SIGNAL LAMP REPAIR 8298310010 ** Std Part 8298322040 ** Std Part 82984 WIRE, HORN REPAIR 82985 WIRE, SIDE TURN SIGNAL LAMP REPAIR 8298422010 ** Std Part 8298516010 ** Std Part |
Scheme 7
|
(8410- ) REPAIR WIRE ILLUST NO. 6 OF 6 |

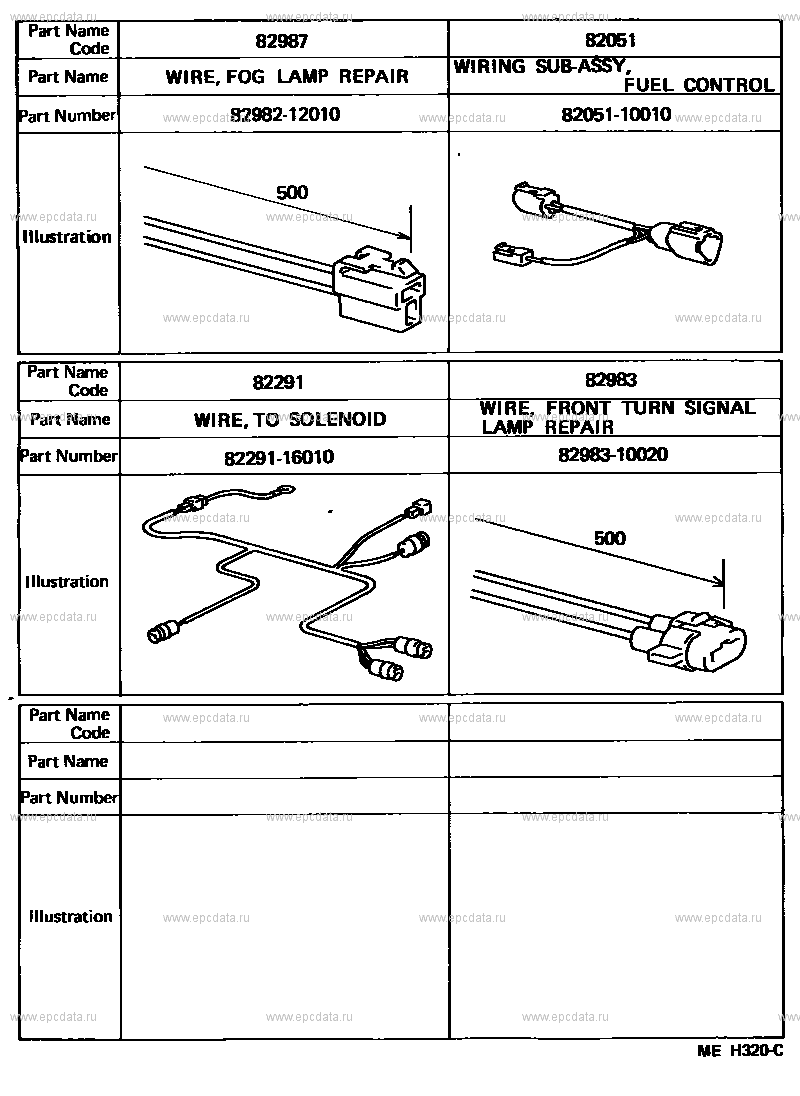

Click part number in the scheme or in the list: 82051 HARNESS ASSY, FUEL CONTROL82987 WIRE, FOG LAMP REPAIR 8298212010 ** Std Part 8205110010 ** Std Part 82983 WIRE, FRONT TURN SIGNAL LAMP REPAIR 82291 WIRING, TO SOLENOID 8298310020 ** Std Part 8229116010 ** Std Part |
