Meter for Starlet EP71
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

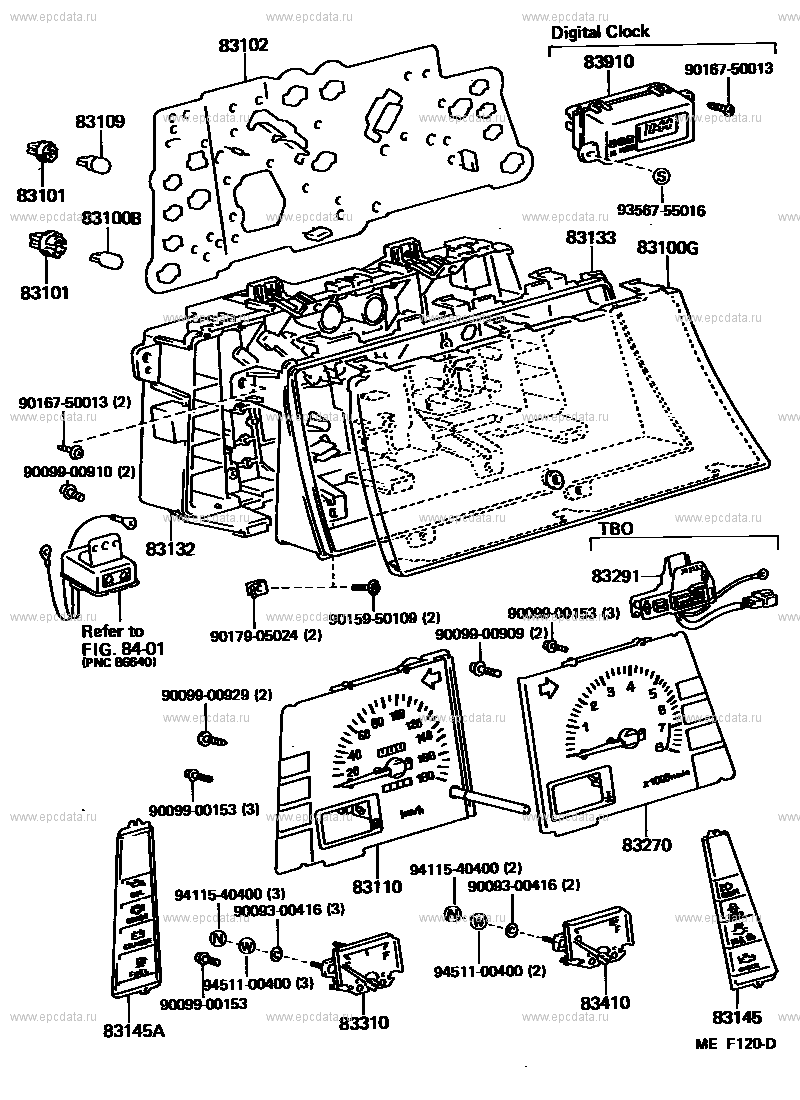

Scheme 1
|
(8410-8612)RI,SE,SI,TBS,TOR ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 83102 PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.183910 CLOCK ASSY 9016750013 ** Std Part 83109 BULB, COMBINATION METER, NO.2 83101 SOCKET SUB-ASSY, COMBINATION METER BULB 9356755016 ** Std Part 83100B BULB, COMBINATION METER, NO.1 83133 PLATE, COMBINATION METER, NO.1 83100G GLASS, COMBINATION METER 9009900910 ** Std Part 83132 CASE, COMBINATION METER 83291 COMPUTER, COMBINATION METER 9009900153 ** Std Part 9015950109 ** Std Part 9009900909 ** Std Part 9017905024 ** Std Part ** 84-01 9009900929 ** Std Part 83270 TACHOMETER ASSY, ENGINE 9411540400 ** Std Part 9009300416 ** Std Part 83110 SPEEDOMETER ASSY 9451100400 ** Std Part 83410 GAGE ASSY, WATER TEMPERATURE RECEIVER 83145 LENS, METER, NO.1 83310 GAGE ASSY, FUEL RECEIVER 83145A LENS, METER, NO.2 |
Scheme 2
|
(8612- )RI,SE,SI,TBS,TOR ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 83910 CLOCK ASSY9016750013 ** Std Part 83101 SOCKET SUB-ASSY, COMBINATION METER BULB ** 84-01 83100B BULB, COMBINATION METER, NO.1 9009900910 ** Std Part 9356755018 ** Std Part 83102 PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 9009900929 ** Std Part 83109 BULB, COMBINATION METER, NO.2 83133 PLATE, COMBINATION METER, NO.1 83132 CASE, COMBINATION METER 83100G GLASS, COMBINATION METER 9009900941 ** Std Part 9015950109 ** Std Part 9331514014 ** Std Part 83145 LENS, METER, NO.1 9017905024 ** Std Part 83110 SPEEDOMETER ASSY 83270 TACHOMETER ASSY, ENGINE 9009900917 ** Std Part 83145A LENS, METER, NO.2 9411540400 ** Std Part 83310 GAGE ASSY, FUEL RECEIVER 9009300416 ** Std Part 9451100400 ** Std Part 83291 COMPUTER, COMBINATION METER |
Scheme 3
|
(8410- ) ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 91651A0612 ** Std Part8379110040 ** Std Part 83710 CABLE ASSY, SPEEDOMETER DRIVE, NO.1 ** 47-03 83710A CABLE ASSY, SPEEDOMETER DRIVE, NO.2 |
