Wiring & clamp for Sprinter Trueno AE92
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(8705- )AE92..EFI ILLUST NO. 1 OF 5 |
Click part number in the scheme or in the list: 9011906053 ** Std Part82345 DIODE 82817 PROTECTOR, WIRING HARNESS, NO.1 82670 BLOCK ASSY, JUNCTION, NO.1 82671 BLOCK, JUNCTION 82817A PROTECTOR, WIRING HARNESS, NO.2 82111 WIRE, ENGINE ROOM MAIN 82672 COVER, JUNKTION BLOCK 82131 WIRE, COWL 9011906005 ** Std Part 82210C FUSIBLE LINK 9165140620 ** Std Part 9017906132 ** Std Part ** 84-01 82114 WIRE, ENGINE ROOM, NO.4 82823 CAP, TERMINAL, NO.1 9165160612 ** Std Part 82001 CABLE, BOND, NO.1 9011908063 ** Std Part 9017908146 ** Std Part 82122 WIRE, ENGINE, NO.2 82951A BRACKET, TERMINAL 82123 WIRE, ENGINE, NO.3 82625 TERMINAL, FUSIBLE LINK 82821A COVER, CONNECTOR 82121 WIRE, ENGINE 82824 CONNECTOR, WIRING HARNESS 9010510122 ** Std Part 9010508096 ** Std Part |
Scheme 2
|
(8705- ) ILLUST NO. 2 OF 5 |
Click part number in the scheme or in the list: 82181 WIRE, LUGGAGE ROOM, NO.182171 WIRE, ROOF, NO.1 9011906005 ** Std Part 82172 WIRE, ROOF, NO.2 82817B PROTECTOR, WIRING HARNESS, NO.3 82161 WIRE, FLOOR 82162 WIRE, FLOOR, NO.2 82186 WIRE, REAR WINDOW, NO.1 82151 WIRE, FRONT DOOR, RH 82152 WIRE, FRONT DOOR, LH |

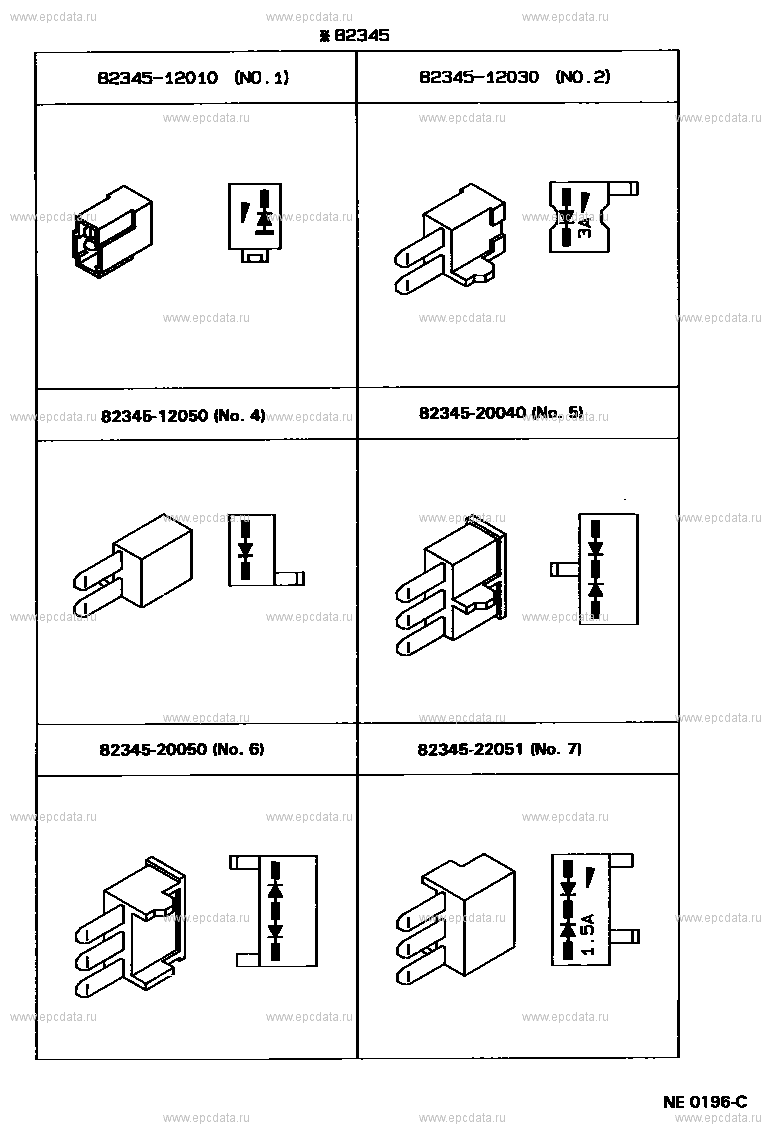

Scheme 3
|
(8705- ) ILLUST NO. 3 OF 5 |
Click part number in the scheme or in the list: 82345 DIODE8234512010 ** Std Part 8234512030 ** Std Part 8234520040 ** Std Part 8234512050 ** Std Part 8234522051 ** Std Part 8234520050 ** Std Part |

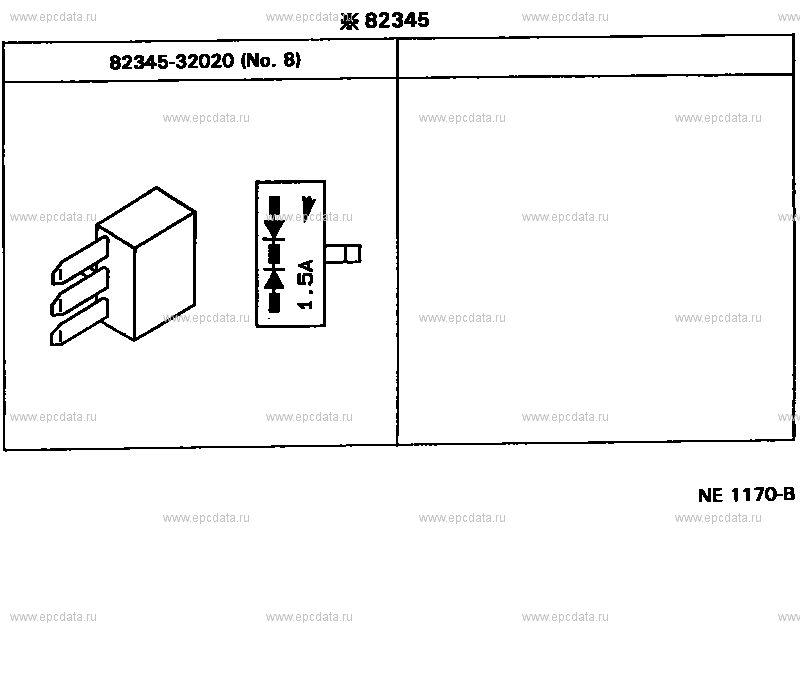

Scheme 4
|
(8905- ) ILLUST NO. 3 OF 5 |
Click part number in the scheme or in the list: 82345 DIODE8234532020 ** Std Part |
Scheme 5
|
(8705- ) ILLUST NO. 4 OF 5 |
Click part number in the scheme or in the list: 82982 WIRE, CLEARANCE LAMP REPAIR82981 WIRE, HEADLAMP REPAIR 8298212070 ** Std Part 8298112020 ** Std Part 82983 WIRE, FRONT TURN SIGNAL LAMP REPAIR 8298212080 ** Std Part 8298212030 ** Std Part 82984 WIRE, HORN REPAIR 8298312050 ** Std Part 8298420010 ** Std Part |

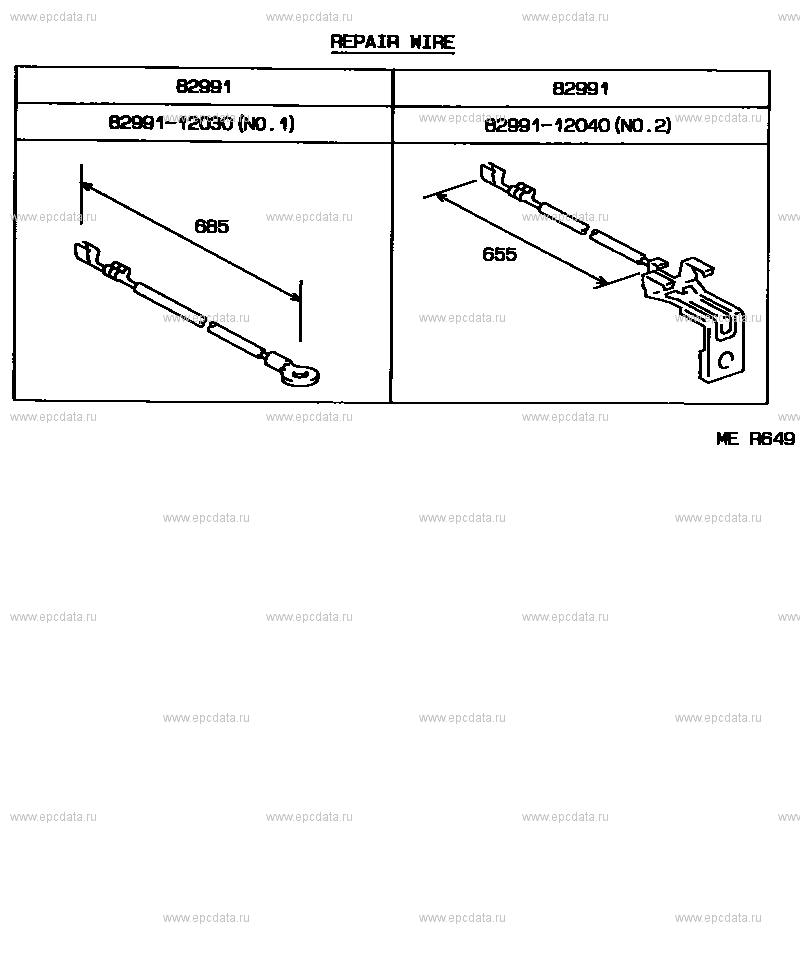

Scheme 6
|
(8705- ) ILLUST NO. 4 OF 5 |
Click part number in the scheme or in the list: 82991 WIRE, FUSIBLE LINK REPAIR8299112030 ** Std Part 8299112040 ** Std Part |
Scheme 7
Scheme 8
|
(8705- ) ILLUST NO. 5 OF 5 |
Click part number in the scheme or in the list: 8271116470 ** Std Part827111A620 ** Std Part 8271512010 ** Std Part 8271512020 ** Std Part 8271512030 ** Std Part 8271122270 ** Std Part 8271589113 ** Std Part |
