Starter for Sprinter Trueno AE92
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

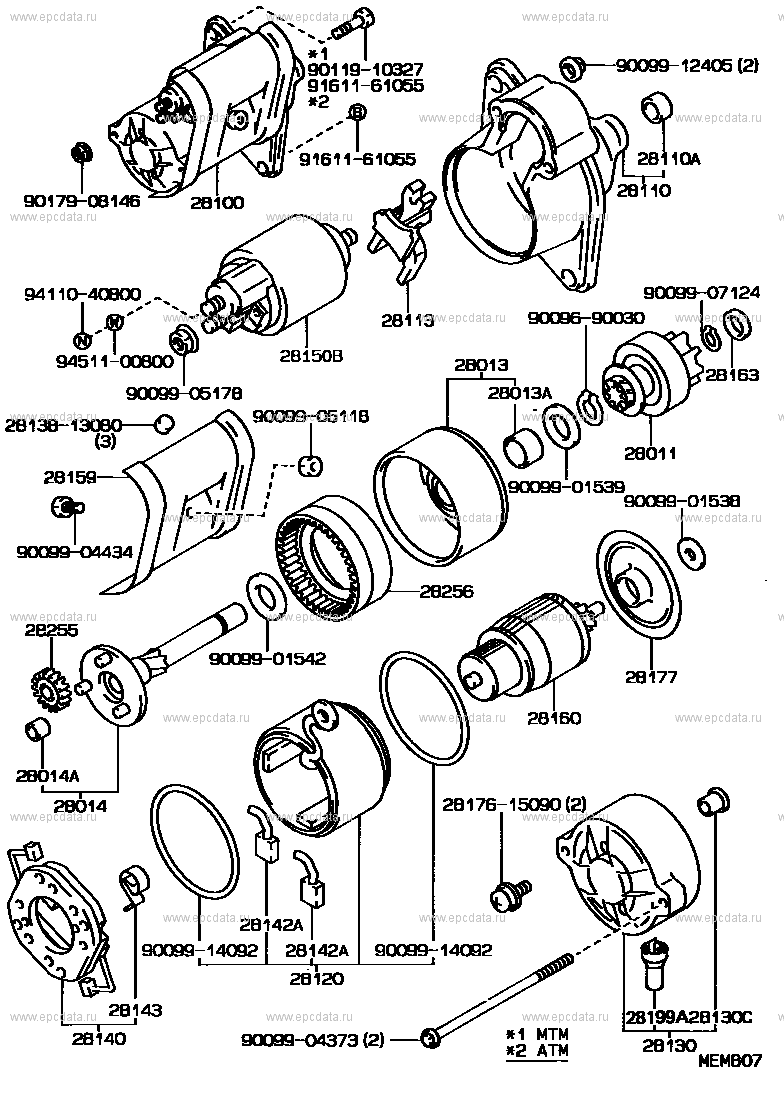

Scheme 1
Scheme 2
Scheme 3
|
(8705- )4AGE 12V 1.0KW |
Click part number in the scheme or in the list: 28120 YOKE ASSY, STARTER9011910327 ** Std Part 9161161055 ** Std Part 9017908146 ** Std Part 28140 HOLDER ASSY, STARTER BRUSH 28143 SPRING, STARTER BRUSH 28130 FRAME ASSY, STARTER COMMUTATOR END 28150B SWITCH ASSY, MAGNETIC 28100 STARTER ASSY 9009904562 ** Std Part 9451100800 ** Std Part 9009900902 ** Std Part 9411040800 ** Std Part 28160 ARMATURE ASSY, STARTER 28160A BEARING, STARTER ARMATURE 9009905129 ** Std Part 28199A PROTECTOR, DUST STARTER 28228A ROLLER, STARTER CLUTCH 9009120604 ** Std Part 28229A RETAINER, STARTER IDLE GEAR 28252 GEAR, STARTER IDLE 9009900907 ** Std Part 28110 HOUSING ASSY, STARTER DRIVE 28011 CLUTCH SUB-ASSY, STARTER 9009912009 ** Std Part 28165 SPRING, STARTER MAGNET SWITCH RETURN |
