Back door lock & handle for Sprinter AE91

Click on the part subgroup below to get genuine part numbers.

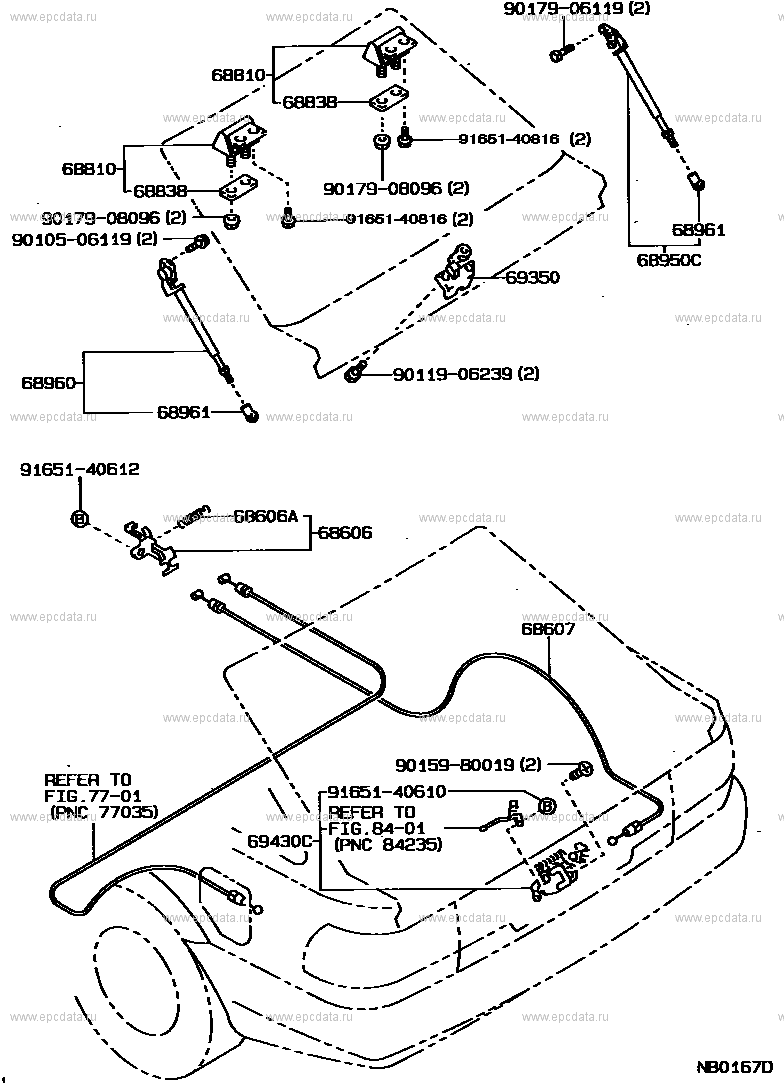

(8705- )5D Open full size scheme

Click part number in the scheme or in the list: 9017906119 ** Std Part 68810 HINGE ASSY, BACK DOOR, UPPER 68838 PAD, BACK DOOR HINGE, NO.1 9165140816 ** Std Part 9017908096 ** Std Part 68961 BOLT, BACK DOOR STAY 9010506119 ** Std Part 68950C STAY ASSY, BACK DOOR, RH 69350 LOCK ASSY, BACK DOOR 9011906239 ** Std Part 68960 STAY ASSY, BACK DOOR, LH 9165140612 ** Std Part 68606A SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) 68606 LEVER SUB-ASSY, BACK DOOR LOCK OPEN 68607 CABLE SUB-ASSY, BACK DOOR LOCK CONTROL 9015980019 ** Std Part ** 77-01 9165140610 ** Std Part ** 84-01 69430C STRIKER ASSY, BACK DOOR LOCK

Sprinter AE91
