Roof panel & back window glass for Sprinter AE91
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(8705- ) 4D |
Click part number in the scheme or in the list: 63111 PANEL, ROOF64811 GLASS, BACK WINDOW 04641 DAM KIT, BACK WINDOW GLASS 63118 SUPPORT, ROOF PANEL, RH 63133A FRAME, BACK WINDOW, UPPER 63141H REINFORCEMENT, ROOF PANEL, CENTER 64101 PANEL SUB-ASSY, UPPER BACK 63102A PANEL SUB-ASSY, WINDSHIELD HEADER |
Scheme 2
|
(8705- )5D ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 9095001131 ** Std Part63111 PANEL, ROOF 63105A FRAME SUB-ASSY, BACK DOOR OPENING 63118 SUPPORT, ROOF PANEL, RH 63141H REINFORCEMENT, ROOF PANEL, CENTER 9165160814 ** Std Part 63102A PANEL SUB-ASSY, WINDSHIELD HEADER 63142 REINFORCEMENT, ROOF PANEL, NO.2 |

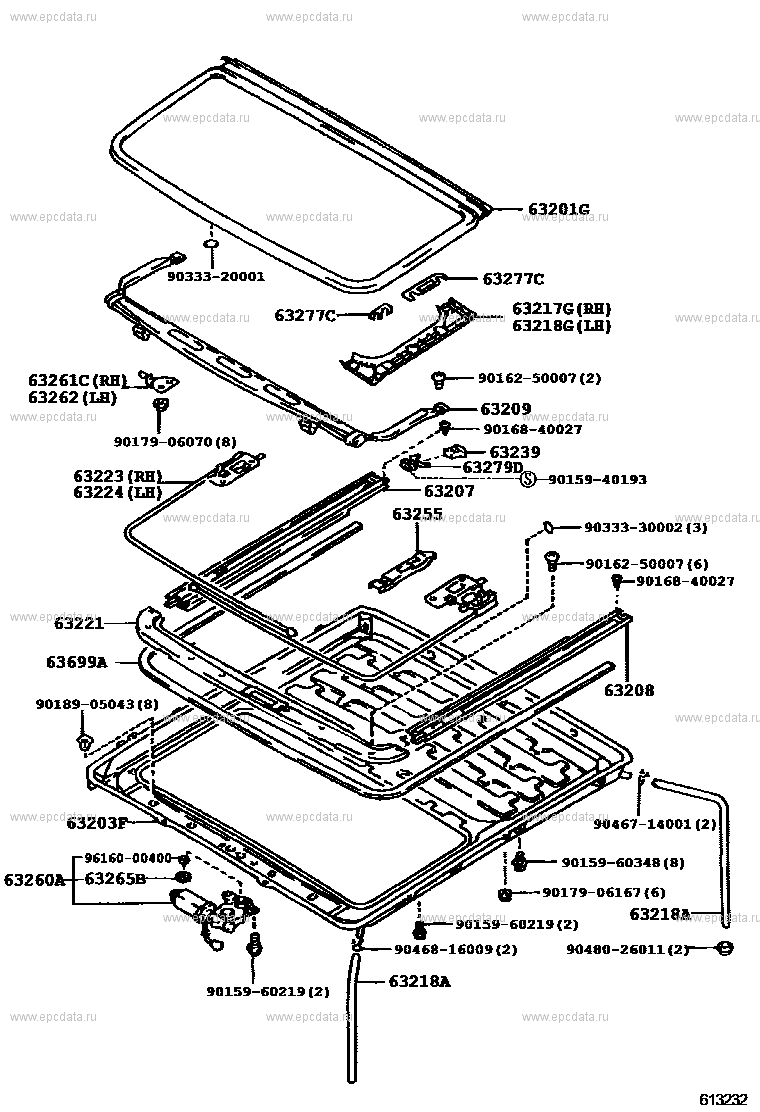

Scheme 3
