ToyotaSoarerJZZ30JZZ30-ACMVZEngine, fuel system and toolsRadiator & water outlet

Radiator & water outlet for Soarer JZZ30




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 16571 16571-46050 01 05.1991 - 08.1996 HOSE, RADIATOR, INLET 1JZGTE..JZZ30 26.39 USD
          ** Rev.Ref.No ** ( From- , To-0132 )
        To JZZ30 -0035437
02 16571 16571-46170 01 08.1996 - HOSE, RADIATOR, INLET 1JZGTE..JZZ30 0.00 USD
          ** Rev.Ref.No ** ( From-0133 , To- )
        From JZZ30 -0035438

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3

Click on the part subgroup below to get genuine part numbers.

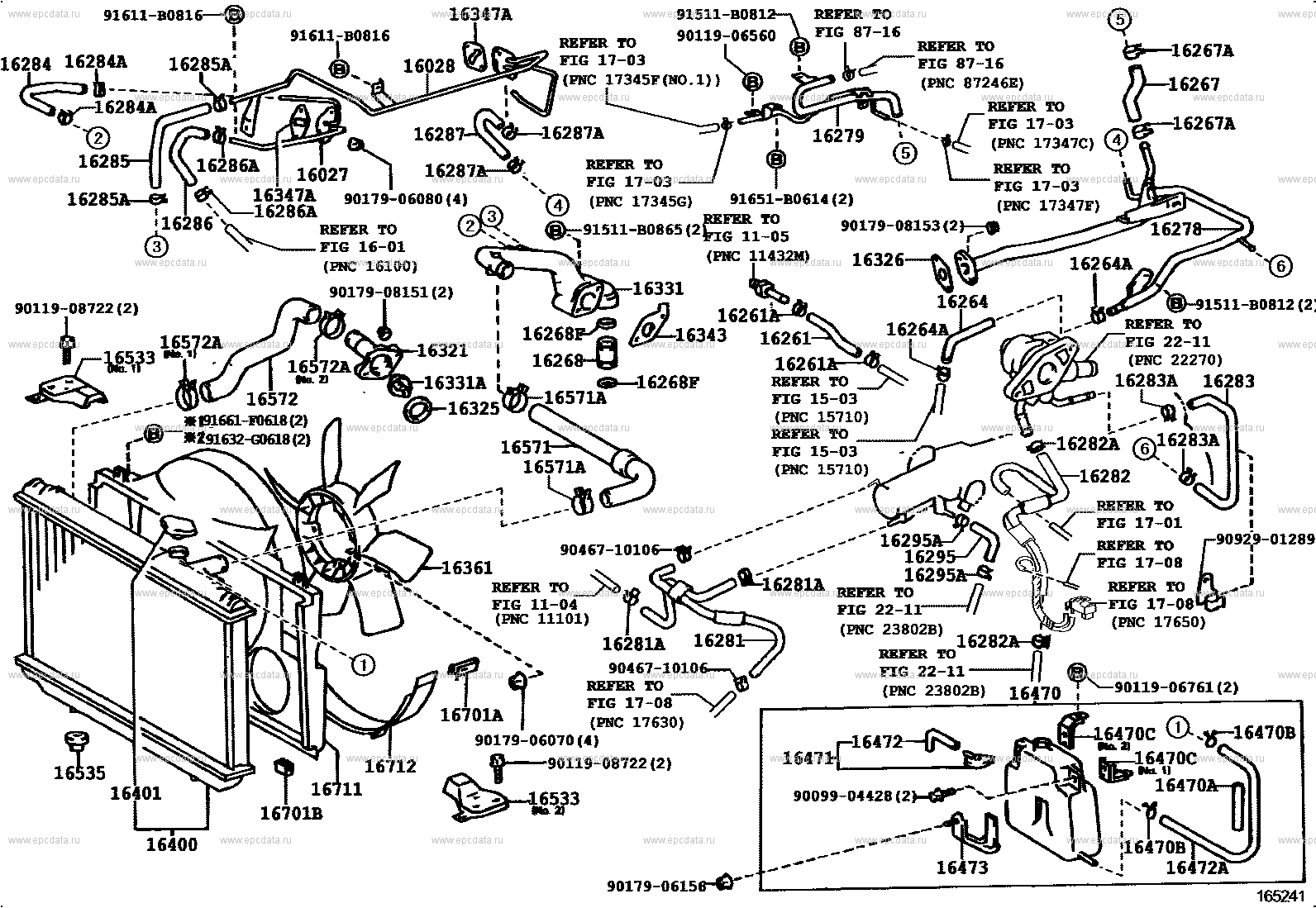

Scheme 1

(9105-9608)1JZGTE
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

91511B0812 ** Std Part
16279 PIPE, WATER BY-PASS, NO.3
16347A GASKET(FOR TURBO WATER PIPE)
91611B0816 ** Std Part
16267A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
9011906560 ** Std Part
16267 HOSE, WATER BY-PASS, NO.3
16028 PIPE SUB-ASSY, TURBO WATER, NO.2
16284A CLIP(FOR TURBO WATER HOSE NO.1)
16284 HOSE, TURBO WATER, NO.1
16285A CLIP(FOR TURBO WATER HOSE NO.2)
91651B0614 ** Std Part
16287A CLIP(FOR TURBO WATER HOSE NO.4)
16287 HOSE, TURBO WATER, NO.4
9017908153 ** Std Part
16285 HOSE, TURBO WATER, NO.2
16286A CLIP(FOR TURBO WATER HOSE NO.3)
16027 PIPE SUB-ASSY, TURBO WATER, NO.1
16278 PIPE, WATER BY-PASS, NO.2
16326 GASKET, WATER INLET HOUSING, NO.2
9017906080 ** Std Part
16286 HOSE, TURBO WATER, NO.3
91511B0865 ** Std Part
16264A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
9017908151 ** Std Part
16331 OUTLET, WATER
16264 HOSE, WATER BY-PASS, NO.2
9011908722 ** Std Part
16261A CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16572A CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16283A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16321 INLET, WATER
16261 HOSE, WATER BY-PASS
16331A THERMOSTAT
16572 HOSE, RADIATOR, OUTLET
16282A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16268F RING, O(FOR WATER BY-PASS PIPE)
16343 GASKET, WATER OUTLET HOUSING
16325 GASKET, WATER INLET HOUSING, NO.1
91661F0618 ** Std Part
16533 SUPPORT, RADIATOR, UPPER
16268 PIPE, WATER BY-PASS, NO.1
91632G0618 ** Std Part
16282 HOSE, WATER BY-PASS, NO.5
16571A CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
9046710106 ** Std Part
16295A CLIP(FOR WATER BY-PASS HOSE NO.7)
16283 HOSE, WATER BY-PASS, NO.6
16571 HOSE, RADIATOR, INLET
16281A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16295 HOSE, WATER BY-PASS, NO.7
16361 FAN
9011906761 ** Std Part
16281 HOSE, WATER BY-PASS, NO.4
9092901289 ** Std Part
16470 TANK ASSY, RADIATOR RESERVE
16470B CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C BRACKET(FOR RADIATOR RESERVE TANK)
16472 HOSE, BREATHER
16471 CAP SUB-ASSY, RESERVE TANK
16701A CLIP(FOR FAN SHROUD)
16470A HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
9017906070 ** Std Part
9009904428 ** Std Part
16712 SHROUD, FAN, NO.2
16535 SUPPORT, RADIATOR, LOWER
16711 SHROUD, FAN
16401 CAP SUB-ASSY, RADIATOR
16701B CUSHION, FAN SHROUD
16473 SUPPORT(FOR RADIATOR RESERVE TANK)
16472A PROTECTOR, HOSE
9017906156 ** Std Part
16400 RADIATOR ASSY
** 16-01
** 17-03
** 87-16
** 11-05
** 17-08
** 22-11
** 17-01
** 11-04
** 15-03

Scheme 2

(9608- )1JZGTE
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

91511B0612 ** Std Part
16284A CLIP(FOR TURBO WATER HOSE NO.1)
16284 HOSE, TURBO WATER, NO.1
16285 HOSE, TURBO WATER, NO.2
16285A CLIP(FOR TURBO WATER HOSE NO.2)
16347A GASKET(FOR TURBO WATER PIPE)
16027 PIPE SUB-ASSY, TURBO WATER, NO.1
9017906080 ** Std Part
9011908722 ** Std Part
16572 HOSE, RADIATOR, OUTLET
16572A CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
91631G0618 ** Std Part
9017908151 ** Std Part
16331 OUTLET, WATER
91511B0865 ** Std Part
16321 INLET, WATER
16331A THERMOSTAT
16325 GASKET, WATER INLET HOUSING, NO.1
16571A CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571 HOSE, RADIATOR, INLET
16268F RING, O(FOR WATER BY-PASS PIPE)
16268 PIPE, WATER BY-PASS, NO.1
16343 GASKET, WATER OUTLET HOUSING
16261A CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261 HOSE, WATER BY-PASS
16326 GASKET, WATER INLET HOUSING, NO.2
9017908153 ** Std Part
16264A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264 HOSE, WATER BY-PASS, NO.2
9046710106 ** Std Part
16281A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16295A CLIP(FOR WATER BY-PASS HOSE NO.7)
16282A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16295 HOSE, WATER BY-PASS, NO.7
16283 HOSE, WATER BY-PASS, NO.6
9092901289 ** Std Part
91511B0812 ** Std Part
16361 FAN
16533 SUPPORT, RADIATOR, UPPER
16471 CAP SUB-ASSY, RESERVE TANK
16701A CLIP(FOR FAN SHROUD)
9046400301 ** Std Part
9017906070 ** Std Part
16712 SHROUD, FAN, NO.2
16711 SHROUD, FAN
16701B CUSHION, FAN SHROUD
16401 CAP SUB-ASSY, RADIATOR
16400 RADIATOR ASSY
9017906156 ** Std Part
16281 HOSE, WATER BY-PASS, NO.4
16470 TANK ASSY, RADIATOR RESERVE
16470C BRACKET(FOR RADIATOR RESERVE TANK)
16470B CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470A HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472A PROTECTOR, HOSE
16473 SUPPORT(FOR RADIATOR RESERVE TANK)
9009904428 ** Std Part
16472 HOSE, BREATHER
9011906761 ** Std Part
16535 SUPPORT, RADIATOR, LOWER
16278 PIPE, WATER BY-PASS, NO.2
9046400730 ** Std Part
16282 HOSE, WATER BY-PASS, NO.5
** 11-05
** 17-01
** 17-08
** 15-03
** 22-11
** 87-16
** 11-04

Scheme 3

(9105- )1JZGTE,2JZGE
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

16400 RADIATOR ASSY
16442 RING, O(FOR RADIATOR UPPER TANK)
16401 CAP SUB-ASSY, RADIATOR
16451 PLATE, RADIATOR CORE, UPPER
16403F CORE SUB-ASSY, RADIATOR
16452 PLATE, RADIATOR CORE, LOWER
16462 RING, O(FOR RADIATOR LOWER TANK)
16491A RING, O(FOR ATM OIL COOLER)
16491B WASHER, PLATE(FOR ATM OIL COOLER)
16406A SUPPORT(FOR OIL COOLER)
16495 NUT, FLARE(FOR ATM OIL COOLER)
16491 COOLER, OIL(FOR ATM)
16400B PLUG, RADIATOR DRAIN COCK
16400F PACKING(FOR RADIATOR DRAIN COCK)
