Fuel injection system for Soarer JZZ30




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 23249 23249-74610 01 05.1991 - RUBBER, CUSHION(FOR FUEL PUMP) 1JZGTE,2JZGE..JZZ3#  6.59
to 8.76 USD


Scheme 1 Scheme 2 Scheme 3

Click on the part subgroup below to get genuine part numbers.

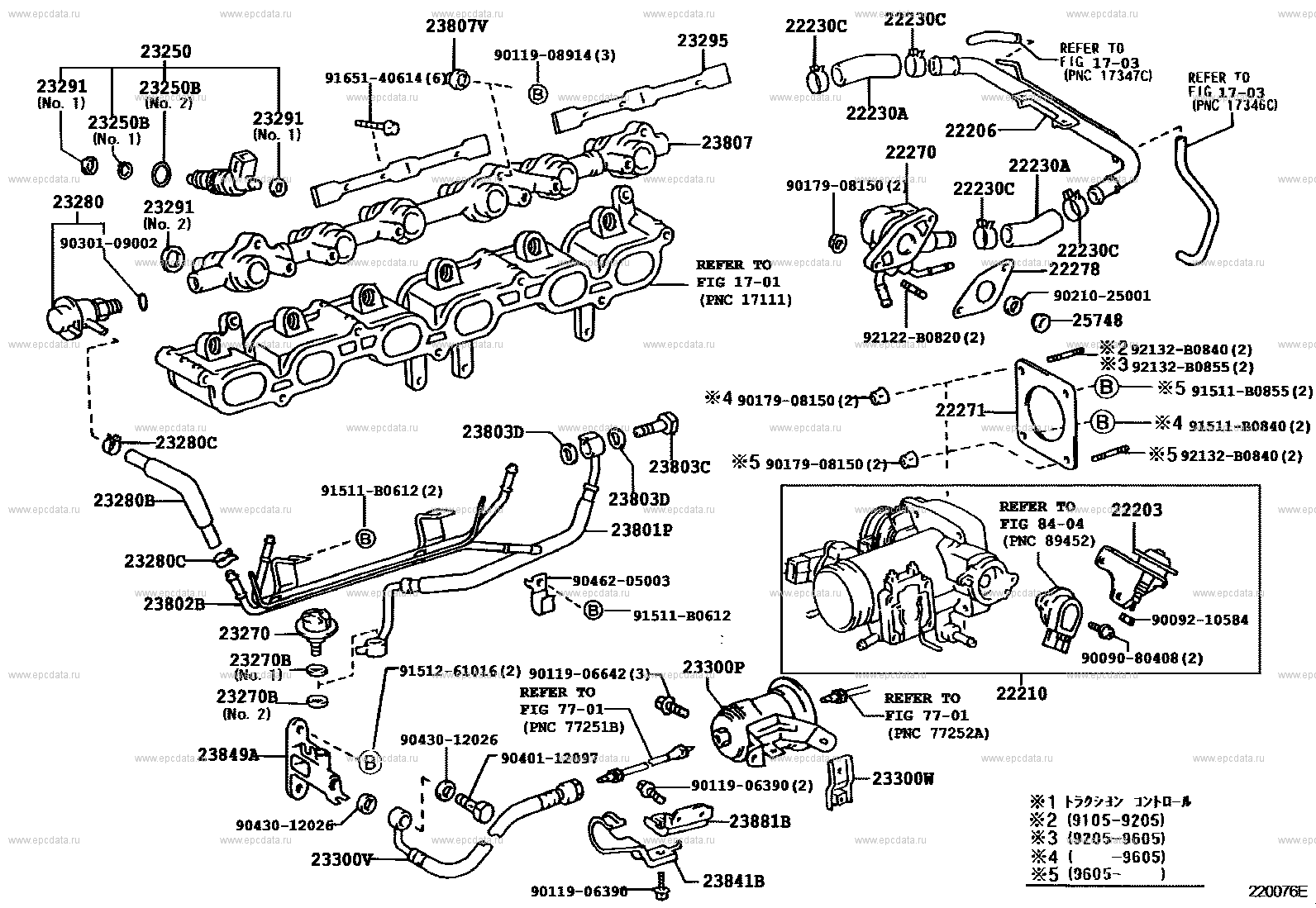

Scheme 1

(9105-9608)1JZGTE
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

9030109002 ** Std Part
23291 INSULATOR, INJECTOR VIBRATION
23250 INJECTOR ASSY, FUEL
23250B RING, O(FOR FUEL INJECTOR)
23280 REGULATOR ASSY, FUEL PRESSURE
23280B HOSE, FUEL PRESSURE REGULATOR RETURN
23280C CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
9165140614 ** Std Part
91511B0612 ** Std Part
23807V SPACER, NO.1(FOR DELIVERY PIPE)
9011908914 ** Std Part
23803D BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803C GASKET(NOZZLE LEKAGE PIPE NO.3)
23801P PIPE SUB-ASSY, FUEL, NO.1
23807 PIPE SUB-ASSY, FUEL DELIVERY
22210 BODY ASSY, THROTTLE
23295 HOLDER, INJECTOR, NO.1
9017908150 ** Std Part
92122B0820 ** Std Part
22230C CLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230A HOSE, AUXILIARY AIR VALVE, NO.1
22270 VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22278 GASKET, IDLE SPEED CONTROL VALVE
25748 VALVE, CHECK(FOR IDLE SPEED CONTROL)
22271 GASKET, THROTTLE BODY
22206 PIPE SUB-ASSY, IDLE SPEED CONTROL
9021025001 ** Std Part
91511B0855 ** Std Part
22203 DASH POT SUB-ASSY(FOR THROTTLE BODY)
9009210584 ** Std Part
9151261016 ** Std Part
92132B0840 ** Std Part
23300V HOSE, FUEL(FOR FUEL INLET)
9009080408 ** Std Part
91511B0840 ** Std Part
9046205003 ** Std Part
9011906642 ** Std Part
23300P FILTER, FUEL(FOR EFI)
23881B BRACKET, FUEL HOSE
23841B CLAMP, FUEL PIPE, NO.1(FOR EFI)
9011906390 ** Std Part
23300W BRACKET, FUEL FILTER
** 17-03
9040112097 ** Std Part
9043012026 ** Std Part
23270 DAMPER ASSY, FUEL PRESSURE PULSATION
23270B GASKET(FOR PULSATION DAMPER HOSE)
23849A SUPPORT, FUEL PIPE
23802B PIPE SUB-ASSY, FUEL, NO.2
92132B0855 ** Std Part
** 84-04
** 77-01
** 17-01

Scheme 2

(9608- )1JZGTE
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

22203 DASH POT SUB-ASSY(FOR THROTTLE BODY)
91511B0612 ** Std Part
9009080408 ** Std Part
22210 BODY ASSY, THROTTLE
9017908150 ** Std Part
91511B0855 ** Std Part
92132B0840 ** Std Part
9331514012 ** Std Part
9009120510 ** Std Part
22230A HOSE, AUXILIARY AIR VALVE, NO.1
22206 PIPE SUB-ASSY, IDLE SPEED CONTROL
22230B HOSE, AUXILIARY AIR VALVE, NO.2
22270 VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
92122B0820 ** Std Part
9021025001 ** Std Part
22230C CLIP, AUXILIARY AIR VALVE HOSE, NO.1
22278 GASKET, IDLE SPEED CONTROL VALVE
25748 VALVE, CHECK(FOR IDLE SPEED CONTROL)
9009210584 ** Std Part
23803C GASKET(NOZZLE LEKAGE PIPE NO.3)
23801P PIPE SUB-ASSY, FUEL, NO.1
23803D BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23802B PIPE SUB-ASSY, FUEL, NO.2
23807V SPACER, NO.1(FOR DELIVERY PIPE)
23807 PIPE SUB-ASSY, FUEL DELIVERY
91651B0845 ** Std Part
23250B RING, O(FOR FUEL INJECTOR)
23250 INJECTOR ASSY, FUEL
23291 INSULATOR, INJECTOR VIBRATION
23280 REGULATOR ASSY, FUEL PRESSURE
9030109002 ** Std Part
23280C CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
23280B HOSE, FUEL PRESSURE REGULATOR RETURN
9046205003 ** Std Part
9011906642 ** Std Part
23300W BRACKET, FUEL FILTER
23881B BRACKET, FUEL HOSE
23300P FILTER, FUEL(FOR EFI)
23841B CLAMP, FUEL PIPE, NO.1(FOR EFI)
9011906390 ** Std Part
9040112097 ** Std Part
9043012026 ** Std Part
23300V HOSE, FUEL(FOR FUEL INLET)
9151261016 ** Std Part
23849A SUPPORT, FUEL PIPE
23270B GASKET(FOR PULSATION DAMPER HOSE)
23270 DAMPER ASSY, FUEL PRESSURE PULSATION
** 84-04
** 77-01
** 17-01
9095901613 ** Std Part
22271 GASKET, THROTTLE BODY

Scheme 3

(9105-9709)2JZGE ; (9105- )1JZGTE
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

9338115010 ** Std Part
9046713001 ** Std Part
23233 HOSE, FUEL PUMP
23233B CLIP(FOR FUEL PUMP HOSE)
23239 HOSE
23206A BRACKET, FUEL PUMP
23206B GASKET, FUEL PUMP BRACKET
23217A FILTER, FUEL PUMP
23229 CLIP(FOR FUEL PUMP FILTER)
23249 RUBBER, CUSHION(FOR FUEL PUMP)
9017906158 ** Std Part
23220P PUMP ASSY, FUEL
