Switch & relay & computer for Sai AZK10
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(0911- ) ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ ILLUST NO. 1 OF 7 |
Click part number in the scheme or in the list: 89615 SENSOR, KNOCK CONTROL9012608039 ** Std Part 9017908153 ** Std Part 83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 89467B SENSOR, AIR FUEL RATIO 89465 SENSOR, OXYGEN |
Scheme 2
|
(0911-1308) ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 2 OF 7 |
Click part number in the scheme or in the list: 85942 RELAY, HEADLAMP CLEANER CONTROL86530A RELAY, HORN 16100P RELAY, WATER PUMP 85927 RELAY, COOLING FAN 85926 RELAY, HEADLAMP DIMMER 85924 RELAY, IGNITION CONTROL 82600F FUSE, FUSE BLOCK 82210J FUSIBLE LINK 82641 RELAY, INTEGRATION NO.1 82620A BLOCK ASSY, FUSIBLE LINK 82661A COVER, RELAY BLOCK, NO.2 82641C RELAY, INTEGRATION NO.2 82662A COVER, RELAY BLOCK, UPPER, NO.1 9167180616 ** Std Part ** 82-02 82616 PULLER, FUSE 89257 COMPUTER, COOLING FAN 9331514014 ** Std Part 89530H RELAY, TRANSAXLE PARKING LOOK CONTROL 82741 BLOCK, ENGINE ROOM RELAY 82663 COVER, RELAY BLOCK, LOWER 82660B BLOCK ASSY, RELAY 82824L PIN, SHORT 82620B BLOCK ASSY, FUSIBLE LINK |

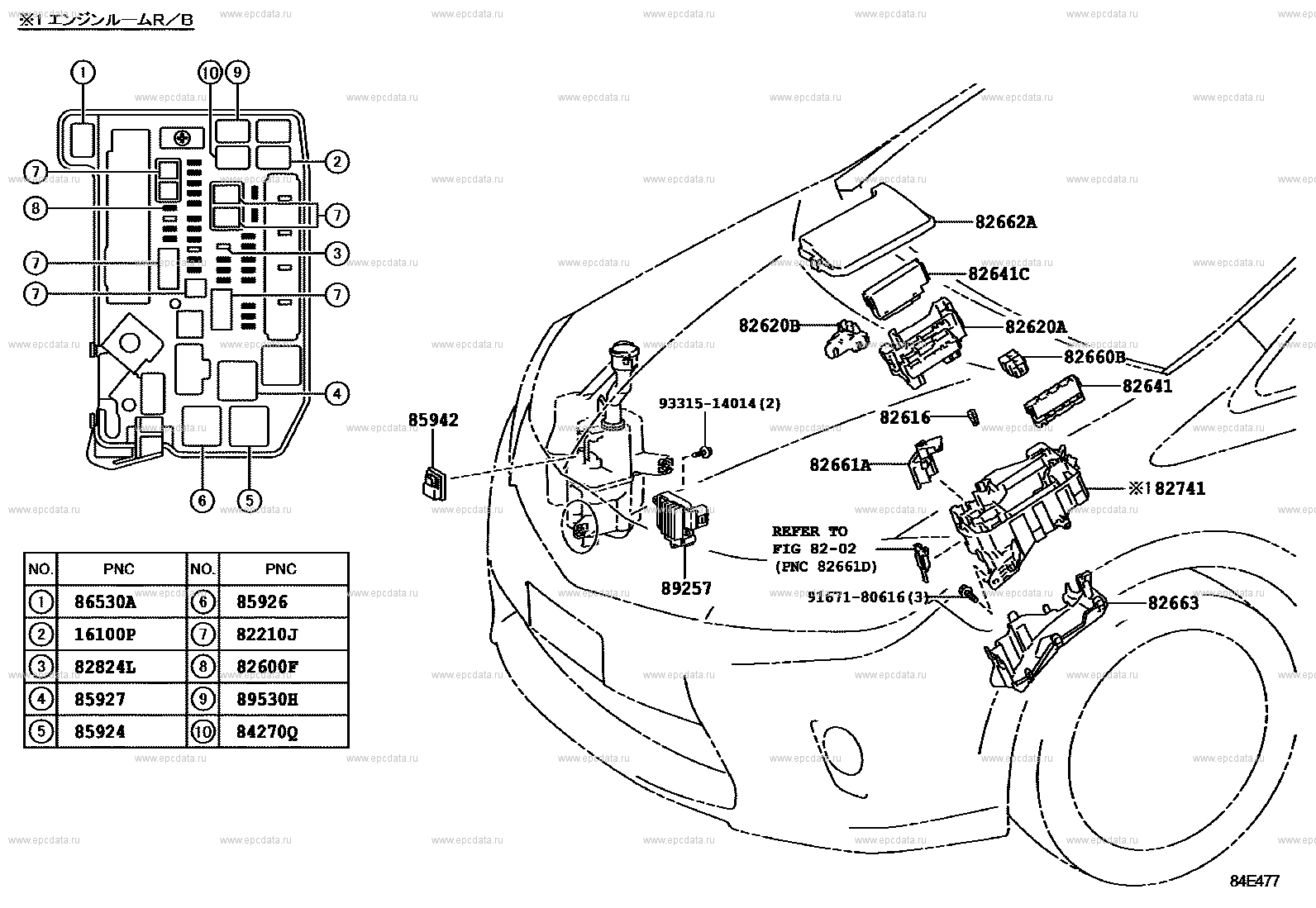

Scheme 3
|
(1308- ) ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 2 OF 7 |
Click part number in the scheme or in the list: 85942 RELAY, HEADLAMP CLEANER CONTROL82641 RELAY, INTEGRATION NO.1 82620A BLOCK ASSY, FUSIBLE LINK 82661A COVER, RELAY BLOCK, NO.2 82641C RELAY, INTEGRATION NO.2 82662A COVER, RELAY BLOCK, UPPER, NO.1 9167180616 ** Std Part ** 82-02 82616 PULLER, FUSE 89257 COMPUTER, COOLING FAN 9331514014 ** Std Part 82741 BLOCK, ENGINE ROOM RELAY 82663 COVER, RELAY BLOCK, LOWER 82660B BLOCK ASSY, RELAY 82620B BLOCK ASSY, FUSIBLE LINK 16100P RELAY, WATER PUMP 86530A RELAY, HORN 82824L PIN, SHORT 85924 RELAY, IGNITION CONTROL 85927 RELAY, COOLING FAN 82210J FUSIBLE LINK 85926 RELAY, HEADLAMP DIMMER 84270Q RELAY, LAMP CUT 89530H RELAY, TRANSAXLE PARKING LOOK CONTROL 82600F FUSE, FUSE BLOCK |
Scheme 4

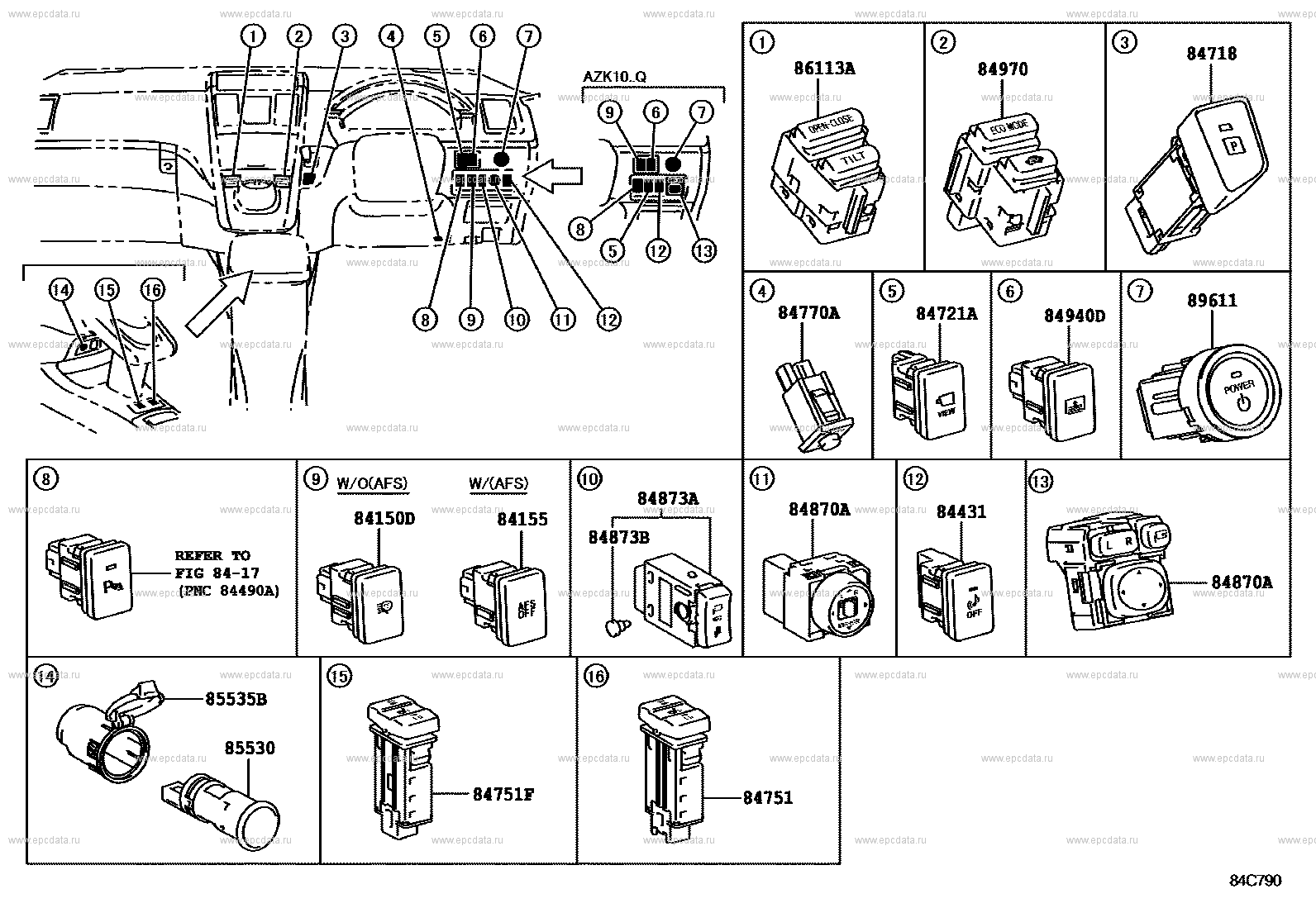

Scheme 5
|
(0911-1111) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 7 |
Click part number in the scheme or in the list: ** 84-1784870A SWITCH ASSY, OUTER MIRROR 84873A SWITCH, RETRACTABLE OUTER MIRROR 84873B BULB, RETRACTABLE OUTER MIRROR SWITCH 84940D SWITCH ASSY, REAR SUN SHADE 84150D SWITCH ASSY, HEADLAMP CLEANER 84155 SWITCH, HEADLAMP SWIVEL MAIN 89611 SWITCH, PUSH START 84770A SWITCH ASSY, PRECRASH SYSTEM CANCEL 84970 SWITCH ASSY, COMBINATION 86113A SWITCH, MULTI-DISPLAY 84721A SWITCH, FRONT WIDE VIEW 84751 SWITCH, SEAT HEATER 84751F SWITCH, SEAT HEATER 85535B COVER, POWER OUTLET SOCKET, NO.1 85530 SOCKET ASSY, POWER OUTLET, NO.1 84718 SWITCH, TRANSMISSION SHIFT MAIN |

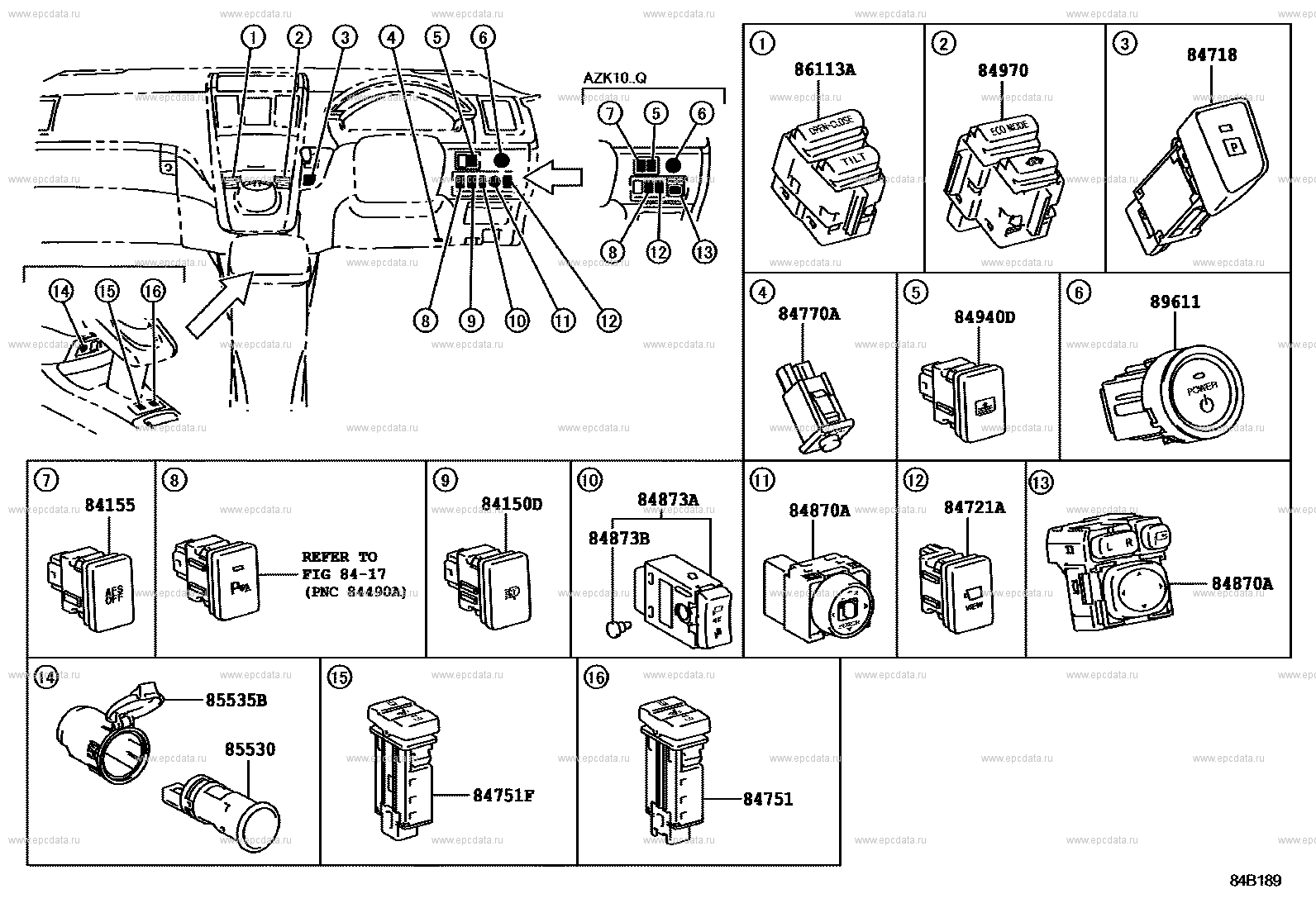

Scheme 6
|
(1111-1308) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 7 |
Click part number in the scheme or in the list: ** 84-1784870A SWITCH ASSY, OUTER MIRROR 84873A SWITCH, RETRACTABLE OUTER MIRROR 84873B BULB, RETRACTABLE OUTER MIRROR SWITCH 84940D SWITCH ASSY, REAR SUN SHADE 84431 SWITCH, VEHICLE APPROACHING SPEAKER 84150D SWITCH ASSY, HEADLAMP CLEANER 84155 SWITCH, HEADLAMP SWIVEL MAIN 89611 SWITCH, PUSH START 84770A SWITCH ASSY, PRECRASH SYSTEM CANCEL 84970 SWITCH ASSY, COMBINATION 86113A SWITCH, MULTI-DISPLAY 84721A SWITCH, FRONT WIDE VIEW 84751 SWITCH, SEAT HEATER 84751F SWITCH, SEAT HEATER 85535B COVER, POWER OUTLET SOCKET, NO.1 85530 SOCKET ASSY, POWER OUTLET, NO.1 84718 SWITCH, TRANSMISSION SHIFT MAIN |

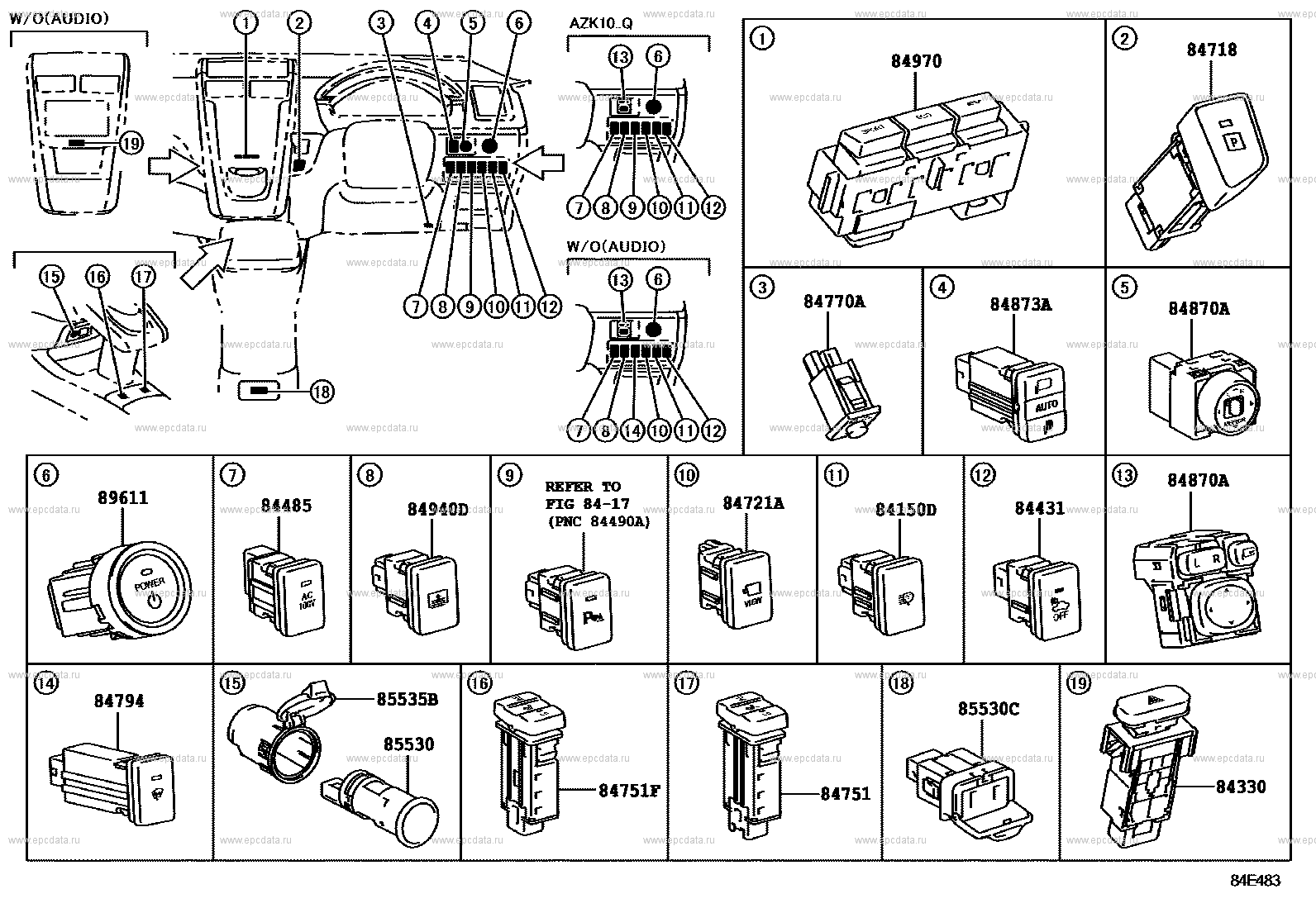

Scheme 7
|
(1308- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 7 |
Click part number in the scheme or in the list: ** 84-1784870A SWITCH ASSY, OUTER MIRROR 84940D SWITCH ASSY, REAR SUN SHADE 84431 SWITCH, VEHICLE APPROACHING SPEAKER 84150D SWITCH ASSY, HEADLAMP CLEANER 89611 SWITCH, PUSH START 84770A SWITCH ASSY, PRECRASH SYSTEM CANCEL 84970 SWITCH ASSY, COMBINATION 84721A SWITCH, FRONT WIDE VIEW 84751 SWITCH, SEAT HEATER 84330 SWITCH ASSY, HAZARD WARNING SIGNAL 84751F SWITCH, SEAT HEATER 85535B COVER, POWER OUTLET SOCKET, NO.1 85530 SOCKET ASSY, POWER OUTLET, NO.1 84718 SWITCH, TRANSMISSION SHIFT MAIN 85530C SOCKET ASSY, POWER OUTLET, CENTER 84873A SWITCH, RETRACTABLE OUTER MIRROR 84485 SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) 84794 SWITCH, FR WIPER DEICER |

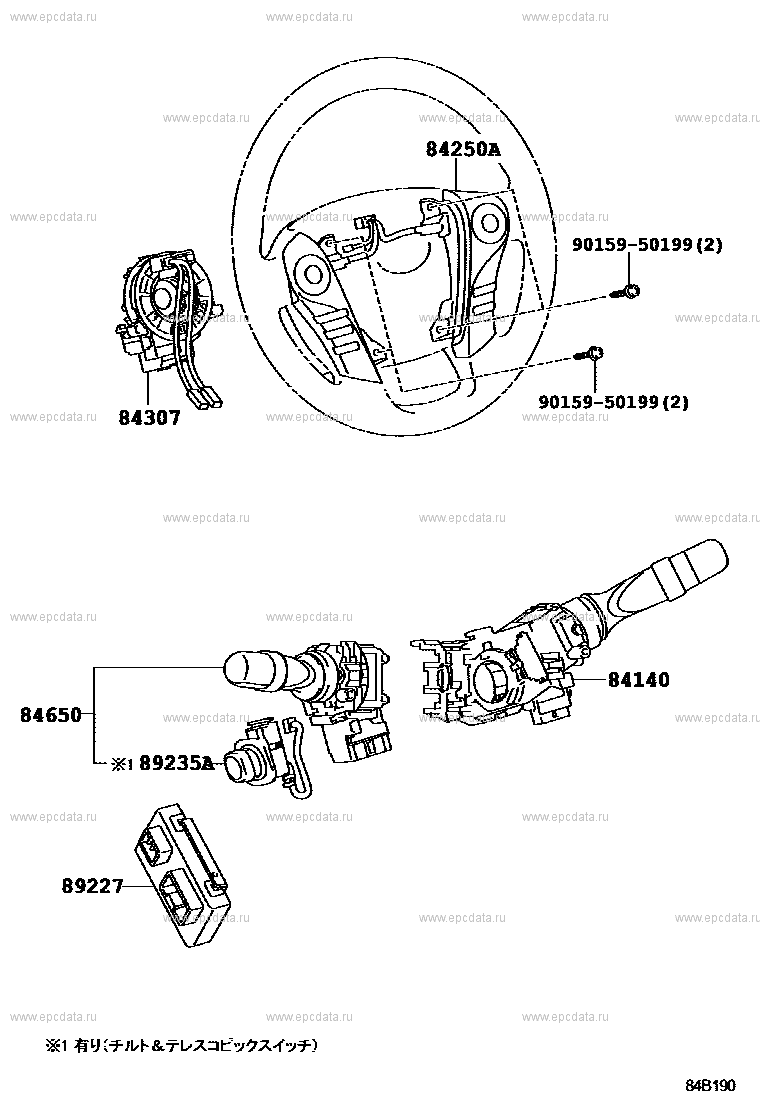

Scheme 8
|
(0911- ) ｽﾃｱﾘﾝｸﾞ ILLUST NO. 5 OF 7 |
Click part number in the scheme or in the list: 84250A SWITCH ASSY, STEERING PAD9015950199 ** Std Part 84140 SWITCH ASSY, HEADLAMP DIMMER 84650 SWITCH ASSY, WINDSHIELD WIPER 89235A SWITCH, TILT & TELESCOPIC 84307 CABLE SUB-ASSY, SPIRAL W/SENSOR 89227 COMPUTER, MULTIPLEX TILT & TELESCOPIC |

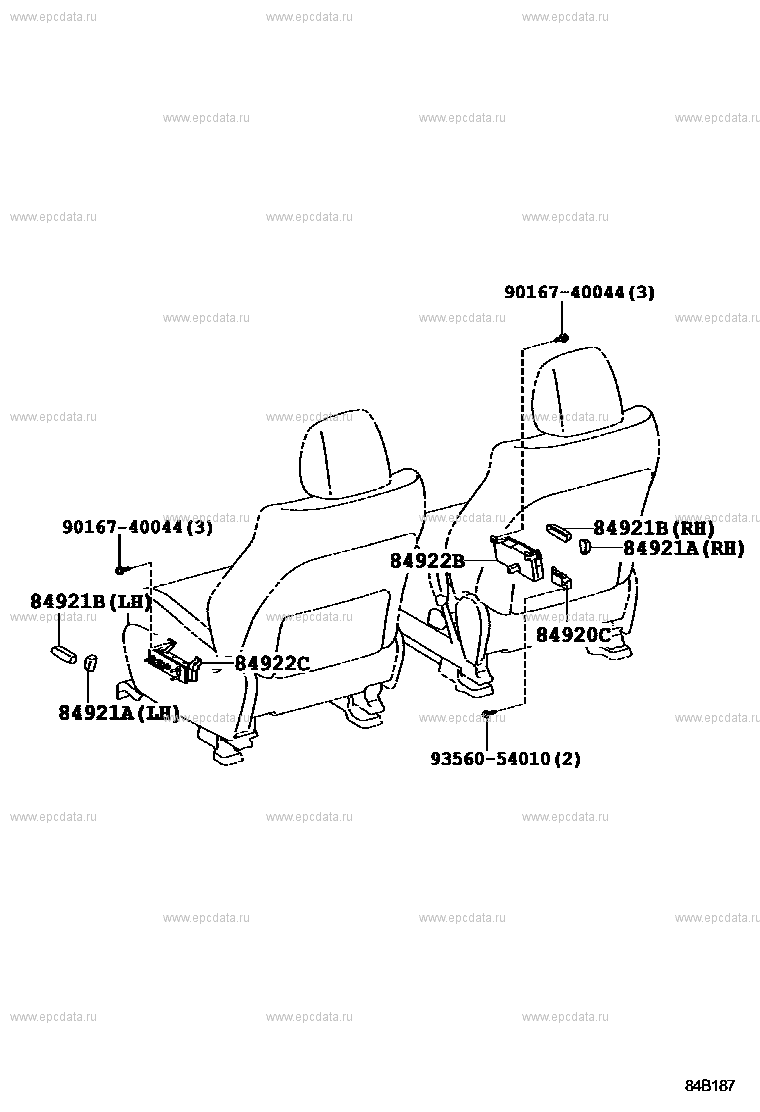

Scheme 9
|
(0911- ) ｼｰﾄ ILLUST NO. 6 OF 7 |
Click part number in the scheme or in the list: 84921B KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)84921A KNOB, POWER SEAT SWITCH (FOR RECLINING) 84922C SWITCH, FRONT POWER SEAT, LH 84922B SWITCH, FRONT POWER SEAT, RH 84920C SWITCH ASSY, POWER SEAT FRONT, RH 9016740044 ** Std Part 9356054010 ** Std Part |

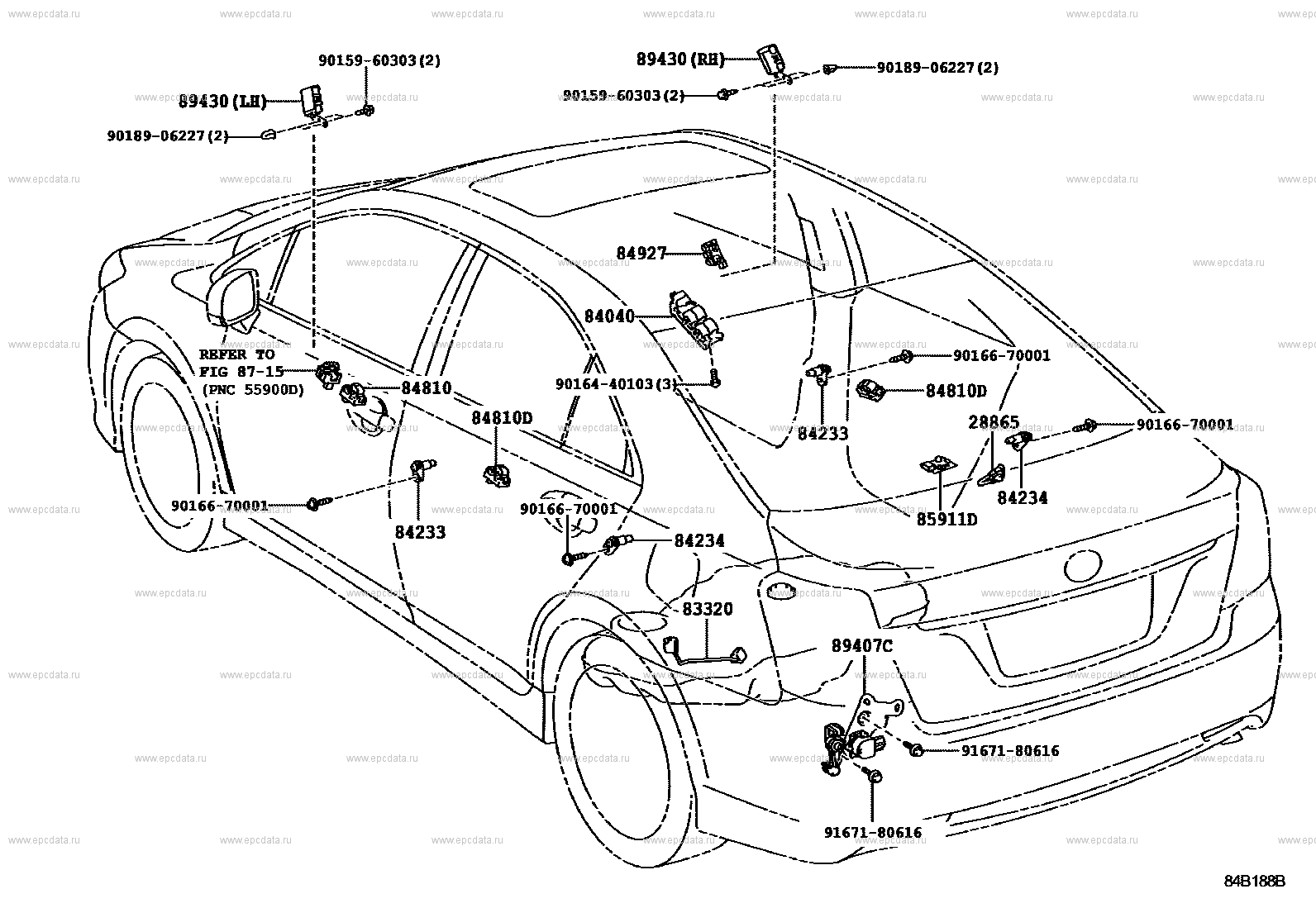

Scheme 10
|
(0911-1308) ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ ILLUST NO. 7 OF 7 |
Click part number in the scheme or in the list: ** 87-159016670001 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84810 SWITCH ASSY, POWER WINDOW REGULATOR 84810D SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 89430 COMPUTER ASSY, OUTER MIRROR CONTROL 84927 SWITCH, SEAT MEMORY 84040 MASTER SWITCH ASSY,MULTIPLEX NETWORK 85911D RELAY, REAR SUNSHADE 83320 GAGE ASSY, FUEL SENDER 28865 SENSOR, BATTERY THERMOMETER 9018906227 ** Std Part 9015960303 ** Std Part 9016440103 ** Std Part 89407C SENSOR SUB-ASSY, HEIGHT CONTROL, REAR 9167180616 ** Std Part |

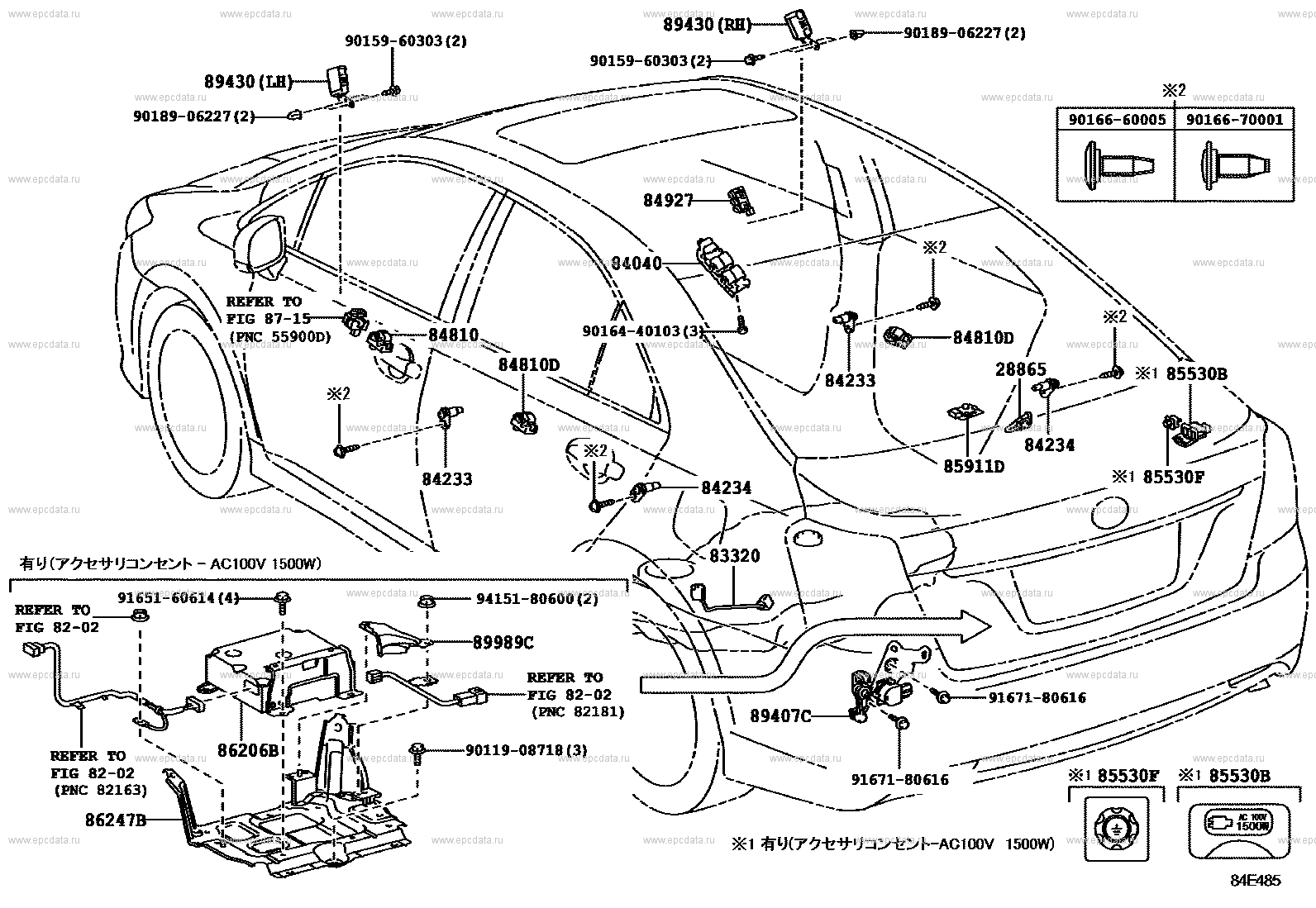

Scheme 11
|
(1308- ) ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ ILLUST NO. 7 OF 7 |
Click part number in the scheme or in the list: ** 87-1584233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84810 SWITCH ASSY, POWER WINDOW REGULATOR 84810D SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 89430 COMPUTER ASSY, OUTER MIRROR CONTROL 84927 SWITCH, SEAT MEMORY 84040 MASTER SWITCH ASSY,MULTIPLEX NETWORK 9016660005 ** Std Part 9016670001 ** Std Part 85911D RELAY, REAR SUNSHADE 83320 GAGE ASSY, FUEL SENDER 28865 SENSOR, BATTERY THERMOMETER 9018906227 ** Std Part 9015960303 ** Std Part 9016440103 ** Std Part 89407C SENSOR SUB-ASSY, HEIGHT CONTROL, REAR 9167180616 ** Std Part 85530B SOCKET ASSY, POWER OUTLET, REAR NO.1 85530F SOCKET ASSY, POWER OUTLET, REAR NO.2 ** 82-02 9165160614 ** Std Part 9415180600 ** Std Part 89989C BRACKET, COMPUTER, NO.3 86206B INVERTER SUB-ASSY, VOLTAGE 86247B BRACKET, VOLTAGE INVERTER 9011908718 ** Std Part |
