Headlamp for Sai AZK10
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

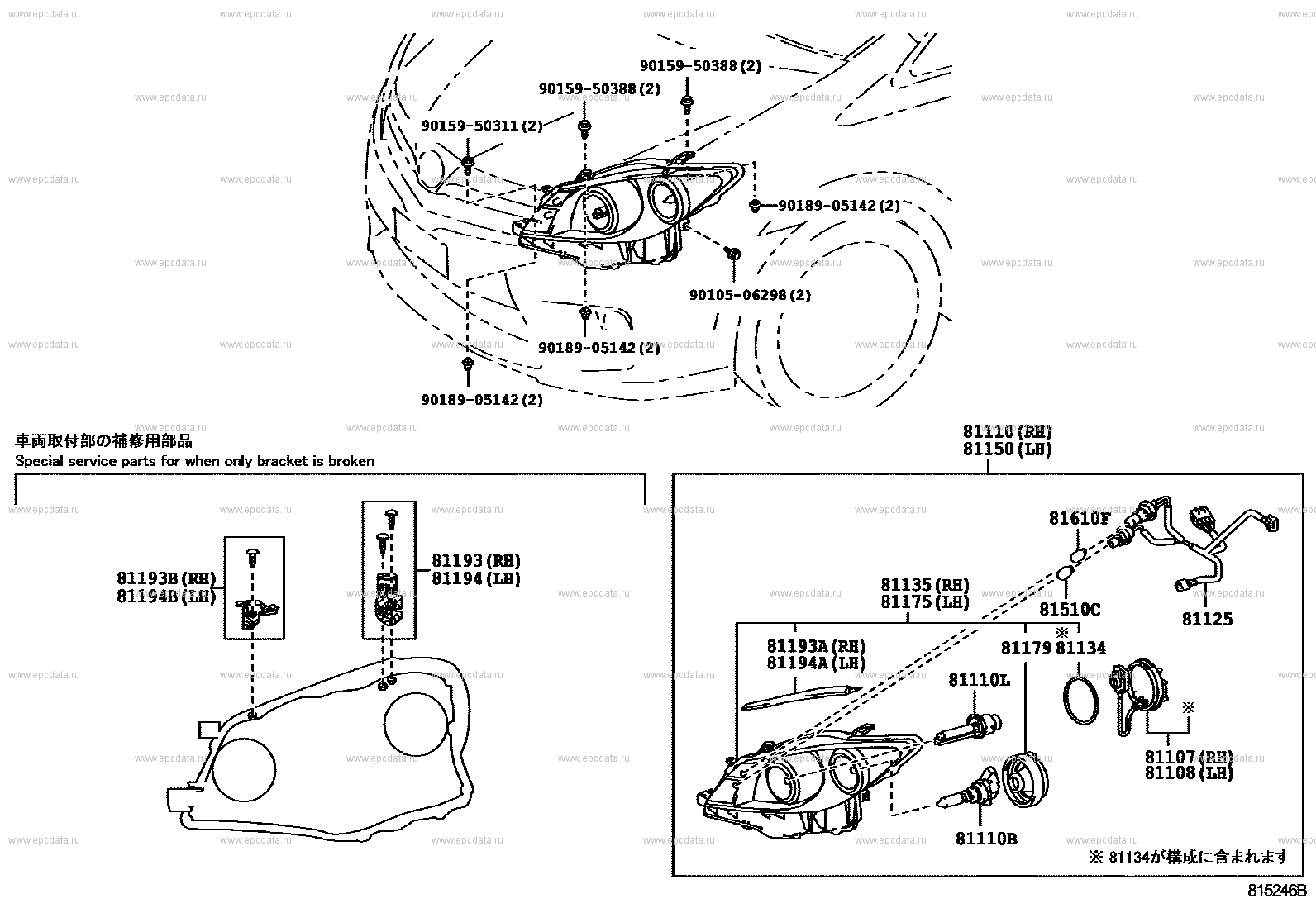

Scheme 1
|
(0911-1308) ﾃﾞｨｽﾁｬｰｼﾞ ﾍｯﾄﾞﾗﾝﾌﾟ |
Click part number in the scheme or in the list: 81110 HEADLAMP ASSY, RH81150 HEADLAMP ASSY, LH 81610F BULB(FOR CLEARANCE LAMP) 81510C BULB (FOR FRONT TURN SIGNAL LAMP) 81125 CORD, HEADLAMP 81110B BULB(FOR HEADLAMP, NO.1) 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 81179 COVER, HEADLAMP SOCKET 81107 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH 81108 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH 81194A PROTECTOR, HEADLAMP, LH 81193A PROTECTOR, HEADLAMP, RH 81134 GASKET, HEADLAMP 9015950388 ** Std Part 9018905142 ** Std Part 9015950311 ** Std Part 81193 RETAINER, HEADLAMP PROTECTOR, UPR RH 81194 RETAINER, HEADLAMP PROTECTOR, UPR LH 81193B RETAINER, HEADLAMP PROTECTOR, UPR RH NO.2 81194B RETAINER, HEADLAMP PROTECTOR, UPR LH NO.2 81110L BULB, DISCHARGE HEADLAMP 9010506298 ** Std Part |
Scheme 2
|
(0911-1308) ﾃﾞｨｽﾁｬｰｼﾞ ｱﾘ(AFS) |
Click part number in the scheme or in the list: 81110 HEADLAMP ASSY, RH81150 HEADLAMP ASSY, LH 81610F BULB(FOR CLEARANCE LAMP) 81510C BULB (FOR FRONT TURN SIGNAL LAMP) 81125 CORD, HEADLAMP 81110B BULB(FOR HEADLAMP, NO.1) 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 81107 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH 81108 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH 81110L BULB, DISCHARGE HEADLAMP 81179 COVER, HEADLAMP SOCKET 81134 GASKET, HEADLAMP 85662 MOTOR, HEADLAMP LEVELING, LH 85661 MOTOR, HEADLAMP LEVELING, RH 85669 PACKING, HEADLAMP LEVELING MOTOR BASE 81194A PROTECTOR, HEADLAMP, LH 81193A PROTECTOR, HEADLAMP, RH 81193 RETAINER, HEADLAMP PROTECTOR, UPR RH 81194 RETAINER, HEADLAMP PROTECTOR, UPR LH 81193B RETAINER, HEADLAMP PROTECTOR, UPR RH NO.2 81194B RETAINER, HEADLAMP PROTECTOR, UPR LH NO.2 9015950388 ** Std Part 9018905142 ** Std Part 9015950311 ** Std Part 9010506298 ** Std Part |
Scheme 3
|
(0911-1308)G ; (1010-1308)S LED ﾍｯﾄﾞﾗﾝﾌﾟ |
Click part number in the scheme or in the list: 9007502056 ** Std Part9007502727 ** Std Part 81110 HEADLAMP ASSY, RH 81150 HEADLAMP ASSY, LH 81610F BULB(FOR CLEARANCE LAMP) 81510C BULB (FOR FRONT TURN SIGNAL LAMP) 81125 CORD, HEADLAMP 81110B BULB(FOR HEADLAMP, NO.1) 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 81107 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH 81108 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH 81179 COVER, HEADLAMP SOCKET 81134 GASKET, HEADLAMP 85662 MOTOR, HEADLAMP LEVELING, LH 85661 MOTOR, HEADLAMP LEVELING, RH 85669 PACKING, HEADLAMP LEVELING MOTOR BASE 81194A PROTECTOR, HEADLAMP, LH 81193A PROTECTOR, HEADLAMP, RH 81193 RETAINER, HEADLAMP PROTECTOR, UPR RH 81194 RETAINER, HEADLAMP PROTECTOR, UPR LH 81193B RETAINER, HEADLAMP PROTECTOR, UPR RH NO.2 81194B RETAINER, HEADLAMP PROTECTOR, UPR LH NO.2 9015950311 ** Std Part 9018905142 ** Std Part 9010506298 ** Std Part |
Scheme 4
