Rear combination lamp for Sai AZK10

Click on the part subgroup below to get genuine part numbers.

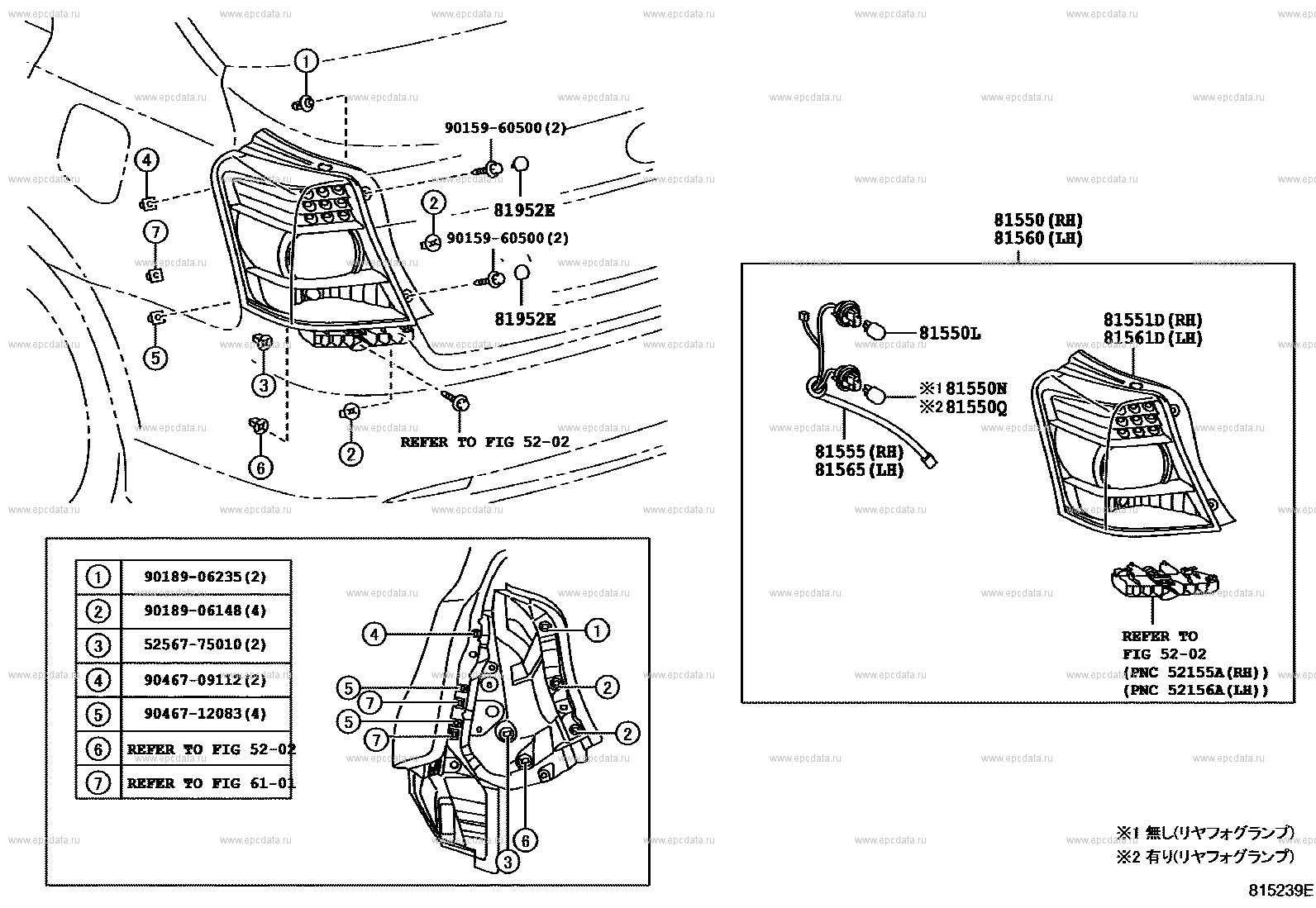

Scheme 1

(0911-1308) Open full size scheme Go to top

Click part number in the scheme or in the list: 81550L BULB, REAR TURN SIGNAL LAMP 81550N BULB, BACK UP LAMP 81550Q BULB, REAR FOG LAMP, NO.1 81555 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH 81565 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH 81550 LAMP ASSY, REAR COMBINATION, RH 81560 LAMP ASSY, REAR COMBINATION, LH 81551D LENS & BODY, REAR COMBINATION LAMP, RH 81561D LENS & BODY, REAR COMBINATION LAMP, LH 9018906235 ** Std Part 9018906148 ** Std Part 5256775010 ** Std Part 9046712083 ** Std Part 9046709112 ** Std Part 81952E COVER, REAR LAMP 9015960500 ** Std Part ** 52-02 ** 61-01

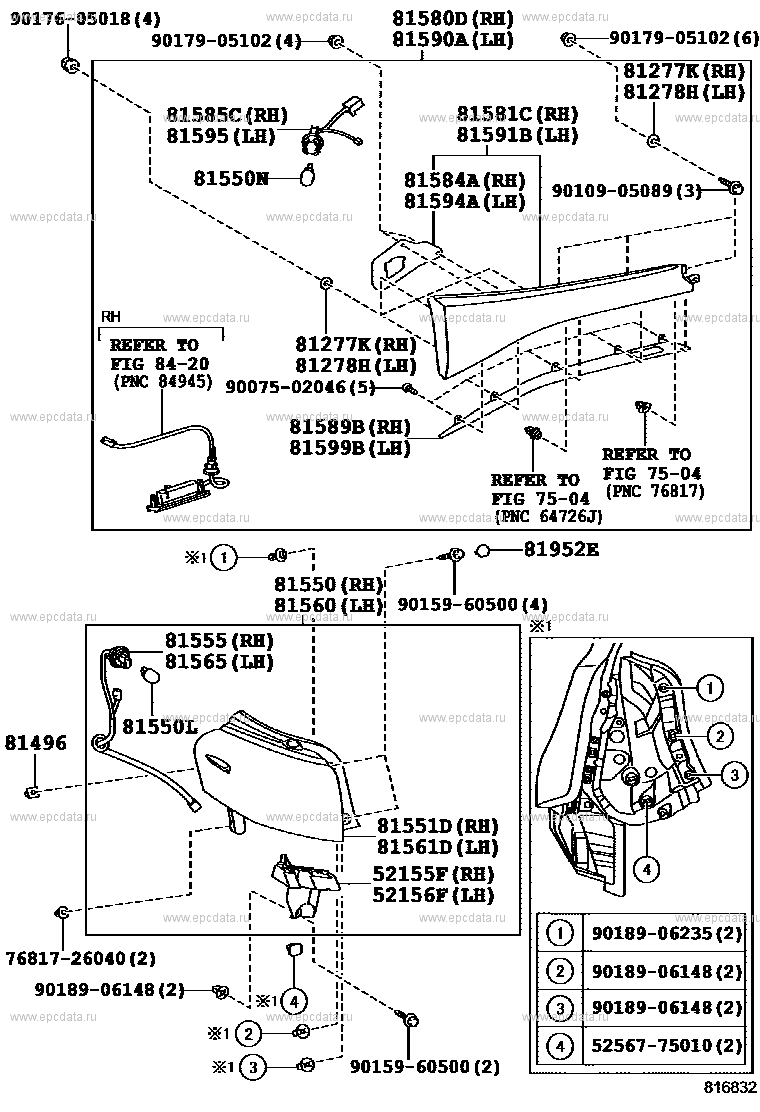

Scheme 2

(1308- ) Open full size scheme Go to top

Click part number in the scheme or in the list: ** 84-20 81580D LAMP ASSY, REAR, RH 81590A LAMP ASSY, REAR, LH 81277K SHADE, LICENSE PLATE LAMP, RH 81278H SHADE, LICENSE PLATE LAMP, LH 81581C LENS AND BODY, REAR LAMP, RH 81591B LENS AND BODY, REAR LAMP, LH 81584A GASKET, REAR LAMP RH 81594A GASKET, REAR LAMP LH 81585C SOCKET AND WIRE, REAR LAMP, RH 81595 SOCKET AND WIRE, REAR LAMP, LH 81589B COVER, REAR COMBINATION BACK, RH 81599B COVER, REAR COMBINATION BACK, LH 81550 LAMP ASSY, REAR COMBINATION, RH 81560 LAMP ASSY, REAR COMBINATION, LH 81555 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH 81550L BULB, REAR TURN SIGNAL LAMP 81952E COVER, REAR LAMP 81496 GUIDE, REAR COMBINATION LAMP 81565 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH 81551D LENS & BODY, REAR COMBINATION LAMP, RH 81561D LENS & BODY, REAR COMBINATION LAMP, LH 52155F SUPPORT, REAR BUMPER SIDE, RH 52156F SUPPORT, REAR BUMPER SIDE, LH 81550N BULB, BACK UP LAMP 9017605018 ** Std Part 7681726040 ** Std Part 9018906148 ** Std Part 9015960500 ** Std Part 9018906235 ** Std Part 5256775010 ** Std Part 9017905102 ** Std Part 9007502046 ** Std Part 9010905089 ** Std Part ** 75-04
