Heating & air conditioning - water piping for Regius KCH40W

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9907- )KCH4# ﾌﾛﾝﾄ ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 8712826010 ** Std Part 9613442100 ** Std Part 87245E HOSE, HEATER WATER, INLET E 87246A HOSE, HEATER WATER, OUTLET A 87208 PIPE SUB-ASSY, HEATER WATER 9151160812 ** Std Part 9017908251 ** Std Part 9151160820 ** Std Part 9613452100 ** Std Part 87246B HOSE, HEATER WATER, OUTLET B 87249A PIPE, HEATER WATER OUTLET, A 87246C HOSE, HEATER WATER, OUTLET C 87245B HOSE, HEATER WATER, INLET B 87248A PIPE, HEATER WATER INLET, A 87245A HOSE, HEATER WATER, INLET A 87208B PIPE SUB-ASSY, HEATER WATER, B 9017906080 ** Std Part 9613442300 ** Std Part 1625867010 ** Std Part

Scheme 2

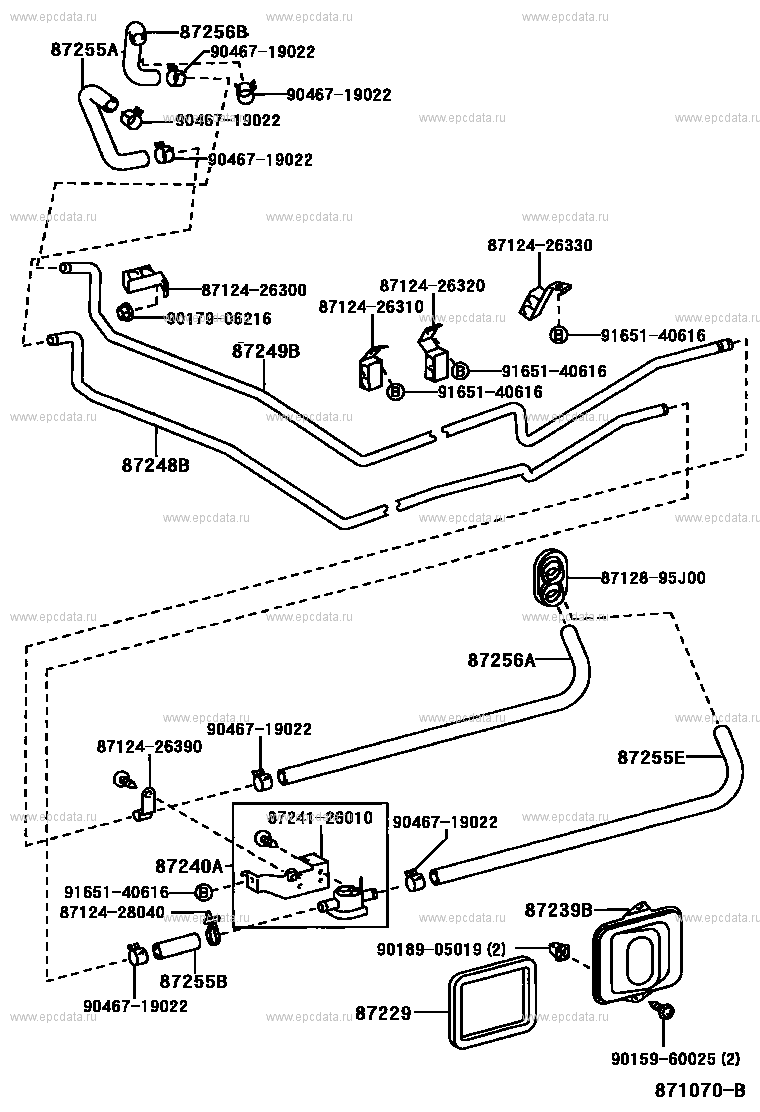

(9704- )KCH4# ﾘﾔ---ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 87256B HOSE, REAR HEATER WATER OUTLET, B 87255A HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 9046719022 ** Std Part 8712426330 ** Std Part 8712426320 ** Std Part 8712426300 ** Std Part 8712426310 ** Std Part 9017906216 ** Std Part 9165140616 ** Std Part 87249B PIPE, HEATER WATER OUTLET, B 87248B PIPE, HEATER WATER INLET, B 8712895J00 ** Std Part 87256A HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 8712426390 ** Std Part 87255E HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 8724126010 ** Std Part 87240A VALVE ASSY, REAR HEATER WATER 87239B COVER, HEATER INLET HOLE 8712428040 ** Std Part 9018905019 ** Std Part 87255B HOSE, REAR HEATER WATER INLET, B 87229 PACKING, HEATER INLET HOLE COVER 9015960025 ** Std Part
