Electronic controled diesel (ecd) for Regius KCH40W

Click on the part subgroup below to get genuine part numbers.

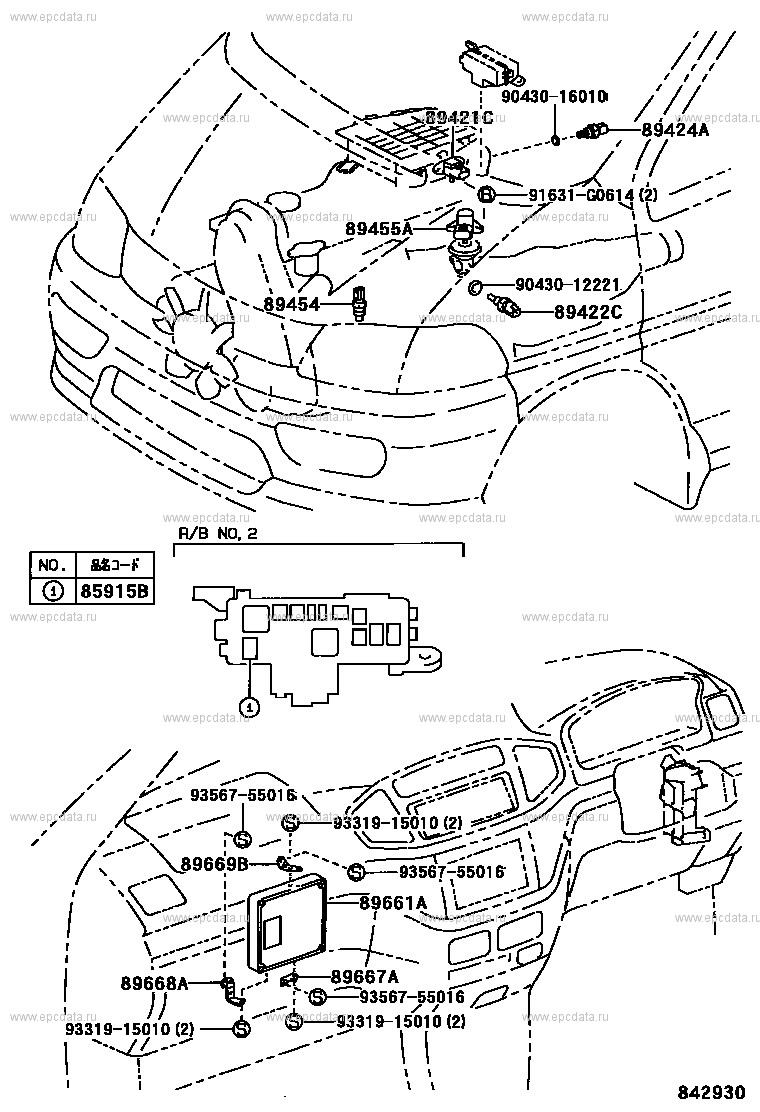

(9907- )KCH4# Open full size scheme

Click part number in the scheme or in the list: 9043016010 ** Std Part 89421C SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) 89424A SENSOR, INLET AIR TENPERATURE (FOR DIESEL TURBO) 91631G0614 ** Std Part 89455A SENSOR, EGR VALVE POSITION 9043012221 ** Std Part 89454 SENSOR, FUEL TEMPERATURE 89422C SENSOR, DIESEL ENGINE WATER TEMPERATURE 85915B RELAY, MAIN (FOR DIESEL TURBO) 9356755016 ** Std Part 9331915010 ** Std Part 89669B BRACKET, ENGINE CONTROL COMPUTER, NO.3 89661A COMPUTER, ENGINE CONTROL 89667A BRACKET, ENGINE CONTROL COMPUTER, NO.1 89668A BRACKET, ENGINE CONTROL COMPUTER, NO.2

Regius KCH40W
