Fuel injection system for RAV4 ZCA25W

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 23239B 23239-21010 01 05.2000 - 07.2003 SEAL, FUEL PUMP FILTER 1ZZFE..ZCA2#  1.00 to 1.11 USD 02 23239B 23239-21010 01 07.2003 - 11.2005 SEAL, FUEL PUMP FILTER 1ZZFE..ZCA2#  1.00 to 1.11 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0005- )1ZZFE ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 23250B RING, O(FOR FUEL INJECTOR) 23250 INJECTOR ASSY, FUEL 23807 PIPE SUB-ASSY, FUEL DELIVERY 91511J0840 ** Std Part 23291 INSULATOR, INJECTOR VIBRATION 23807V SPACER, NO.1(FOR DELIVERY PIPE) 23842A CLAMP, FUEL PIPE, NO.2(FOR EFI) 23901 TUBE SUB-ASSY, FUEL ** 16-03 9011908B48 ** Std Part 9007910012 ** Std Part 22215 GASKET, THROTTLE BODY COVER 22270 VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 9007911057 ** Std Part 22210 BODY ASSY, THROTTLE 9415080801 ** Std Part 22267 BRACKET, THROTTLE BODY ** 17-01 9151180614 ** Std Part 9012608015 ** Std Part ** 84-04 22271 GASKET, THROTTLE BODY

Scheme 2

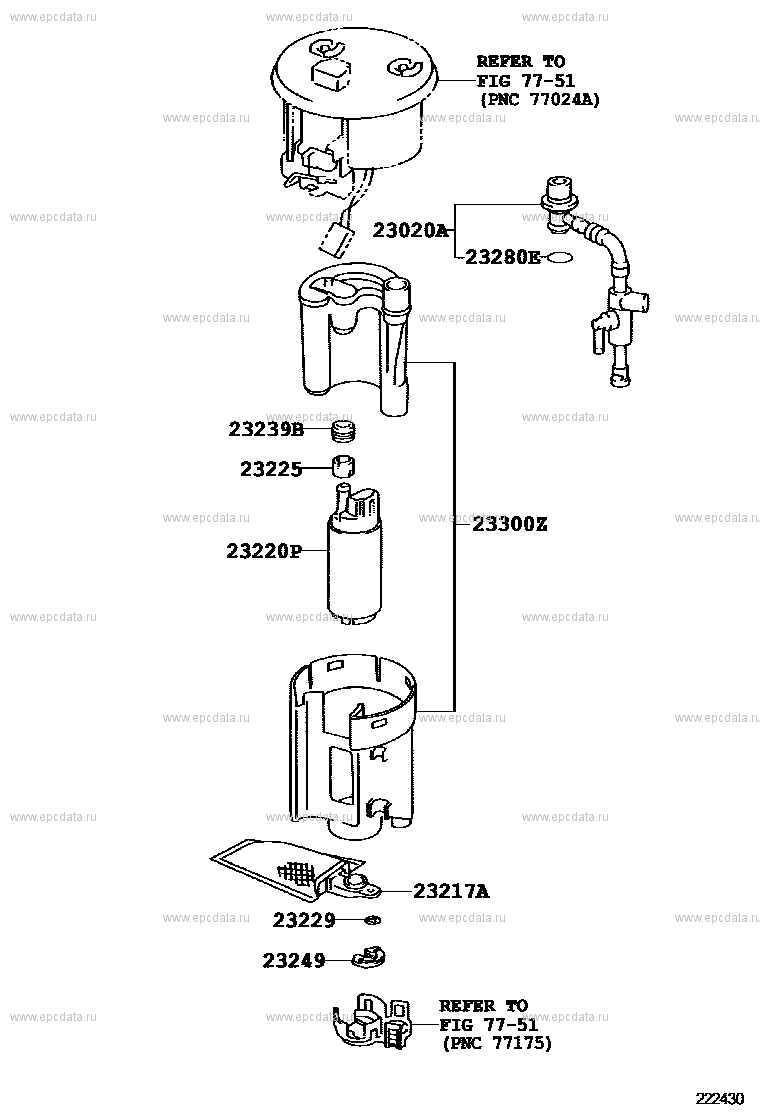

(0005- )1ZZFE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 23217A FILTER, FUEL PUMP 23020A REGULATOR ASSY, FUEL PRESSURE W/JET PUMP 23300Z FILTER, FUEL(FOR FUEL TANK) 23239B SEAL, FUEL PUMP FILTER 23225 SPACER, FUEL PUMP 23220P PUMP ASSY, FUEL 23229 CLIP(FOR FUEL PUMP FILTER) 23249 RUBBER, CUSHION(FOR FUEL PUMP) ** 77-51 23280E RING, O(FOR FUEL PRESSURE REGULATOR)

RAV4 ZCA25W
