ToyotaRAV4ACA20WACA20W-AZPNHEngine, fuel system and toolsFuel tank & tube

Fuel tank & tube for RAV4 ACA20W

Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0005-0307)
ﾌﾕ-ｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

77285D CLAMP, FUEL TUBE, NO.1
6182512010 ** Std Part
77393 PROTECTOR, CHECK VALVE
9015950343 ** Std Part
77035 CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77306 LEVER SUB-ASSY, FUEL LID LOCK OPEN
77012 TUBE SUB-ASSY, FUEL TANK BREATHER
9162660616 ** Std Part
9046028002 ** Std Part
9017905042 ** Std Part
77168A PLATE, FUEL TANK VENT TUBE SET
77177 GASKET, CHECK VALVE
77285F CLAMP, FUEL TUBE, NO.1
77269A HOSE, FUEL TANK BREATHER
77785 HARNESS, FUEL PUMP
91631A0618 ** Std Part
77641A PROTECTOR, FUEL TANK, NO.1
77241W CLIP, TUBE JOINT
9017906185 ** Std Part
77209 CONNECTOR SUB-ASSY, FUEL TUBE
77377 RETAINER, FUEL FILLER OPENING LID LOCK
77100 TANK ASSY, FUEL
77290 SHIELD ASSY, FUEL TANK FILLER PIPE
77024A PLATE SUB-ASSY, FUEL SUCTION
77391A RING, FUEL INLET BOX
77245D TUBE, FUEL TANK RETURN VENT
77391 RING, FUEL INLET BOX
77651B CUSHION, FUEL TANK
77366 SPRING, FUEL FILLER OPENING LID HINGE
77310A CAP ASSY, FUEL TANK
9030109021 ** Std Part
77651A CUSHION, FUEL TANK, NO.1
77316 GASKET, FUEL TANK CAP
77350 LID ASSY, FUEL FILLER OPENING
77652A CUSHION, FUEL TANK, NO.2
77285 BRACKET, FUEL TUBE
77175 SUPPORT, FUEL SUCTION, NO.2
9026906017 ** Std Part
77201 PIPE SUB-ASSY, FUEL TANK INLET
77169A GASKET, FUEL SUCTION TUBE SET
77654A CUSHION, FUEL TANK, NO.4
77216A SUPPORT, FUEL TANK FILLER PIPE, NO.1
9095904001 ** Std Part
77229C CLAMP, BREATHER TUBE
77277R PROTECTOR, FUEL TANK FILLER PIPE
77218A SUPPORT, FUEL TANK FILLER PIPE, NO.3
77217A SUPPORT, FUEL TANK FILLER PIPE, NO.2
9011906690 ** Std Part
91651B0814 ** Std Part
77601A BAND SUB-ASSY, FUEL TANK, NO.1
77213B HOSE, FUEL TANK TO FILLER PIPE
77681A SEAT, FUEL TANK BAND
77642A PROTECTOR, FUEL TANK, NO.2
9046046003 ** Std Part
77606F CASE SUB-ASSY, FUEL TANK COVER VENT
9011906838 ** Std Part
9011906635 ** Std Part
77643A PROTECTOR, FUEL TANK, NO.3
9011908967 ** Std Part
9095001530 ** Std Part

Scheme 2

(0005-0307)
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

77022A HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
** 22-11
9613341100 ** Std Part
77022C HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
** 17-08
77261D TUBE, FUEL TANK TO CANISTER
77740 CANISTER ASSY, CHARCOAL
77751 BRACKET, CHARCOAL CANISTER BASE
77255F HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77251B TUBE, FUEL MAIN
77255D TUBE, FUEL RETURN
9162660616 ** Std Part
77295C GROMMET, FUEL TUBE
91635B0625 ** Std Part

Scheme 3

(0307- )
ﾌﾕ-ｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

77012 TUBE SUB-ASSY, FUEL TANK BREATHER
77177 GASKET, CHECK VALVE
77285D CLAMP, FUEL TUBE, NO.1
91631A0618 ** Std Part
77641A PROTECTOR, FUEL TANK, NO.1
9017906185 ** Std Part
77100 TANK ASSY, FUEL
77393 PROTECTOR, CHECK VALVE
9046028002 ** Std Part
77269A HOSE, FUEL TANK BREATHER
77651B CUSHION, FUEL TANK
77651A CUSHION, FUEL TANK, NO.1
77652A CUSHION, FUEL TANK, NO.2
** 22-11
77024A PLATE SUB-ASSY, FUEL SUCTION
77241W CLIP, TUBE JOINT
77175 SUPPORT, FUEL SUCTION, NO.2
77169A GASKET, FUEL SUCTION TUBE SET
9095904001 ** Std Part
77285 BRACKET, FUEL TUBE
77316 GASKET, FUEL TANK CAP
77201 PIPE SUB-ASSY, FUEL TANK INLET
77216A SUPPORT, FUEL TANK FILLER PIPE, NO.1
77310A CAP ASSY, FUEL TANK
77391 RING, FUEL INLET BOX
77290 SHIELD ASSY, FUEL TANK FILLER PIPE
77209 CONNECTOR SUB-ASSY, FUEL TUBE
77204A TUBE, FUEL TANK RETURN
9030109021 ** Std Part
77391A RING, FUEL INLET BOX
77366 SPRING, FUEL FILLER OPENING LID HINGE
77350 LID ASSY, FUEL FILLER OPENING
77785 HARNESS, FUEL PUMP
77285F CLAMP, FUEL TUBE, NO.1
77168A PLATE, FUEL TANK VENT TUBE SET
9017905042 ** Std Part
9015950343 ** Std Part
91621J0612 ** Std Part
77306 LEVER SUB-ASSY, FUEL LID LOCK OPEN
77035 CABLE SUB-ASSY, FUEL LID LOCK CONTROL
6182512010 ** Std Part
77377 RETAINER, FUEL FILLER OPENING LID LOCK
9026906017 ** Std Part
77277R PROTECTOR, FUEL TANK FILLER PIPE
77229C CLAMP, BREATHER TUBE
77217A SUPPORT, FUEL TANK FILLER PIPE, NO.2
9011906690 ** Std Part
77213B HOSE, FUEL TANK TO FILLER PIPE
9011906838 ** Std Part
91651B0814 ** Std Part
9046046003 ** Std Part
77218A SUPPORT, FUEL TANK FILLER PIPE, NO.3
77606F CASE SUB-ASSY, FUEL TANK COVER VENT
77681A SEAT, FUEL TANK BAND
9011908C49 ** Std Part
77601A BAND SUB-ASSY, FUEL TANK, NO.1
77642A PROTECTOR, FUEL TANK, NO.2
9011906635 ** Std Part
9095001530 ** Std Part
77643A PROTECTOR, FUEL TANK, NO.3
77654A CUSHION, FUEL TANK, NO.4
77289B CLAMP, FUEL TUBE, NO.3

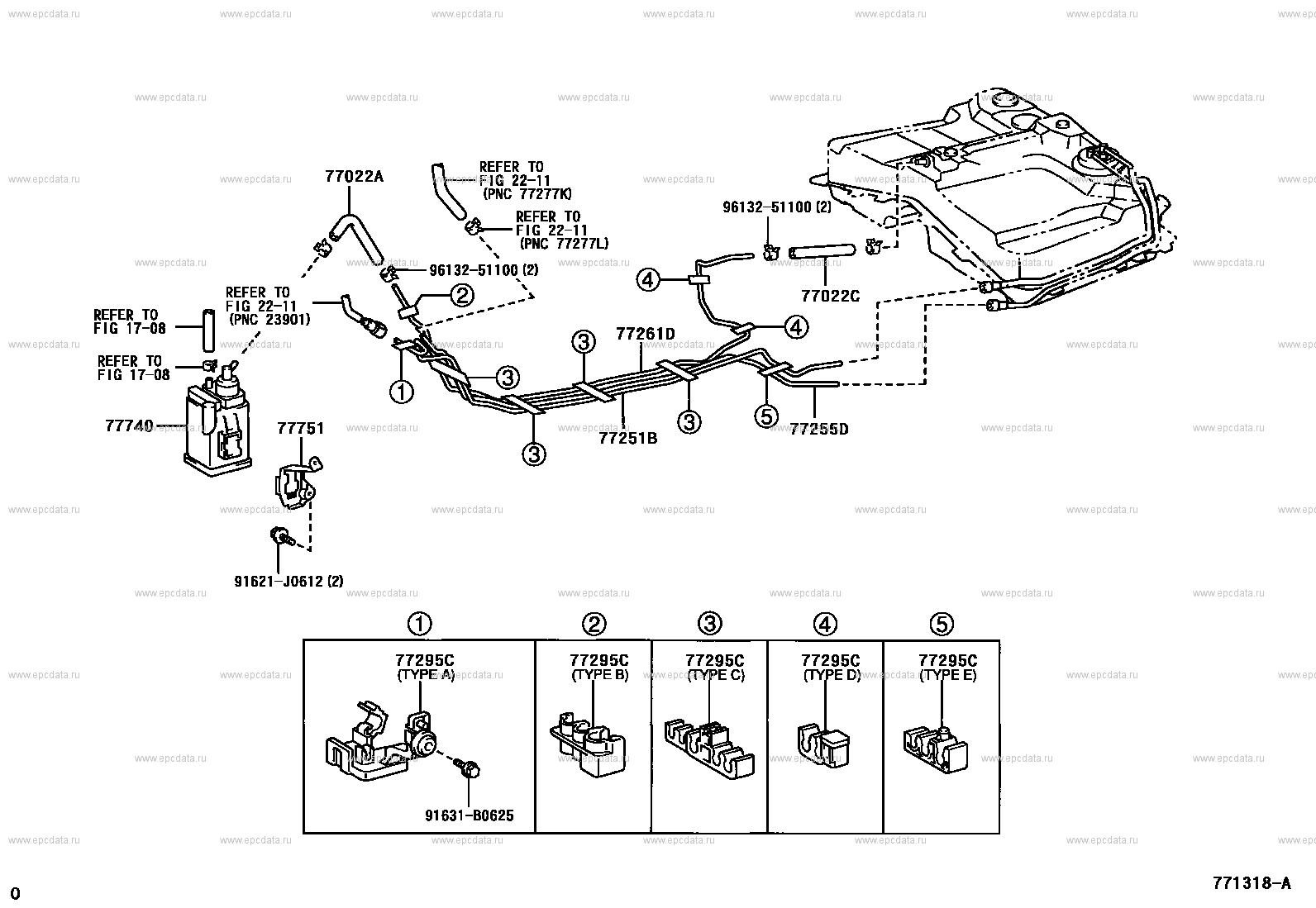

Scheme 4

(0307- )
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

77022A HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
** 22-11
9613251100 ** Std Part
77022C HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
** 17-08
77261D TUBE, FUEL TANK TO CANISTER
77740 CANISTER ASSY, CHARCOAL
77751 BRACKET, CHARCOAL CANISTER BASE
77255D TUBE, FUEL RETURN
77251B TUBE, FUEL MAIN
91621J0612 ** Std Part
77295C GROMMET, FUEL TUBE
91631B0625 ** Std Part
