Parking brake & cable for RAV4 ACA20W
Click on the part subgroup below to get genuine part numbers.
|

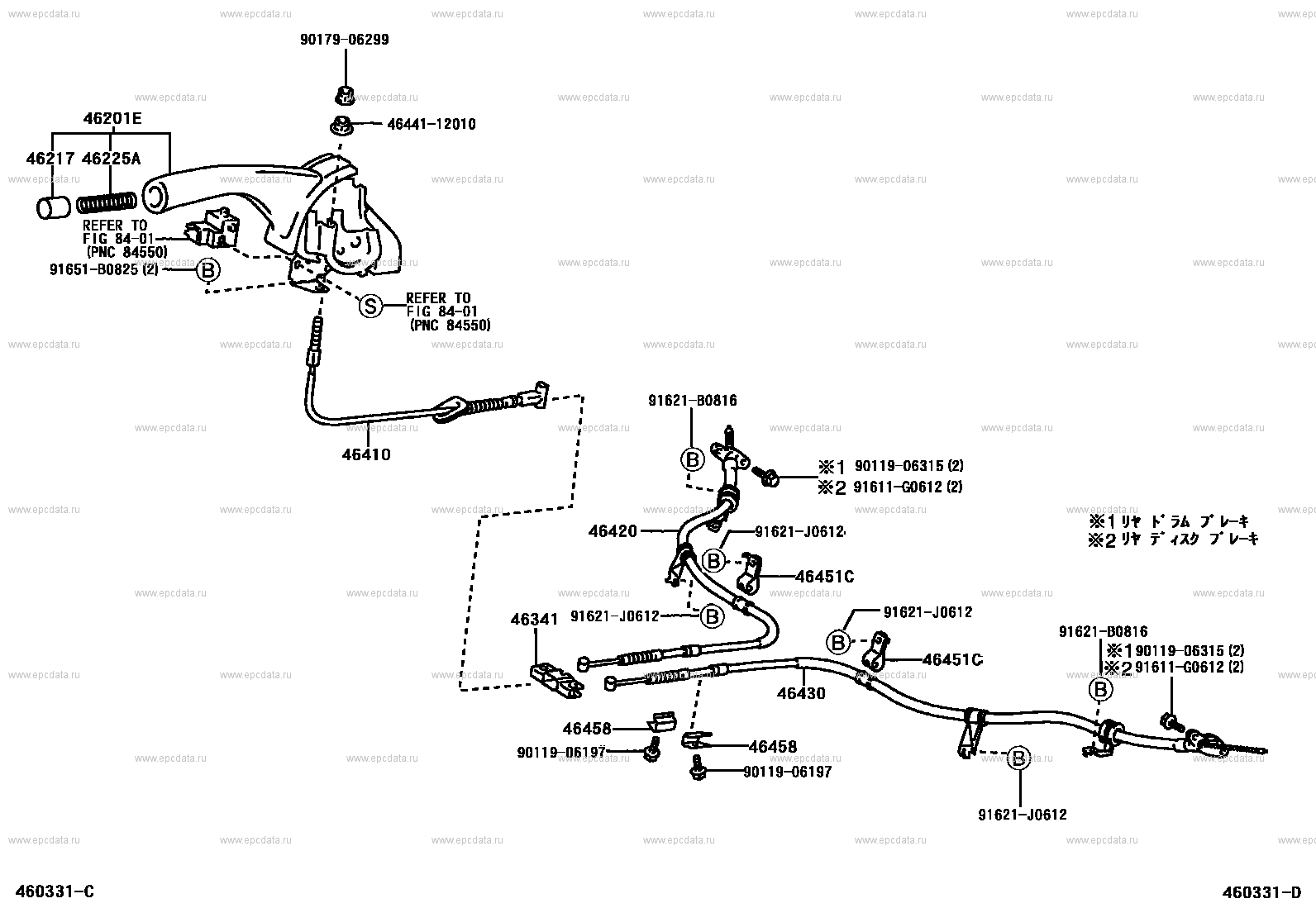

(0005- )ACA20,ZCA25 ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 9017906299 ** Std Part46201E LEVER SUB-ASSY, PARKING BRAKE 4644112010 ** Std Part 46217 KNOB, PARKING BRAKE RELEASE ROD 46225A SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) ** 84-01 91651B0825 ** Std Part 91621B0816 ** Std Part 46410 CABLE ASSY, PARKING BRAKE, NO.1 9011906315 ** Std Part 91611G0612 ** Std Part 46420 CABLE ASSY, PARKING BRAKE, NO.2 91621J0612 ** Std Part 46451C BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 46341 EQUALIZER, PARKING BRAKE 46430 CABLE ASSY, PARKING BRAKE, NO.3 46458 RETAINER, CABLE 9011906197 ** Std Part |
