Vane pump & reservoir (power steering) for RAV4 ACA20W
Click on the part subgroup below to get genuine part numbers.
| (0005-0307)ACA2# |

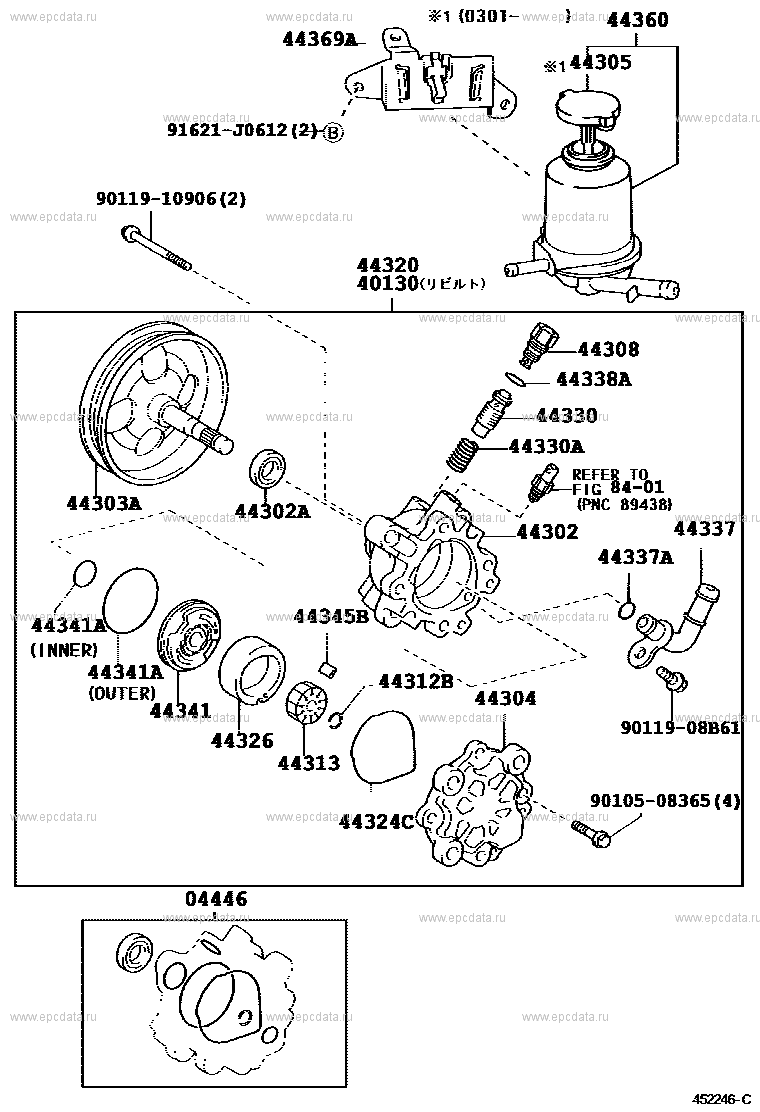

Click part number in the scheme or in the list: 04446 GASKET KIT, POWER STEERING PUMP44302 HOUSING SUB-ASSY, VANE PUMP, FRONT 44302A SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) 44303A SHAFT SUB-ASSY, W/PULLEY 44304 HOUSING SUB-ASSY, VANE PUMP, REAR 44308 UNION SUB-ASSY, PRESSURE PORT 44312B RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44313 ROTOR, VANE PUMP 44324C RING, O(FOR PUMP HOUSING REAR) 44326 RING, CAM(FOR VANE PUMP) 44330 VALVE ASSY, FLOW CONTROL 44330A SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44337 UNION, POWER STEERING SUCTION PORT 44337A RING, O(FOR POWER STEERING SUCTION PORT) 44338A RING, O(FOR PRESSURE PORT UNION) 44341 PLATE, VANE PUMP SIDE, FRONT 44341A RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44345B PLATE, VANE PUMP 44360 RESERVOIR ASSY, VANE PUMP OIL 44369A BRACKET, OIL RESERVOIR, NO.1 44320 PUMP ASSY, VANE 40130 PUMP ASSY,VANE REBUILT 9010508365 ** Std Part 9011908B61 ** Std Part 9011910906 ** Std Part 91621J0612 ** Std Part ** 84-01 44305 CAP SUB-ASSY, VANE PUMP OIL RESERVOIR |
