Fuel tank & tube for Ractis SCP100




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 77512 77512-35140 01 09.2005 - 11.2005 BRACKET, FUEL TANK, REAR NCP100,SCP100
ウェルキャブ（スロープ＝一般向け）		  2.07
to 2.85 USD
02 77512 77512-35140 01 09.2005 - 11.2005 BRACKET, FUEL TANK, REAR NCP100,SCP100
ウェルキャブ（スロープ＝障害者向け）		  2.07
to 2.85 USD
03 77512 77512-35140 01 09.2005 - 12.2007 BRACKET, FUEL TANK, REAR NCP10#,SCP100  2.07
to 2.85 USD
          ** Rev.Ref.No ** ( From- , To-0006 )
        To SCP100 -0043521
04 77512 77512-35140 01 11.2005 - 12.2007 BRACKET, FUEL TANK, REAR NCP100,SCP100
ウェルキャブ（スロープ＝一般向け）		  2.07
to 2.85 USD
          ** Rev.Ref.No ** ( From- , To-0006 )
        To SCP100 -0043521
05 77512 77512-35140 01 11.2005 - 12.2007 BRACKET, FUEL TANK, REAR NCP100,SCP100
ウェルキャブ（スロープ＝障害者向け）		  2.07
to 2.85 USD
          ** Rev.Ref.No ** ( From- , To-0006 )
        To SCP100 -0043521
06 77512 77512-35140 01 12.2007 - BRACKET, FUEL TANK, REAR NCP10#,SCP100  2.07
to 2.85 USD
          ** Rev.Ref.No ** ( From-0007 , To- )
        From SCP100 -0043522

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

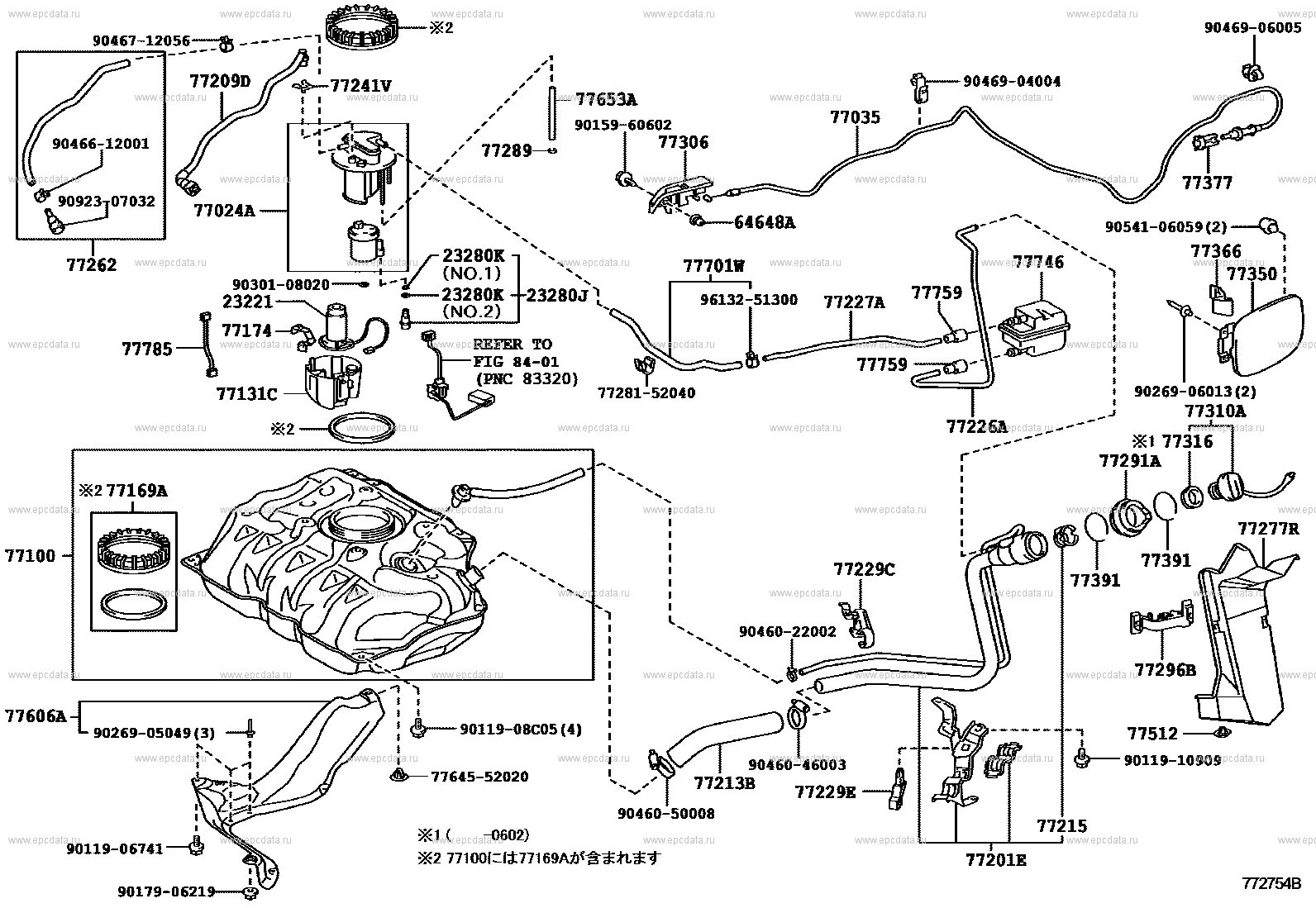

Scheme 1

(0509-0801)NCP100,SCP100
ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

77100 TANK ASSY, FUEL
77606A PROTECTOR, FUEL TANK FILLER PIPE
77241V CLIP, TUBE JOINT
77701W HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77306 LEVER SUB-ASSY, FUEL LID LOCK OPEN
77035 CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77377 RETAINER, FUEL FILLER OPENING LID LOCK
64648A GROMMET, LUGGAGE DOOR LOCK OPENER
77209D TUBE SUB-ASSY, FUEL TANK MAIN
77262 TUBE, FUEL EMISSION, NO.2
23280K RING, O(FOR FUEL PRESSURE REGULATOR)
23280J REGULATOR ASSY, FUEL PRESSURE
77366 SPRING, FUEL FILLER OPENING LID HINGE
77350 LID ASSY, FUEL FILLER OPENING
77391 RING, FUEL INLET BOX
77215 PLATE, FUEL TANK FILLER PIPE FLANGE
77201E PIPE SUB-ASSY, FUEL TANK FILLER
77229E CLAMP, BREATHER TUBE
77213B HOSE, FUEL TANK TO FILLER PIPE
77277R PROTECTOR, FUEL TANK FILLER PIPE
77512 BRACKET, FUEL TANK, REAR
77296B SUPPORT, FUEL TUBE PROTECTOR, NO.1
77759 HOSE, CHARCOAL CANISTER
77227A TUBE, FUEL TANK EVAPORATION VENT
77226A TUBE, FUEL TANK BREATHER, NO.6
77746 FILTER, CHARCOAL CANISTER, NO.2
77291A SHIELD, FUEL TANK FILLER PIPE
77229C CLAMP, BREATHER TUBE
77310A CAP ASSY, FUEL TANK
77316 GASKET, FUEL TANK CAP
23221 PUMP, FUEL
77169A GASKET, FUEL SUCTION TUBE SET
9046712056 ** Std Part
9015960602 ** Std Part
9046904004 ** Std Part
9046906005 ** Std Part
9030108020 ** Std Part
9046612001 ** Std Part
9092307032 ** Std Part
9011908C05 ** Std Part
9011910909 ** Std Part
9011906741 ** Std Part
9026905049 ** Std Part
9026906013 ** Std Part
9054106059 ** Std Part
9017906219 ** Std Part
7728152040 ** Std Part
** 84-01
9613251300 ** Std Part
9046022002 ** Std Part
9046046003 ** Std Part
9046050008 ** Std Part
7764552020 ** Std Part
77024A PLATE SUB-ASSY, FUEL SUCTION
77131C SUB-TANK, FUEL, NO.1
77174 SUPPORT, FUEL SUCTION, NO.1
77785 HARNESS, FUEL PUMP
77653A CUSHION, FUEL TANK, NO.3
77289 HOLDER, FUEL TANK PIPE SETTING

Scheme 2

(0801- )NCP100,SCP100
ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

77100 TANK ASSY, FUEL
77606A PROTECTOR, FUEL TANK FILLER PIPE
77241V CLIP, TUBE JOINT
77701W HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77306 LEVER SUB-ASSY, FUEL LID LOCK OPEN
77035 CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77377 RETAINER, FUEL FILLER OPENING LID LOCK
64648A GROMMET, LUGGAGE DOOR LOCK OPENER
77209D TUBE SUB-ASSY, FUEL TANK MAIN
77262 TUBE, FUEL EMISSION, NO.2
23280K RING, O(FOR FUEL PRESSURE REGULATOR)
23280J REGULATOR ASSY, FUEL PRESSURE
77366 SPRING, FUEL FILLER OPENING LID HINGE
77350 LID ASSY, FUEL FILLER OPENING
77391 RING, FUEL INLET BOX
77215 PLATE, FUEL TANK FILLER PIPE FLANGE
77201E PIPE SUB-ASSY, FUEL TANK FILLER
77229E CLAMP, BREATHER TUBE
77213B HOSE, FUEL TANK TO FILLER PIPE
77277R PROTECTOR, FUEL TANK FILLER PIPE
77512 BRACKET, FUEL TANK, REAR
77296B SUPPORT, FUEL TUBE PROTECTOR, NO.1
77226A TUBE, FUEL TANK BREATHER, NO.6
77291A SHIELD, FUEL TANK FILLER PIPE
77229C CLAMP, BREATHER TUBE
77310A CAP ASSY, FUEL TANK
23221 PUMP, FUEL
9046712056 ** Std Part
9015960602 ** Std Part
9046904004 ** Std Part
9046906005 ** Std Part
9030108020 ** Std Part
9046612001 ** Std Part
9092307032 ** Std Part
9011908C05 ** Std Part
9011910909 ** Std Part
9011906741 ** Std Part
9026905049 ** Std Part
9026906013 ** Std Part
9054106059 ** Std Part
9017906219 ** Std Part
7728152040 ** Std Part
** 84-01
9613251300 ** Std Part
9046022002 ** Std Part
9046046003 ** Std Part
9046050008 ** Std Part
7764552020 ** Std Part
77024A PLATE SUB-ASSY, FUEL SUCTION
77131C SUB-TANK, FUEL, NO.1
77174 SUPPORT, FUEL SUCTION, NO.1
77785 HARNESS, FUEL PUMP
77653A CUSHION, FUEL TANK, NO.3
77289 HOLDER, FUEL TANK PIPE SETTING
23225A SPACER, FUEL PUMP
77169A GASKET, FUEL SUCTION TUBE SET

Scheme 3

(0511- )NCP100,SCP100
ﾌｭｰｴﾙ ﾀﾝｸ(ｳｪﾙｷｬﾌﾞ ｼﾖｳ) ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

77269A HOSE, FUEL TANK BREATHER
9011910909 ** Std Part
91626B0614 ** Std Part
9046046003 ** Std Part
9046037003 ** Std Part
9046022002 ** Std Part
9046712026 ** Std Part
9015950219 ** Std Part
9011908C05 ** Std Part
9015960602 ** Std Part
9046904004 ** Std Part
9046906005 ** Std Part
9046712056 ** Std Part
9613251300 ** Std Part
9026906013 ** Std Part
9054106059 ** Std Part
9046612001 ** Std Part
9015950343 ** Std Part
9030108020 ** Std Part
9092307032 ** Std Part
9011906398 ** Std Part
7711352070 ** Std Part
9026905049 ** Std Part
9011906741 ** Std Part
9017906219 ** Std Part
77011 PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77241V CLIP, TUBE JOINT
77209D TUBE SUB-ASSY, FUEL TANK MAIN
77028B TUBE SUB-ASSY, FUEL EVAPORATION, NO.3
77289B CLAMP, FUEL TUBE, NO.3
77259C HOSE, FUEL
23221 PUMP, FUEL
23280K RING, O(FOR FUEL PRESSURE REGULATOR)
23280J REGULATOR ASSY, FUEL PRESSURE
77169A GASKET, FUEL SUCTION TUBE SET
77168A PLATE, FUEL TANK VENT TUBE SET
77131C SUB-TANK, FUEL, NO.1
77174 SUPPORT, FUEL SUCTION, NO.1
77785 HARNESS, FUEL PUMP
77024A PLATE SUB-ASSY, FUEL SUCTION
77614C SEAL, FUEL TANK COVER
77652 CUSHION, FUEL TANK, NO.1
77100 TANK ASSY, FUEL
77652A CUSHION, FUEL TANK, NO.2
77641A PROTECTOR, FUEL TANK, NO.1
77606A PROTECTOR, FUEL TANK FILLER PIPE
77027B TUBE SUB-ASSY, FUEL EMISSION, NO.1
77653A CUSHION, FUEL TANK, NO.3
77289 HOLDER, FUEL TANK PIPE SETTING
23225A SPACER, FUEL PUMP
77213B HOSE, FUEL TANK TO FILLER PIPE
77226A TUBE, FUEL TANK BREATHER, NO.6
77201E PIPE SUB-ASSY, FUEL TANK FILLER
77759 HOSE, CHARCOAL CANISTER
77227A TUBE, FUEL TANK EVAPORATION VENT
77229E CLAMP, BREATHER TUBE
77229D SUPPORT, FUEL TANK FILLER PIPE, NO.4
77216A SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A SUPPORT, FUEL TANK FILLER PIPE, NO.2
77229C CLAMP, BREATHER TUBE
77316 GASKET, FUEL TANK CAP
77391 RING, FUEL INLET BOX
77277R PROTECTOR, FUEL TANK FILLER PIPE
77512 BRACKET, FUEL TANK, REAR
77296B SUPPORT, FUEL TUBE PROTECTOR, NO.1
77291A SHIELD, FUEL TANK FILLER PIPE
77310A CAP ASSY, FUEL TANK
77306 LEVER SUB-ASSY, FUEL LID LOCK OPEN
77035 CABLE SUB-ASSY, FUEL LID LOCK CONTROL
64648A GROMMET, LUGGAGE DOOR LOCK OPENER
77746 FILTER, CHARCOAL CANISTER, NO.2
77249 HOSE, FUEL EMISSION
77178 GASKET, FUEL TANK FILLER PIPE, LOWER
77377 RETAINER, FUEL FILLER OPENING LID LOCK
77366 SPRING, FUEL FILLER OPENING LID HINGE
77350 LID ASSY, FUEL FILLER OPENING
** 84-01

Scheme 4

(0509- )NCP100,SCP100
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

77261D TUBE, FUEL TANK TO CANISTER
77285D CLAMP, FUEL TUBE, NO.1
77266A PROTECTOR, FUEL TUBE, NO.1
77289B CLAMP, FUEL TUBE, NO.3
77286D CLAMP, FUEL TUBE, NO.2
77298A CLAMP, FUEL TUBE, NO.4
77251B TUBE, FUEL MAIN
** 17-08
** 22-11
77289D CLAMP, FUEL TUBE, NO.5
77267A PROTECTOR, FUEL TUBE, NO.2
