Switch & relay & computer for Quick Delivery BU68VH
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

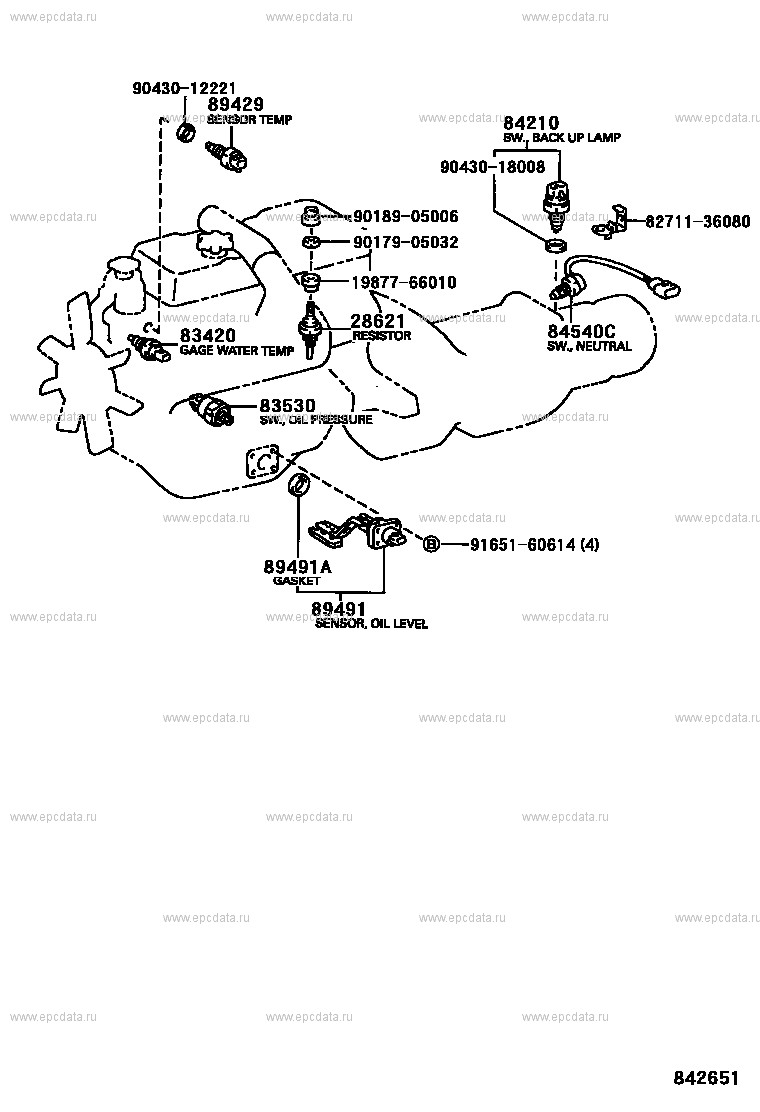

(9505- )BU68 ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ILLUST NO. 1 OF 5 |
Click part number in the scheme or in the list: 9043012221 ** Std Part89429 SENSOR, OIL TEMPERATURE 84210 SWITCH ASSY, BACK-UP LAMP 9043018008 ** Std Part 9018905006 ** Std Part 8271136080 ** Std Part 9017905032 ** Std Part 1987766010 ** Std Part 28621 RESISTOR, GLOW PLUG 84540C SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) 83420 GAGE ASSY, WATER TEMPERATURE SENDER 83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 9165160614 ** Std Part 89491A GASKET, ENGINE OIL LEVEL SENSOR 89491 SENSOR, ENGINE OIL LEVEL |
Scheme 2
|

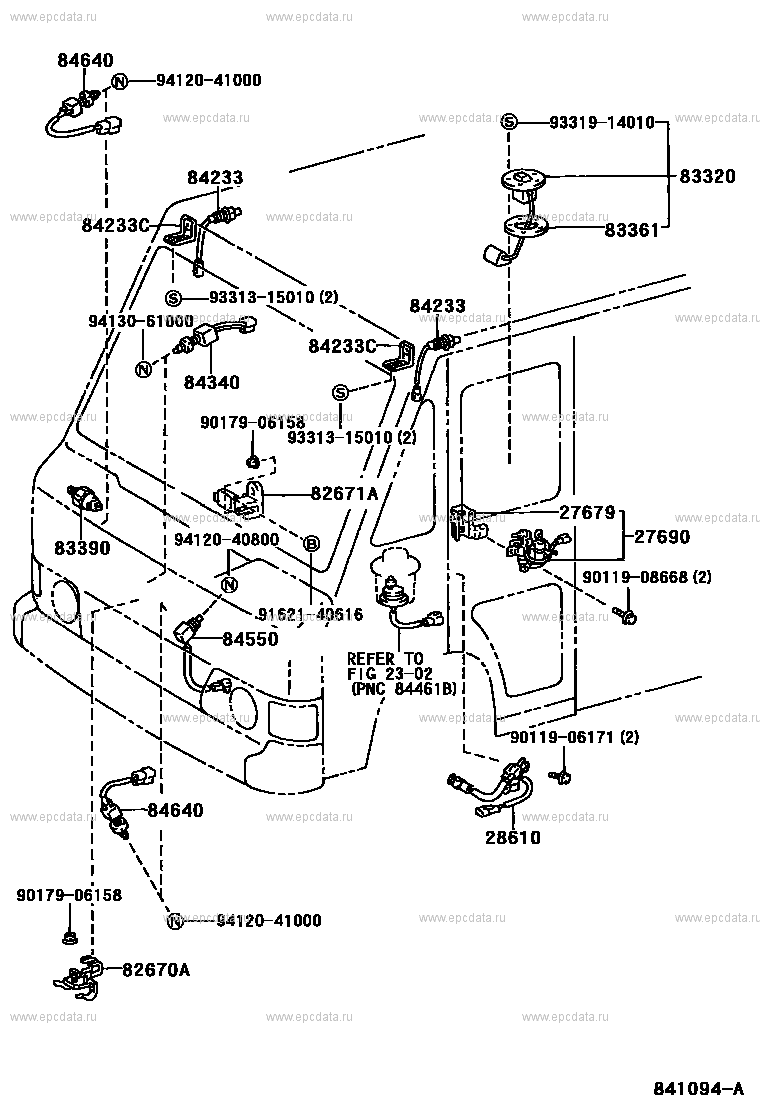

(9505- )BU68 ﾙ-ﾌ,ｴﾝｼﾞﾝﾙ-ﾑ & ﾌﾛｱ ILLUST NO. 2 OF 5 |
Click part number in the scheme or in the list: 84640 SWITCH ASSY, EXHAUST BRAKE9412041000 ** Std Part 9331914010 ** Std Part 83320 GAGE ASSY, FUEL SENDER 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233C BRACKET, COURTESY SWITCH (FOR FRONT DOOR) 83361 GASKET, FUEL SENDER GAGE 9331315010 ** Std Part 9413061000 ** Std Part 84340 SWITCH ASSY, STOP LAMP 9017906158 ** Std Part 82671A BLOCK, JUNCTION 27679 BRACKET, EXHAUST BRAKE(FOR SOLENOID) 27690 SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) 9412040800 ** Std Part 83390 SWITCH ASSY, VACUUM WARNING 9011908668 ** Std Part 9162140616 ** Std Part 84550 SWITCH ASSY, PARKING BRAKE ** 23-02 9011906171 ** Std Part 28610 RELAY ASSY, GLOW PLUG 82670A BLOCK ASSY, JUNCTION, NO.1 |
Scheme 3
|
(9505- )BU68 ; (9610- )RZU68 ｲﾝﾊﾟﾈ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ ILLUST NO. 3 OF 5 |
Click part number in the scheme or in the list: 85533 LENS, CIGARETTE LIGHTER INDICATOR85500 LIGHTER ASSY, CIGARETTE 74534B PLATE, VOLTAGE CAUTION 84730 SWITCH ASSY, HEATER BLOWER 84330 SWITCH ASSY, HAZARD WARNING SIGNAL 84660C SWITCH, COOLER 84730B BULB, HEATER BLOWER SWITCH 84330B BULB, HAZARD WARNING SIGNAL SWITCH 88607C LAMP SUB-ASSY, INDICATOR 84730D CAP, HEATER BLOWER SWITCH BULB 84560 SWITCH ASSY, FUEL VALVE CONTROL 84680B BULB 84160 SWITCH ASSY, ROOM LAMP 84653A SWITCH, REAR WIPER 84680 SWITCH ASSY, EXHAUST BRAKE MAIN 9331915012 ** Std Part 84310 SWITCH ASSY, TURN SIGNAL 9331913012 ** Std Part 84170A SWITCH ASSY, ROOM LAMP NO.1 84314 SWITCH, CORNERING LAMP 84316 UNIT, TURN SIGNAL 84110 SWITCH ASSY, LIGHT CONTROL, NO.1 84650 SWITCH ASSY, WINDSHIELD WIPER 9331913008 ** Std Part 84450 SWITCH ASSY, IGNITION OR STARTER 84312 PLATE, HORN CONTACT 9046313003 ** Std Part 9046400551 ** Std Part 9331514012 ** Std Part |
Scheme 4
|

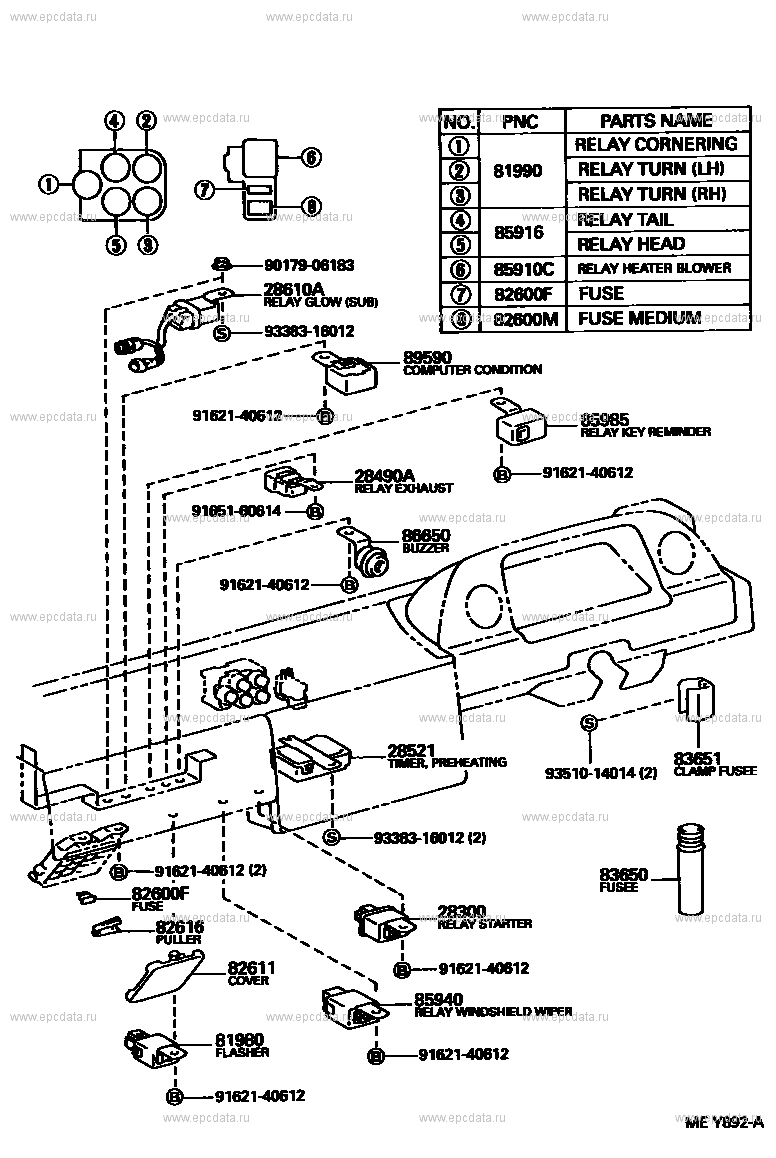

(9505- )BU68 ﾀﾞﾂｼﾕ ﾊﾟﾈﾙ & ｶｳﾙ ILLUST NO. 4 OF 5 |
Click part number in the scheme or in the list: 81990 RELAY ASSY, TURN SIGNAL85916 RELAY, LIGHT CONTROL 9017906183 ** Std Part 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 28610A RELAY ASSY, GLOW PLUG(SUB) 82600F FUSE, FUSE BLOCK 82600M FUSE, MEDIUM CURRENT 9338316012 ** Std Part 89590 COMPUTER ASSY, CONDITION INDICATOR 9162140612 ** Std Part 85985 RELAY, KEY REMINDER 28490A RELAY ASSY, EXHAUST RETARDER 9165160614 ** Std Part 86650 BUZZER ASSY, VACUUM INDICATOR 28521 TIMER, PREHEATING 83651 CLAMP, FUSEE 9351014014 ** Std Part 83650 FUSEE 28300 RELAY ASSY, STARTER 82616 PULLER, FUSE 82611 COVER, FUSE BLOCK 85940 RELAY ASSY, WINDSHIELD WIPER 81980 FLASHER ASSY, TURN SIGNAL |
Scheme 5
|

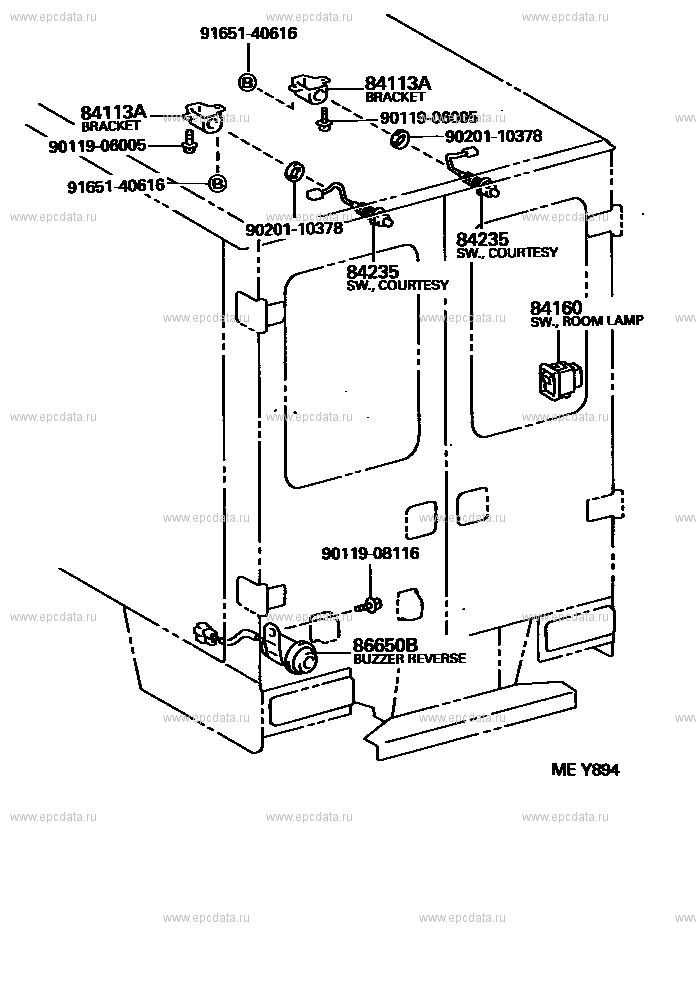

(9505- )BU68 ﾊﾞﾂｸ ﾄﾞｱ ILLUST NO. 5 OF 5 |
Click part number in the scheme or in the list: 9165140616 ** Std Part84113A BRACKET, SWITCH, NO.1 9011906005 ** Std Part 9020110378 ** Std Part 84235 SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) 84160 SWITCH ASSY, ROOM LAMP 9011908116 ** Std Part 86650B BUZZER ASSY, REVERSE WARNING |
