Rear combination lamp for Publica KP31

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(6904-7112)KP30,31,UP30 Open full size scheme Go to top

Click part number in the scheme or in the list: 9411040600 ** Std Part 9020506010 ** Std Part 81550 LAMP ASSY, REAR COMBINATION, RH 9461310600 ** Std Part 81560 LAMP ASSY, REAR COMBINATION, LH 81558 SHADE, REAR COMBINATION LAMP, NO.1 RH 8155610050 ** Std Part 81554 GASKET, REAR COMBINATION LAMP BODY, RH 81568 SHADE, REAR COMBINATION LAMP, NO.1 LH 81564 GASKET, REAR COMBINATION LAMP BODY, LH 81552 GASKET, REAR COMBINATION LAMP LENS, RH 81562 GASKET, REAR COMBINATION LAMP LENS, LH 8127930020 ** Std Part 8155910050 ** Std Part 8156910030 ** Std Part 81551 LENS, REAR COMBINATION LAMP, RH 81561 LENS, REAR COMBINATION LAMP, LH 81550B BULB(FOR REAR COMBINATION LAMP) 81555 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH 81565 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

Scheme 2

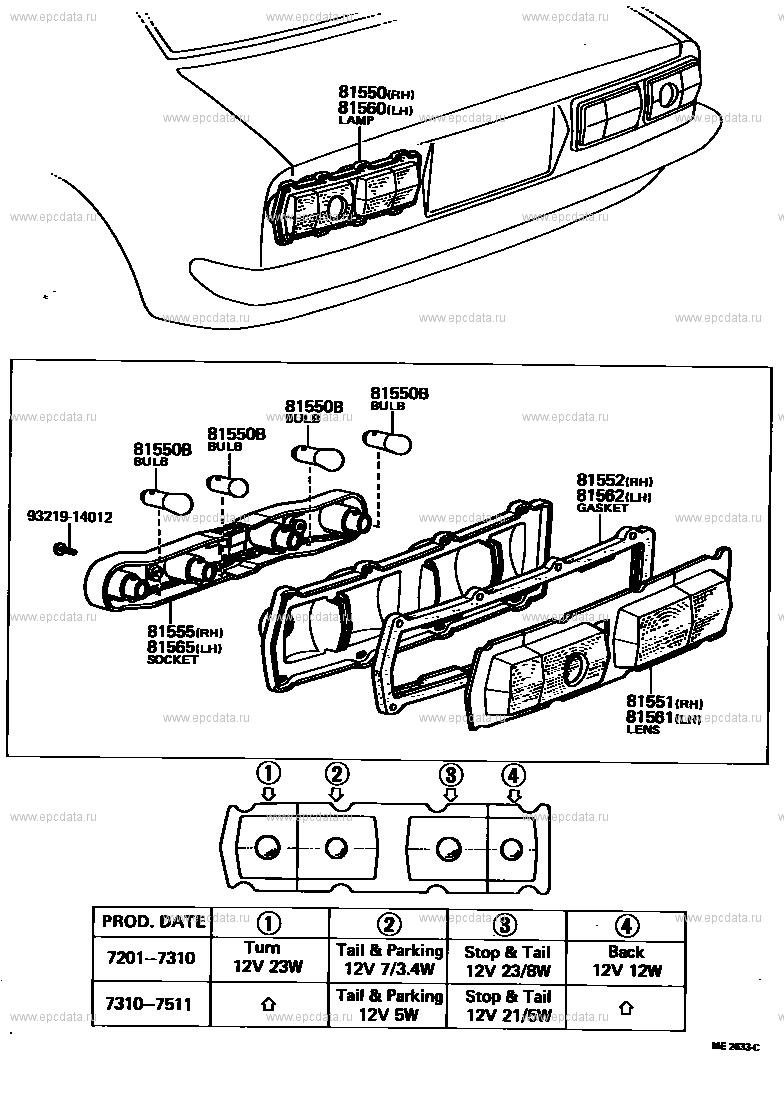

(7201-7511)S,SR,ST Open full size scheme Go to top

Click part number in the scheme or in the list: 81550 LAMP ASSY, REAR COMBINATION, RH 81560 LAMP ASSY, REAR COMBINATION, LH 81550B BULB(FOR REAR COMBINATION LAMP) 81552 GASKET, REAR COMBINATION LAMP LENS, RH 81562 GASKET, REAR COMBINATION LAMP LENS, LH 9321914012 ** Std Part 81555 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH 81565 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH 81551 LENS, REAR COMBINATION LAMP, RH 81561 LENS, REAR COMBINATION LAMP, LH
