Wiring & clamp for Prius a ZVW40W
Chosen part is not applicable for current complectation
Click on the part subgroup below to get genuine part numbers.
Scheme 1
Scheme 2
Scheme 3
|

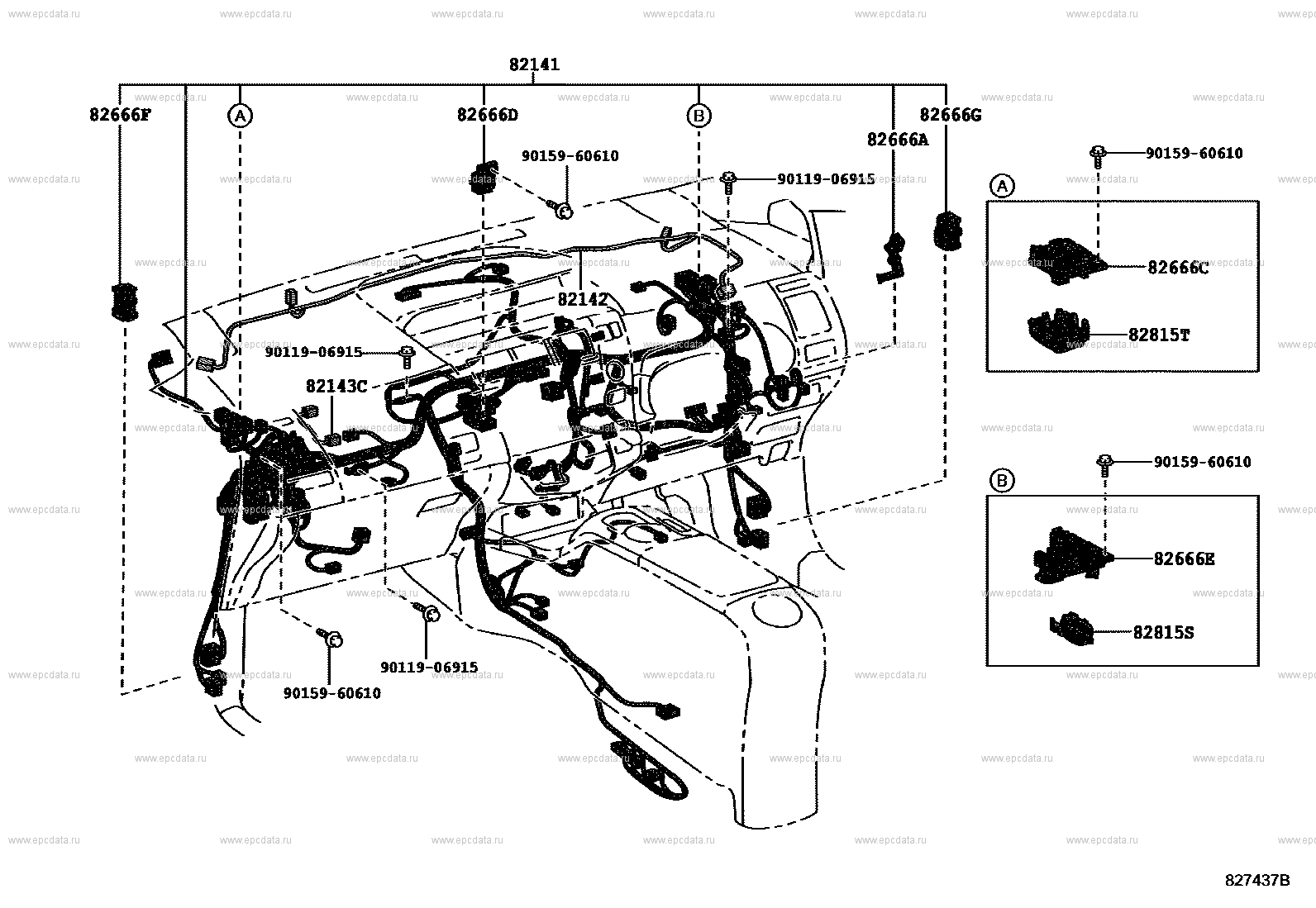

(1104- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 3 OF10 |
Click part number in the scheme or in the list: 82666C HOLDER, CONNECTOR NO.482666D HOLDER, CONNECTOR NO.5 82141 WIRE, INSTRUMENT PANEL 82666F HOLDER, CONNECTOR NO.7 82666G HOLDER, CONNECTOR NO.8 82666A HOLDER, CONNECTOR NO.2 82142 WIRE, INSTRUMENT PANEL, NO.2 82143C WIRE, INSTRUMENT PANEL, NO.3 82666E HOLDER, CONNECTOR NO.6 82815S COVER, WIRING HARNESS PROTECTOR, NO.15 82815T COVER, WIRING HARNESS PROTECTOR, NO.16 9011906915 ** Std Part 9015960610 ** Std Part |
Scheme 4
|
(1104- ) ﾄﾞｱ ILLUST NO. 4 OF10 |
Click part number in the scheme or in the list: 82153 WIRE, REAR DOOR, NO.182154 WIRE, REAR DOOR, NO.2 9155380612 ** Std Part 9011906915 ** Std Part 82151 WIRE, FRONT DOOR, RH 82152 WIRE, FRONT DOOR, LH 82151A WIRE, FRONT DOOR, NO.2, RH 82152A WIRE, FRONT DOOR, NO.2, LH 82184 WIRE, BACK DOOR, NO.1 82666Q HOLDER, CONNECTOR NO.12 |
Scheme 5
|

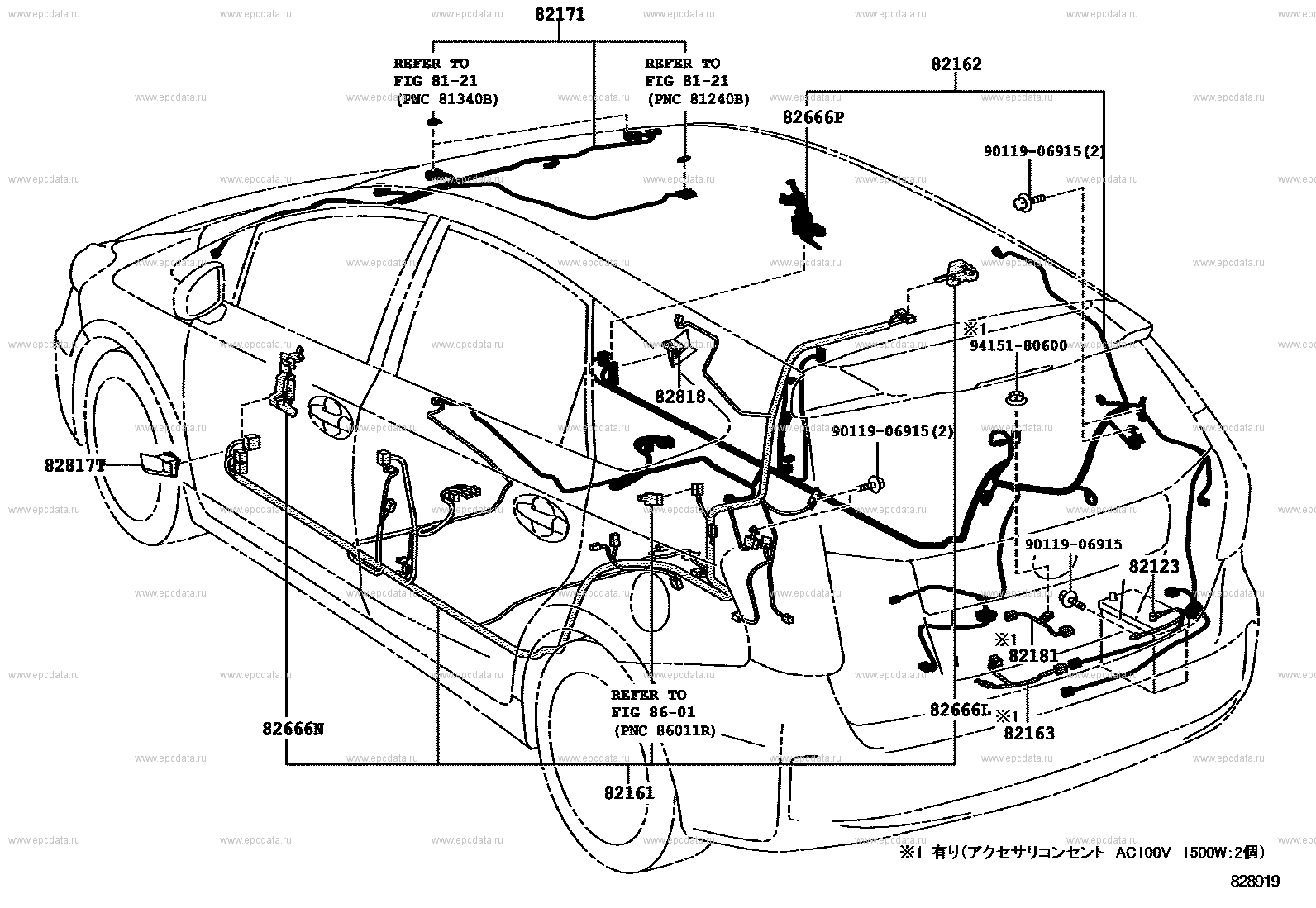

(1104- ) ﾌﾛｱ & ﾙｰﾌ ILLUST NO. 5 OF10 |
Click part number in the scheme or in the list: 9415180600 ** Std Part82123 WIRE, ENGINE, NO.3 82817T PROTECTOR, WIRING HARNESS, NO.15 82818 PROTECTOR, WIRING HARNESS, NO.2 82162 WIRE, FLOOR, NO.2 82171 WIRE, ROOF, NO.1 82161 WIRE, FLOOR 82666N HOLDER, CONNECTOR NO.10 82666L HOLDER, CONNECTOR NO.9 82163 WIRE, FLOOR, NO.3 82181 WIRE, LUGGAGE ROOM, NO.1 9011906915 ** Std Part ** 86-01 82666P HOLDER, CONNECTOR NO.11 ** 81-21 |
Scheme 6
|
(1104- )ZVW40 ｺｳｱﾂ ｹｰﾌﾞﾙ ILLUST NO. 6 OF10 |
Click part number in the scheme or in the list: ** 82-0182164 WIRE, FRAME 82818B PROTECTOR, WIRING HARNESS, NO.3 9017906256 ** Std Part 9017906178 ** Std Part 9167180616 ** Std Part ** 84-01 82712A SUPPORT, WIRING HARNESS |
Scheme 7
Scheme 8
|

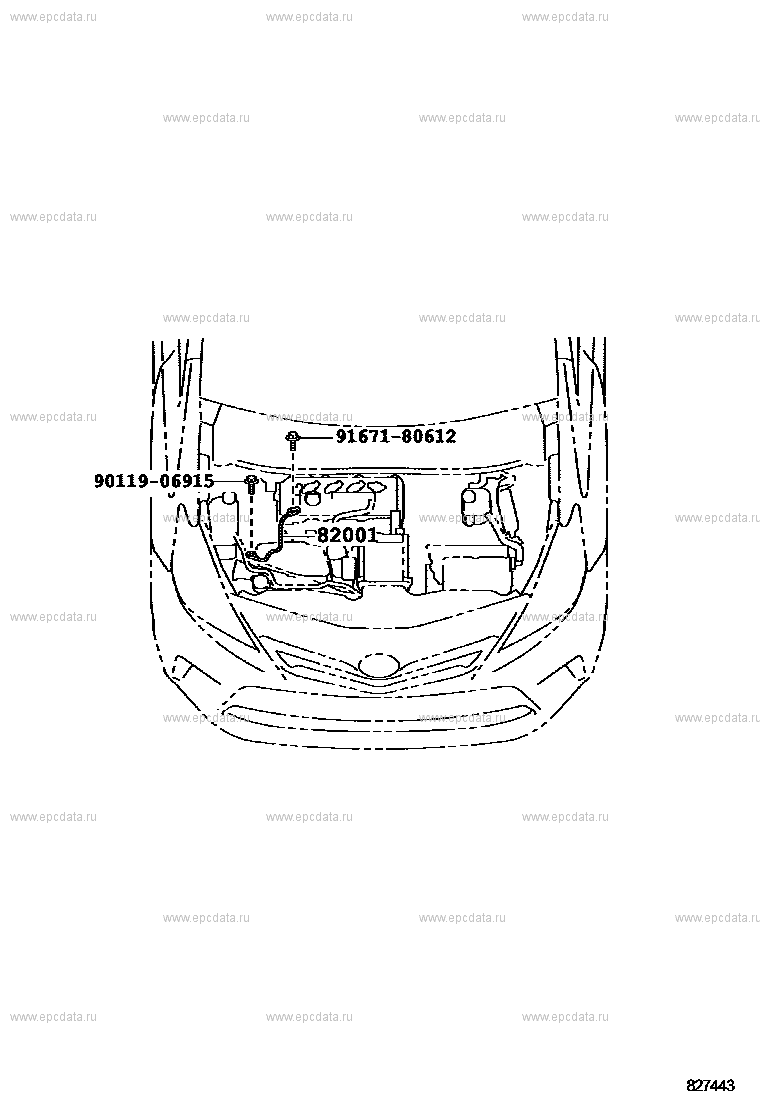

(1104- ) ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ ILLUST NO. 8 OF10 |
Click part number in the scheme or in the list: 82001 CABLE, BOND, NO.19167180612 ** Std Part 9011906915 ** Std Part |

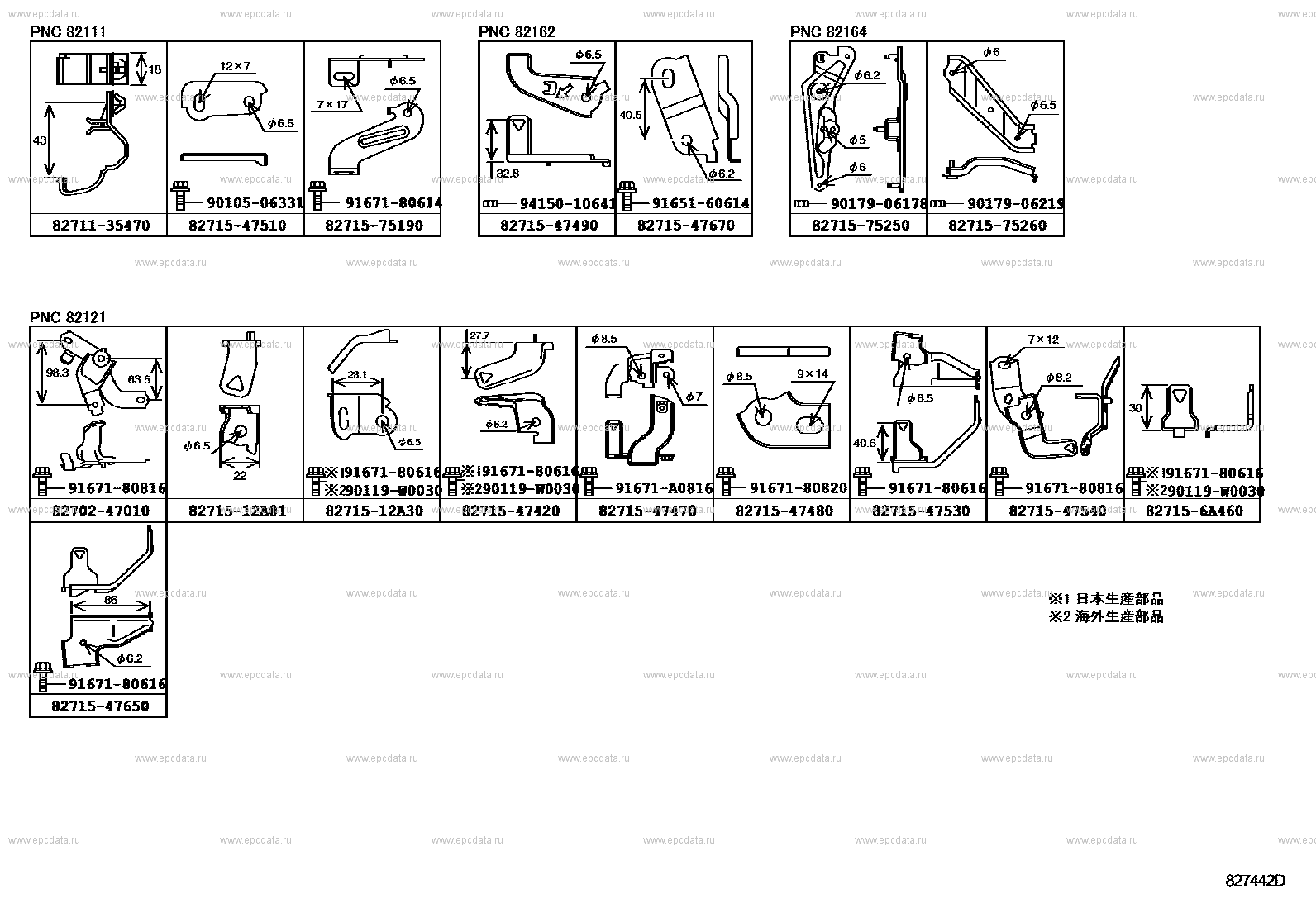

Scheme 9
Scheme 10
|
(1104- ) ｺﾈｸﾀ ILLUST NO.10 OF10 |
Click part number in the scheme or in the list: 9098012552 ** Std Part9098012043 ** Std Part 9098012444 ** Std Part 9098012721 ** Std Part 9098012551 ** Std Part 9098010997 ** Std Part 9098010801 ** Std Part 9098012211 ** Std Part 9098011909 ** Std Part 9098010996 ** Std Part 9098012495 ** Std Part |
