ToyotaPriusNHW20NHW20-AHEEBTransmission and chassisFront drive shaft

Front drive shaft for Prius NHW20




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 04438H 04438-12502 01 08.2003 - 04.2005 BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH NHW20  10.27
to 119.93 USD
  (SUBS) 04427-52580 01    29.16
to 119.93 USD
          ** Rev.Ref.No ** ( From- , To-0020 )
        To NHW20 -3059037
        To NHW20 -7022963
02 04438H 04427-47020 01 04.2005 - 11.2005 BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH NHW20  29.16
to 98.99 USD
  (SUBS) 04427-47030 01    29.16
to 98.99 USD
          ** Rev.Ref.No ** ( From-0021 , To-0012 )
        From NHW20 -3059038
        From NHW20 -7022964
        To NHW20 -3128076
        To NHW20 -7057941
03 04438H 04427-47020 01 11.2005 - 03.2006 BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH NHW20  29.16
to 98.99 USD
  (SUBS) 04427-47030 01    29.16
to 98.99 USD
          ** Rev.Ref.No ** ( From-0013 , To- )
        From NHW20 -3128077
        From NHW20 -7057942
04 04438H 04427-47030 01 04.2006 - 09.2009 BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH NHW20  29.16
to 98.99 USD
  (SUBS) 04427-47031 01    29.16
to 98.99 USD
05 04438H 04427-47031 01 09.2009 - 11.2009 BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH NHW20  29.16
to 98.99 USD
  (SUBS) 04427-47050 01    29.16
to 98.99 USD
06 04438H 04427-47050 01 11.2009 - 03.2010 BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH NHW20  29.16
to 98.99 USD
  (SUBS) 04427-47051 01    29.16
to 98.99 USD
07 04438H 04427-47051 01 03.2010 - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH NHW20  29.16
to 98.99 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2

Click on the part subgroup below to get genuine part numbers.

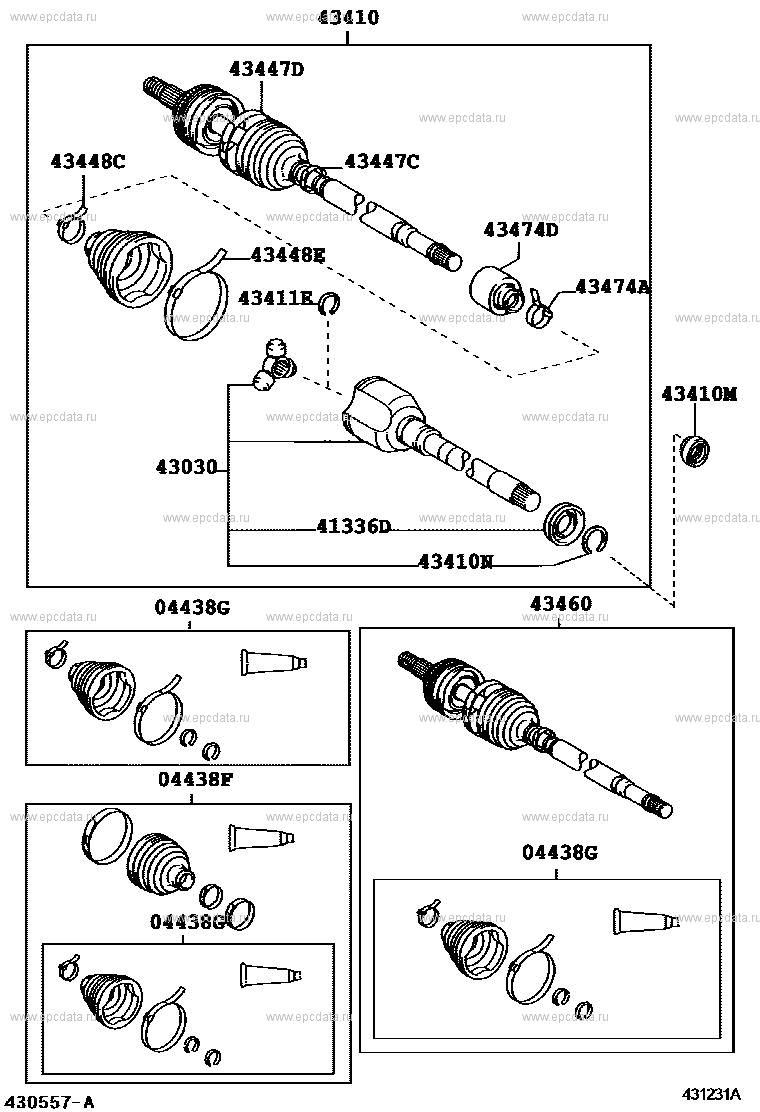

Scheme 1

(0308- )
ﾗｲﾄ

Click part number in the scheme or in the list:

04438G BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438F BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
43030 JOINT ASSY, FRONT DRIVE INBOARD, RH
43411E RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43410N RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43460 SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43447C CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43410 SHAFT ASSY, FRONT DRIVE, RH
43448E CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448C CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43474D DAMPER, FRONT DRIVE SHAFT, RH
43474A CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
41336D COVER, FRONT DRIVE SHAFT DUST, RH
43410M OIL SEAL, FRONT DRIVE SHAFT, RH

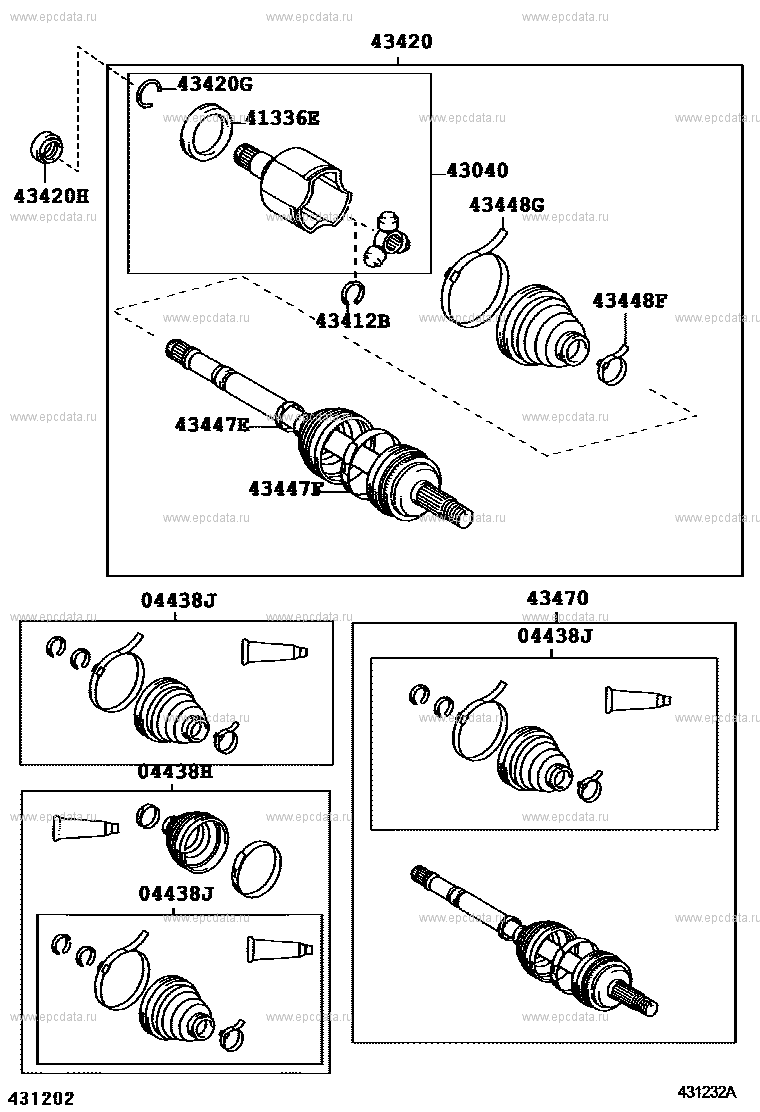

Scheme 2

(0308- )
ﾚﾌﾄ

Click part number in the scheme or in the list:

04438H BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438J BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
43040 JOINT ASSY, FRONT DRIVE INBOARD, LH
43470 SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
41336E COVER, FRONT DRIVE SHAFT DUST, LH
43412B RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43447F CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447E CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448F CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43420 SHAFT ASSY, FRONT DRIVE, LH
43420G RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43420H OIL SEAL, FRONT DRIVE SHAFT, LH
