Wiring & clamp for Prius NHW10
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(9712-0005) ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 1 OF 9 |
Click part number in the scheme or in the list: 9011906390 ** Std Part82818 PROTECTOR, WIRING HARNESS, NO.2 ** 84-01 82210C FUSIBLE LINK 82131 WIRE, COWL 82111 WIRE, ENGINE ROOM MAIN 91651B0618 ** Std Part 82817B PROTECTOR, WIRING HARNESS, NO.3 |
Scheme 2
|
(9712- ) ｴﾝｼﾞﾝ ILLUST NO. 2 OF 9 |
Click part number in the scheme or in the list: 82121 WIRE, ENGINE82817F PROTECTOR, WIRING HARNESS, NO.7 82815A COVER, WIRING HARNESS PROTECTOR 9046707168 ** Std Part 9162160612 ** Std Part 82124 WIRE, ENGINE, NO.4 |

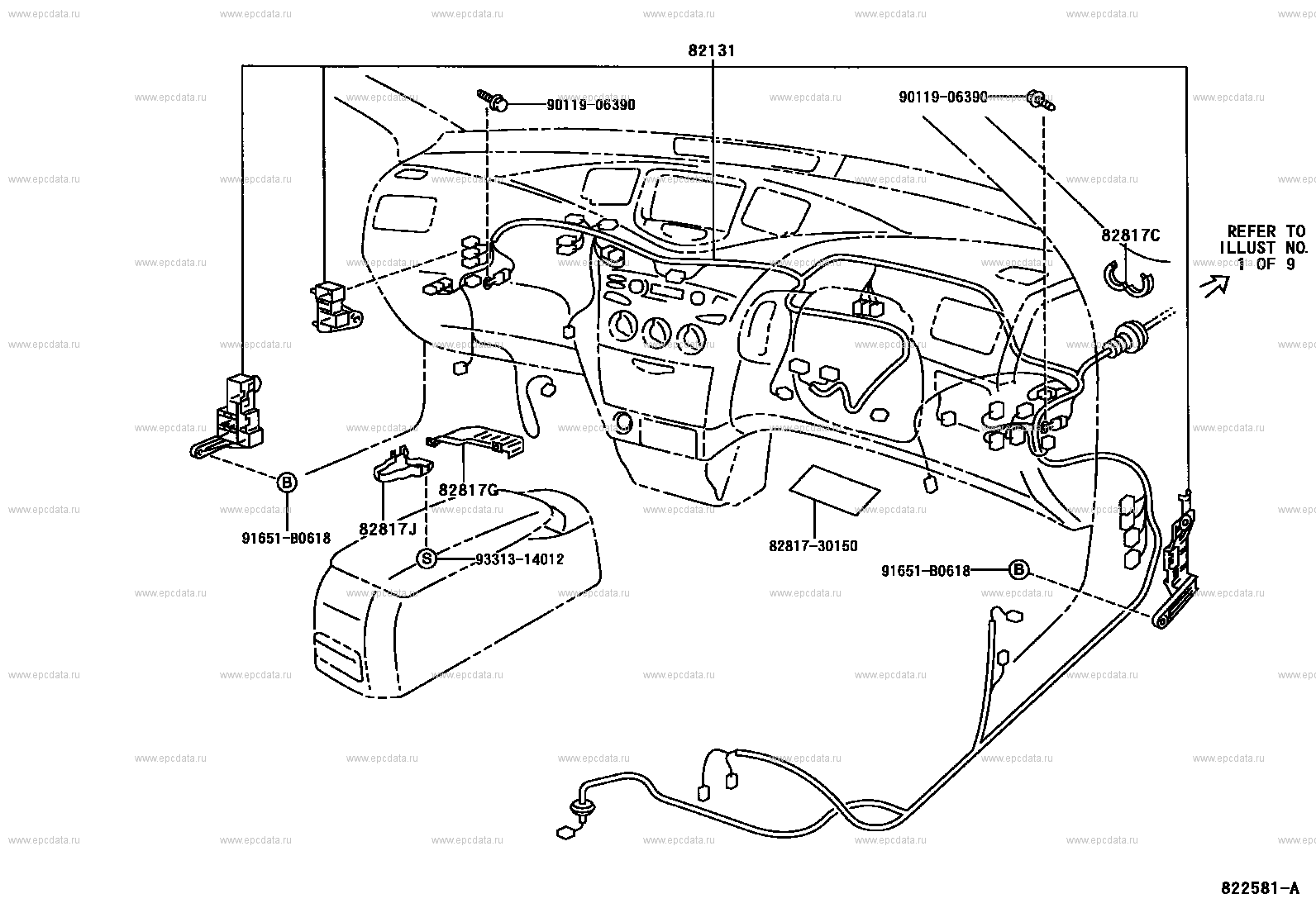

Scheme 3
|
(9712-0005) ｶｳﾙ ILLUST NO. 3 OF 9 |
Click part number in the scheme or in the list: 82131 WIRE, COWL9011906390 ** Std Part 82817C PROTECTOR, WIRING HARNESS, NO.4 82817G PROTECTOR, WIRING HARNESS, NO.8 82817J PROTECTOR, WIRING HARNESS, NO.9 91651B0618 ** Std Part 8281730150 ** Std Part 9331314012 ** Std Part |

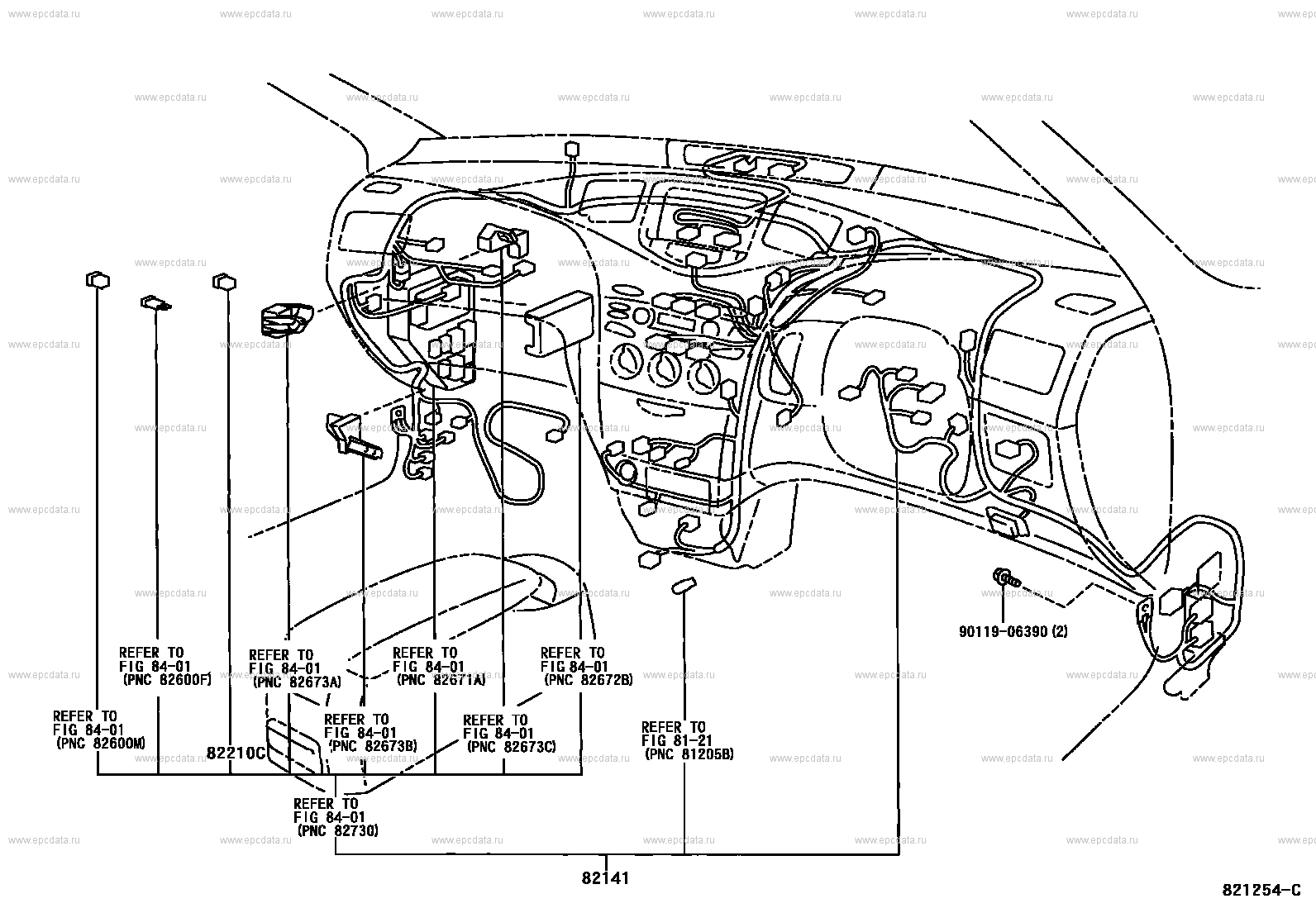

Scheme 4
|
(9712- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 9 |
Click part number in the scheme or in the list: 9011906390 ** Std Part** 84-01 ** 81-21 82210C FUSIBLE LINK 82141 WIRE, INSTRUMENT PANEL |
Scheme 5
|
(9712- ) ﾄﾞｱ ILLUST NO. 5 OF 9 |
Click part number in the scheme or in the list: 82151 WIRE, FRONT DOOR, RH82153 WIRE, REAR DOOR, NO.1 82152 WIRE, FRONT DOOR, LH 82154 WIRE, REAR DOOR, NO.2 |

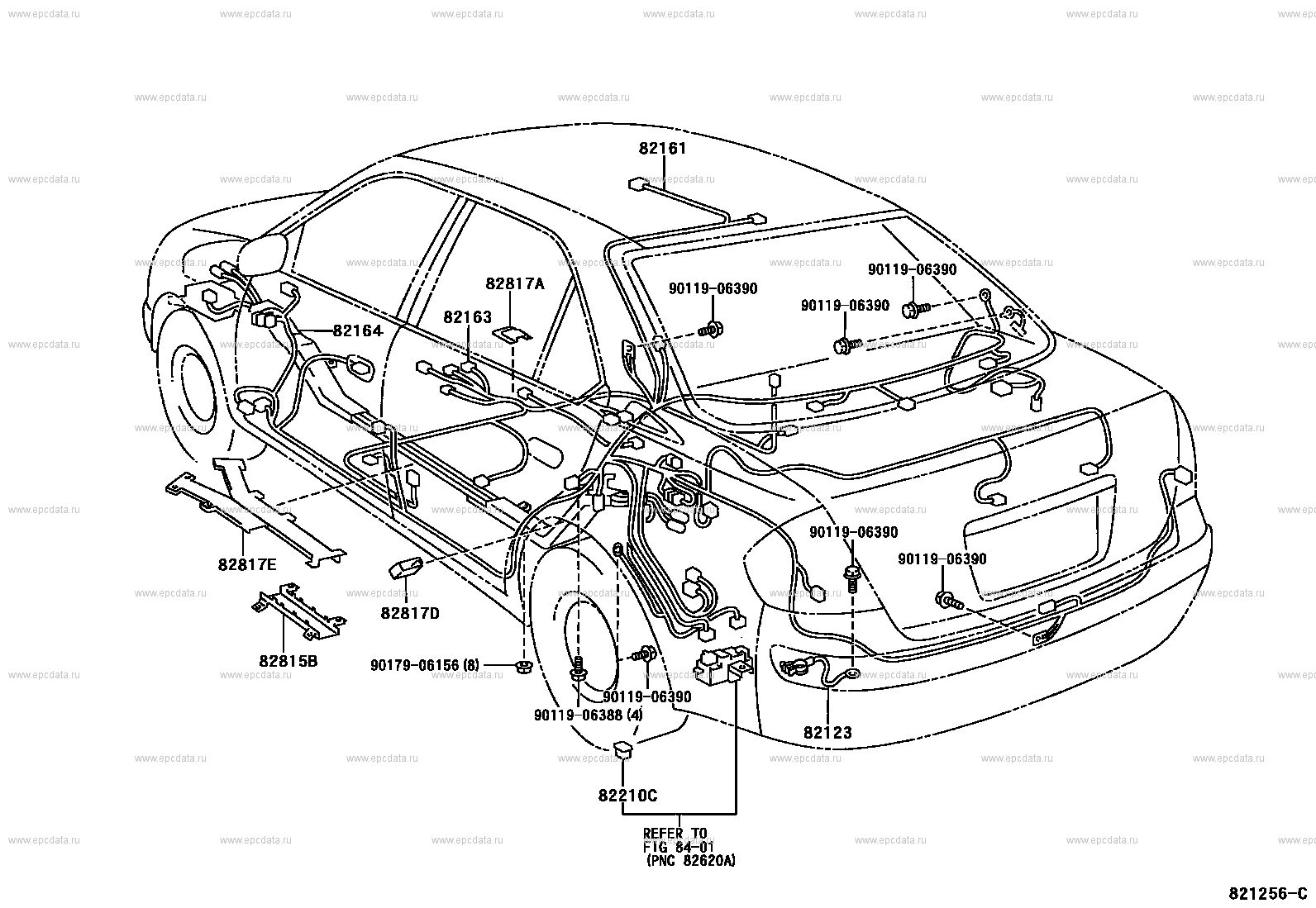

Scheme 6
|
(9712- ) ﾌﾛｱ ILLUST NO. 6 OF 9 |
Click part number in the scheme or in the list: 82161 WIRE, FLOOR9011906390 ** Std Part 82817A PROTECTOR, WIRING HARNESS, NO.2 82163 WIRE, FLOOR, NO.3 82164 WIRE, FRAME 82817E PROTECTOR, WIRING HARNESS, NO.6 82817D PROTECTOR, WIRING HARNESS, NO.5 82815B COVER, WIRING HARNESS PROTECTOR 9017906156 ** Std Part 9011906388 ** Std Part 82123 WIRE, ENGINE, NO.3 82210C FUSIBLE LINK ** 84-01 |

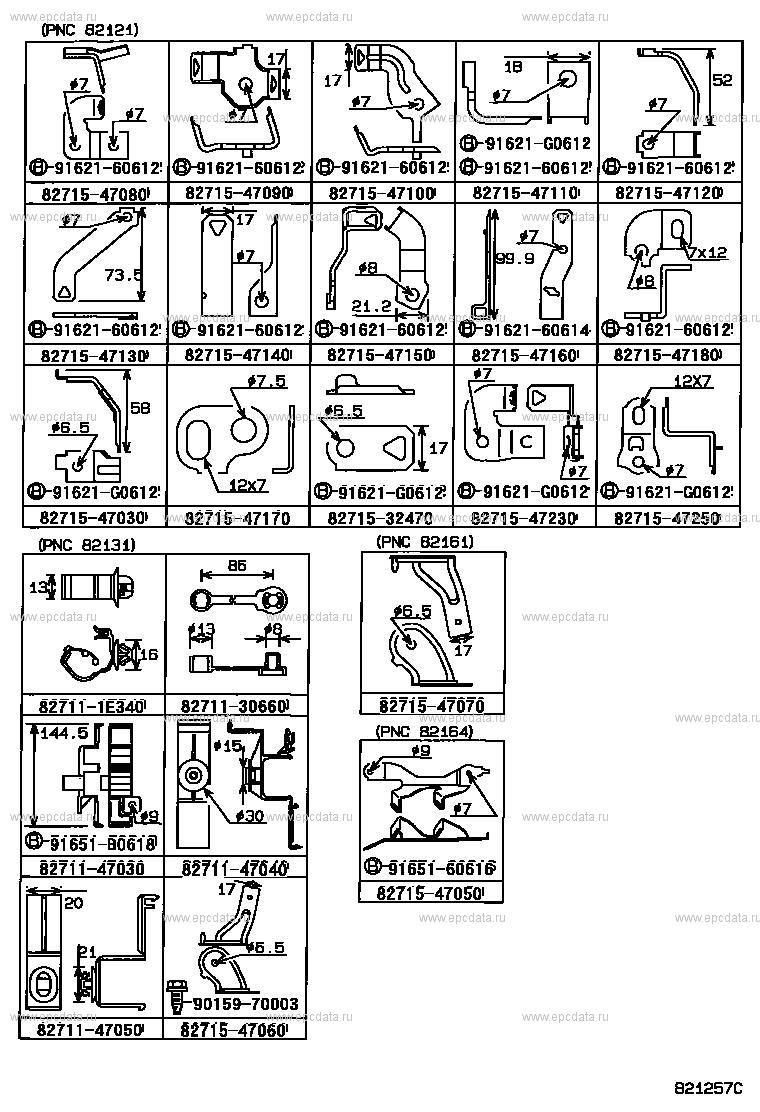

Scheme 7

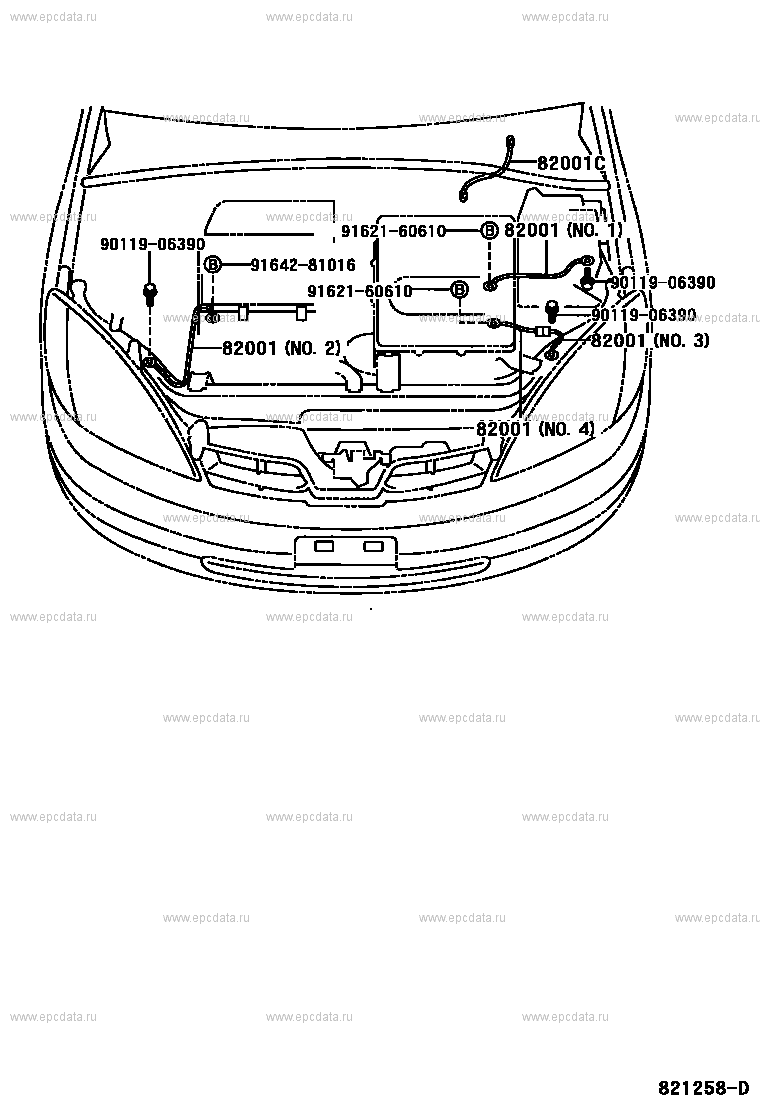

Scheme 8
|
(9712- ) ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ ILLUST NO. 8 OF 9 |
Click part number in the scheme or in the list: 82001C CABLE, BOND, NO.282001 CABLE, BOND, NO.1 9162160610 ** Std Part 9011906390 ** Std Part 9164281016 ** Std Part |
Scheme 9
|
(9712- ) ｺﾈｸﾀ ILLUST NO. 9 OF 9 |
Click part number in the scheme or in the list: 9098011314 ** Std Part9098011162 ** Std Part 9098011011 ** Std Part 9098011019 ** Std Part 9098010619 ** Std Part 9098011148 ** Std Part |
