Mounting for Premio NZT260

Click on the part subgroup below to get genuine part numbers.

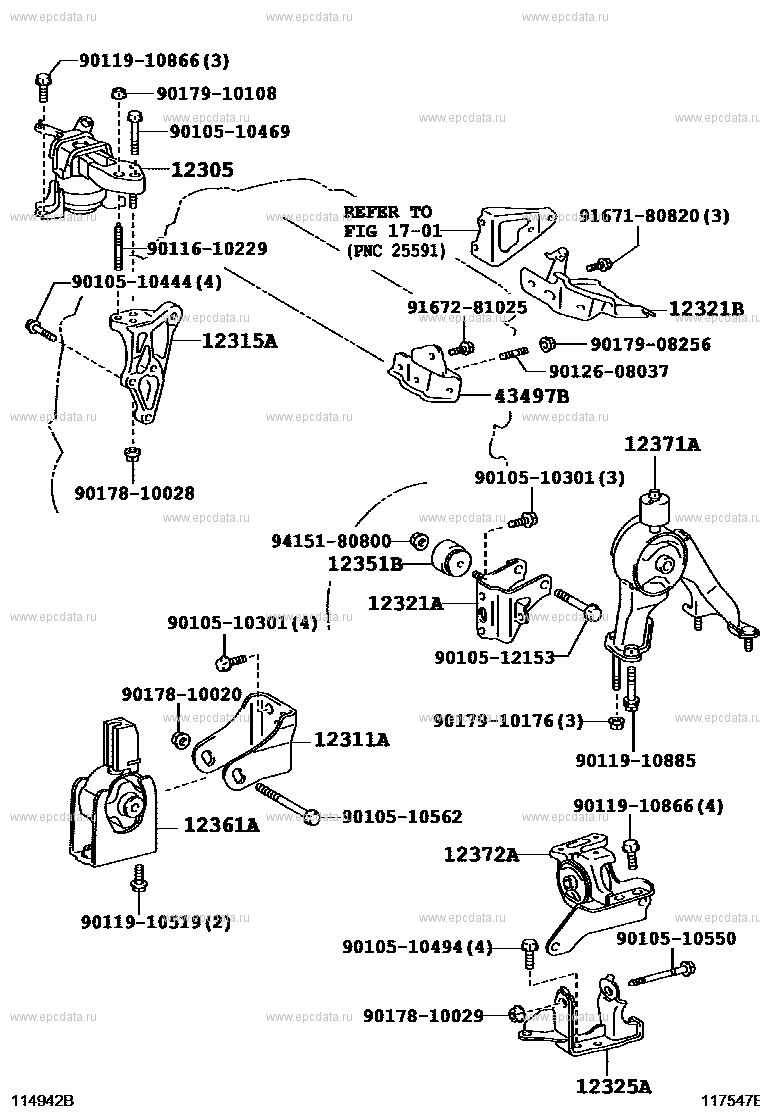

Scheme 1

(0705-1212)1NZFE Open full size scheme Go to top

Click part number in the scheme or in the list: 12321B INSULATOR SUB-ASSY, DRIVE SHAFT HEAT 9017908256 ** Std Part 9012608037 ** Std Part 9167180820 ** Std Part 12311A BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 12361A INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 9010510301 ** Std Part 9010510562 ** Std Part 9011910519 ** Std Part 9017810020 ** Std Part 12321A BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) 12351B DAMPER, ENGINE MOUNTING 12371A INSULATOR, ENGINE MOUNTING, REAR 9011910885 ** Std Part 9017908068 ** Std Part 9017910176 ** Std Part 9010512153 ** Std Part 12325A BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 12372A INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 9010510494 ** Std Part 9010510550 ** Std Part 9011910866 ** Std Part 9017810029 ** Std Part 12315A BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 9010510444 ** Std Part 12305 INSULATOR SUB-ASSY, ENGINE MOUNTING, RH 9017910108 ** Std Part 9010510469 ** Std Part 9011610229 ** Std Part

Scheme 2

(1212- )1NZFE Open full size scheme Go to top

Click part number in the scheme or in the list: 12311A BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 12361A INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 9010510301 ** Std Part 9010510562 ** Std Part 9011910519 ** Std Part 9017810020 ** Std Part 12321A BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) 12351B DAMPER, ENGINE MOUNTING 12371A INSULATOR, ENGINE MOUNTING, REAR 9011910885 ** Std Part 9415180800 ** Std Part 9017910176 ** Std Part 9010512153 ** Std Part 12325A BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 12372A INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 9010510494 ** Std Part 9010510550 ** Std Part 9011910866 ** Std Part 9017810029 ** Std Part 12315A BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 9010510444 ** Std Part 12305 INSULATOR SUB-ASSY, ENGINE MOUNTING, RH 9017810028 ** Std Part 9010510469 ** Std Part 9011610229 ** Std Part 9017910108 ** Std Part ** 17-01 9167180820 ** Std Part 9017908256 ** Std Part 12321B INSULATOR SUB-ASSY, DRIVE SHAFT HEAT 9012608037 ** Std Part 9167281025 ** Std Part 43497B BRACKET, DRIVE SHAFT HEAT INSULATOR

Premio NZT260
