Radiator & water outlet for Pixis Space L575A

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 16331A 16340-B2010 01 09.2011 - 06.2013 THERMOSTAT KFVE..L575,585..PS2  15.02 to 16.37 USD

Click on the part subgroup below to get genuine part numbers.

Scheme 1

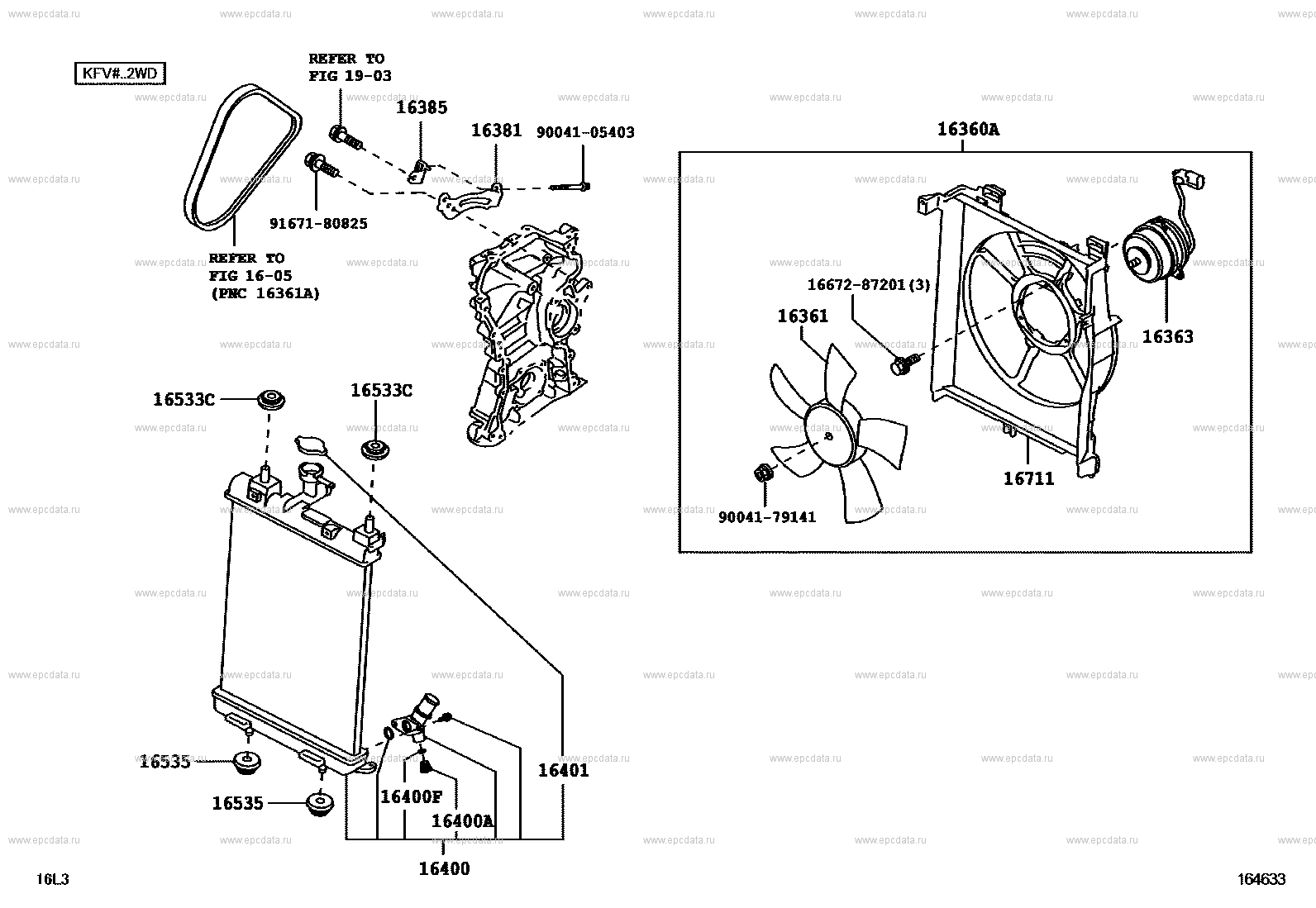

(1109- )KFVE..L575 2WD ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16360A FAN ASSY, W/MOTOR 16381 BAR, FAN BELT ADJUSTING 16385 SLIDER, FAN BELT ADJUSTING 16400 RADIATOR ASSY 16400F PACKING(FOR RADIATOR DRAIN COCK) 16400A COCK SUB-ASSY, RADIATOR DRAIN 16401 CAP SUB-ASSY, RADIATOR 16533C GROMMET(FOR RADIATOR SUPPORT) 16535 SUPPORT, RADIATOR, LOWER 9004105403 ** Std Part 9167180825 ** Std Part ** 16-05 ** 19-03 16361 FAN 16363 MOTOR, COOLING FAN 16711 SHROUD, FAN 1667287201 ** Std Part 9004179141 ** Std Part

Scheme 2

(1109-1306)KFVE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9167180630 ** Std Part 16331A THERMOSTAT 16341 GASKET, WATER OUTLET 16464 BUSH, TANK LOWER 16470 TANK ASSY, RADIATOR RESERVE 16571C HOSE, RADIATOR, NO.1 16571D CLIP, RADIATOR HOSE, NO.1 16572D HOSE, RADIATOR, NO.2 16572E CLIP, RADIATOR HOSE, NO.2 16611 BRACKET, RADIATOR RESERVE TANK 9163160616 ** Std Part ** 87-16 ** 84-01 16341B2040 ** Std Part 16331 OUTLET, WATER 16574A CLIP, RADIATOR HOSE, NO.4 16321 INLET, WATER 16471 CAP SUB-ASSY, RESERVE TANK 9004430318 ** Std Part

Pixis Space L575A
